Selector mechanismfor 4 speed manual gearbox — Mk1 Golf Pedals (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Selector mechanism. for 4-speed manual gearbox

Generation: Mk1 1979 - 1980 (RDW) Group: Pedals Parts: 81 Primary OEM: 803 711 141 0 1C, 191 711 141 0 1C, 161 711 141 0 1C

Selector mechanismfor 4 speed manual gearbox for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 79000 from the Volkswagen ETKA parts catalogue, group 04 Pedals, listing 78 OEM part numbers across 81 catalogued positions including 803 711 141 0 1C, 191 711 141 0 1C and 161 711 141 0 1C. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 78 OEM part numbers across 81 numbered positions.

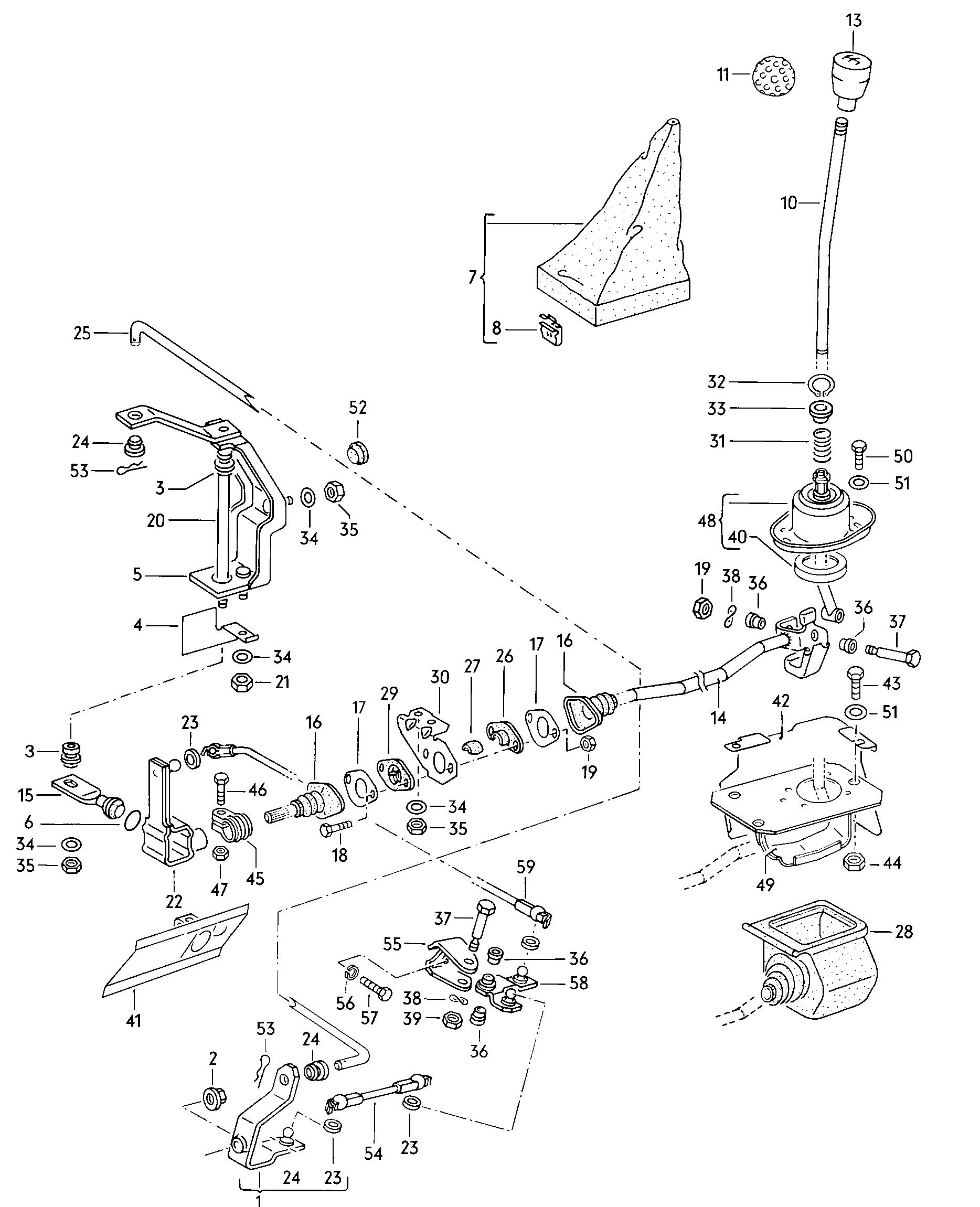

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
Satin black
 803 711 141 0 1C
Satin black
 191 711 141 0 1C
Satin black
 161 711 141 0 1C
saddle brown replacement: 171 711 113 A(8 BM)
171 711 113 A(8 BM)
 171 711 113 A 2 RB
Black
 171 711 113 A 8 BM
-
Cover
 171 711 210
-
repair kit forselector mechanism
 171 798 211
-
poly lubricant 400 G
400 G
 G 052 142 A2
-
molypaste,lubricating paste 400 G
400 G
 AOS 126 000 05
(10)
gearshift lever GOLF;JETTA
 171 711 125 B
(13)
gearstick knob 1-4,R JETTA
1-4,R
 191 711 141
(13)
gearstick knob 1-4,R JETTA
1-4,R
 161 711 141
(15)
relay lever
 171 711 163 E
1
gearshift lever
 171 711 051 C
10
gearshift lever SCIR.
 531 711 125
11
gearstick knob M 12 X 1,5
M 12 X 1,5
 113 711 141 D
13
gearstick knob GOLF,SCIR.
 803 711 141
14
selector shaft
 171 711 151 B
15
relay lever
 171 711 163 D
16
No longer available F >> 15 A 0818 876 F >> 16 A 0618 085 F >> 17 A 0618 085 F >> 53 A 0067 672
 —
16
Protective sleeve F >> 15 A 0818 876 F >> 16 A 0618 085 F >> 17 A 0618 085 F >> 53 A 0067 672
 171 711 167 B
17
retaining plate for boot F >> 15 A 0818 876 F >> 16 A 0618 085 F >> 17 A 0618 085 F >> 53 A 0067 672
 171 711 168
18
Hexagon bolt M 6 X 18
M 6 X 18
 N 010 216 12
19
Hexagon nut M 6
M 6
 N 011 006 24
19
Hexagon nut M 6
M 6
 N 011 006 8
2
Hexagon collar nutself-locking M 8
M 8
 N 909 083 01
2
hexagon nut, self-locking M 8
M 8
 N 902 920 01
20
Deviating shaft
 171 711 173
21
hexagon nut, self-locking M 8
M 8
 N 022 146 4
22
selector lever also use: 171 711 163 E
171 711 163 E
 171 711 177 E
23
seal ring 18 X 6 X 4
18 X 6 X 4
 171 711 965
24
Bearing bush
 171 711 181
25
selector shaft
 171 711 185 B
26
bush F >> 15 A 0818 876 F >> 16 A 0618 085 F >> 17 A 0618 085 F >> 53 A 0067 672
 803 711 191 B
27
bearing shell F >> 15 A 0815 814 F >> 16 A 0618 085 F >> 17 A 0618 085 F >> 53 A 0067 672
 803 711 193 A
28
Protective sleeve also use: 171 711 210
171 711 210
 171 711 195 C
29
bush F >> 15 A 0818 876 F >> 16 A 0618 085 F >> 17 A 0618 085 F >> 53 A 0067 672
 803 711 195 C
29
No longer available F >> 15 A 0818 876 F >> 16 A 0618 085 F >> 17 A 0618 085 F >> 53 A 0067 672
 —
3
Bearing bush
 171 711 067 B
30
bracket for gearshift rod
 171 711 194 G
31
Pressure spring
 431 711 197
32
Securing ring 12 X 1
12 X 1
 N 012 412 1
33
bush
 171 711 217
34
Washer A 8,4
A 8,4
 N 011 525 13
34
Washer A 8,4 X 16 X 1,6
A 8,4 X 16 X 1,6
 N 011 525 20
35
hexagon nut, self-locking M 8
M 8
 N 022 146 4
36
Bearing bush
 171 711 166
37
Locating bolt
 171 711 199 A
38
Spring washer 6
6
 N 012 226 5
39
Hexagon nut M 6
M 6
 N 011 006 24
4
Protective plate
 171 711 081
40
Spacer ring
 171 711 227 A
41
Guard plate GOLF GTI,GLISCIR.S,LSGT,GL,GTI,GLIJETTA LI,GLI
 171 711 222 A
42
Guard plate
 171 711 229 A
43
Hexagon bolt M 6 X 25
M 6 X 25
 N 010 218 6
44
hexagon nut, self-locking M 6
M 6
 N 022 148 1
44
hexagon nut, self-locking M 6
M 6
 N 022 148 11
45
Clamp
 803 711 237 A
46
Hexagon bolt M 8 X 30
M 8 X 30
 N 010 244 16
46
Hexagon bolt M 8 X 30
M 8 X 30
 N 010 244 21
47
Hexagon nut M 8.0
M 8.0
 N 011 008 30
47
Hexagon nut M 8
M 8
 N 011 008 18
48
bearing for gearshift lever
 171 711 247
49
cover plate
 171 711 261 B
5
Bracket
 171 711 083 B
50
Hexagon bolt M 6 X 18
M 6 X 18
 N 010 216 12
51
Washer 6,5
6,5
 N 011 547 6
52
Bungs 19
19
 803 803 583 A
52
Rubber grommet 20 X 14 MM
20 X 14 MM
 283 829 243
53
securing spring
 171 711 561
54
selector rod
 171 711 574 A
55
Bracket
 171 711 583 A
56
spring ring 8
8
 N 012 038 7
56
spring ring 8
8
 N 012 038 8
57
Hexagon bolt M 8 X 18
M 8 X 18
 N 010 239 11
58
Deflection angle
 171 711 586 A
59
selector rod
 171 711 593 D
6
seal ring F >> 179 3199 735 F >> 539 2042 000
 171 711 111
6
No longer available F >> 179 3199 735 F >> 539 2042 000
 —
7
Gearshift lever trim
 171 711 113 A
8
Clip
 171 711 119 A

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these pedals diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk1
Model years
1979 - 1980
Generation region
RDW
Generation code
027
Variant tags
petrol_8v_base
Factory group
04 Pedals
Factory subgroup
79000

Related factory diagrams

Other published pedals plates for the Mk1 Golf in this catalogue.

The complete Mk1 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the selector mechanismfor 4 speed manual gearbox diagram for the Mk1 Golf?
This diagram lists 78 OEM part numbers for the Mk1 Golf. The first three are 803 711 141 0 1C, 191 711 141 0 1C and 161 711 141 0 1C.
Which Mk1 Golf years and engines does this diagram cover?
This plate is from the Mk1 Golf 1979 - 1980 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk1 Golf factory parts catalogue?
The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.
