Selector mechanismfor 5 speed manual transmiss — Mk1 Golf Pedals (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Selector mechanism. for 4-speed manual gearbox

Generation: Mk1 1979 - 1980 (RDW) Group: Pedals Parts: 79 Primary OEM: 191 711 141 B 0 1C, 171 711 113 A 8 BM, 171 711 113 A 2 RB

Selector mechanismfor 5 speed manual transmiss for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 80000 from the Volkswagen ETKA parts catalogue, group 04 Pedals, listing 77 OEM part numbers across 79 catalogued positions including 191 711 141 B 0 1C, 171 711 113 A 8 BM and 171 711 113 A 2 RB. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 77 OEM part numbers across 79 numbered positions.

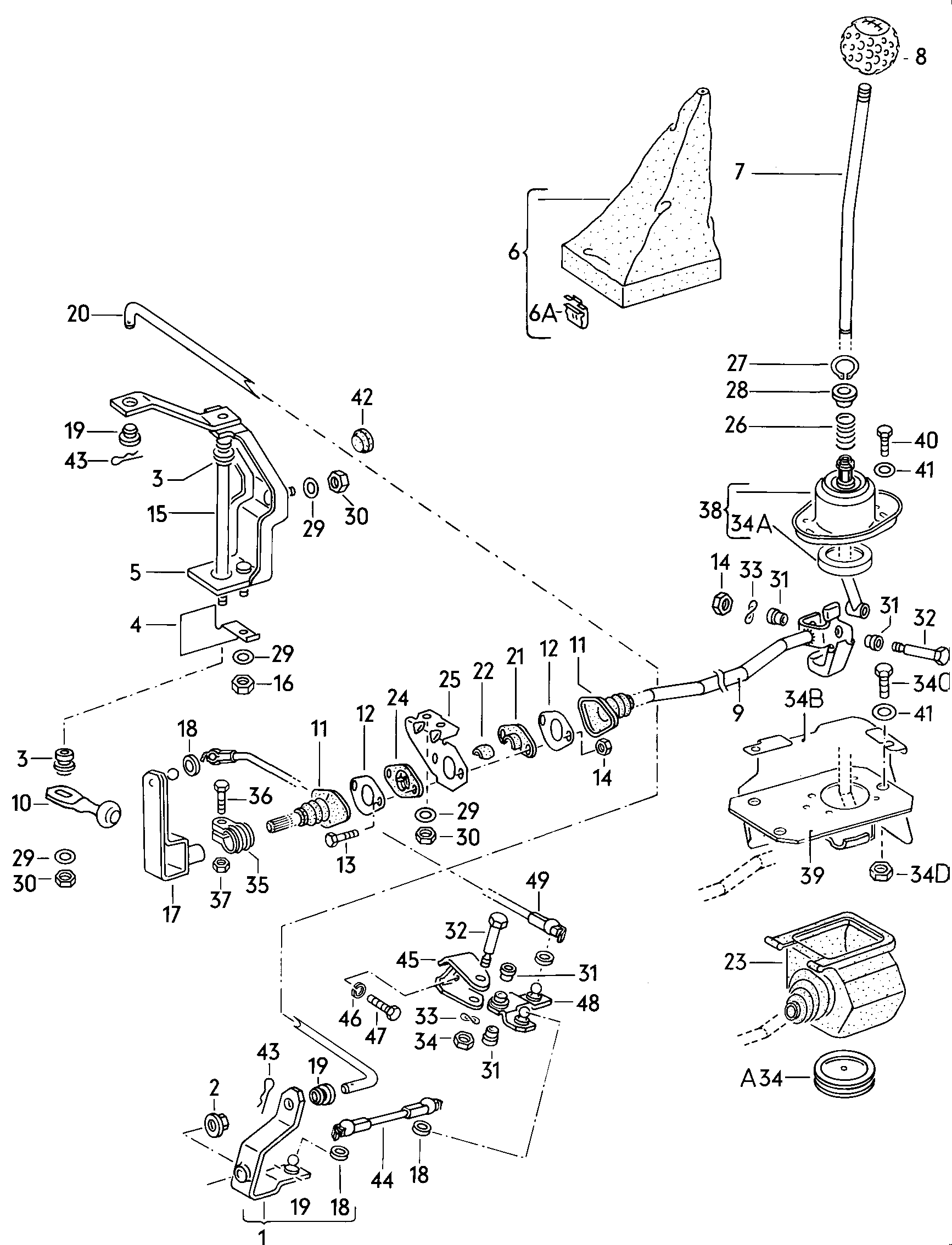

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
Satin black
 191 711 141 B 0 1C
Black
 171 711 113 A 8 BM
saddle brown replacement: 171 711 113 A(8 BM)
171 711 113 A(8 BM)
 171 711 113 A 2 RB
Satin black
 191 711 141 B 0 1C
Satin black
 171 711 141 E 0 1C
Satin black
 171 711 141 E 0 1C
-
molypaste,lubricating paste 400 G
400 G
 AOS 126 000 05
-
repair kit forselector mechanism
 171 798 211
-
poly lubricant 400 G
400 G
 G 052 142 A2
(7)
gearshift lever SCIR.
 531 711 125
(8)
gearstick knob JETTA
 191 711 141 B
1
gearshift lever
 171 711 051 C
10
relay lever
 171 711 163 E
11
No longer available
 —
11
Protective sleeve F >> 15 A 0818 873 F >> 16 A 0618 085 F >> 17 A 0618 085 F >> 53 A 0067 672
 171 711 167 B
12
retaining plate for boot F >> 15 A 0818 873 F >> 16 A 0618 085 F >> 17 A 0618 085 F >> 53 A 0067 672
 171 711 168
13
Hexagon bolt M 6 X 18
M 6 X 18
 N 010 216 12
13
Pressure spring
 431 711 197
14
Hexagon nut M 6
M 6
 N 011 006 24
14
Hexagon nut M 6
M 6
 N 011 006 8
15
Deviating shaft
 171 711 173
16
hexagon nut, self-locking M 8
M 8
 N 022 146 4
17
selector lever
 171 711 177 C
18
seal ring 18 X 6 X 4
18 X 6 X 4
 171 711 965
19
Bearing bush
 171 711 181
2
Hexagon collar nutself-locking M 8
M 8
 N 909 083 01
2
hexagon nut, self-locking M 8
M 8
 N 902 920 01
20
selector shaft
 171 711 185 B
21
bush F >> 15 A 0818 873 F >> 16 A 0618 085 F >> 17 A 0618 085 F >> 53 A 0067 672
 803 711 191 B
22
bearing shell F >> 15 A 0818 873 F >> 16 A 0618 085 F >> 17 A 0618 085 F >> 53 A 0067 672
 803 711 193 A
23
Protective sleeve
 171 711 195 C
24
No longer available
 —
24
bush F >> 15 A 0818 873 F >> 16 A 0618 085 F >> 17 A 0618 085 F >> 53 A 0067 672
 803 711 195 C
25
bracket for gearshift rod
 171 711 194 G
26
Pressure spring
 431 711 197
27
Securing ring 12 X 1
12 X 1
 N 012 412 1
28
bush
 171 711 217
29
Washer A 8,4 X 16 X 1,6
A 8,4 X 16 X 1,6
 N 011 525 20
29
Washer A 8,4
A 8,4
 N 011 525 13
3
Bearing bush
 171 711 067 B
30
hexagon nut, self-locking M 8
M 8
 N 022 146 4
31
Bearing bush
 171 711 166
32
Locating bolt
 171 711 199 A
33
Spring washer 6
6
 N 012 226 5
34
Hexagon nut M 6
M 6
 N 011 006 24
34A
Spacer ring
 171 711 227 A
34B
Guard plate
 171 711 229 A
34C
Hexagon bolt M 6 X 25
M 6 X 25
 N 010 218 6
34D
hexagon nut, self-locking M 6
M 6
 N 022 148 1
34D
hexagon nut, self-locking M 6
M 6
 N 022 148 11
35
Clamp
 803 711 237 A
36
Hexagon bolt M 8 X 30
M 8 X 30
 N 010 244 21
36
Hexagon bolt M 8 X 30
M 8 X 30
 N 010 244 16
37
Hexagon nut M 8.0
M 8.0
 N 011 008 30
37
Hexagon nut M 8
M 8
 N 011 008 18
38
bearing for gearshift lever
 171 711 247
39
cover plate
 171 711 261 C
4
Protective plate
 171 711 081
40
Hexagon bolt M 6 X 25
M 6 X 25
 N 010 218 6
41
Washer 6,5
6,5
 N 011 547 6
42
Bungs 19
19
 803 803 583 A
42
Rubber grommet 20 X 14 MM
20 X 14 MM
 283 829 243
43
securing spring
 171 711 561
44
selector rod
 171 711 574 B
45
Bracket
 171 711 583 A
46
spring ring 8
8
 N 012 038 8
46
spring ring 8
8
 N 012 038 7
47
Hexagon bolt M 8 X 18
M 8 X 18
 N 010 239 11
48
Deflection angle
 171 711 586 A
49
selector rod
 171 711 593 E
5
Bracket
 171 711 083 B
6
Gearshift lever trim
 171 711 113 A
6A
Clip
 171 711 119 A
7
gearshift lever GOLF,JETTA
 171 711 125 B
8
gearstick knob GOLF,SCIR.
 171 711 141 E
8
gearstick knob 1-5,R
1-5,R
 191 711 141 B
8
gearstick knob GOLF,SCIR.
 171 711 141 E
9
selector shaft
 171 711 151 B
A34
Cover
 171 711 210

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these pedals diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk1
Model years
1979 - 1980
Generation region
RDW
Generation code
027
Factory group
04 Pedals
Factory subgroup
80000

Related factory diagrams

Other published pedals plates for the Mk1 Golf in this catalogue.

The complete Mk1 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the selector mechanismfor 5 speed manual transmiss diagram for the Mk1 Golf?
This diagram lists 77 OEM part numbers for the Mk1 Golf. The first three are 191 711 141 B 0 1C, 171 711 113 A 8 BM and 171 711 113 A 2 RB.
Which Mk1 Golf years and engines does this diagram cover?
This plate is from the Mk1 Golf 1979 - 1980 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk1 Golf factory parts catalogue?
The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.
