Selector mechanismfor automatic gearbox — Mk1 Golf Pedals (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - For automatic gearbox. Selector mechanism

Generation: Mk1 1979 - 1980 (RDW) Group: Pedals Parts: 41 Primary OEM: 533 863 215 0 1C, 171 863 215 A 0 1C, 321 863 277 A 0 1C

Selector mechanismfor automatic gearbox for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 81000 from the Volkswagen ETKA parts catalogue, group 04 Pedals, listing 41 OEM part numbers including 533 863 215 0 1C, 171 863 215 A 0 1C and 321 863 277 A 0 1C. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 41 OEM part numbers across 41 numbered positions.

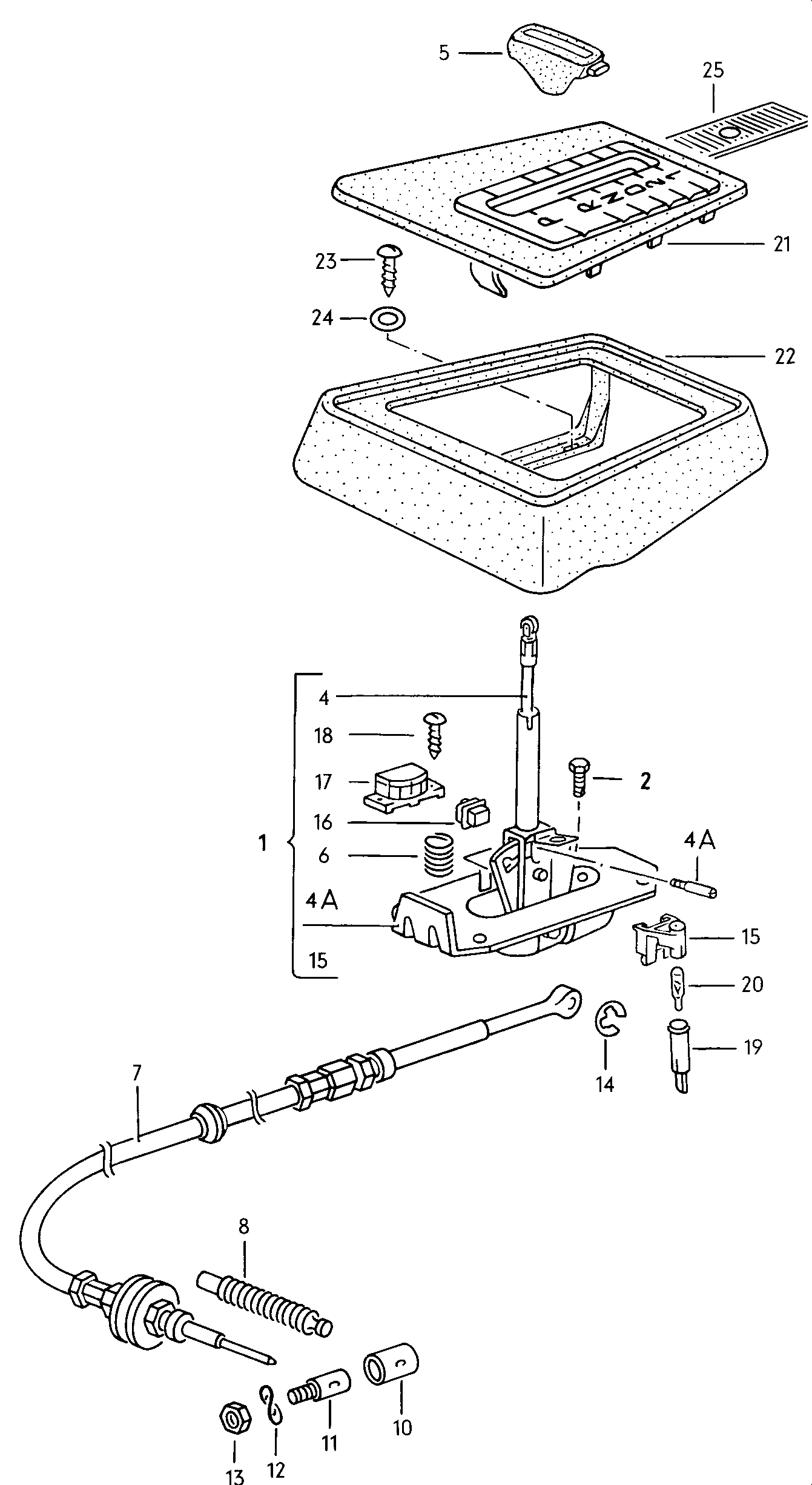

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Satin black	533 863 215 0 1C
	Satin black	171 863 215 A 0 1C
	Satin black GOLF:SCIR.,	321 863 277 A 0 1C
	Satin black	447 713 139 A 0 1C
	Satin black	321 863 277 0 1C
	saddle brown	171 863 275 E 9 0V
	Satin black	171 863 275 E 0 1C
	saddle brown	171 863 215 A 9 0V
-	Flat contact housing	191 906 231 A
(1)	Selector mechanism Air cond.+SCIR.GL,GT,GTE,GLE	531 713 025 B
(25)	cover strips JETTA	321 863 277 A
(4)	gearshift lever Air cond.+SCIR.GL,GT,GTE,GLE	321 713 121 A
1	Selector mechanism	171 713 025 C
10	Clamping sleeve	311 713 291 A
11	Clamping bolt	311 713 293
12	Spring washer B 8 X 15 X 0,8 B 8 X 15 X 0,8	N 012 241 11
12	Spring washer B 8 X 15 B 8 X 15	N 012 241 10
13	Hexagon nut BM 8 BM 8	N 011 118 11
13	Hexagon nut M 8 M 8	N 011 118 16
14	Retaining washer 4 4	N 012 434 2
15	Bulb carrier with bulb also use: 191 906 231 A 191 906 231 A	321 927 149
16	contacts	171 927 145 A
17	contact carrier	311 927 147 B
18	oval head panel screw 4,8 X 13 4,8 X 13	N 013 968 1
19	Bulb holder	111 919 243
2	Hexagon bolt M 6 X 18 M 6 X 18	N 010 216 12
20	bulb W 5/1,2 W 12 V 1,2 W W 5/1,2 W 12 V 1,2 W	N 017 751 2
21	trim for shift mechanismwith cover strip	171 863 215 A
21	Trim for gear selector	533 863 215
22	Gear shift cover	171 863 275 E
22	Gear shift cover	171 863 275 E
23	oval head panel screw ST 4,8 X 16,0 ST 4,8 X 16,0	N 013 969 4
24	Washer 5 5	N 011 523 18
24	Washer A 5,3 X 10 X 1 A 5,3 X 10 X 1	N 011 523 7
25	cover strips GOLF;SCIR.	321 863 277
4	gearshift lever	171 713 121
4A	Cylinder pin	171 713 133
5	selector lever handle	447 713 139 A
6	Pressure spring	171 713 149
7	cable for shift mechanism	171 713 265 C
8	Bellows	311 713 269 B
