Rear axle beamsuspension anti roll bar — Mk1 Golf Rear Axle (1977 - 1978)

Factory title: Volkswagen Golf (1977 - 1978) - Rear axle beam. Anti-roll bar. suspension

Generation: Mk1 1977 - 1978 (RDW) Group: Rear axle Rebuild step 3 Parts: 72 Primary OEM: 531 511 105 A 9 52, 171 500 031 K, 191 598 625

Rear axle beamsuspension anti roll bar for the Volkswagen Golf Mk1 (1977 - 1978): factory exploded diagram 38000 from the Volkswagen ETKA parts catalogue, group 03 Rear axle, listing 69 OEM part numbers across 72 catalogued positions including 531 511 105 A 9 52, 171 500 031 K and 191 598 625. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 69 OEM part numbers across 72 numbered positions.

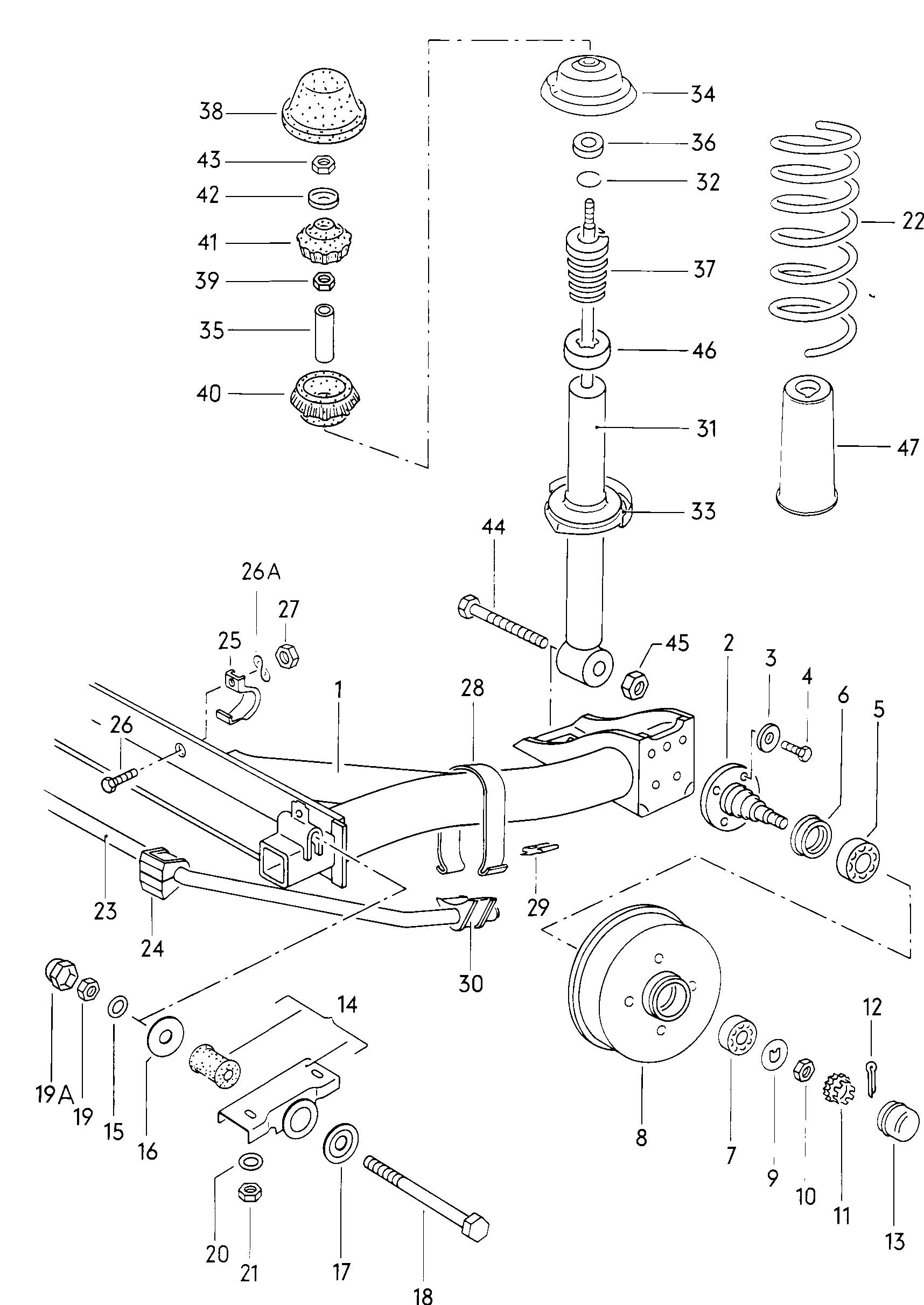

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	2 paint marksto use for:yellow paint marks GELB 1,2 GELB 1,2	531 511 105 A 9 52
-	rear axle complete withbrake drums and brake cables	171 500 031 K
-	Wheel bearing with assemblyparts	191 598 625
(22)	Coil springto use for:blue paint marks 1,2 GOLF 1,2	171 511 105 H
(22)	Coil spring GOLF GTI;SCIR.	531 511 105 A
(22)	Coil spring GOLF:Local deliv.van	171 511 105 J
(31)	Shock absorbers, reinforced also use: >>177 3800000 >>537 2500000171 512 135 >>177 3800000 >>537 2500000171 512 135	171 513 033 Q
(31)	Shock absorbers also use: >>177 3800000 >>537 2500000171 512 135 >>177 3800000 >>537 2500000171 512 135	171 513 033 R
(33)	spring disc	893 512 103 B
(35)	spacer sleeve F 178 3000 001>>F 538 2000 001>> 178 3000001>> 178 3000001>>	171 512 117
(37)	Stop buffer 89 MM 89 MM	171 512 131 B
(40)	bearing ring F 178 3000 001>>F 538 2000 001>>	171 512 333
(41)	bearing ring F 178 3000 001>>F 538 2000 001>>	171 512 335
(8)	brake drum 200 X 40 -4/100 "S.." 200 X 40 -4/100	191 501 615 A
(8)	brake drum 200 X 40 -4/100 "S.." 200 X 40 -4/100	1H0 501 615 A
1	rear axle beam	171 500 051 C
10	Hexagon nut M 16 X 1 M 16 X 1	N 011 167 1
11	Crown bracing	803 501 221
12	split pin 4 X 30 4 X 30	N 012 536 1
13	Cap	823 501 249
14	rear axle bearing	171 501 537 B
15	Washer 12,2 X 22 X 4 12,2 X 22 X 4	171 501 542
16	Washer 12,3 X 52 X 3 12,3 X 52 X 3	171 501 543
17	Cup washer	171 501 548
18	Hexagon bolt M 12 X 1,50 X 148 M 12 X 1,50 X 148	N 040 157 3
19	hexagon nut, self-locking M 12 X 1,5 M 12 X 1,5	N 022 141 4
2	stub axle 6-LOCH 6-LOCH	357 501 117
2	stub axle	357 501 117 A
20	Washer	211 415 939
21	hexagon nut, self-locking M 10 M 10	N 900 876 02
21	hexagon nut, self-locking M 10 M 10	N 102 090 05
22	Coil springfor heavy-duty shock absorbersto use for:white paint marks 1,2,3 1,2,3	171 511 105 C
23	Anti-roll bar 20,5 MM GOLF GTI,SCIR.GTI,GLI 20,5 MM	171 511 409
24	Rubber bush	171 511 413
25	Clamp	171 511 417
26	bolt, hexagon headself-locking M 8 X 20 M 8 X 20	N 010 240 22
26A	Spring washer B 8 X 15 B 8 X 15	N 012 241 10
26A	Spring washer B 8 X 15 X 0,8 B 8 X 15 X 0,8	N 012 241 11
27	Hexagon nut M 8 M 8	N 011 008 8
28	Clamp	171 511 433
29	angled bracket	171 511 453
3	Belleville spring	321 501 119 A
30	Rubber bush	171 511 437
31	Shock absorbers also use: >>177 3800000 >>537 2500000171 512 135 >>177 3800000 >>537 2500000171 512 135	171 513 033 P
32	snap ring	8D0 512 097
32	snap ring	823 512 097
33	spring disc 73,8 MM 73,8 MM	171 512 102
34	spring disc	823 512 113
35	spacer sleeve F >> 177 3800 000 F >> 537 2500 000	823 512 117
35	No longer available	—
36	ring 4,1 X 20 X 11,1 4,1 X 20 X 11,1	191 512 119
37	Stop buffer 71 MM 71 MM	171 512 131 A
38	Cover cap 178 3000001>> 178 3000001>>	171 512 135
39	Hexagon nut M 10 X 1 M 10 X 1	N 011 011 5
4	Hexagon bolt M 10 X 24,5 M 10 X 24,5	N 903 698 01
40	bearing ring F >> 177 3800 000 F >> 537 2500 000	823 512 333
40	No longer available	—
41	No longer available	—
41	bearing ring F >> 177 3800 000 F >> 537 2500 000	823 512 335
42	disc	171 512 337
43	Hexagon nut M 10 X 1 M 10 X 1	N 011 157 1
43	Hexagon nut M 10 X 1 M 10 X 1	N 103 286 02
44	Hexagon bolt M 10 X 70 M 10 X 70	N 010 470 7
45	hexagon nut, self-locking M 10 M 10	N 900 876 02
45	hexagon nut, self-locking M 10 M 10	N 102 090 05
47	protective pipe 110 MM 110 MM	171 513 425
5	Taper roller bearing 29 X 50,29 X 14,73 29 X 50,29 X 14,73	311 405 625 E
5	Taper roller bearing 29 X 50,29 X 14,73 29 X 50,29 X 14,73	311 405 625 F
6	Shaft oil seal	357 501 641 B
7	Taper roller bearing 39 MM 39 MM	311 405 645
8	brake drum 180 X 30 -4/100 180 X 30 -4/100	191 501 615 B
9	pressure washer	311 405 661
