Window lifter guide channels window slot seal door rear — Mk1 Golf Rear Door (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Window lifter, guide channels, window slot seal for door

Generation: Mk1 1979 - 1980 (RDW) Group: Rear door Parts: 36 Primary OEM: 321 837 581 A 0 1C, 111 837 595 A 0 1C, 321 837 581 0 1C

Window lifter guide channels window slot seal door rear for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 113000 from the Volkswagen ETKA parts catalogue, group 36 Rear door, listing 35 OEM part numbers across 36 catalogued positions including 321 837 581 A 0 1C, 111 837 595 A 0 1C and 321 837 581 0 1C. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 35 OEM part numbers across 36 numbered positions.

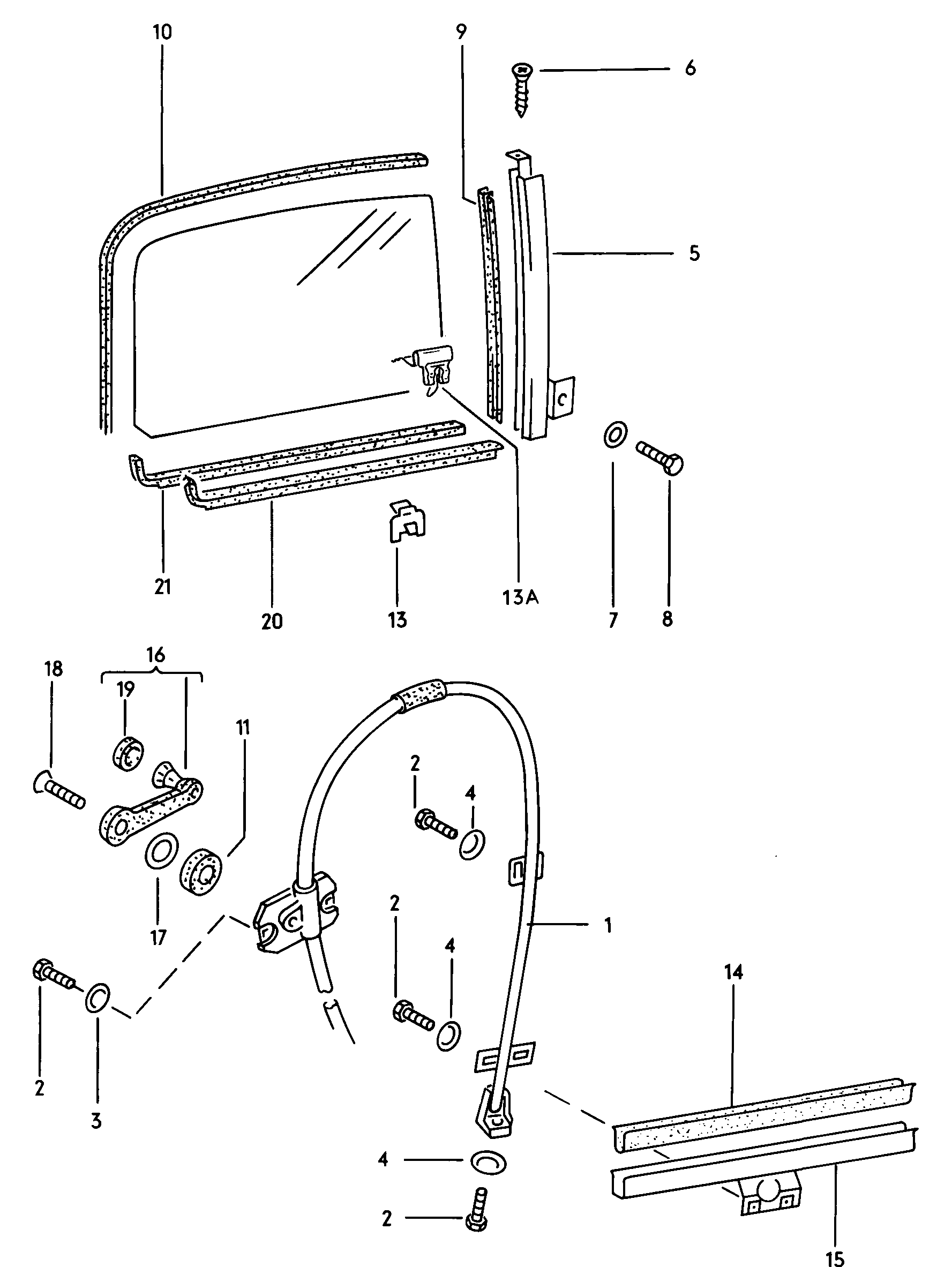

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Satin black JETTA GL,GLS	321 837 581 A 0 1C
	Satin black	111 837 595 A 0 1C
	Satin black D,LD,E,LE,GTI;JETTA,S,L,LILS,E,LE	321 837 581 0 1C
	ivy (green)	321 837 581 A 6 6W
	ivy (green) GLI,GLE	825 837 599 6 6W
	saddle brown GLI,GLE	321 837 581 A 9 0V
(1)	Window regulator	173 839 402
(10)	Window guide GOLF L,LS,GL,GLS,LD,GLD,LE,GLE,MX	171 837 439 G
(16)	window crank GOLF,S,L,LS,	321 837 581
(19)	cap for window crank GOLF GL,GLS,	825 837 599
(20)	Window aperture sealfor models with moldings GOLF L,LS,GL,GLS,LD,GLD,LE,GLE,MX	255 837 703
(21)	Window aperture seal GOLF,S,D,E,GTI; JETTA	251 837 703
(5)	Guide rail	173 839 412
1	Window regulator	173 839 401
10	Window guide GOLF,S,D,E,GTI;JETTA	171 837 439 D
11	Seal	411 837 447
13	Clip JETTA,S,L,LSLI,E,LE;GOLF	171 837 485
13A	Clip JETTA GL,GLS,GLI,GLE	161 837 485
14	seal for lift channel	831 837 565
15	Lift rail	171 837 571 A
16	Window crank with decorativeinlay GOLF GL,GLS,GLD,GLE;	321 837 581 A
17	Underlay	111 837 595 A
18	oval head countersunk bolt M 5 X 10 M 5 X 10	N 014 264 3
2	Hexagon bolt M 6 X 10 M 6 X 10	N 905 293 01
2	Hexagon bolt M 6 X 10 K M 6 X 10 K	N 010 210 7
20	Window aperture sealfor models with moldings GOLF L,LS,GL,GLS,LD,GLD,LE,GLE,MX	255 837 704
21	Window aperture seal GOLF,S,D,E,GTI; JETTA	251 837 704
3	Belleville spring 6,4 X 12,5 6,4 X 12,5	111 837 941
4	Belleville spring 6,4 X 18 6,4 X 18	311 837 943
5	Guide rail	173 839 411
5	No longer available	—
6	oval head panel screw 4,2 X 9,5 4,2 X 9,5	N 013 965 5
7	Belleville spring 6,4 X 18 6,4 X 18	311 837 943
8	Hexagon bolt M 6 X 10 K M 6 X 10 K	N 010 210 7
8	Hexagon bolt M 6 X 10 M 6 X 10	N 905 293 01
9	Window guide shorten to: 840 MM 680 MM 840 MM 680 MM	171 837 433 A
