Floor assembly — Mk1 Golf Underbody (1979 - 1980)
Factory title: Volkswagen Golf (1979 - 1980) - Floor assembly

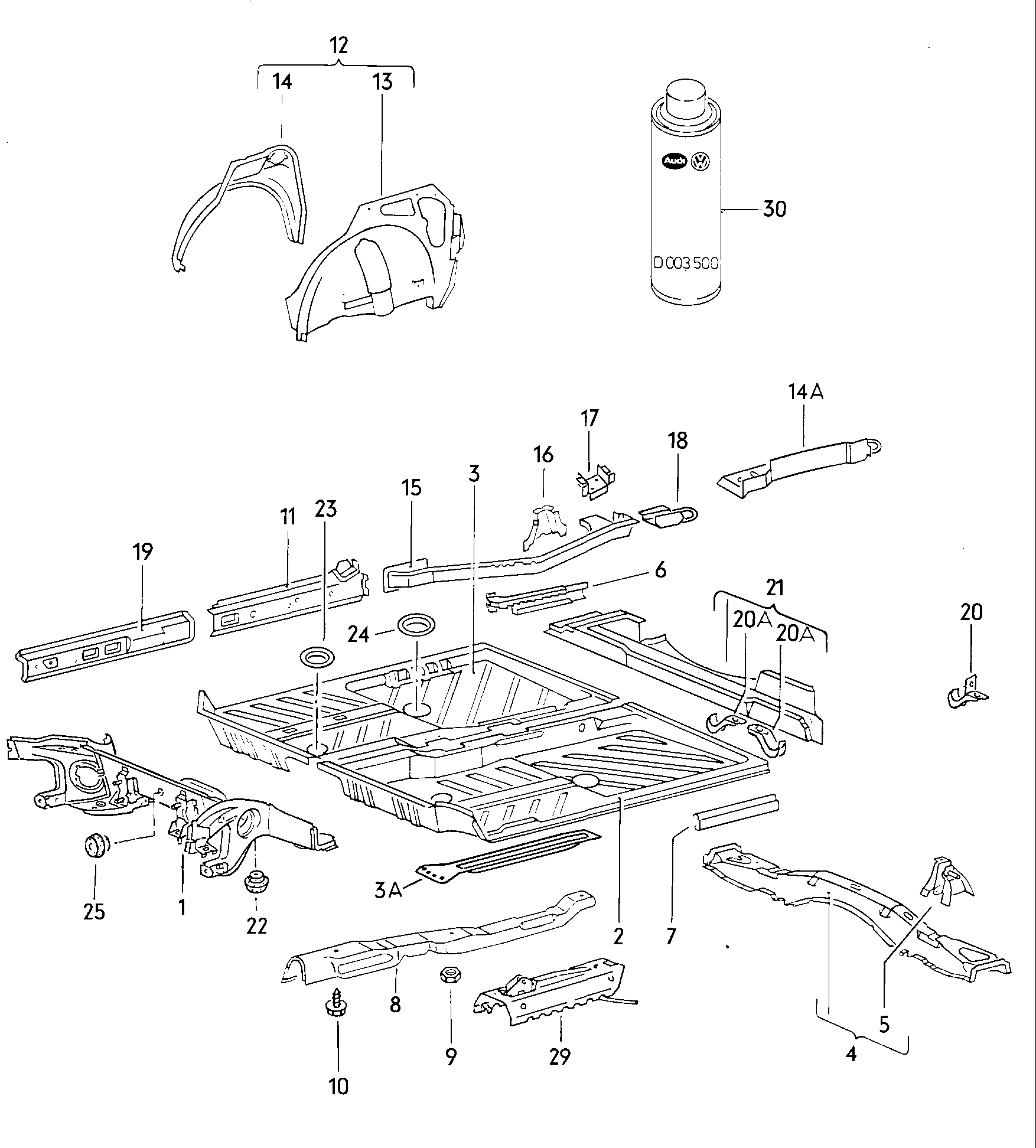

Floor assembly for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 90000 from the Volkswagen ETKA parts catalogue, group 38 Underbody, listing 67 OEM part numbers across 69 catalogued positions including 171 803 133 B, 171 813 171 and 171 803 127 C. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.
Parts on this diagram
This Mk1 Golf plate lists 67 OEM part numbers across 69 numbered positions.
| № | Description | Part number |
|---|---|---|
| Heat insulation for floor For vehicles with retrofittedexhaust gas treatment system F 53-A-000 001>> SCIR.:JB | — | |
| - | bracket for steeringgear | 171 803 133 B |
| - | Bracket | 171 813 171 |
| - | bracket for steeringgear | 171 803 127 C |
| - | spring ring 5 5 | N 012 025 1 |
| - | Hexagon bolt M 5 X 15 M 5 X 15 | N 010 280 2 |
| - | rivetted cap nut M 5 X 0,5-2 M 5 X 0,5-2 | N 902 388 01 |
| - | Pop rivet A 4,8 X 6,5 X 22 A 4,8 X 6,5 X 22 | N 902 614 01 |
| - | nut,thread cutting 5 5 | N 038 601 1 |
| - | spring ring 8 8 | N 012 038 8 |
| - | spring ring 8 8 | N 012 038 7 |
| - | Washer B 6,1 X 18 X 2 B 6,1 X 18 X 2 | N 011 666 10 |
| - | Washer 6,4 X 18 X 1,6 6,4 X 18 X 1,6 | N 011 666 15 |
| - | hexagon nut, self-locking M 6 M 6 | N 011 183 11 |
| - | hexagon nut, self-locking M 6 M 6 | N 011 183 12 |
| - | Hexagon bolt M 8 X 15 M 8 X 15 | N 010 238 18 |
| - | Heat shield | 155 803 310 |
| - | Heat insulation for floor | 171 803 309 J |
| (11) | Side member | 171 803 406 C |
| (12) | Wheel housing F >> 179 3750 000 | 171 803 422 K |
| (12) | Wheel housing GOLF | 171 803 421 L |
| (13) | Wheel housing liner F 17 A 0000 001>> 179 3361 000 | 171 803 426 E |
| (13) | Wheel housing liner JETTA | 161 803 421 |
| (13) | Wheel housing liner JETTA | 161 803 422 |
| (13) | Wheel housing liner | 171 803 425 F |
| (14) | Wheel housing liner | 155 803 435 A |
| (14A) | Cross panel for sidemember JETTA | 161 803 491 |
| (15) | Side member F >> 179 3750 000 | 171 803 502 E |
| (15) | Side member | 171 803 501 H |
| (19) | side member | 533 809 511 |
| (21) | Cross member | 171 803 531 B |
| (29) | Bearing bracket for handbrakelever | 171 711 281 K |
| (3A) | Side member for floor panel | 171 803 210 B |
| (4) | Seat cross member withoutbearing brackets also use: 443 803 241443 803 242 443 803 241443 803 242 | 171 803 232 |
| (5) | bracket for seat also use: 435 881 203 A 435 881 203 A | 443 803 241 |
| (6) | Guide rail | 1H0 803 258 A |
| (6) | Guide rail | 443 803 258 A |
| (6) | Guide rail | 443 803 257 A |
| (6) | Guide rail | 1H0 803 257 A |
| (7) | Guide rail | 443 803 253 |
| (8) | Heat insulation for floor "J.." | 171 803 309 J |
| 1 | Cross member with enginemount | 171 803 141 G |
| 10 | hex. hd. self-tap bolt (combi) 6,5 X 21,5 6,5 X 21,5 | 311 821 143 |
| 11 | Side member | 171 803 405 C |
| 12 | Wheel housing F 17 A 0000 001>> | 171 803 422 L |
| 13 | Wheel housing liner F 179 3361 001>> | 171 803 426 F |
| 14 | Wheel housing liner | 155 803 436 E |
| 14 | Wheel housing liner | 155 803 436 A |
| 14A | Cross panel for sidemember JETTA | 161 803 492 |
| 15 | Side member F 17 A 0000 001>>F 16 A 0000 001>> | 171 803 502 H |
| 16 | Exterior insert plate forside member F >> 179 3750 000 | 171 803 489 |
| 17 | Interior insert plate forside member F >> 179 3750 000 | 171 803 510 |
| 18 | Tow hitch GOLF | 171 803 612 |
| 19 | side member | 533 809 512 |
| 2 | Bottom plate | 171 803 207 |
| 20 | bracket for exhaust silencer | 171 803 521 |
| 20A | bracket for exhaust silencer | 171 813 175 |
| 21 | Cross member F 17 A 0000 001>>F 16 A 0000 001>> | 161 803 531 |
| 21 | No longer available F 17 A 0000 001>>F 16 A 0000 001>> | — |
| 22 | Bungs 19 19 | 803 803 583 A |
| 22 | Rubber grommet 20 X 14 20 X 14 | 283 829 243 |
| 23 | Cover 110 110 | 411 803 597 |
| 24 | Cover 136 MM 136 MM | 411 803 595 |
| 25 | Bungs 20 MM 20 MM | 411 963 259 |
| 3 | Bottom plate | 171 803 208 |
| 30 | Permanent underbody protection | D 003 500 |
| 3A | Side member for floor panel | 171 803 209 A |
| 5 | bracket for seat also use: 435 881 203 A 435 881 203 A | 443 803 242 |
| 9 | nut,thread cutting 5 5 | N 038 601 1 |
From the Type 19 workshop
Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these underbody diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk1
- Model years
- 1979 - 1980
- Generation region
- RDW
- Generation code
- 027
- Factory group
- 38 Underbody
- Factory subgroup
- 90000
