2006 disc brake — Mk4 Golf Brake (2003 - 2004)
Factory title: Volkswagen Golf/Golf R32 (2003 - 2006) - Disc brake

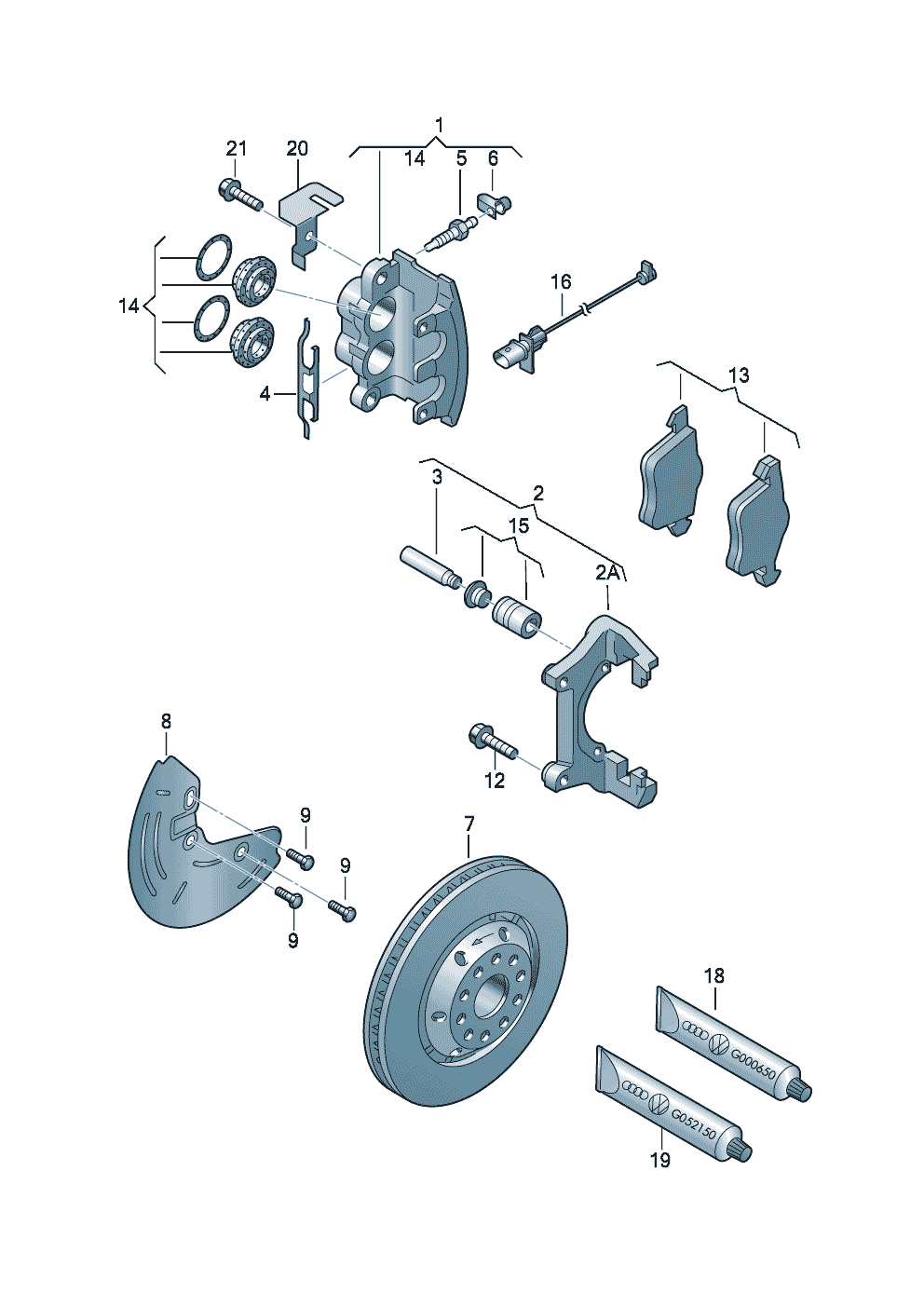

2006 disc brake for the Volkswagen Golf Mk4 (2003 - 2004): factory exploded diagram 615045 from the Volkswagen ETKA parts catalogue, group 20 Brake, listing 24 OEM part numbers across 25 catalogued positions including N 106 483 01, 1J0 615 124 E and 1J0 615 126. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.
Parts on this diagram
This Mk4 Golf plate lists 24 OEM part numbers across 25 numbered positions.
| № | Description | Part number |
|---|---|---|
| Disc brake for version: frontblue PR:1 ZT frontblue | — | |
| - | Hex socket countersunk bolt M 6 X 16 M 6 X 16 | N 106 483 01 |
| (1) | Brake caliper housing | 1J0 615 124 E |
| (2) | brake carrier withpad retaining pin | 1J0 615 126 |
| (7) | Brake disc (vented) 334 X 32 334 X 32 | 1J0 615 302 A |
| (8) | Cover plate for brake disc | 8N0 615 312 C |
| (8) | Cover plate for brake disc | 1J0 615 312 E |
| 1 | Brake caliper housing | 1J0 615 123 E |
| 12 | ribbed bolt M 12 X 1,5 X 35 M 12 X 1,5 X 35 | N 907 085 02 |
| 12 | Hex collared bolt M 12 X 1,5 X 35 M 12 X 1,5 X 35 | N 907 085 04 |
| 13 | 1 set of brake pads fordisk brake | 8D0 698 151 D |
| 14 | Set of gaskets for brakecaliper housing | 8D0 698 471 |
| 15 | 1 set: guide bushes | 8D0 698 647 |
| 16 | sender wire(pad wear indicator) | 1J0 615 121 |
| 18 | Solid lubricant paste 100 G 100 G | G 000 650 |
| 19 | Lithium lubricating grease 180 G 180 G | G 052 150 A2 |
| 2 | brake carrier withpad retaining pin | 1J0 615 125 B |
| 3 | guide pin | 251 615 219 |
| 4 | retaining spring | 8D0 615 269 |
| 5 | Breather valve M 7 M 7 | 8D0 615 273 |
| 6 | dust cap | 7D0 611 483 |
| 7 | Brake disc (vented) 334 X 32 334 X 32 | 1J0 615 301 AA |
| 8 | Cover plate for brake disc | 1J0 615 311 E |
| 8 | Cover plate for brake disc | 8N0 615 311 C |
| 9 | Hex collared bolt M 6 X 10 M 6 X 10 | N 903 053 02 |
From the Type 19 workshop
Volkswagen Golf Mk4 work in the Type 19 workshop — the same cars these brake diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk4
- Model years
- 2003 - 2004
- Generation region
- MEX, RDW
- Generation code
- 405
- Factory group
- 20 Brake
- Factory subgroup
- 615045
