Mk4 Golf Master Parts Catalogue
Clearpay Or 4 interest-free payments of
More VW factory parts catalogues
Sample pages — preview before you buy

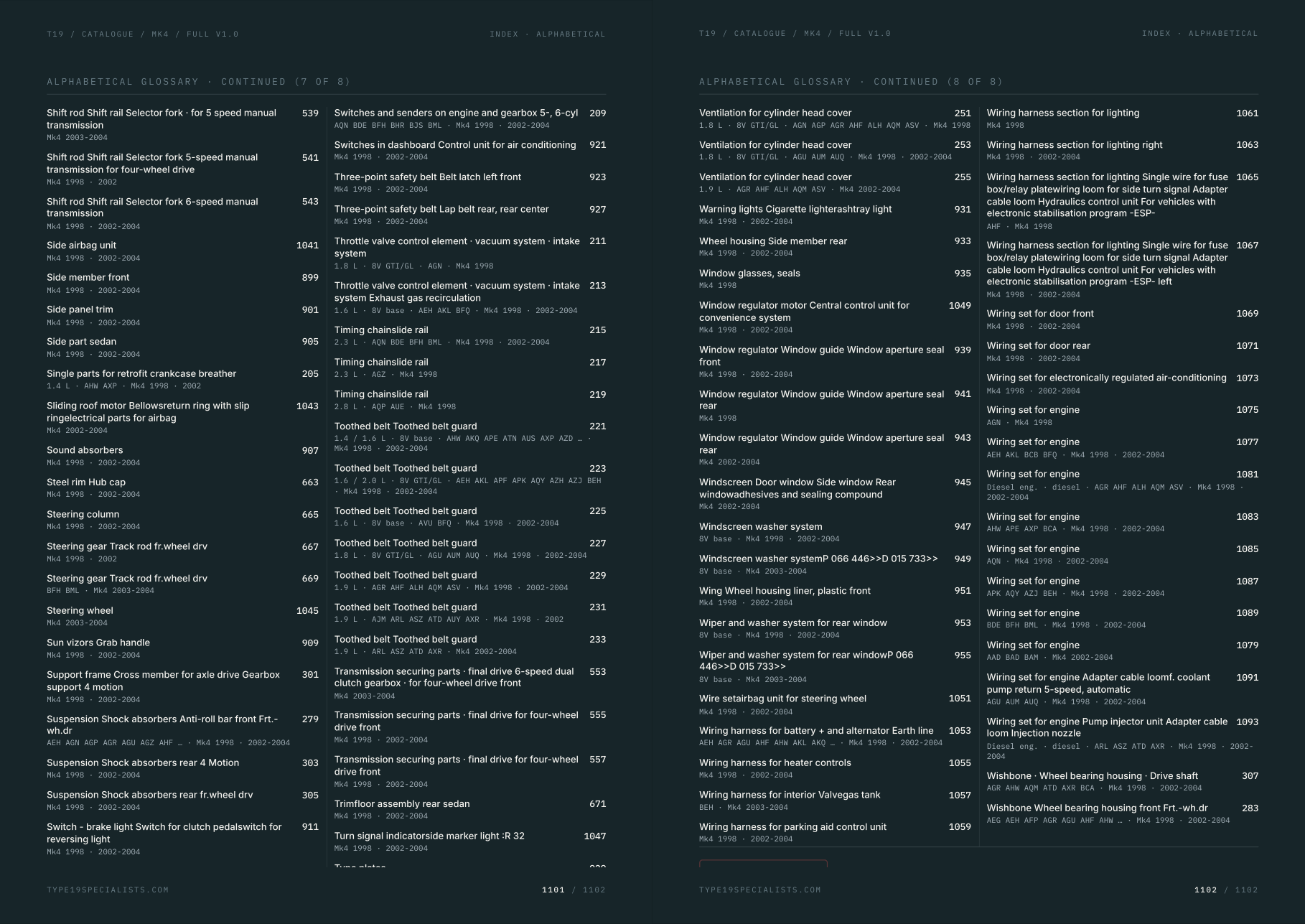

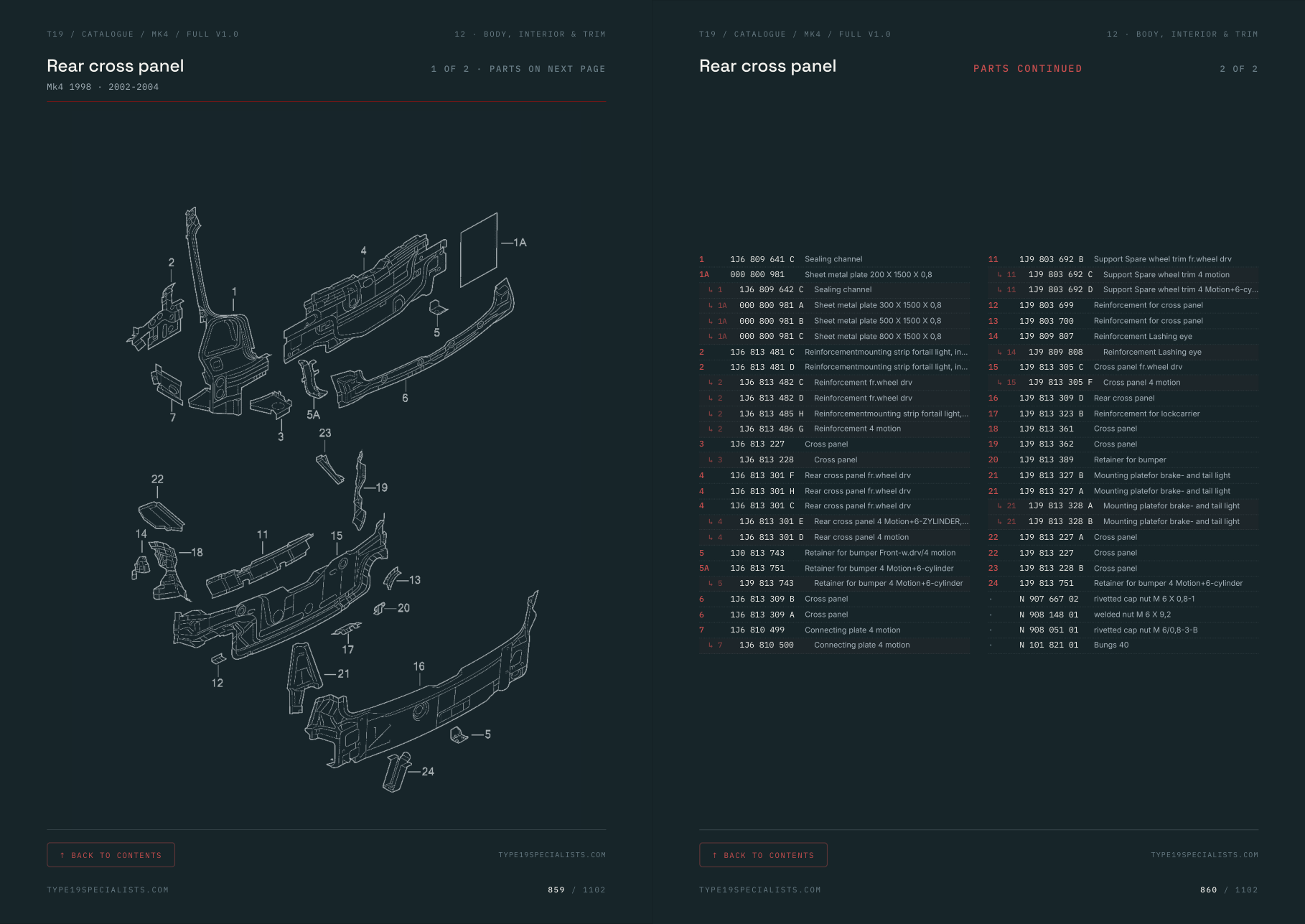

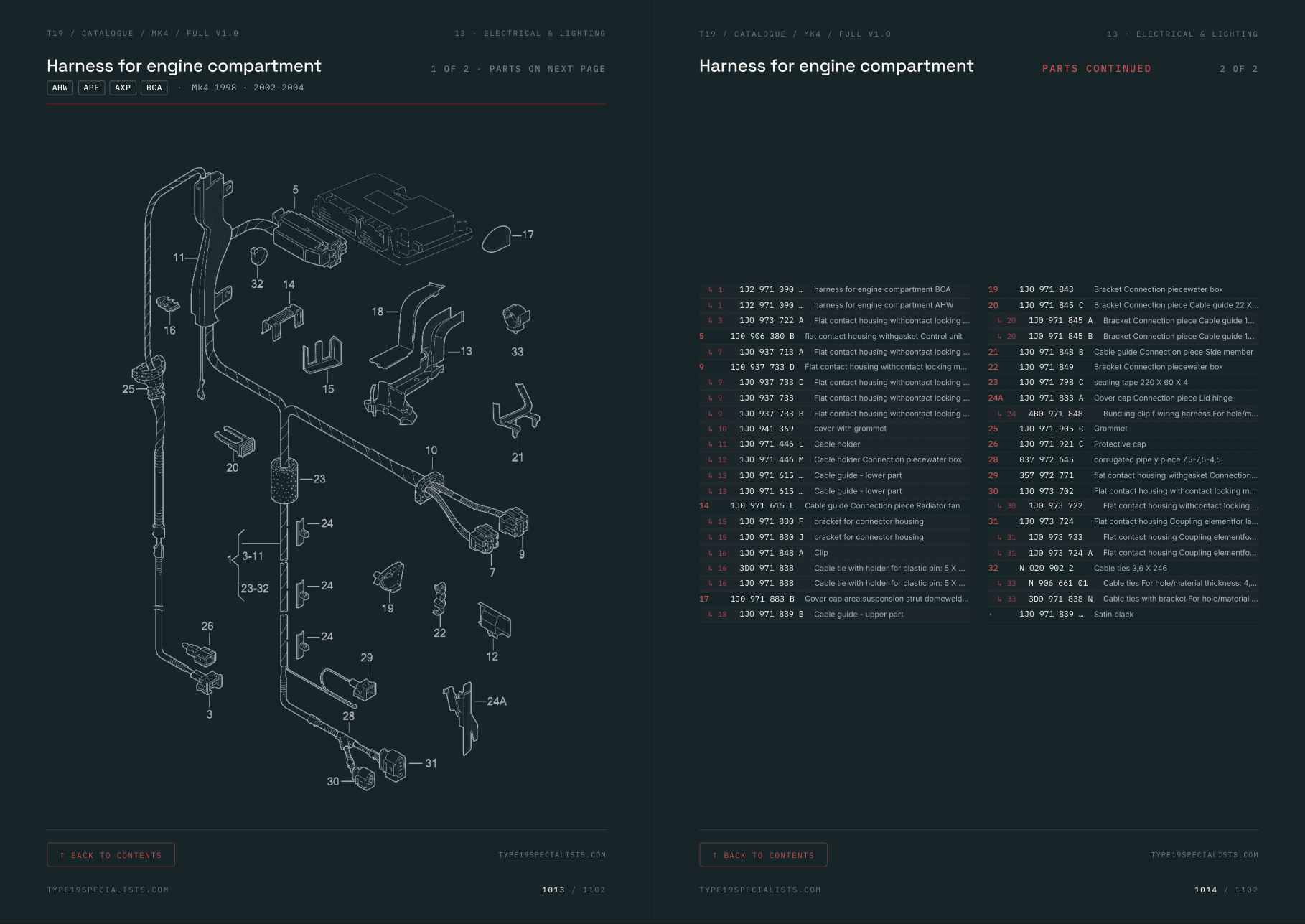

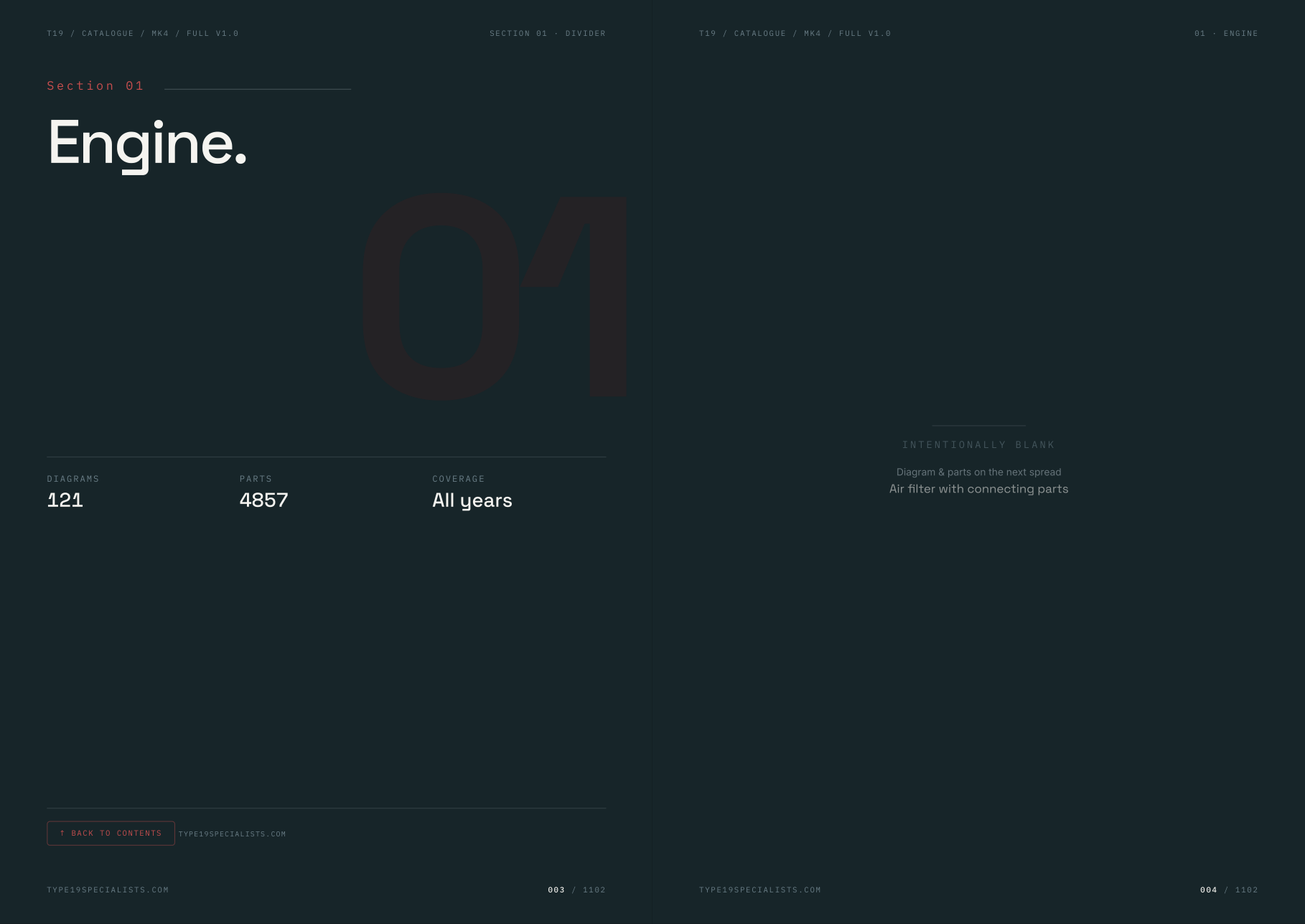

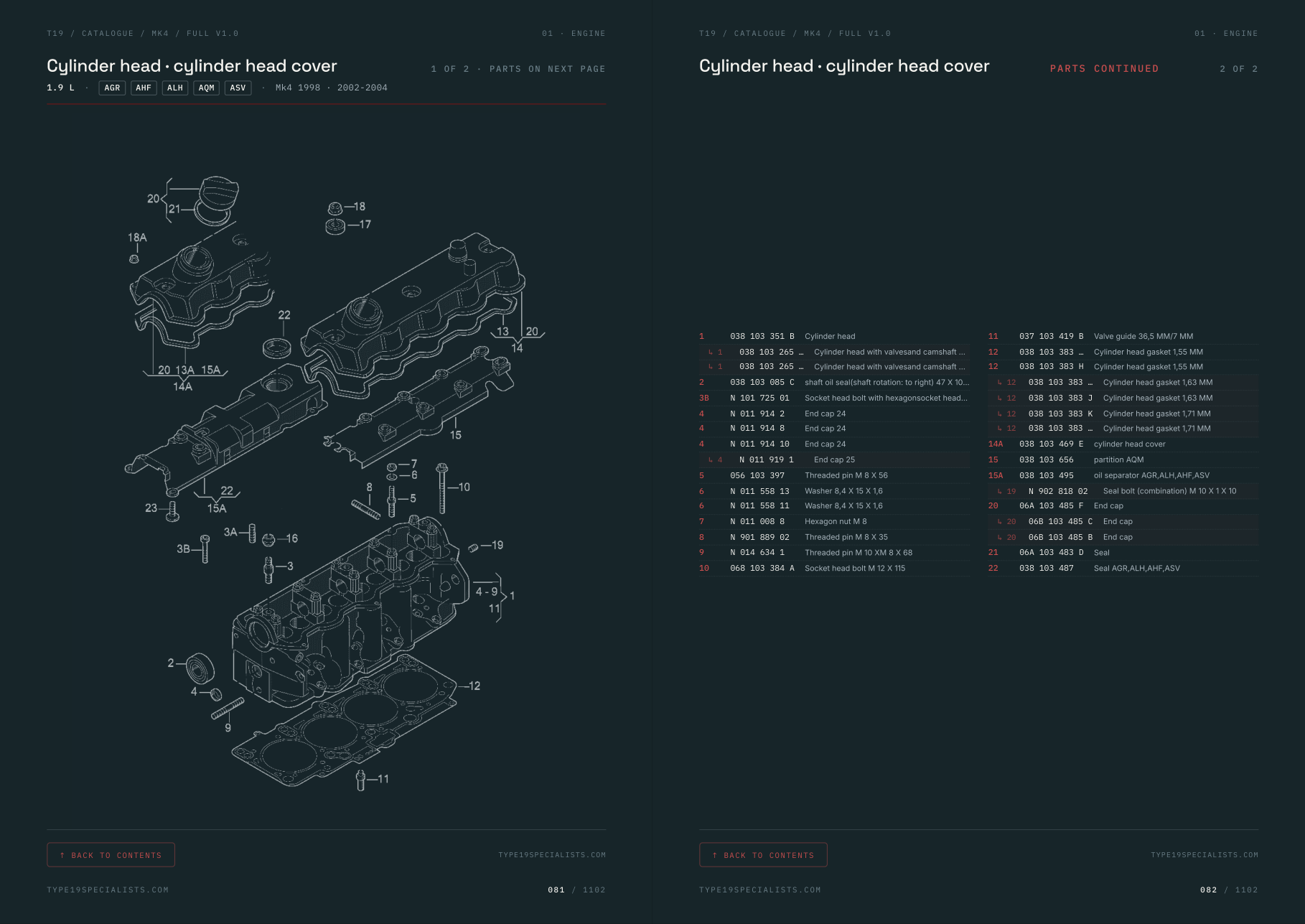

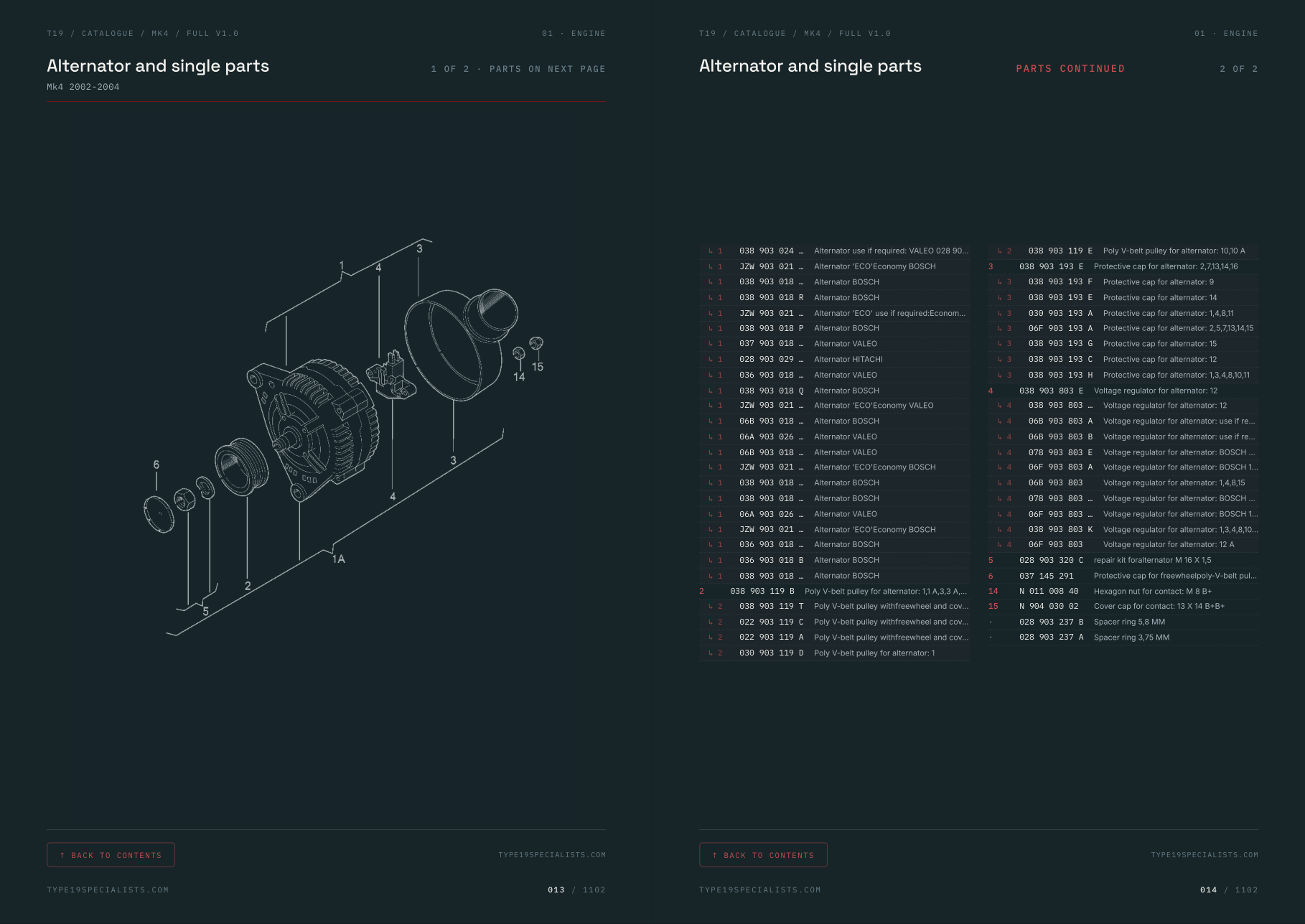

6 representative pages from the 1102-page PDF. Click any page to view full size.
📄 1102 pages 👆 Tap any page to preview full size, here on the page ⬇️ Download link emailed within 2 minutes of payment ⏱ Link valid 48 hours · resendable on request
Mk4 Golf Master Parts Catalogue is a 1,102-page factory parts reference published by Type 19 Specialists for the VW Golf MK4. It is sold as a digital PDF for £34.95 and as a printed A4 paperback for £54.95, shipped worldwide from the UK. The first and only complete VW factory parts-diagram catalogue ever assembled for the Mk4 Golf — 488 diagrams, 24,337 parts (16,451 unique OEM part numbers), 1,102 pages: engine, transmission, axles, brakes, fuel & exhaust, body, interior, trim and full electrics, 1998–2005 (incl. R32). Digital edition is an A3 landscape spread PDF; a workshop-ready A4 paperback is also available. German and French editions are also published (Mk4 Golf Master-Teilekatalog). The data is built from the Volkswagen ETKA factory parts dataset, deduplicated and organised by VW group code, with every diagram carrying its original OEM part numbers. Orders ship worldwide from the Lancaster workshop; the digital edition is delivered by download link within minutes of purchase.
The only complete VW factory OEM parts-diagram catalogue ever assembled for the Mk4 Golf. Every diagram VW factory-issued for the Mk4 Golf hatchback (1998–2005, incl. R32) — deduplicated, cross-referenced and organised by VW group code, from the engine and running gear through to body, interior, trim and the full electrical system.
488 factory diagrams · 24,337 parts (16,451 unique OEM part numbers) · 1,102 pages · 13 workshop-ordered sections. Diagram on the left page, parts list (VW OEM part number, position, description) on the right — every line an orderable number with engine-code applicability.
What's inside
- Engine — block, head, crankshaft, pistons, timing
- Fuel / air power supply — injection, fuel lines, intake
- Cooling — radiator, water pump, hoses
- Exhaust system
- Gearbox — manual & automatic internals, clutch, linkage
- Front axle — suspension, hubs, drive shafts
- Rear axle — suspension, hubs, beam
- Brake — calipers, discs, lines, ABS
- Steering, wheels & underbody
- Heating & air conditioning — compressor, condenser, heater & climate controls
- Body, interior & trim — doors, locks, glass, seats, trim
- Electrical & lighting — looms, ECU, lamps, switches, instruments
Engine coverage
Every engine offered in the Mk4 Golf — petrol from the 1.4 and 1.6 up to the 1.8T turbo, 2.3 V5 and 2.8 VR6, and the 3.2 VR6 R32 — plus 1.9 SDI and 1.9 TDI diesel.
What makes it different
- VW factory data — built from the same illustration set the dealer network ran on.
- Deduplicated — one canonical entry per part, not the same bolt repeated across engine and year variants.
- Filtered, not scraped — non-orderable junk removed so every line is actionable.
Choose an instant digital download (A3 landscape spread PDF — diagram left, parts right) or the printed A4 paperback edition.
UK Shipping
Free UK shipping on orders of £100 or more. Orders under £100 ship Royal Mail Tracked 48 (£6.95, 2–3 working days). Parcelforce Express 24 available at checkout (£12.95).
International Shipping
Ships worldwide from our UK workshop. Postage on a printed catalogue is £24.95 to Europe and £29.95 to the rest of the world. Add a second catalogue and it posts at half rate.
Ships worldwide from our UK workshop. Postage on a printed catalogue is £0.00, wherever you are. Add a second catalogue and it posts at half rate.
Returns
30-day returns on all unused items in original condition. See our Terms & Conditions for full details.
