Corrado Master Parts Catalogue

The only complete VW Corrado OEM parts catalogue ever assembled. There has never been a complete printed parts reference for the Corrado. VW microfiche was dealer-only. Online lookups are slow, fragmented, and vanish when a server goes dark. Haynes tells you what to do, not what part to order. This is the reference Corrado owners and restorers have been asking for — and until now it did not exist.

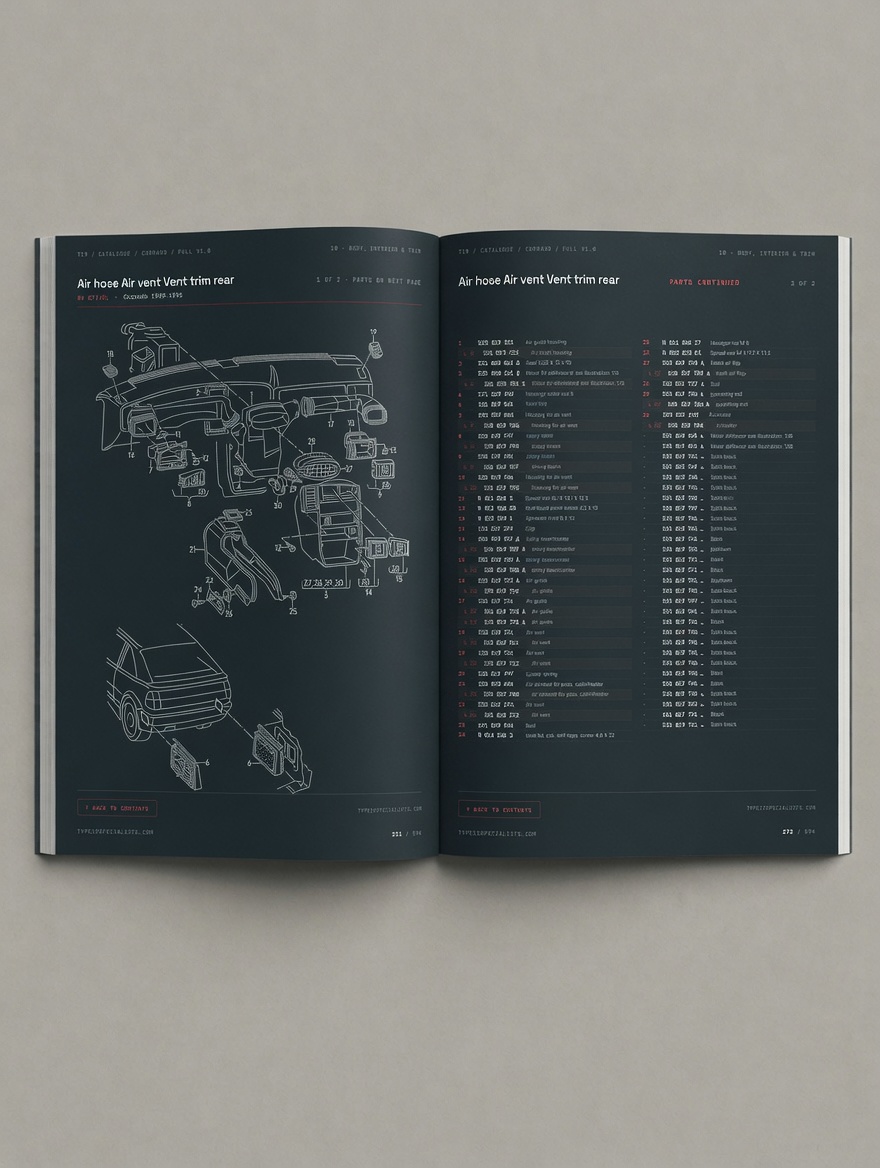

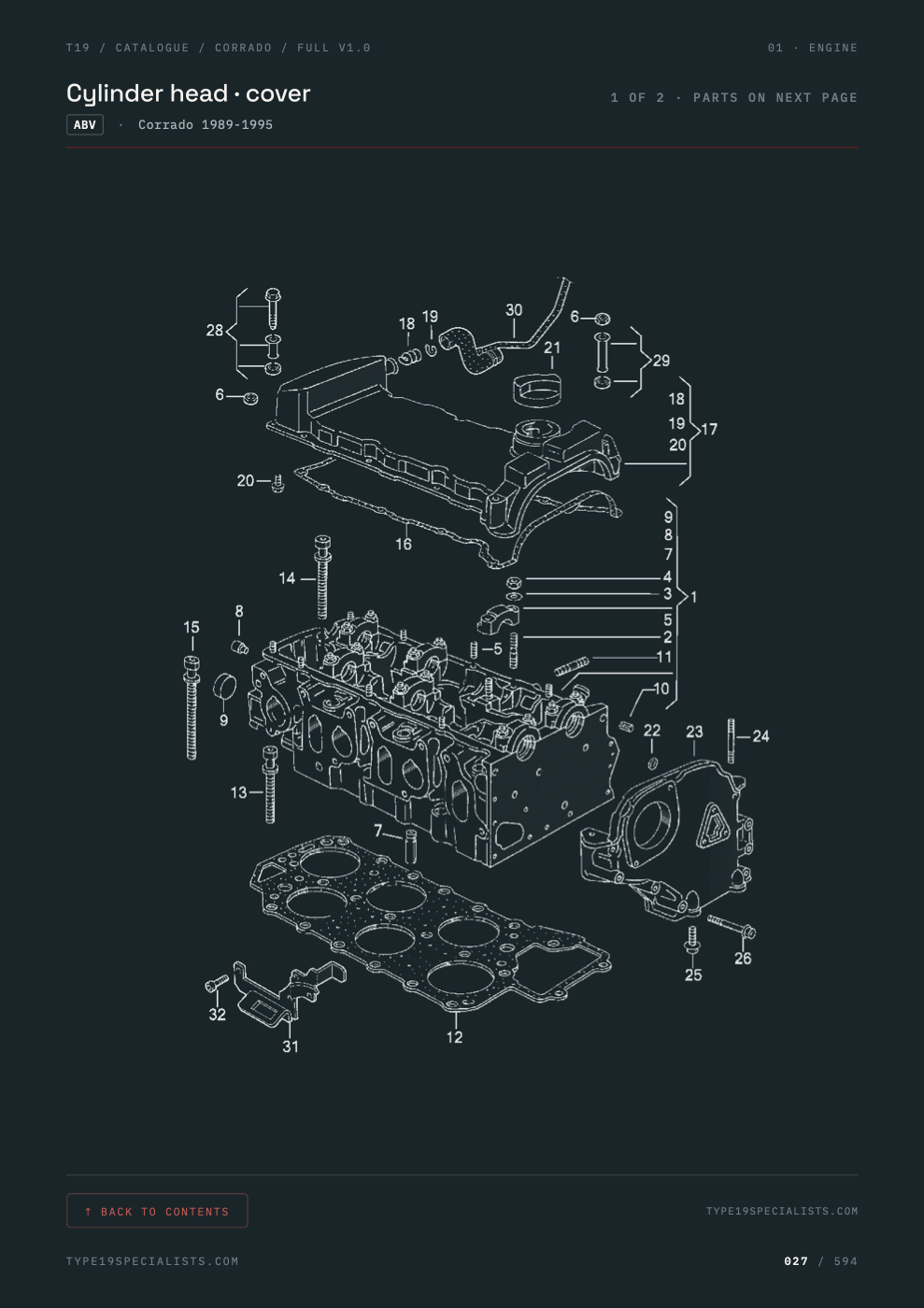

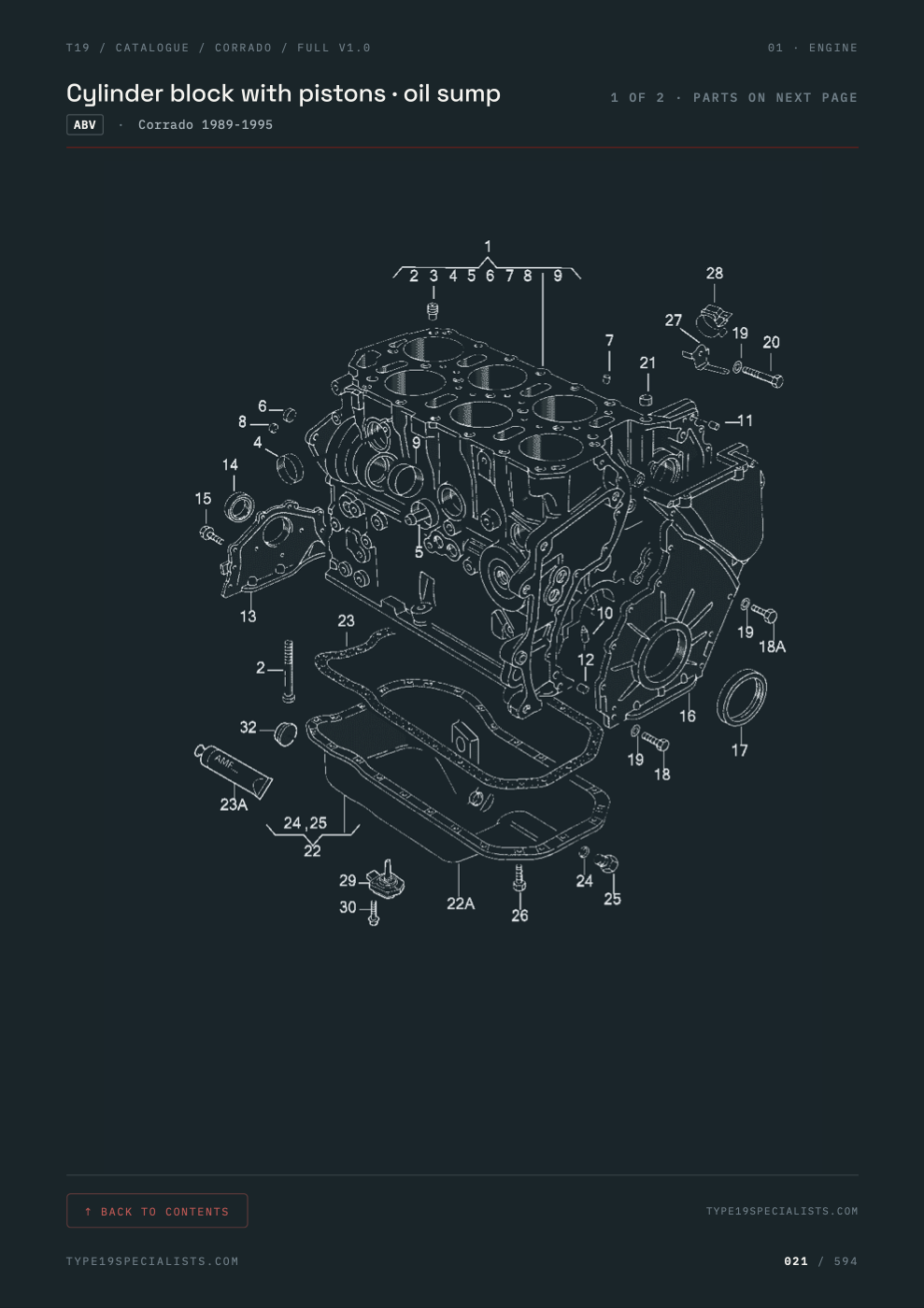

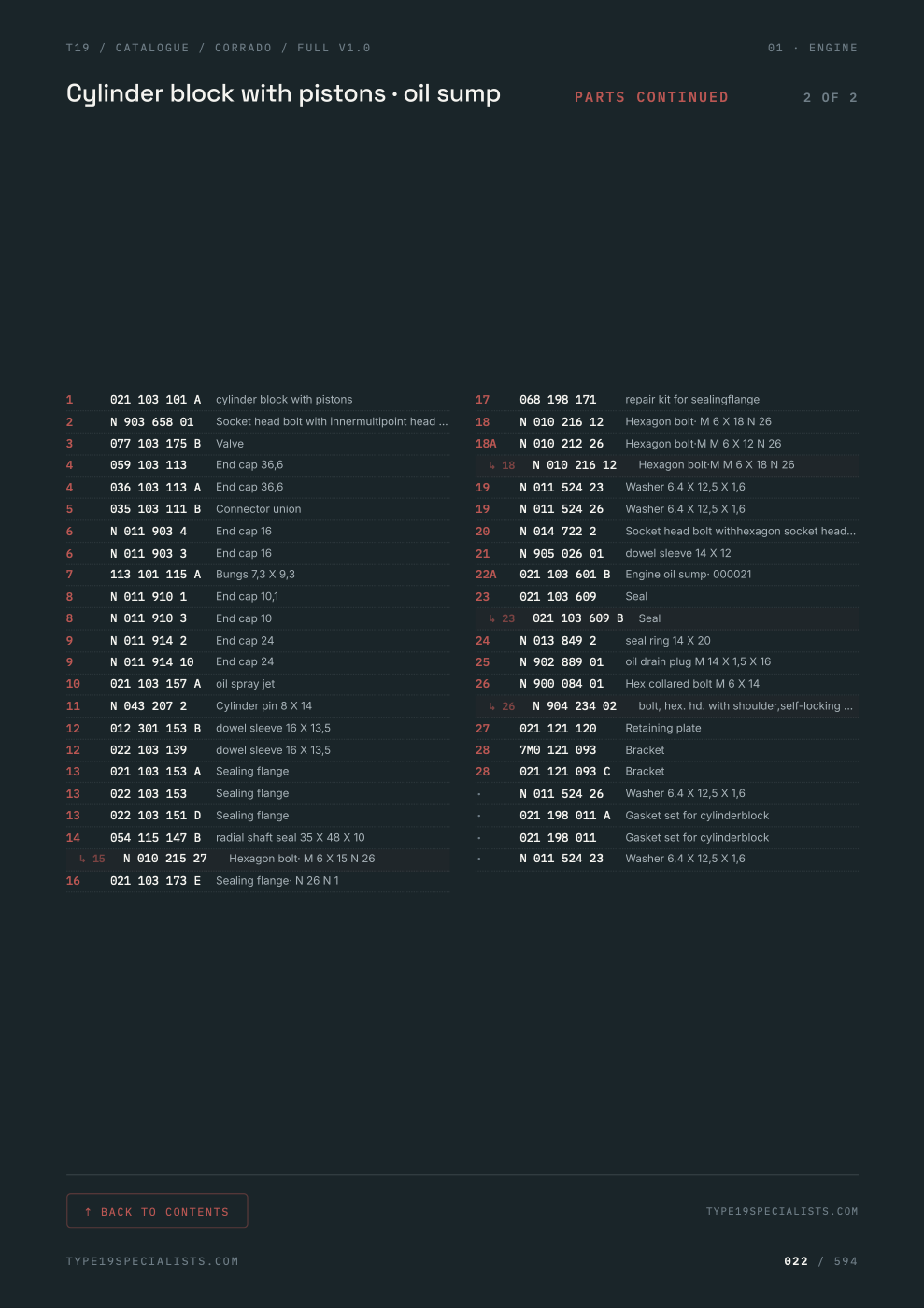

269 diagrams. 11,288 unique part numbers. 594 workshop-ready pages. Every diagram VW factory-issued for the Corrado between 1989 and 1995 — the 1.8 8V, the 16-valve KR, PL and 9A, the G60 supercharged, and the 2.9 VR6. Each diagram sits on its own LEFT page with the parts table on the facing RIGHT page: single-line entries with the VW factory OEM part number, position number and description. Deduplicated, cross-referenced and organised by VW group code so you can flip straight to "Cylinder head" or "G-Lader" without thinking.

Eleven workshop-ordered sections

• Engine — cylinder block, head, camshaft, valves, internals
• Fuel, air & exhaust — intake, throttle, exhaust system
• Engine electrics — alternator, starter, ignition
• Fuel / air power supply — injection, fuel pipes, vacuum lines
• Drive cooling — radiator, water pump, hoses
• Front axle — suspension, hubs, drive shafts
• Rear axle — suspension, hubs, beam
• Gearbox — internals, shifter, clutch
• Brake — calipers, discs, lines, ABS
• Body, interior & trim — doors, dash, panels, glass
• Electrical & lighting — looms, lamps, switches

Worth knowing if you have a G60 or 16V

The full G-Lader supercharger assembly, charge-air plumbing and G60-specific cooling are all here, alongside the complete 16-valve cylinder head, camshaft and intake references for the KR, PL and 9A engines, and the 2.9 VR6 with its narrow-angle head. Plus every door card, dashboard, loom and trim plate the Corrado ever wore.

Two formats

Digital PDF · £34.95. A3 landscape spread, read on screen as facing pages exactly as the workshop intended — diagram left, parts right. Native page-flip in iOS Books, macOS Preview and Adobe Reader. Linked table of contents jumps you to any section in one tap; back-to-contents on every page. Delivered to your inbox within minutes of payment.

Paperback edition · £54.95. Properly printed and bound copy, posted from the UK in approximately 7–10 days. Sits flat on the bench and takes oil and brake-fluid fingerprints like a proper workshop manual should.

What makes it different

• VW factory data. Built from the same factory illustration set the dealer network ran on.
• Cross-references deduplicated. The same bolt across model years does not appear seven times — one canonical entry per part.
• Workshop-ready layout. Diagram on the left page, parts list on the right. Single-line entries. No flipping back and forth.
• No filler. Carefully filtered to remove non-orderable junk so every line is something you can quote a parts counter on Monday morning.

FAQ

How will I receive the e-book?
Email within a few minutes of payment containing a secure download link. If the link expires (48 hours), reply to your receipt and we will resend — no charge.

How long is paperback delivery?
Approximately 7–10 days, posted from the UK by Royal Mail Tracked.

Does it cover my engine?
Yes — every Corrado engine sold between 1989 and 1995: the 1.8 8V, the 16-valve KR, PL and 9A, the G60 supercharged, and the 2.9 VR6.

What devices does the PDF open on?
Anything that handles PDFs — iOS Books, macOS Preview, Adobe Reader, any Android PDF viewer, Windows Edge. Native page-flip works in all of them.

Licensing?
Single-user licence. Please do not redistribute — that is how we keep prices low for everyone.
