Which VW part numbers are on the 2006 reservoir brake master cylinder diagram for the Mk4 Golf?

This diagram lists 15 OEM part numbers for the Mk4 Golf. The first three are 191 611 715, 1J0 611 763 AD and 1J0 611 763 R.

Which Mk4 Golf years and engines does this diagram cover?

This plate is from the Mk4 Golf 2003 - 2004 generation (MEX, RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk4 Golf factory parts catalogue?

The Mk4 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk4-mechanical/. It carries every plate in this catalogue, not just this one.

2006 reservoir brake master cylinder — Mk4 Golf Brake (2003 - 2004)

Factory title: Volkswagen Golf/Golf R32 (2003 - 2006) - Reservoir. Brake master cylinder

Generation: Mk4 2003 - 2004 (MEX, RDW) Group: Brake Rebuild step 10 Parts: 16 Primary OEM: 191 611 715, 1J0 611 763 AD, 1J0 611 763 R

2006 reservoir brake master cylinder for the Volkswagen Golf Mk4 (2003 - 2004): factory exploded diagram 611032 from the Volkswagen ETKA parts catalogue, group 20 Brake, listing 15 OEM part numbers across 16 catalogued positions including 191 611 715, 1J0 611 763 AD and 1J0 611 763 R. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.

Parts on this diagram

This Mk4 Golf plate lists 15 OEM part numbers across 16 numbered positions.

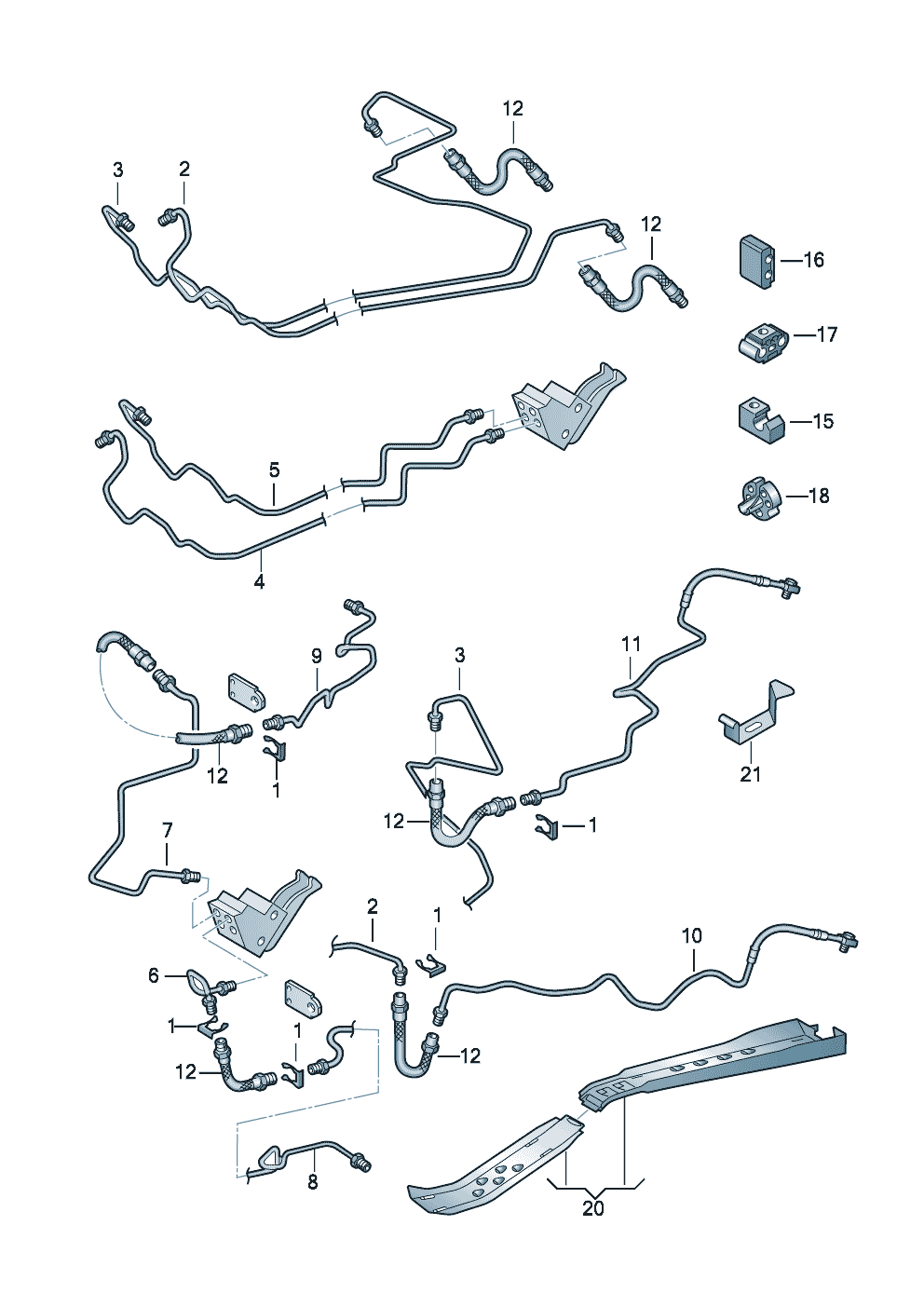

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Brake pipe Brake hose rear fr.wheel drv rear	—
1	Hose bracket	191 611 715
10	brake line from brake hose towheel brake cylinder or pistonhousing	1J0 611 763 AD
10	brake line from brake hose towheel brake cylinder or pistonhousing	1J0 611 763 R
11	brake line from brake hose towheel brake cylinder or pistonhousing	1J0 611 764 R
11	brake line from brake hose towheel brake cylinder or pistonhousing	1J0 611 764 AD
12	Brake hose	6Q0 611 775 A
12	Brake hose	6X0 611 775
12	Brake hose	6Q0 611 775 B
15	Bracket	1H0 611 797 C
16	Bracket	1H0 611 797
17	Retainer for brake pipe	1J0 611 797
2	Brake pipe from hydraulicsto brake hose	1J0 614 741 AC
20	Cover for brake pipesfor models withheavy duty suspension PR:2 UB	1J0 611 824 A
21	retaining spring Cover for brake pipes PR:2 UB	1J0 611 715
3	Brake pipe from hydraulicsto brake hose	1J0 614 742 AA

From the Type 19 workshop

Volkswagen Golf Mk4 work in the Type 19 workshop — the same cars these brake diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk4
Model years: 2003 - 2004
Generation region: MEX, RDW
Generation code: 405
Factory group: 20 Brake
Factory subgroup: 611032
