2006 coolant pump — Mk4 Golf Cooling (2003 - 2004)
Factory title: Volkswagen Golf/Golf R32 (2003 - 2006) - Coolant pump

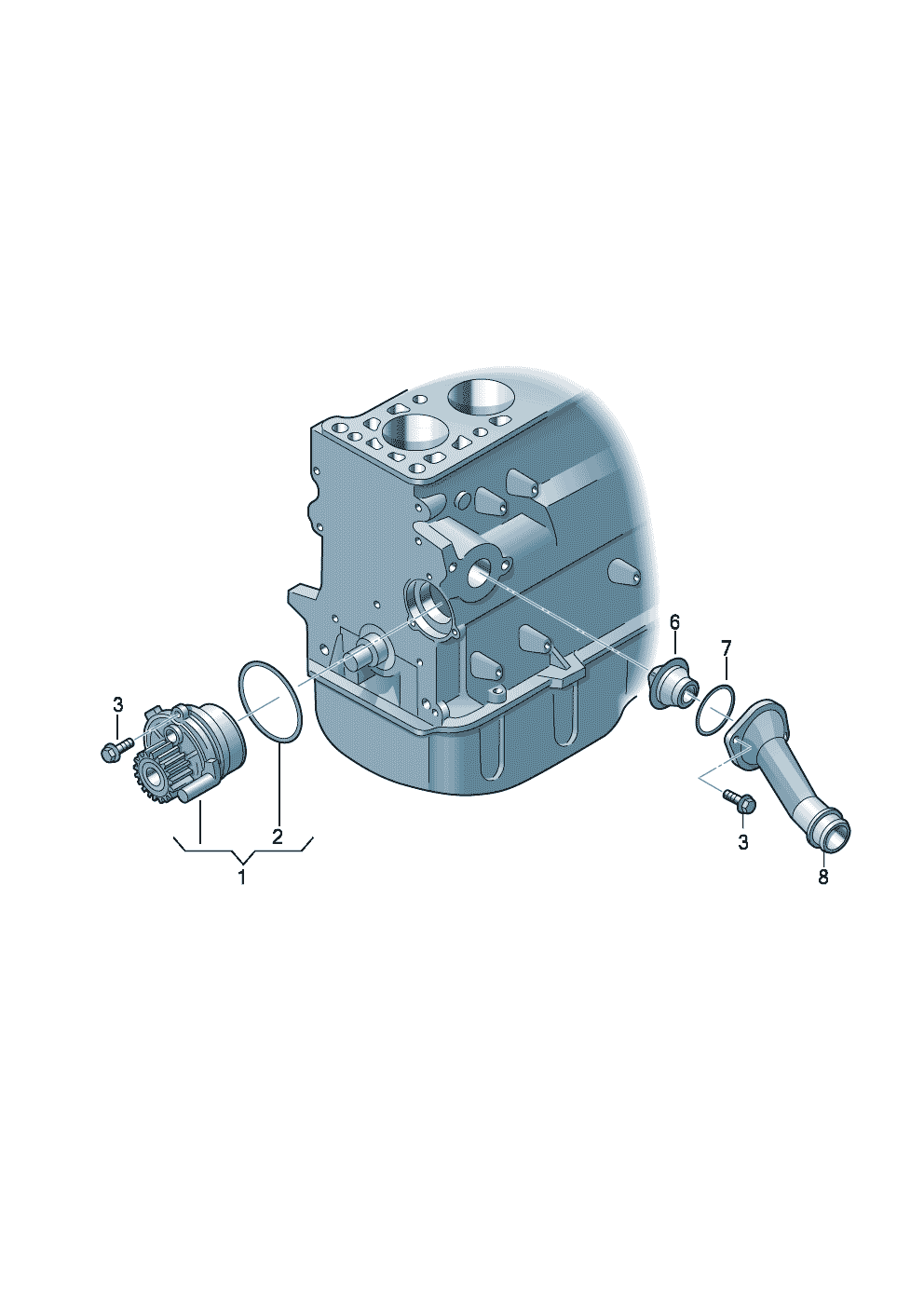

2006 coolant pump for the Volkswagen Golf Mk4 (2003 - 2004): factory exploded diagram 121010 from the Volkswagen ETKA parts catalogue, group 11 Drive cooling, listing 33 OEM part numbers across 34 catalogued positions including 06B 121 011 LX, 06B 121 011 EX and 038 121 011 H. Parts on this plate carry the engine codes AEH, AGR, AGU, AHF, AKL, ALH, APK and AQM. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.
Parts on this diagram
This Mk4 Golf plate lists 33 OEM part numbers across 34 numbered positions.
| № | Description | Part number |
|---|---|---|
| Coolant pump 1.6-2.0 litres 4-cylinder+BFQ,AGU,APK,AQY,AUM,AZJ,AUQ,BEH,AEH,AKLDiesel eng.+AGR,AHF,ALH,AQM,ATD,ARL,ASV,AXR,ASZ 1.6-2.0 litres BFQAGUAPKAQYAUMAZJAUQBEHAEHAGRAHFALHAQMATDARLASVAXRASZ | — | |
| (1) | Coolant pump with sealing ring BFQ,AEH,AKL BFQAEHAKL | 06B 121 011 LX |
| (1) | Coolant pump with sealing ring BFQ,AEH,AKL BFQAEHAKL | 06B 121 011 EX |
| (1) | Coolant pump with sealing ring ARL ARL | 038 121 011 H |
| (1) | Coolant pump with sealing ring AGR,AHF,ALH,AQM,ASV AGRAHFALHAQMASV | 038 121 011 AX |
| (1) | Coolant pump with sealing ring AGR,AHF,ALH,AQM,ASV AGRAHFALHAQMASV | 038 121 011 A |
| (1) | Coolant pump with sealing ring AGU,APK,AQY,AUM,AZJ,AUQ,BEH AGUAPKAQYAUMAZJAUQBEH | 06A 121 011 TX |
| (1) | Coolant pump with sealing ring AGU,APK,AQY,AUM,AZJ,AUQ,BEH AGUAPKAQYAUMAZJAUQBEH | 06A 121 011 T |
| (1) | Coolant pump with sealing ring AGU,APK,AQY,AUM,AZJ,AUQ,BEH AGUAPKAQYAUMAZJAUQBEH | 06A 121 012 X |
| (1) | Coolant pump with sealing ring F >> 1 J-3-600 000* AGU,APK,AQY,AUM,AZJ,AUQ,BEH AGUAPKAQYAUMAZJAUQBEH | 06A 121 011 LX |
| (1) | Coolant pump with sealing ring F >> 1 J-3-600 000* AGU,APK,AQY,AUM,AZJ,AUQ,BEH AGUAPKAQYAUMAZJAUQBEH | 06A 121 011 L |
| (1) | Coolant pump with sealing ring ARL ARL | 038 121 011 HX |
| (1) | Coolant pump with sealing ring ARL ARL | 038 121 011 KX |
| (1) | Coolant pump with sealing ring ARL ARL | 038 121 011 K |
| (1) | Coolant pump with sealing ring ATD,AXR,ASZ ATDAXRASZ | 038 121 011 JX |
| (1) | Coolant pump with sealing ring ATD,AXR,ASZ ATDAXRASZ | 038 121 011 G |
| (1) | Coolant pump with sealing ring ATD,AXR,ASZ ATDAXRASZ | 038 121 011 GX |
| (1) | Coolant pump with sealing ring AGU,APK,AQY,AUM,AZJ,AUQ,BEH AGUAPKAQYAUMAZJAUQBEH | 06A 121 012 |
| (1) | Coolant pump with sealing ring ATD,AXR,ASZ ATDAXRASZ | 038 121 011 J |
| (2) | seal ring 53 X 4 MM AGU,APK,AQY,AUM,AZJ,AUQ,BEH 53 X 4 MM AGUAPKAQYAUMAZJAUQBEH | 06A 121 119 |
| (2) | seal ring 57 X 4 MM AGR,AHF,ALH,AQM,ATD,ARL,ASV,AXR,ASZ 57 X 4 MM AGRAHFALHAQMATDARLASVAXRASZ | 038 121 119 |
| (6) | Coolant regulator 87 C-102 C AGR,AHF,ALH,AQM,ATD,ARL,ASV,AXR,ASZ 87 C-102 C AGRAHFALHAQMATDARLASVAXRASZ | 044 121 113 |
| (8) | Pipe union ATD,AXR,ASZ ATDAXRASZ | 038 121 121 D |
| (8) | Pipe union AGR,AHF,ALH,AQM,ASV AGRAHFALHAQMASV | 038 121 121 |
| (8) | Pipe union ARL ARL | 038 121 121 A |
| 1 | Coolant pump with sealing ring BFQ,AEH,AKL BFQAEHAKL | 06B 121 011 L |
| 1 | Coolant pump with sealing ring BFQ,AEH,AKL BFQAEHAKL | 06B 121 011 E |
| 2 | seal ring 71,5 X 4 MM BFQ,AEH,AKL 71,5 X 4 MM BFQAEHAKL | 06B 121 119 D |
| 2 | seal ring 72,5 X 4 MM BFQ,AEH,AKL 72,5 X 4 MM BFQAEHAKL | 06B 121 119 |
| 3 | hexagon socket head bolt withshoulder M 7 X 21,5 M 7 X 21,5 | N 909 450 02 |
| 3 | hexagon socket head bolt withshoulder M 7 X 21,5-SP M 7 X 21,5-SP | N 909 450 01 |
| 6 | Coolant regulator 87 C-102 C AKL,AGU,APK,AQY,AUM,AZJ,AUQ,BEH,AEH, 87 C-102 C AKLAGUAPKAQYAUMAZJAUQBEHAEH | 050 121 113 C |
| 7 | seal ring 50 X 4 50 X 4 | 038 121 119 B |
| 8 | Pipe union AKL,AGU,APK,AQY,AUM,AZJ,AUQ,BEH,AEH, AKLAGUAPKAQYAUMAZJAUQBEHAEH | 06A 121 121 C |
From the Type 19 workshop
Volkswagen Golf Mk4 work in the Type 19 workshop — the same cars these cooling diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk4
- Model years
- 2003 - 2004
- Generation region
- MEX, RDW
- Generation code
- 405
- Engine codes on this plate
- AEH, AGR, AGU, AHF, AKL, ALH, APK, AQM
- Variant tags
- diesel
- Factory group
- 11 Drive cooling
- Factory subgroup
- 121010
