Coolant pump — Mk4 Golf Cooling (2003 - 2004)

Factory title: Volkswagen Golf/Golf R32 (2003 - 2006) - Coolant pump

Generation: Mk4 2003 - 2004 (MEX, RDW) Group: Drive cooling Rebuild step 8 Parts: 26 Primary OEM: 022 121 117 C, 022 121 113, 357 121 140

Coolant pump for the Volkswagen Golf Mk4 (2003 - 2004): factory exploded diagram 121065 from the Volkswagen ETKA parts catalogue, group 11 Drive cooling, listing 24 OEM part numbers across 26 catalogued positions including 022 121 117 C, 022 121 113 and 357 121 140. Parts on this plate carry the engine codes AQN, BDE, BFH and BML. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.

Parts on this diagram

This Mk4 Golf plate lists 24 OEM part numbers across 26 numbered positions.

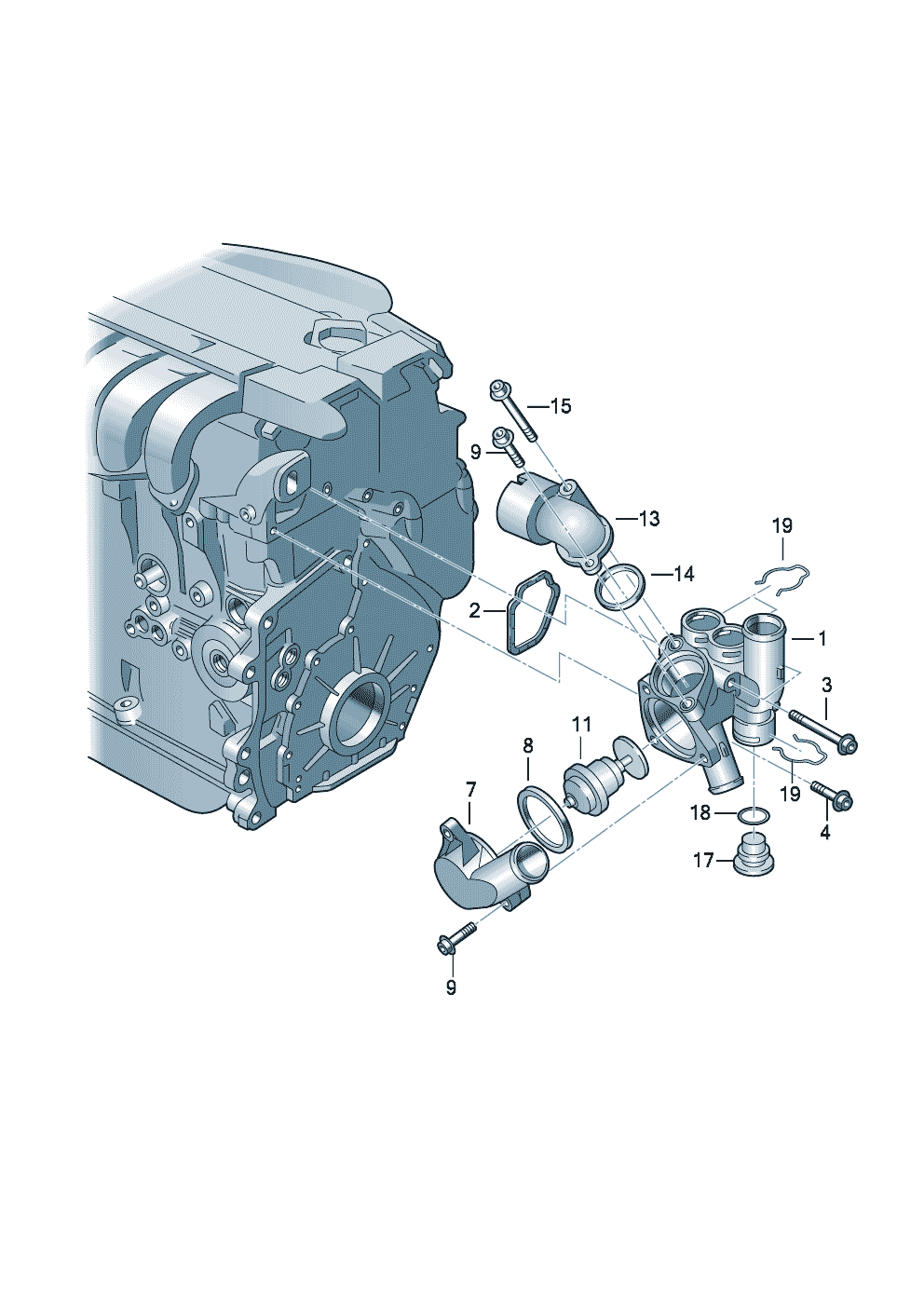

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Coolant regulator housing 2.8/3.2 ltr. 6-cylinder+BDE,BFH,BML 2.8/3.2 ltr. BDEBFHBML	—
	Coolant regulator housing 2.3 ltr. 5-cylinder+AQN 2.3 ltr. AQN	—
(1)	Coolant regulator housing	022 121 117 C
(1)	Coolant regulator housing	022 121 117 C
11	Coolant regulator 80 C 80 C	022 121 113
11	Coolant regulator 80 C 80 C	022 121 113
17	Bungs	357 121 140
17	Bungs	357 121 140
18	O-ring 19,6 X 3,65 19,6 X 3,65	N 903 168 01
18	O-ring 19,6 X 3,65 19,6 X 3,65	N 903 168 01
19	retaining spring	032 121 142
19	retaining spring	032 121 142
2	Seal	021 121 119 A
2	Seal	021 121 119 A
3	Socket head bolt with hexagonsocket head (combination) M 6 X 120 X 80 M 6 X 120 X 80	N 104 583 02
3	Socket head bolt with hexagonsocket head (combination) M 6 X 120 X 80 M 6 X 120 X 80	N 104 583 02
3	Socket head bolt with hexagonsocket head (combination) M 6 X 120 X 80 M 6 X 120 X 80	N 104 583 01
3	Socket head bolt with hexagonsocket head (combination) M 6 X 120 X 80 M 6 X 120 X 80	N 104 583 01
4	Socket head bolt with hexagonsocket head (combination) M 6 X 22 M 6 X 22	N 101 725 01
4	Socket head bolt with hexagonsocket head (combination) M 6 X 22 M 6 X 22	N 101 725 01
7	connection piece	022 121 121 E
7	connection piece	022 121 121 E
8	O-ring 60 X 3,50 60 X 3,50	N 901 368 02
8	O-ring 60 X 3,50 60 X 3,50	N 901 368 02
9	Socket head bolt with hexagonsocket head (combination) M 6 X 20 M 6 X 20	N 907 716 01
9	Socket head bolt with hexagonsocket head (combination) M 6 X 20 M 6 X 20	N 907 716 01
