Fuel filter — Mk4 Golf Fuel Supply (2003 - 2004)

Factory title: Volkswagen Golf/Golf R32 (2003 - 2006) - Fuel filter

Generation: Mk4 2003 - 2004 (MEX, RDW) Group: Fuel / air power supply Rebuild step 5 Parts: 15 Primary OEM: 1J0 127 225 B, 1M0 127 225, N 044 180 1

Fuel filter for the Volkswagen Golf Mk4 (2003 - 2004): factory exploded diagram 127030 from the Volkswagen ETKA parts catalogue, group 29 Fuel / air power supply, listing 14 OEM part numbers across 15 catalogued positions including 1J0 127 225 B, 1M0 127 225 and N 044 180 1. Parts on this plate carry the engine codes AGR, AHF, ALH, AQM, ARL, ASV, ASZ and ATD. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.

Parts on this diagram

This Mk4 Golf plate lists 14 OEM part numbers across 15 numbered positions.

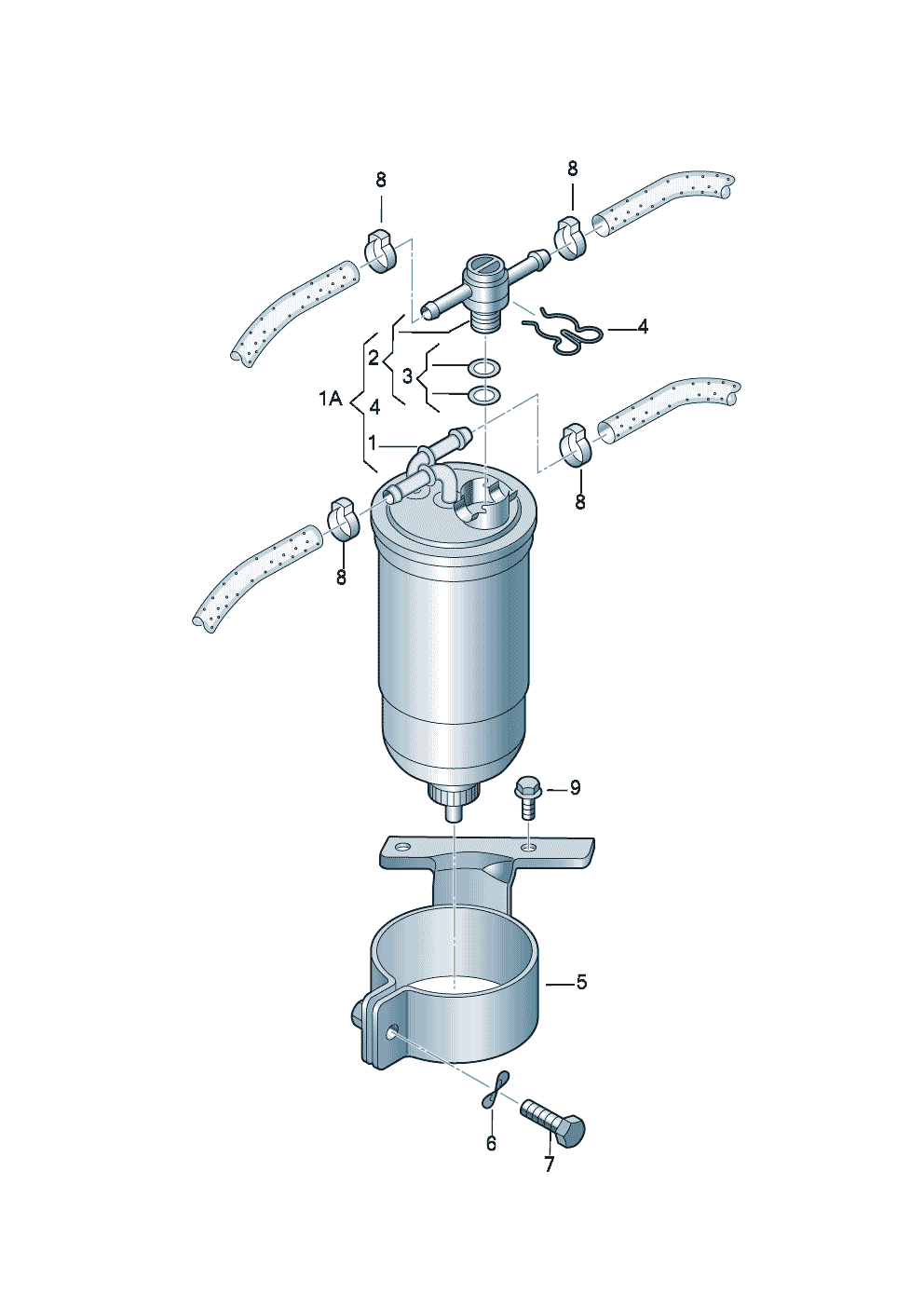

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
Fuel filter 1.9 ltr. Diesel eng.+AQM,ALH,AGR,AHF,ATD,ARL,ASV,ASZ,AXR
1.9 ltr.
AQMALHAGRAHFATDARLASVASZAXR
—
(5)
Retainer for fuel filter AQM,AHF,ASV
AQMAHFASV
1J0 127 225 B
(5)
Retainer for fuel filter F 1 J-3-450 001>>* AGR,ALH
AGRALH
1M0 127 225
(5)
Retainer for fuel filter F >> 1 J-3-450 000* AGR,ALH
AGRALH
1J0 127 225 B
(5)
Retainer for fuel filter ATD,AXR,ARL,ASZ
ATDAXRARLASZ
1M0 127 225
(7)
fillister hd. bolt M 6 X 55
M 6 X 55
 N 044 180 1
(8)
Spring band clamp 14 X 12
14 X 12
 N 906 867 01
1
Fuel filter
 1J0 127 401 A
2
Valve
 1J0 127 247 A
3
1 set: round seals
 1J0 198 247
4
Spring clip
 1J0 127 250
8
Spring band clamp A 14 X 12
A 14 X 12
 N 102 922 01
9
hexagon head bolt (combi)F 1 J-3-450 001>>* M 6 X 20 ATD,AXR,ARL,ASZAGR,ALH
M 6 X 20
ATDAXRARLALH
N 090 261 2
9
hexagon head bolt (combi)F 1 J-3-450 001>>* M 6 X 20 ATD,AXR,ARL,ASZAGR,ALH
M 6 X 20
ATDAXRARLALH
N 090 261 9
9
hexagon head bolt (combi)F >> 1 J-3-450 000* M 6 X 18 AQM,AHF,ASVAGR,ALH
M 6 X 18
AQMAHFALH
N 100 095 03

From the Type 19 workshop

Volkswagen Golf Mk4 work in the Type 19 workshop — the same cars these fuel supply diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk4
Model years
2003 - 2004
Generation region
MEX, RDW
Generation code
405
Engine codes on this plate
AGR, AHF, ALH, AQM, ARL, ASV, ASZ, ATD
Factory group
29 Fuel / air power supply
Factory subgroup
127030

Related factory diagrams

Other published fuel supply plates for the Mk4 Golf in this catalogue.

The complete Mk4 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the fuel filter diagram for the Mk4 Golf?
This diagram lists 14 OEM part numbers for the Mk4 Golf. The first three are 1J0 127 225 B, 1M0 127 225 and N 044 180 1.
Which Mk4 Golf years and engines does this diagram cover?
This plate is from the Mk4 Golf 2003 - 2004 generation (MEX, RDW). The parts on it carry the engine codes AGR, AHF, ALH, AQM, ARL, ASV, ASZ and ATD.
Where is the complete Mk4 Golf factory parts catalogue?
The Mk4 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk4-mechanical/. It carries every plate in this catalogue, not just this one.
