2006 5 6 speed manual gearbox — Mk4 Golf Gearbox (2003 - 2004)

Factory title: Volkswagen Golf/Golf R32 (2003 - 2006) - 5 & 6 speed manual gearbox

Generation: Mk4 2003 - 2004 (MEX, RDW) Group: Gearbox Rebuild step 9 Parts: 18 Primary OEM: N 103 378 03, N 909 564 01, N 910 305 01

2006 5 6 speed manual gearbox for the Volkswagen Golf Mk4 (2003 - 2004): factory exploded diagram 300090 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 16 OEM part numbers across 18 catalogued positions including N 103 378 03, N 909 564 01 and N 910 305 01. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.

Parts on this diagram

This Mk4 Golf plate lists 16 OEM part numbers across 18 numbered positions.

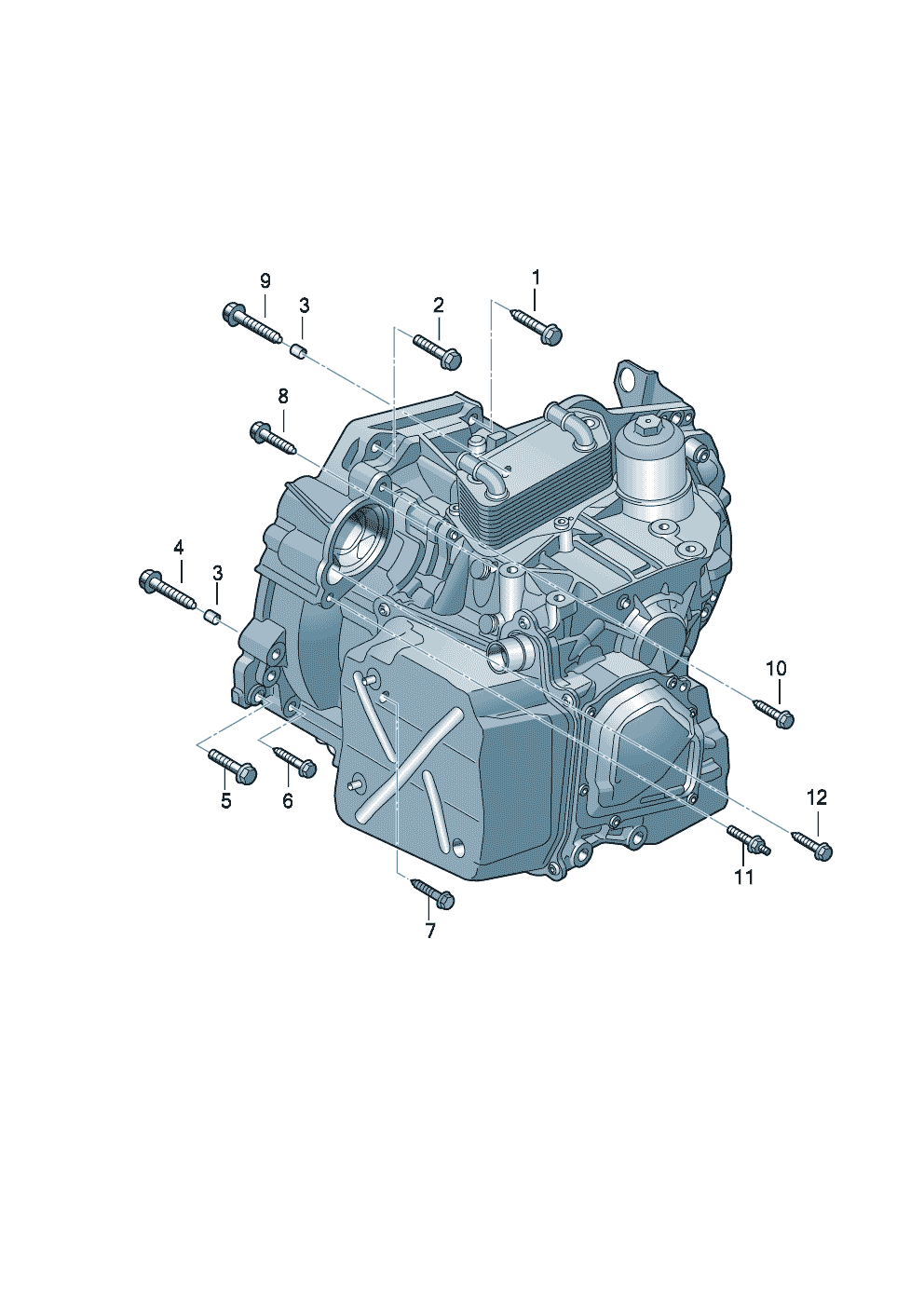

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
mounting parts for engine andtransmission 6-speed dual clutch gearboxfor four-wheel drive GQA,GYD
 —
1
Hex collared bolt M 12 X 55
M 12 X 55
 N 103 378 03
10
hexagon socket head bolt withshoulder M 10 X 45
M 10 X 45
 N 909 564 01
11
double stud with hexagon drive M 10 X 40/M 8 X 16
M 10 X 40/M 8 X 16
 N 910 305 01
12
Hexagon bolt Not for this model
 —
2
double stud with hexagon drive M 12 X 55/M 8 X 10
M 12 X 55/M 8 X 10
 N 907 016 04
3
dowel sleeve 16 X 13,5
16 X 13,5
 022 103 139
4
Hex collared bolt M 12 X 65
M 12 X 65
 N 103 379 01
4
Hex collared bolt M 12 X 65
M 12 X 65
 N 103 379 04
5
double stud with hexagon drive M 12 X 55/M 8 X 10
M 12 X 55/M 8 X 10
 N 910 516 01
6
hexagon socket head bolt withshoulder M 10 X 50
M 10 X 50
 N 910 317 02
6
hexagon socket head bolt withshoulder M 10 X 50
M 10 X 50
 N 910 317 01
7
hexagon socket head bolt withshoulder M 10 X 50
M 10 X 50
 N 910 317 02
7
hexagon socket head bolt withshoulder M 10 X 50
M 10 X 50
 N 910 317 01
8
hexagon socket head bolt withshoulder M 10 X 45
M 10 X 45
 N 909 564 02
8
hexagon socket head bolt withshoulder M 10 X 45
M 10 X 45
 N 909 564 01
9
multi-point socket head boltwith collar M 12 X 70
M 12 X 70
 N 910 301 02
9
multi-point socket head boltwith collar M 12 X 70
M 12 X 70
 N 910 301 01

From the Type 19 workshop

Volkswagen Golf Mk4 work in the Type 19 workshop — the same cars these gearbox diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk4
Model years
2003 - 2004
Generation region
MEX, RDW
Generation code
405
Factory group
02 Gearbox
Factory subgroup
300090

Related factory diagrams

Other published gearbox plates for the Mk4 Golf in this catalogue.

The complete Mk4 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the 2006 5 6 speed manual gearbox diagram for the Mk4 Golf?
This diagram lists 16 OEM part numbers for the Mk4 Golf. The first three are N 103 378 03, N 909 564 01 and N 910 305 01.
Which Mk4 Golf years and engines does this diagram cover?
This plate is from the Mk4 Golf 2003 - 2004 generation (MEX, RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk4 Golf factory parts catalogue?
The Mk4 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk4-mechanical/. It carries every plate in this catalogue, not just this one.
