2006 coupling for 5 speed automatic gearbox — Mk4 Golf Gearbox (2003 - 2004)

Factory title: Volkswagen Golf/Golf R32 (2003 - 2006) - Coupling. for 5-speed automatic gearbox

Generation: Mk4 2003 - 2004 (MEX, RDW) Group: Gearbox Rebuild step 9 Parts: 132 Primary OEM: 096 323 857 AJ, 096 323 857 N, 096 323 857 AH

2006 coupling for 5 speed automatic gearbox for the Volkswagen Golf Mk4 (2003 - 2004): factory exploded diagram 323070 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 131 OEM part numbers across 132 catalogued positions including 096 323 857 AJ, 096 323 857 N and 096 323 857 AH. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.

Parts on this diagram

This Mk4 Golf plate lists 131 OEM part numbers across 132 numbered positions.

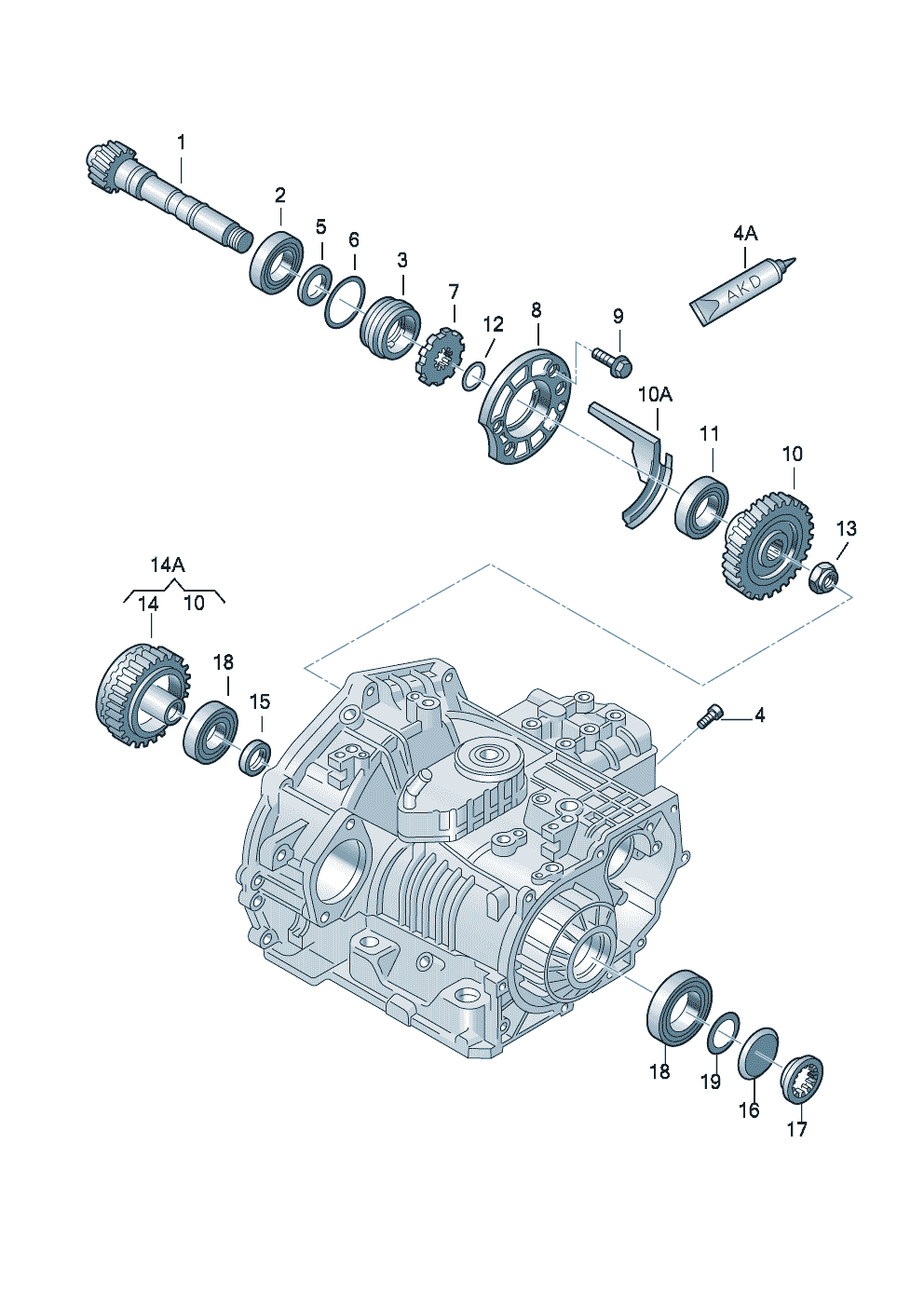

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
Output shaft Drive wheelfor 4-speed automatic gearbox FDB,FDE,FDG,FDH
 —
(1)
Output shaft 61/18 FDE
61/18
 096 323 857 AJ
(1)
Output shaft 74/20 FDB
74/20
 096 323 857 N
(1)
Output shaft 68/15 FDG
68/15
 096 323 857 AH
(12)
adjusting washer 1,1
1,1
 01M 323 875 H
(12)
adjusting washer 1,7
1,7
 01M 323 875 AP
(12)
adjusting washer 1,175
1,175
 01M 323 875 L
(12)
adjusting washer 1,95
1,95
 01M 323 875 BF
(12)
adjusting washer 2,2
2,2
 01M 323 875 BR
(12)
adjusting washer 1,775
1,775
 01M 323 875 AS
(12)
adjusting washer 2,3
2,3
 01M 323 875 CB
(12)
adjusting washer 1,925
1,925
 01M 323 875 BE
(12)
adjusting washer 1,125
1,125
 01M 323 875 J
(12)
adjusting washer 2,125
2,125
 01M 323 875 BN
(12)
adjusting washer 2,225
2,225
 01M 323 875 BS
(12)
adjusting washer 1,4
1,4
 01M 323 875 AB
(12)
adjusting washer 2,4
2,4
 01M 323 875 CF
(12)
adjusting washer 2,625
2,625
 01M 323 875 CQ
(12)
adjusting washer 1,35
1,35
 01M 323 875 T
(12)
adjusting washer 1,9
1,9
 01M 323 875 BD
(12)
adjusting washer 1,425
1,425
 01M 323 875 AC
(12)
adjusting washer 2,1
2,1
 01M 323 875 BM
(12)
adjusting washer 2,425
2,425
 01M 323 875 CG
(12)
adjusting washer 1,5
1,5
 01M 323 875 AF
(12)
adjusting washer 1,875
1,875
 01M 323 875 BC
(12)
adjusting washer 1,15
1,15
 01M 323 875 K
(12)
adjusting washer 2,075
2,075
 01M 323 875 BL
(12)
adjusting washer 1,525
1,525
 01M 323 875 AG
(12)
adjusting washer 1,725
1,725
 01M 323 875 AQ
(12)
adjusting washer 1,6
1,6
 01M 323 875 AK
(12)
adjusting washer 2,175
2,175
 01M 323 875 BQ
(12)
adjusting washer 1,45
1,45
 01M 323 875 AD
(12)
adjusting washer 1,675
1,675
 01M 323 875 AN
(12)
adjusting washer 1,025
1,025
 01M 323 875 E
(12)
adjusting washer 2,7
2,7
 01M 323 875 CT
(12)
adjusting washer 2,575
2,575
 01M 323 875 CN
(12)
adjusting washer 2,675
2,675
 01M 323 875 CS
(12)
adjusting washer 1,05
1,05
 01M 323 875 F
(12)
adjusting washer 1,575
1,575
 01M 323 875 AJ
(12)
adjusting washer 1,075
1,075
 01M 323 875 G
(12)
adjusting washer 2,05
2,05
 01M 323 875 BK
(12)
adjusting washer 1,275
1,275
 01M 323 875 Q
(12)
adjusting washer 2,025
2,025
 01M 323 875 BJ
(12)
adjusting washer 2,25
2,25
 01M 323 875 BT
(12)
adjusting washer 2,475
2,475
 01M 323 875 CJ
(12)
adjusting washer 1,475
1,475
 01M 323 875 AE
(12)
adjusting washer 1,8
1,8
 01M 323 875 AT
(12)
adjusting washer 2,325
2,325
 01M 323 875 CC
(12)
adjusting washer 1,225
1,225
 01M 323 875 N
(12)
adjusting washer 1,825
1,825
 01M 323 875 BA
(12)
adjusting washer 2,375
2,375
 01M 323 875 CE
(12)
adjusting washer 1,55
1,55
 01M 323 875 AH
(12)
adjusting washer 2,55
2,55
 01M 323 875 CM
(12)
adjusting washer 2,275
2,275
 01M 323 875 CA
(12)
adjusting washer 1,975
1,975
 01M 323 875 BG
(12)
adjusting washer 1,65
1,65
 01M 323 875 AM
(12)
adjusting washer 1,85
1,85
 01M 323 875 BB
(12)
adjusting washer 1,325
1,325
 01M 323 875 S
(12)
adjusting washer 2,65
2,65
 01M 323 875 CR
(12)
adjusting washer 2
2
 01M 323 875 BH
(12)
adjusting washer 2,45
2,45
 01M 323 875 CH
(12)
adjusting washer 2,5
2,5
 01M 323 875 CK
(12)
adjusting washer 1,25
1,25
 01M 323 875 P
(12)
adjusting washer 1,625
1,625
 01M 323 875 AL
(12)
adjusting washer 1,375
1,375
 01M 323 875 AA
(12)
adjusting washer 2,6
2,6
 01M 323 875 CP
(12)
adjusting washer 2,525
2,525
 01M 323 875 CL
(12)
adjusting washer 1,75
1,75
 01M 323 875 AR
(12)
adjusting washer 1,2
1,2
 01M 323 875 M
(12)
adjusting washer 2,35
2,35
 01M 323 875 CD
(12)
adjusting washer 2,15
2,15
 01M 323 875 BP
(12)
adjusting washer 1,3
1,3
 01M 323 875 R
(14A)
gear set for intermed. drive Z=63/61 FDH
Z=63/61
 01M 323 880 C
(19)
adjusting washer 1,95
1,95
 096 323 839 BA
(19)
adjusting washer 1,625
1,625
 096 323 839 AF
(19)
adjusting washer 2,3
2,3
 096 323 839 BQ
(19)
adjusting washer 1,825
1,825
 096 323 839 AP
(19)
adjusting washer 1,7
1,7
 096 323 839 AJ
(19)
adjusting washer 1,8
1,8
 096 323 839 AN
(19)
adjusting washer 2,475
2,475
 096 323 839 CD
(19)
adjusting washer 2,175
2,175
 096 323 839 BK
(19)
adjusting washer 2,375
2,375
 096 323 839 BT
(19)
adjusting washer 2
2
 096 323 839 BC
(19)
adjusting washer 2,5
2,5
 096 323 839 CE
(19)
adjusting washer 2,075
2,075
 096 323 839 BF
(19)
adjusting washer 2,225
2,225
 096 323 839 BM
(19)
adjusting washer 1,675
1,675
 096 323 839 AH
(19)
adjusting washer 2,55
2,55
 096 323 839 CG
(19)
adjusting washer 2,525
2,525
 096 323 839 CF
(19)
adjusting washer 1,775
1,775
 096 323 839 AM
(19)
adjusting washer 1,925
1,925
 096 323 839 AT
(19)
adjusting washer 2,25
2,25
 096 323 839 BN
(19)
adjusting washer 2,45
2,45
 096 323 839 CC
(19)
adjusting washer 2,425
2,425
 096 323 839 CB
(19)
adjusting washer 2,05
2,05
 096 323 839 BE
(19)
adjusting washer 2,4
2,4
 096 323 839 CA
(19)
adjusting washer 2,15
2,15
 096 323 839 BJ
(19)
adjusting washer 2,275
2,275
 096 323 839 BP
(19)
adjusting washer 1,9
1,9
 096 323 839 AS
(19)
adjusting washer 1,725
1,725
 096 323 839 AK
(19)
adjusting washer 2,125
2,125
 096 323 839 BH
(19)
adjusting washer 2,2
2,2
 096 323 839 BL
(19)
adjusting washer 2,35
2,35
 096 323 839 BS
(19)
adjusting washer 1,65
1,65
 096 323 839 AG
(19)
adjusting washer 1,875
1,875
 096 323 839 AR
(19)
adjusting washer 2,325
2,325
 096 323 839 BR
(19)
adjusting washer 1,975
1,975
 096 323 839 BB
(19)
adjusting washer 1,85
1,85
 096 323 839 AQ
(19)
adjusting washer 2,025
2,025
 096 323 839 BD
(19)
adjusting washer 1,75
1,75
 096 323 839 AL
(19)
adjusting washer 2,1
2,1
 096 323 839 BG
1
Output shaft 78/16 FDH
78/16
 096 323 857 S
10A
oil deflector
 01M 323 877 A
11
Taper roller bearing 38,1 X 65 X 18
38,1 X 65 X 18
 003 519 185 F
12
adjusting washer 1
1
 01M 323 875 D
13
Hexagon nut M 27 X 1,5
M 27 X 1,5
 097 409 379
14A
gear set for intermed. drive Z=44/45 FDE,FDG,FDB
Z=44/45
 01M 323 880
15
axial bearing
 095 323 710
16
Belleville spring
 095 323 898
17
bolt M 36 X 1,5
M 36 X 1,5
 095 323 899
18
Taper roller bearing 41 X 72 X 17,6
41 X 72 X 17,6
 01M 323 981 A
19
adjusting washer 1,6
1,6
 096 323 839 AE
2
Taper roller bearing 34 X 64 X 23
34 X 64 X 23
 096 323 851 A
3
Thrust ring
 096 323 861
4
Socket head bolt M 6 X 20
M 6 X 20
 N 903 694 02
4A
sealant 14 G
14 G
 AKD 456 000 02
5
Shaft oil seal 34 X 52 X 7
34 X 52 X 7
 096 323 862
6
O-ring 59 X 3
59 X 3
 098 323 863
7
wheel-parking lock Z=36
Z=36
 096 323 867 A
8
Bearing cover
 096 323 873 A
8
Bearing cover
 096 323 873 B
9
Hexagon bolt M 8 X 22
M 8 X 22
 N 102 314 01

From the Type 19 workshop

Volkswagen Golf Mk4 work in the Type 19 workshop — the same cars these gearbox diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk4
Model years
2003 - 2004
Generation region
MEX, RDW
Generation code
405
Factory group
02 Gearbox
Factory subgroup
323070

Related factory diagrams

Other published gearbox plates for the Mk4 Golf in this catalogue.

The complete Mk4 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the 2006 coupling for 5 speed automatic gearbox diagram for the Mk4 Golf?
This diagram lists 131 OEM part numbers for the Mk4 Golf. The first three are 096 323 857 AJ, 096 323 857 N and 096 323 857 AH.
Which Mk4 Golf years and engines does this diagram cover?
This plate is from the Mk4 Golf 2003 - 2004 generation (MEX, RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk4 Golf factory parts catalogue?
The Mk4 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk4-mechanical/. It carries every plate in this catalogue, not just this one.
