Which VW part numbers are on the 2006 gear housing for 4 speed automatic gearbox diagram for the Mk4 Golf?

This diagram lists 69 OEM part numbers for the Mk4 Golf. The first three are 02E 325 025 ADZ 5A, 02E 325 025 ADZ 19 and 02E 398 051.

Which Mk4 Golf years and engines does this diagram cover?

This plate is from the Mk4 Golf 2003 - 2004 generation (MEX, RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk4 Golf factory parts catalogue?

The Mk4 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk4-mechanical/. It carries every plate in this catalogue, not just this one.

2006 gear housing for 4 speed automatic gearbox — Mk4 Golf Gearbox (2003 - 2004)

Factory title: Volkswagen Golf/Golf R32 (2003 - 2006) - Gear housing. for 4-speed automatic gearbox

Generation: Mk4 2003 - 2004 (MEX, RDW) Group: Gearbox Rebuild step 9 Parts: 73 Primary OEM: 02E 325 025 ADZ 5A, 02E 325 025 ADZ 19, 02E 398 051

2006 gear housing for 4 speed automatic gearbox for the Volkswagen Golf Mk4 (2003 - 2004): factory exploded diagram 321060 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 69 OEM part numbers across 73 catalogued positions including 02E 325 025 ADZ 5A, 02E 325 025 ADZ 19 and 02E 398 051. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.

Parts on this diagram

This Mk4 Golf plate lists 69 OEM part numbers across 73 numbered positions.

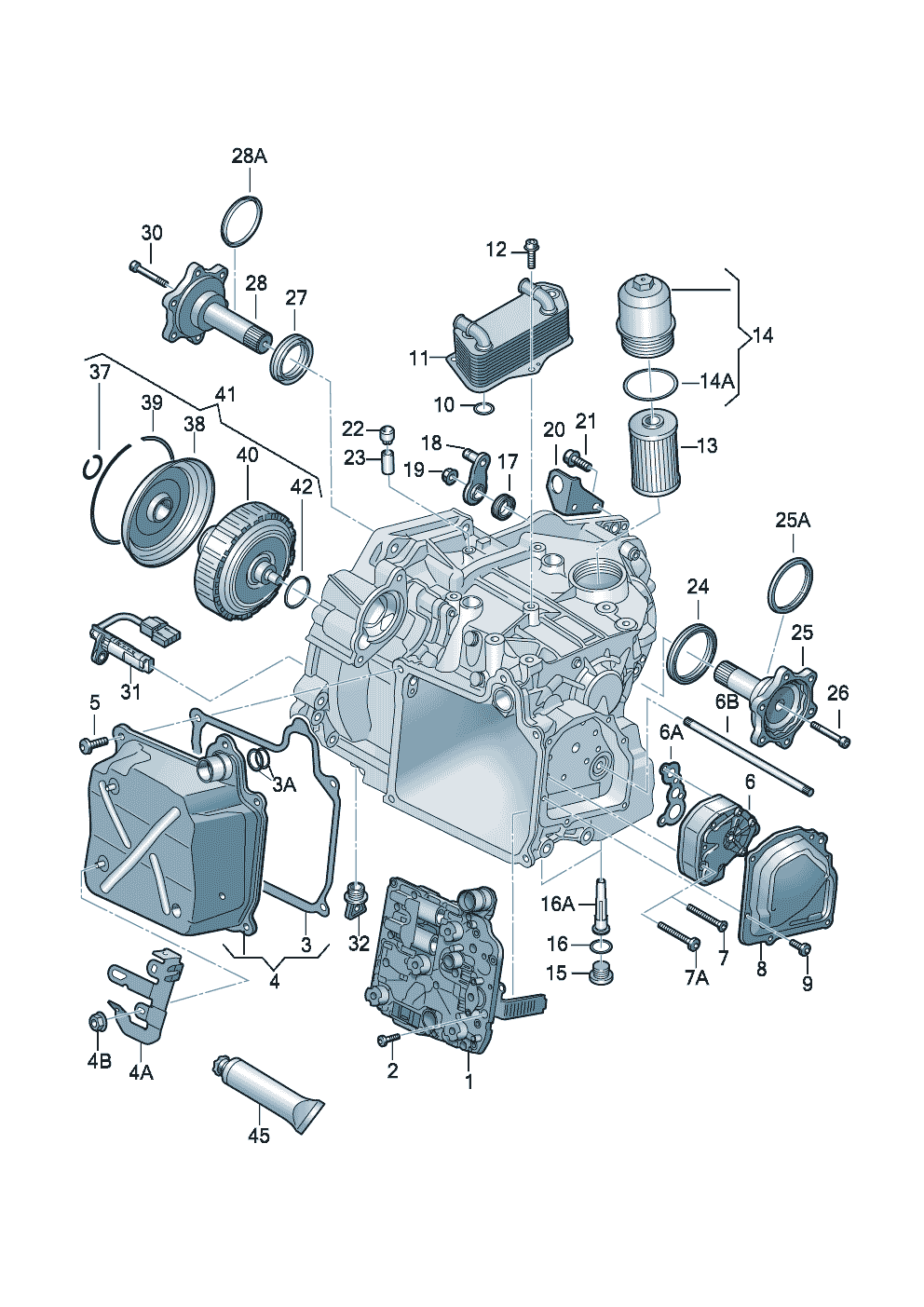

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	mechatronic with software GQA	02E 325 025 ADZ 5A
	mechatronic with software GYD	02E 325 025 ADZ 19
(13)	filter element with gasket	02E 398 051
(17)	Shaft oil seal 24,3 X 6,5 24,3 X 6,5	02A 301 227 L
(23)	Breather line 9,1 X 23 X 8,1 9,1 X 23 X 8,1	010 409 847
(41)	Repair set formulti-coupling	02E 398 029 A
(6)	oil pump	02E 315 105 A
(7)	round hd. screw D - 20.04.2006>> M 6 X 60 M 6 X 60	N 105 626 02
(8)	Oil pump cover D - 20.04.2006>>	02E 315 141 A
1	mechatronic with software	02E 325 025 AD
10	O-ring 15 X 2,5 15 X 2,5	N 910 279 01
11	Oil cooler	02E 409 061 C
12	Socket head bolt with innermultipoint head M 8 X 20 M 8 X 20	N 909 861 02
12	Socket head bolt with innermultipoint head M 8 X 20 M 8 X 20	N 909 861 01
13	filter element also use: N 910 845 01 N 910 845 01	02E 305 051 C
13	filter element	02E 305 051 B
14	Filter housing	02E 305 047 A
14	Filter housing	02E 305 045
14A	O-ring 63,09 X 3,53 63,09 X 3,53	N 910 845 01
15	sealing plug M 24 X 1,5 M 24 X 1,5	N 902 154 04
16	seal ring 24 X 29 24 X 29	N 043 809 2
16A	oil pipe 96 96	02E 321 363 C
17	Shaft oil seal 24,3 X 6,4 24,3 X 6,4	02A 301 227 M
17	Shaft oil seal 24,3 X 6,5 24,3 X 6,5	02A 301 227 C
18	lever for parking lock	02E 321 171 E
18	lever for parking lock	02E 321 171 C
19	Hexagon collar nutself-locking M 8 M 8	N 907 611 02
19	Hexagon collar nut M 8 M 8	N 907 611 01
2	round hd. screw M 6 X 35 M 6 X 35	N 105 540 01
2	round hd. screw M 6 X 35 M 6 X 35	N 105 540 05
20	abutment	02E 321 397 D
21	Socket head bolt with innermultipoint head M 8 X 20 M 8 X 20	N 909 861 02
21	Socket head bolt with innermultipoint head M 8 X 20 M 8 X 20	N 909 861 01
22	Cap for venting the gearbox	095 409 841
23	Breather line	0AM 409 847
23	Sleeve 12 X 30 12 X 30	014 301 473
24	seal ring 60 X 74,3 X 8 60 X 74,3 X 8	02M 301 189 B
25	Flanged shaft	02E 409 343 C
25A	protective ring	02E 409 375 B
26	Socket head bolt withhexagon socket head M 8 X 45,9 M 8 X 45,9	02E 409 359
27	radial shaft seal 54 X 73 X 8 54 X 73 X 8	02Q 409 189
28	Stub shaft Not for this model	—
28A	protective ring Not for this model	—
3	Seal	02E 321 371 E
30	Socket head bolt withhexagon socket head M 8 X 45,9 M 8 X 45,9	02E 409 359
31	Speed sender withtemperature sender G 182/G 509 G 182/G 509	02E 927 321 A
32	Bungs Not for this model	—
37	1 set circlips	02E 398 321
38	Cover	02E 301 205 C
38	Cover	02E 301 205 B
39	Securing ring	02E 301 859 A
3A	O-ring Included in position: 27 X 3,21 27 X 3,21	WHT 001 403
4	Cover use if required:contains additional positions: 1 K 0 971 858 ASN 015 082 103 1 K 0 971 858 ASN 015 082 103	02E 325 201 D
4	Cover	02E 325 201 C
40	Coupling Included in position: 41 41	—
41	Repair set formulti-coupling	02E 398 029 B
41	Repair set formulti-coupling	02E 398 029
42	seal ring	02E 323 557 B
42	seal ring 55 X 60 55 X 60	02E 323 557 A
45	sealing grease for radialshaft oil seal 50 G 50 G	G 052 128 A1
4A	Retaining bracket	1K0 971 858 AS
4B	Hexagon collar nut M 6 M 6	N 015 082 10
5	Round-head screw with innerhexagon socket head M 6 X 20 M 6 X 20	N 910 327 01
5	Round-head screw with innerhexagon socket head M 6 X 20 M 6 X 20	N 910 327 02
6	oil pump	02E 315 105
6	oil pump also use: >>D 19.04.200602 E 315 141 AN 105 626 02 N 911 090 01 >>D 19.04.200602 E 315 141 AN 105 626 02 N 911 090 01	02E 315 105 B
6A	Seal	02E 321 385 A
6B	shaft - oil pump	02E 323 561 C
7	round hd. screw D >> - 19.04.2006 M 6 X 60 M 6 X 60	N 105 626 02
7A	Hex socket countersunk bolt D - 20.04.2006>> M 6 X 60 M 6 X 60	N 911 090 01
8	Oil pump cover D >> - 19.04.2006	02E 315 141
9	Oval hexagon socket head bolt M 6 X 16 M 6 X 16	N 104 514 05
9	Oval hexagon socket head bolt M 6 X 16 M 6 X 16	N 104 514 02

From the Type 19 workshop

Volkswagen Golf Mk4 work in the Type 19 workshop — the same cars these gearbox diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk4
Model years: 2003 - 2004
Generation region: MEX, RDW
Generation code: 405
Factory group: 02 Gearbox
Factory subgroup: 321060
