2006 output shaft for 5 speed manual transmiss gears and shafts — Mk4 Golf Gearbox (2003 - 2004)
Factory title: Volkswagen Golf/Golf R32 (2003 - 2006) - Output shaft. for 5 speed manual transmiss.. gears and shafts

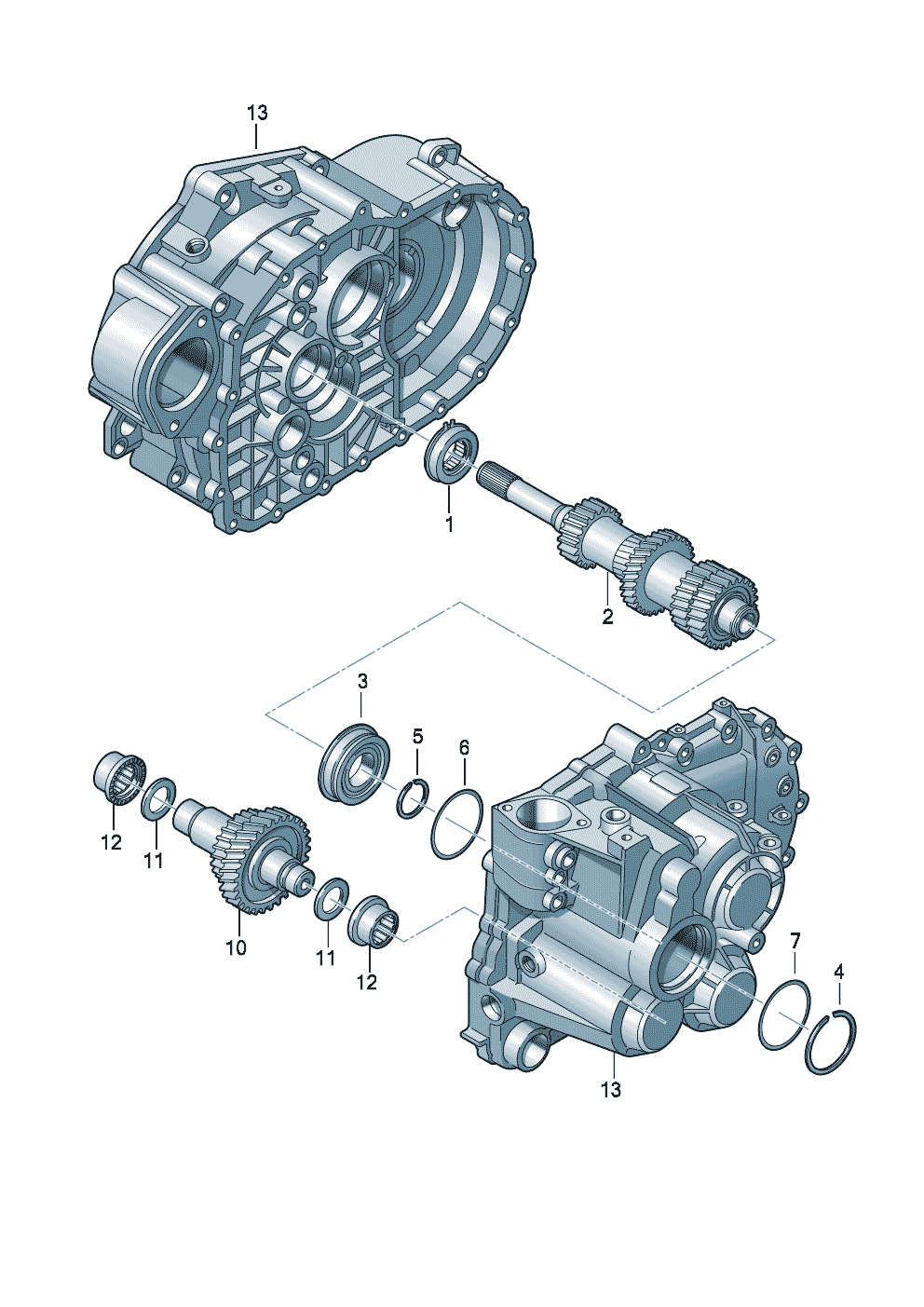

2006 output shaft for 5 speed manual transmiss gears and shafts for the Volkswagen Golf Mk4 (2003 - 2004): factory exploded diagram 311041 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 12 OEM part numbers across 14 catalogued positions including 02M 311 509 K, 02M 311 101 AE and 02M 398 008. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.
Parts on this diagram
This Mk4 Golf plate lists 12 OEM part numbers across 14 numbered positions.
| № | Description | Part number |
|---|---|---|
| gears and shafts Input shaft 6-speed manual transmission FMH,FZQ,JNA | — | |
| (10) | reverse gear idler spindle Z=36+14 FMH,JNA Z=36+14 | 02M 311 509 K |
| (2) | Input shaft FMH,JNA | 02M 311 101 AE |
| (5) | 1 set circlips 1,79-1,98 1,79-1,98 | 02M 398 008 |
| 1 | roller sleeve 55 X 32 X 18 55 X 32 X 18 | 02T 311 373 D |
| 10 | reverse gear idler spindle Z=34+14 FZQ Z=34+14 | 02M 311 509 J |
| 11 | thrust washer 25,1 X 45 X 3,5 25,1 X 45 X 3,5 | 02M 311 517 |
| 12 | Needle bush 25 X 37+50 X 22,5 25 X 37+50 X 22,5 | 02M 311 523 A |
| 13 | Gear housing see illustration: 301-046 301-046 | — |
| 2 | Input shaft FZQ | 02M 311 101 AC |
| 3 | grooved ball bearing 30 X 72 X 22 30 X 72 X 22 | 02M 311 235 A |
| 4 | Securing ring 69,4 X 2 69,4 X 2 | 0A5 311 183 |
| 6 | Washer 72 X 84,85 X 0,65 JNA 72 X 84,85 X 0,65 | WHT 002 050 |
| 7 | Washer 72 X 78,6 X 0,65 JNA 72 X 78,6 X 0,65 | WHT 001 976 |
From the Type 19 workshop
Volkswagen Golf Mk4 work in the Type 19 workshop — the same cars these gearbox diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk4
- Model years
- 2003 - 2004
- Generation region
- MEX, RDW
- Generation code
- 405
- Factory group
- 02 Gearbox
- Factory subgroup
- 311041
