2006 output shaft for 5 speed manual transmiss gears and shafts — Mk4 Golf Gearbox (2003 - 2004)

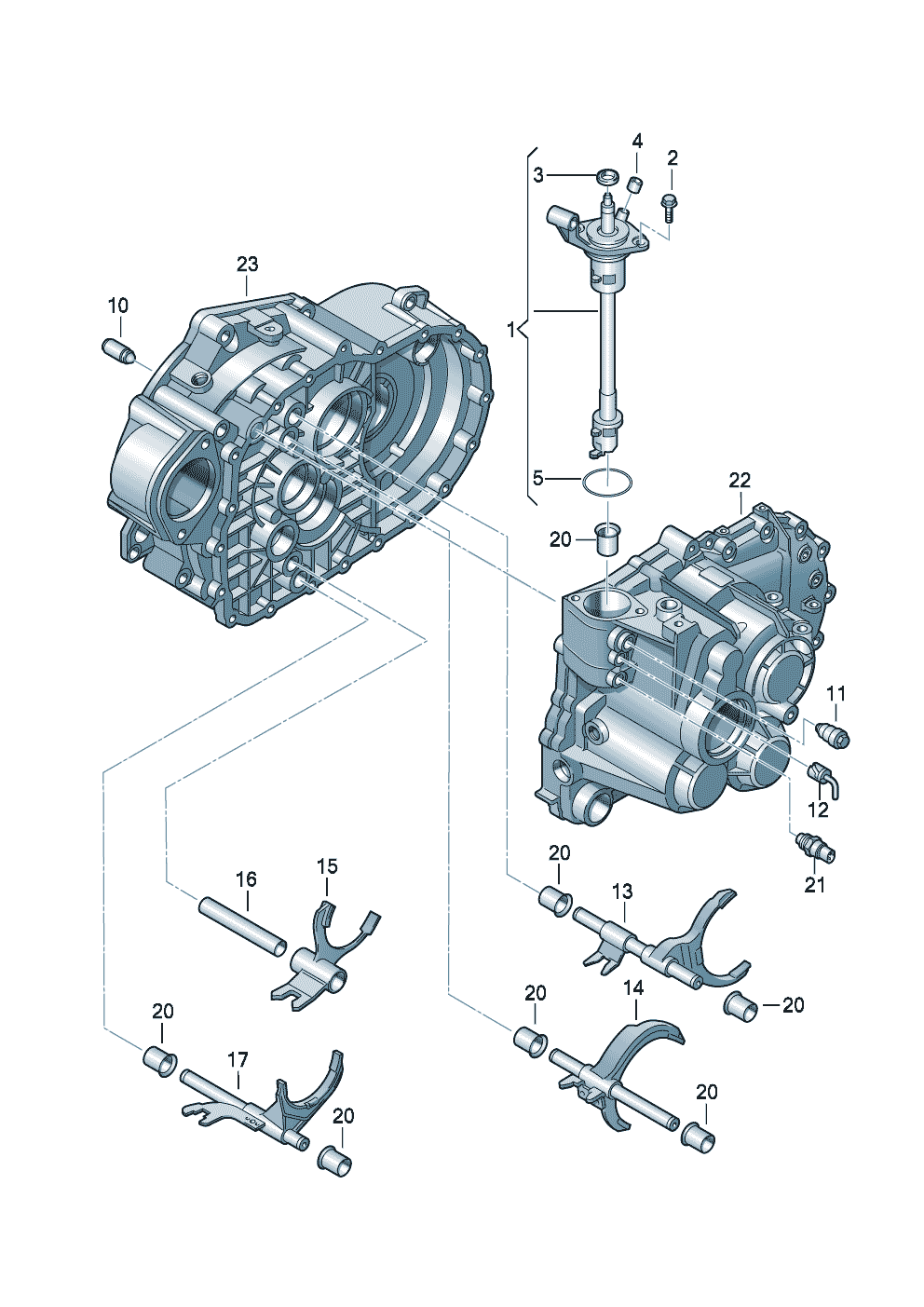

Factory title: Volkswagen Golf/Golf R32 (2003 - 2006) - Output shaft. for 5 speed manual transmiss.. gears and shafts
2006 output shaft for 5 speed manual transmiss gears and shafts for the Volkswagen Golf Mk4 (2003 - 2004): factory exploded diagram 311091 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 20 OEM part numbers across 25 catalogued positions including 02M 301 241 D, 02Q 301 230 B and 02T 301 234 F. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.
Parts on this diagram
This Mk4 Golf plate lists 20 OEM part numbers across 25 numbered positions.
| № | Description | Part number |
|---|---|---|
| shift rod Selector fork 6-speed manual transmission FMH,FZQ,JNA | — | |
| (11) | locking screw M 27 X 1,5 M 27 X 1,5 | 02M 301 241 D |
| 1 | Switch unit | 02Q 301 230 B |
| 10 | retaining sleeve | 02T 301 234 F |
| 11 | locking screw M 27 X 1,5 M 27 X 1,5 | 02M 301 241 A |
| 11 | locking screw | 02M 301 241 C |
| 12 | detent pin | 02J 301 358 C |
| 13 | selector shaft with selec.fork | 02M 311 559 L |
| 14 | selector shaft with selec.fork | 02M 311 549 M |
| 14 | selector shaft with selec.fork | 02M 311 549 L |
| 15 | Selector fork | 02M 311 570 E |
| 15 | Selector fork | 02M 311 570 C |
| 16 | selector shaft | 02M 311 577 A |
| 17 | selector shaft with selec.fork | 02M 311 562 N |
| 17 | selector shaft with selec.fork | 02M 311 562 M |
| 2 | Hex collared bolt M 8 X 25 M 8 X 25 | N 904 959 01 |
| 2 | Hex collared bolt M 8 X 25 M 8 X 25 | N 101 560 05 |
| 20 | bush for gearshift rod see illustration: 301-046 301-046 | — |
| 21 | switch for reversing light see illustration: 945-050 945-050 | — |
| 22 | Gear housing see illustration: 301-046 301-046 | — |
| 23 | clutch housing see illustration: 301-046 301-046 | — |
| 3 | Shaft oil seal 24,3 X 6,4 24,3 X 6,4 | 02A 301 227 M |
| 3 | Shaft oil seal 24,3 X 6,5 24,3 X 6,5 | 02A 301 227 L |
| 4 | Cap for venting the gearbox | 014 301 485 |
| 5 | O-ring 56,82 X 2,62 56,82 X 2,62 | N 903 542 01 |
From the Type 19 workshop
Volkswagen Golf Mk4 work in the Type 19 workshop — the same cars these gearbox diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk4
- Model years
- 2003 - 2004
- Generation region
- MEX, RDW
- Generation code
- 405
- Factory group
- 02 Gearbox
- Factory subgroup
- 311091
