2006 pinion gear set for 5 speed manual transmiss differential — Mk4 Golf Gearbox (2003 - 2004)
Factory title: Volkswagen Golf/Golf R32 (2003 - 2006) - Pinion gear set. for 5 speed manual transmiss.. Differential

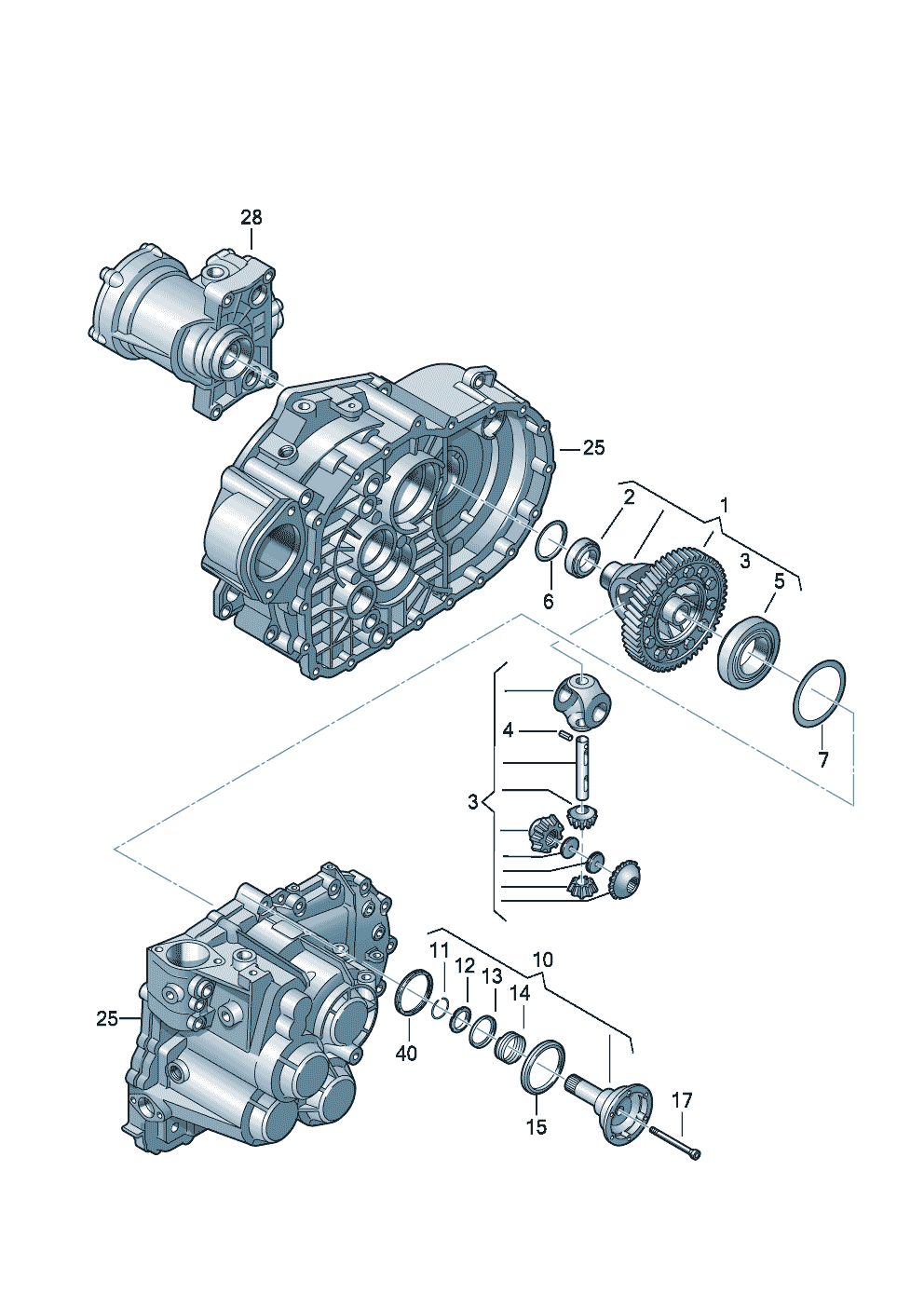

2006 pinion gear set for 5 speed manual transmiss differential for the Volkswagen Golf Mk4 (2003 - 2004): factory exploded diagram 409036 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 15 OEM part numbers across 18 catalogued positions including 02M 409 021 AE, 02B 498 210 and 02M 409 021 AA. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.
Parts on this diagram
This Mk4 Golf plate lists 15 OEM part numbers across 18 numbered positions.
| № | Description | Part number |
|---|---|---|
| Differentialoutput gear 6-speed manual transmissionfor four-wheel drive FMS,FZM,FMU,FMQ,GQV,JMZ,JMW | — | |
| (1) | Differential 72/17/22 FMS,FZM,FMUGQV,JMZ 72/17/22 | 02M 409 021 AE |
| (7) | 1 set shims 0,65-1,25 0,65-1,25 | 02B 498 210 |
| 1 | Differential 62/16/20 FMQ,JMW 62/16/20 | 02M 409 021 AA |
| 10 | Flanged shaft | 02M 409 343 D |
| 11 | Securing ring 30,5 30,5 | N 906 353 01 |
| 12 | tapered ring | 02M 409 374 A |
| 13 | thrust washer 32 X 47 32 X 47 | 02M 409 378 A |
| 14 | Pressure spring | 084 409 379 |
| 15 | protective ring | 02M 409 375 |
| 17 | Socket head bolt withhexagon socket head M 8 X 83,2 M 8 X 83,2 | 02J 409 359 |
| 2 | Taper roller bearing 46 X 75 X 18 46 X 75 X 18 | 002 517 185 A |
| 25 | Gear housing see illustration: 301-050 301-050 | — |
| 28 | angled drive see illustration: 409-047 409-047 | — |
| 3 | 1 set: differential pinions | 02M 498 081 A |
| 4 | Spring pin 5,4 X 28,5 5,4 X 28,5 | N 905 387 01 |
| 5 | Taper roller bearing 46 X 75 X 18 46 X 75 X 18 | 002 517 185 A |
| 6 | adjusting washer 0,65 0,65 | 02B 409 210 |
From the Type 19 workshop
Volkswagen Golf Mk4 work in the Type 19 workshop — the same cars these gearbox diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk4
- Model years
- 2003 - 2004
- Generation region
- MEX, RDW
- Generation code
- 405
- Factory group
- 02 Gearbox
- Factory subgroup
- 409036
