2006 pinion gear set for 5 speed manual transmiss differential — Mk4 Golf Gearbox (2003 - 2004)

Factory title: Volkswagen Golf/Golf R32 (2003 - 2006) - Pinion gear set. for 5 speed manual transmiss.. Differential

Generation: Mk4 2003 - 2004 (MEX, RDW) Group: Gearbox Rebuild step 9 Parts: 9 Primary OEM: 02M 409 905 AD, N 911 053 01, N 909 562 01

2006 pinion gear set for 5 speed manual transmiss differential for the Volkswagen Golf Mk4 (2003 - 2004): factory exploded diagram 409065 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 8 OEM part numbers across 9 catalogued positions including 02M 409 905 AD, N 911 053 01 and N 909 562 01. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.

Parts on this diagram

This Mk4 Golf plate lists 8 OEM part numbers across 9 numbered positions.

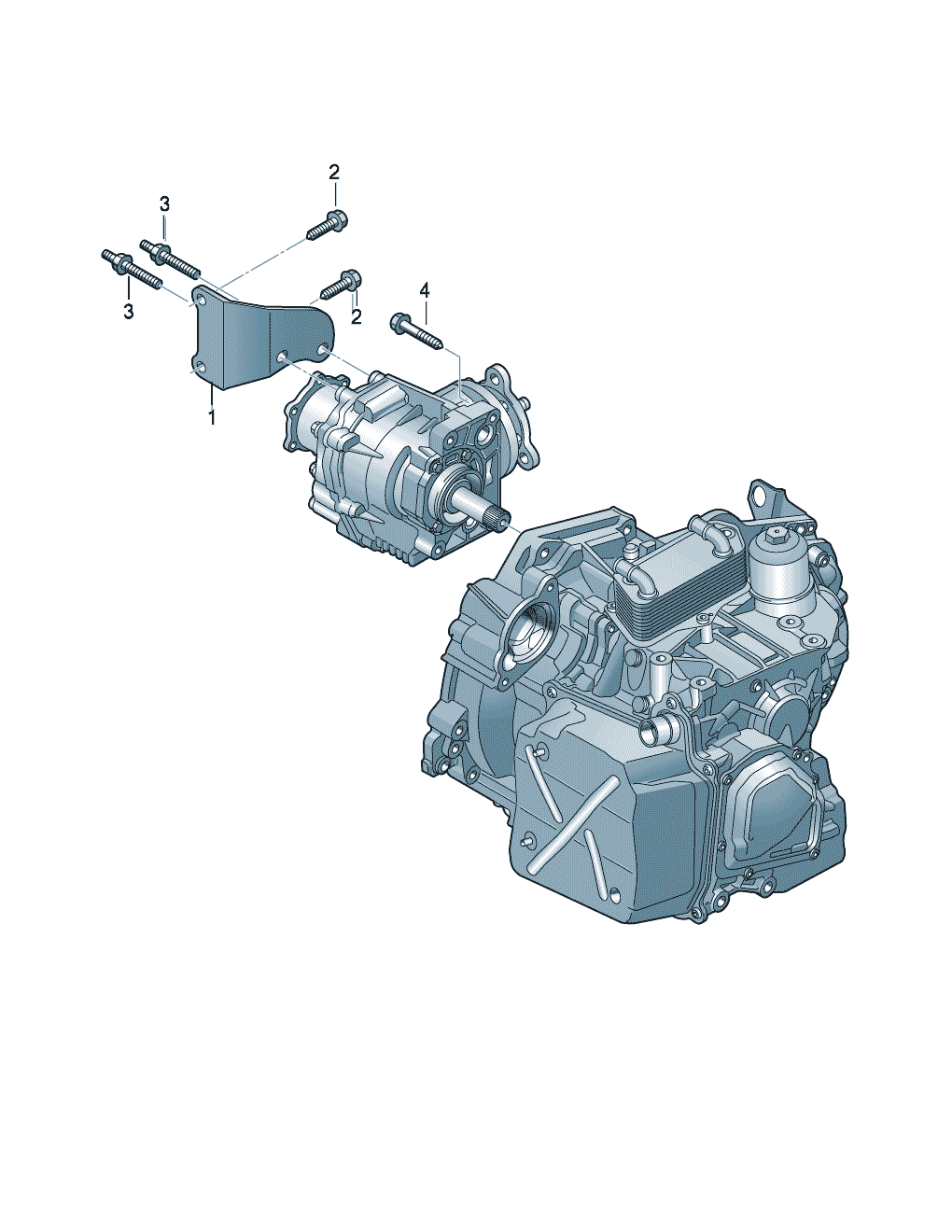

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	transmission securing partsfinal drive 6-speed dual clutch gearboxfor four-wheel drive front GQA,GYD,HAH,HYB front	—
1	transmission carrier	02M 409 905 AD
2	hexagon socket head bolt withshoulder M 10 X 21 M 10 X 21	N 911 053 01
2	hexagon socket head bolt withshoulder M 10 X 22 M 10 X 22	N 909 562 01
2	fillister head bolt withmulti-point socket head M 10 X 21 M 10 X 21	N 910 000 02
3	double collared stud M 10 X 45/M 8 X 16 M 10 X 45/M 8 X 16	N 910 027 02
3	double collared stud M 10 X 45/M 8 X 16 M 10 X 45/M 8 X 16	N 910 027 01
4	Socket head bolt withinner multipoint head M 10 X 11 X 70 M 10 X 11 X 70	N 909 902 02
4	Socket head bolt withinner multipoint head M 10 X 11 X 70 M 10 X 11 X 70	N 909 902 01

From the Type 19 workshop

Volkswagen Golf Mk4 work in the Type 19 workshop — the same cars these gearbox diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk4
Model years: 2003 - 2004
Generation region: MEX, RDW
Generation code: 405
Factory group: 02 Gearbox
Factory subgroup: 409065
