5 6 speed manual gearbox — Mk4 Golf Gearbox (2003 - 2004)

Factory title: Volkswagen Golf/Golf R32 (2003 - 2006) - 5 & 6 speed manual gearbox

Generation: Mk4 2003 - 2004 (MEX, RDW) Group: Gearbox Rebuild step 9 Parts: 55 Primary OEM: 02K 300 049 FX, 02K 300 049 F, 02K 300 049 CX

5 6 speed manual gearbox for the Volkswagen Golf Mk4 (2003 - 2004): factory exploded diagram 300010 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 54 OEM part numbers across 55 catalogued positions including 02K 300 049 FX, 02K 300 049 F and 02K 300 049 CX. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.

Parts on this diagram

This Mk4 Golf plate lists 54 OEM part numbers across 55 numbered positions.

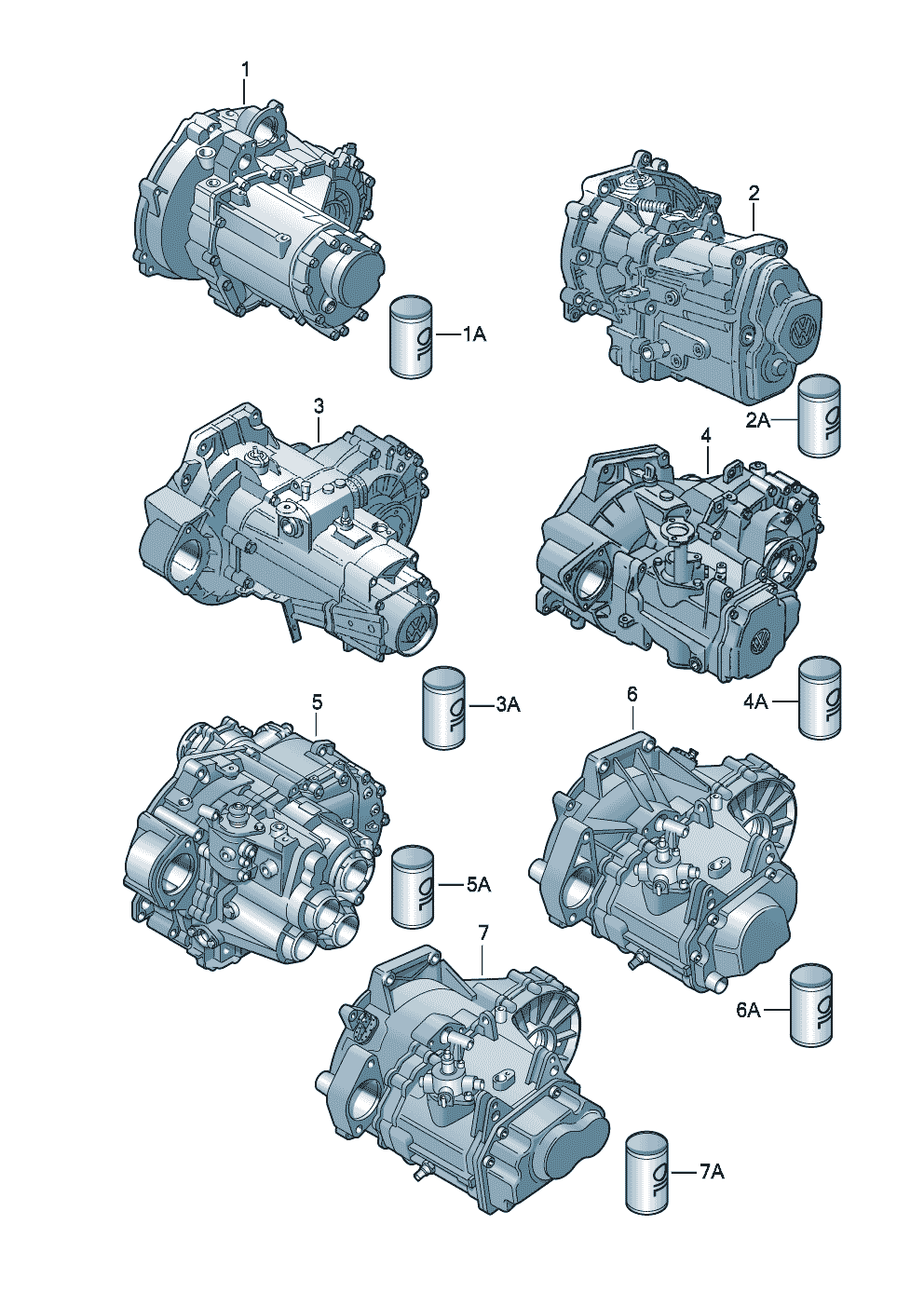

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	6-speed manual transmission ERF,FMH,FML,FZQ,JNA	—
(3)	5-speed manual transmission 67/15 DUW 67/15	02K 300 049 FX
(3)	5-speed manual transmission 67/15 DUW 67/15	02K 300 049 F
(3)	5-speed manual transmission 68/16 DUU 68/16	02K 300 049 CX
(3)	5-speed manual transmission 68/16 HBN 68/16	02K 300 050 B
(3)	5-speed manual transmission 68/16 ERT 68/16	02K 300 049 NX
(3)	5-speed manual transmission 68/16 DUU 68/16	02K 300 049 C
(3)	5-speed manual transmission 68/16 ERT 68/16	02K 300 049 N
(4)	5-speed manual transmission 61/18 EGR 61/18	02J 300 047 M
(4)	5-speed manual transmission 70/19 EVS 70/19	02J 300 053 DX
(4)	5-speed manual transmission use if required: 61/18014 301 155 EUH 61/18014 301 155	02J 300 052 GX
(4)	5-speed manual transmission 70/19 EVS 70/19	02J 300 050 X
(4)	5-speed manual transmission 70/19 EVS 70/19	02J 300 053 D
(4)	5-speed manual transmission 61/18 EGR 61/18	02J 300 052 L
(4)	5-speed manual transmission 61/18 EGS 61/18	02J 300 053 F
(4)	5-speed manual transmission 61/18 EGS 61/18	02J 300 047 NX
(4)	5-speed manual transmission 63/16 FBK 63/16	02J 300 049 GX
(4)	5-speed manual transmission 61/18 EGR 61/18	02J 300 047 MX
(4)	5-speed manual transmission 61/18 EUH 61/18	02J 300 052 G
(4)	5-speed manual transmission use if required: 63/16014 301 155 FBK 63/16014 301 155	02J 300 049 G
(4)	5-speed manual transmission use if required: 61/18014 301 155 EGS 61/18014 301 155	02J 300 053 FX
(4)	5-speed manual transmission 61/18 EGS 61/18	02J 300 047 N
(4)	5-speed manual transmission 70/19 EGY 70/19	02J 300 052 P
(4)	5-speed manual transmission 70/19 EGY 70/19	02J 300 048 BX
(4)	5-speed manual transmission use if required: 70/19014 301 155 EVS 70/19014 301 155	02J 300 053 DX
(4)	5-speed manual transmission 61/18 EUH 61/18	02J 300 049 MX
(4)	5-speed manual transmission 61/18 EUH 61/18	02J 300 049 M
(4A)	Transmission fluid EGY	G 052 171 A2
(4A)	Transmission fluid EGY	G 052 527 A2
(5)	6-speed manual transmission 68/21/26 ERF 68/21/26	02M 300 044 M
(5)	6-speed manual transmission 71/18/23 FZQ 71/18/23	02M 300 046 JX
(5)	6-speed manual transmission 68/21/26 ERF 68/21/26	02M 300 044 MX
(5)	6-speed manual transmission 68/21/26 FMH 68/21/26	02M 300 046 X
(5)	6-speed manual transmission 71/18/23 FZQ 71/18/23	02M 300 046 FX
(5)	6-speed manual transmission 71/18/23 FML,FZQ 71/18/23	02M 300 046 F
(5)	6-speed manual transmission 68/21/26 JNA 68/21/26	02M 300 046 H
(5)	6-speed manual transmission 71/18/23 FML 71/18/23	02M 300 046 CX
(5)	6-speed manual transmission 71/18/23 FML,FZQ 71/18/23	02M 300 046 J
(6)	5-speed manual transmission 61/14 FYK,GSD 61/14	02T 300 053
3	5-speed manual transmission 68/16 DUS,HBN 68/16	02K 300 049 X
3	5-speed manual transmission 68/16 DUS 68/16	02K 300 049
3A	Transmission fluid	G 060 726 A2
3A	Transmission fluid	G 052 726 A2
4	5-speed manual transmission 71/18 EGU 71/18	02J 300 053 B
4	5-speed manual transmission 71/18 EGU 71/18	02J 300 047 SX
4A	Transmission fluid	G 052 726 A2
4A	Transmission fluid EGR,EGS,EGU,EUH,EVS,FBK	G 070 726 A2
5	6-speed manual transmission 68/21/26 ERF,FMH,JNA 68/21/26	02M 300 046 HX
5	6-speed manual transmission 68/21/26 ERF,FMH 68/21/26	02M 300 046
5A	Transmission fluid	G 052 171 A2
5A	Transmission fluid	G 052 527 A2
6	5-speed manual transmission 61/14 FYK,GSD 61/14	02T 300 053 X
6	5-speed manual transmission 61/14 FYK 61/14	02T 300 051 C
6A	Transmission fluid	G 052 178 A2
6A	Transmission fluid	G 052 512 A2
