Coupling for 5 speed automatic gearbox — Mk4 Golf Gearbox (2003 - 2004)

Factory title: Volkswagen Golf/Golf R32 (2003 - 2006) - Coupling. for 5-speed automatic gearbox

Generation: Mk4 2003 - 2004 (MEX, RDW) Group: Gearbox Rebuild step 9 Parts: 63 Primary OEM: 095 323 329 P, 095 398 391, 01M 323 921 CX

Coupling for 5 speed automatic gearbox for the Volkswagen Golf Mk4 (2003 - 2004): factory exploded diagram 323057 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 61 OEM part numbers across 63 catalogued positions including 095 323 329 P, 095 398 391 and 01M 323 921 CX. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.

Parts on this diagram

This Mk4 Golf plate lists 61 OEM part numbers across 63 numbered positions.

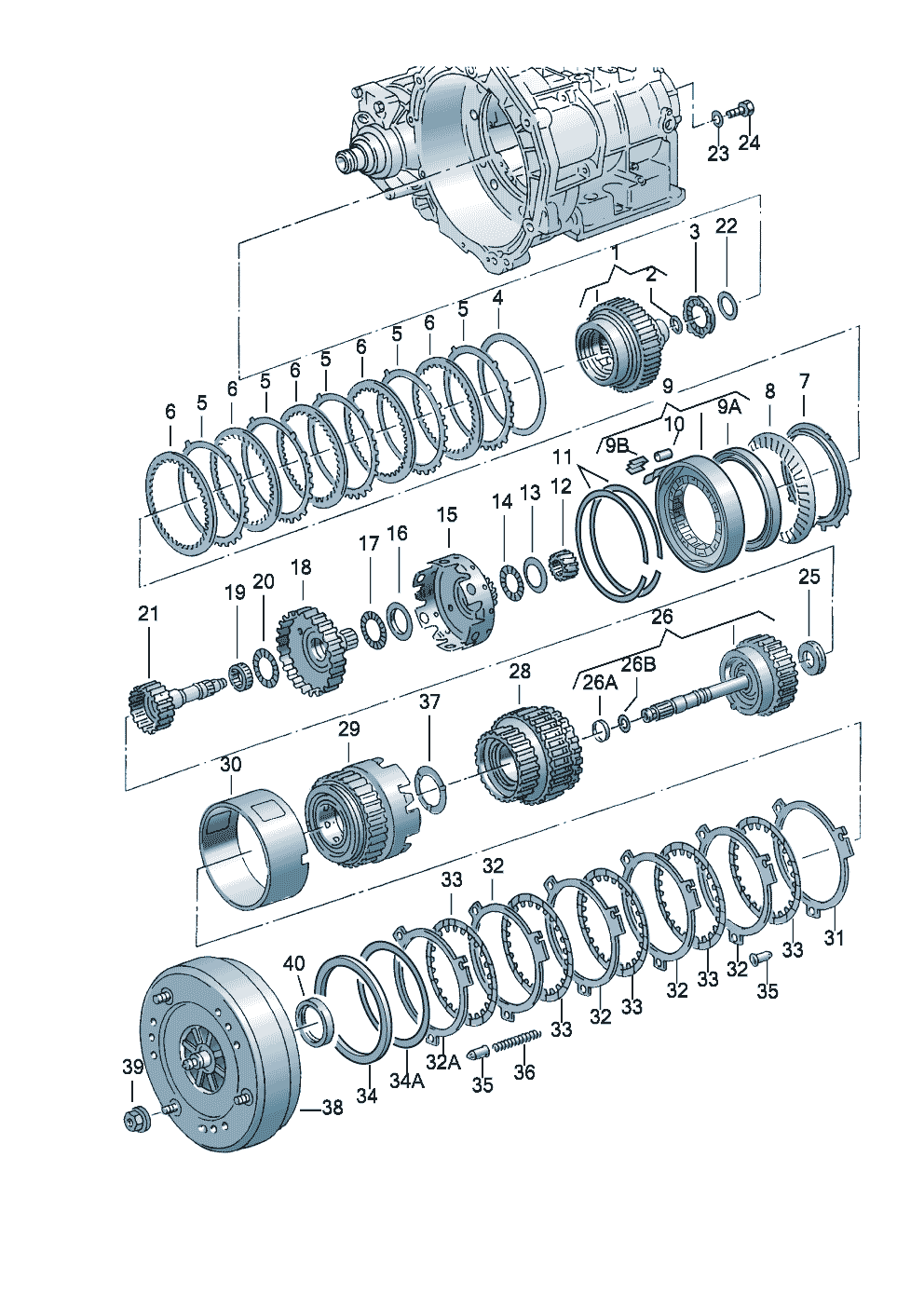

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
forward,reverse gear clutchplanet pinion carrier Converterfor 4-speed automatic gearbox FDB,FDE,FDG,FDH
 —
(15)
driving shell
 095 323 329 P
(22)
1 set shims 1-1,9
1-1,9
 095 398 391
(26)
Coupling FDH,FDG
 01M 323 921 CX
(28)
Coupling FDH
 01M 323 205 BX
(29)
reverse gear clutch FDG
 01M 323 105 CX
(29)
reverse gear clutch FDB,FDE,
 01M 323 105 DX
(29)
reverse gear clutch FDH
 01M 323 105 BX
(30)
Support tube 64,9 FDE,FDB
64,9
 097 323 455 B
(34A)
adjusting washer 1,25
1,25
 01M 323 820 A
(34A)
adjusting washer 1,5
1,5
 01M 323 820 B
(34A)
adjusting washer 1,75
1,75
 01M 323 820 C
(36)
Pressure spring 60 MM FDB,FDE
60 MM
 01M 323 505 A
(37)
1 set shims 1-1,8
1-1,8
 095 398 140
(38)
Converter Code: QADD FDH
QADD
 099 323 571 HX
(38)
Converter Code: QCDD FDB,FDE
QCDD
 099 323 571 FX
(38)
Converter Code: QADD FDH
QADD
 099 323 571 H
(38)
Converter Code: QCDD FDB,FDE
QCDD
 099 323 571 F
(4)
1 set shims 1-1,9
1-1,9
 095 398 208
(7)
Pressure plate 13,5 FDH
13,5
 095 323 297 D
(7)
Pressure plate 10,5 FDB,FDG
10,5
 095 323 297 B
1
planet pinion carrier
 095 323 301 Q
10
Cylinder roller 8 X 12
8 X 12
 N 903 511 01
11
Securing ring
 095 323 653
12
sun gear
 095 323 287 F
13
thrust washer
 095 323 715
14
axial roller bearing 39
39
 095 323 727 B
15
driving shell
 095 323 329 N
16
thrust washer
 095 323 714 A
17
axial roller bearing
 095 323 708
18
Input shaft
 095 323 901 B
19
Needle cage
 095 323 907
2
O-ring 19 X 2,5
19 X 2,5
 095 323 737
20
axial roller bearing
 095 323 909
21
Input shaft
 095 323 911 F
23
Washer 8,2 X 18 X 2
8,2 X 18 X 2
 N 901 076 04
24
Hexagon bolt M 8 X 22
M 8 X 22
 N 010 241 18
25
axial bearing
 095 323 919 B
26
Coupling FDB,FDE
 01M 323 921 DX
26A
piston ring 30 MM
30 MM
 095 323 557 B
26B
O-ring 30 X 2,5
30 X 2,5
 01M 323 255
28
Coupling FDE,FDG,FDB
 01M 323 205 CX
3
axial bearing
 095 323 743 A
30
Support tube 68,6 FDH,FDG
68,6
 097 323 455 A
31
external disc 3
3
 097 323 463 C
32
external disc 2
2
 097 323 463
32A
external disc 3
3
 097 323 463 C
33
Internal disc
 095 323 465 F
34
Retaining ring
 01M 323 821
34A
adjusting washer 1
1
 01M 323 820
35
Pot
 097 323 515
36
Pressure spring 55,5 MM FDH,FDG
55,5 MM
 01M 323 505
38
Converter Code: QBDD FDG
QBDD
 099 323 571 E
38
Converter Code: QBDD FDG
QBDD
 099 323 571 EX
39
Hexagon nut M 10 X 1
M 10 X 1
 N 101 692 01
40
Shaft oil seal see illustration: 321-055
321-055
 —
5
external disc
 095 323 227 A
6
Internal disc
 095 323 231 C
7
Pressure plate 7,5 FDE
7,5
 095 323 297 A
8
Belleville spring(internal gears)
 095 323 295 A
9
1.gear-freewheel
 095 323 383
9A
piston
 095 323 479 B
9B
Spring
 095 323 643
