Coupling — Mk4 Golf Gearbox (2003 - 2004)

Factory title: Volkswagen Golf/Golf R32 (2003 - 2006) - Coupling

Generation: Mk4 2003 - 2004 (MEX, RDW) Group: Gearbox Rebuild step 9 Parts: 29 Primary OEM: 038 141 025 DX, 038 141 025 P, 038 141 025 PX

Coupling for the Volkswagen Golf Mk4 (2003 - 2004): factory exploded diagram 141050 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 28 OEM part numbers across 29 catalogued positions including 038 141 025 DX, 038 141 025 P and 038 141 025 PX. Parts on this plate carry the engine codes AGR, AHF, ALH, ASV, ATD and AXR. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.

Parts on this diagram

This Mk4 Golf plate lists 28 OEM part numbers across 29 numbered positions.

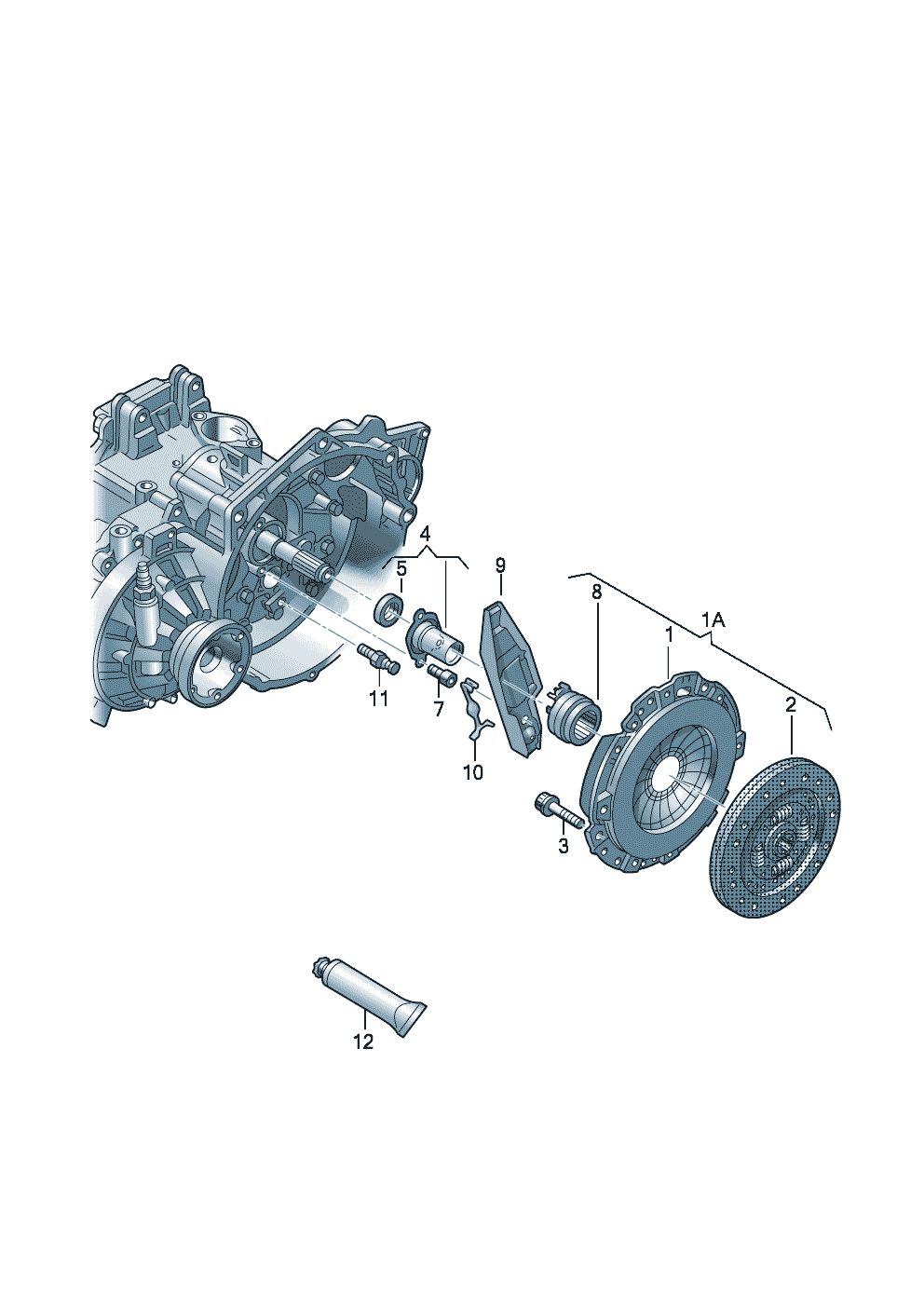

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Coupling 1.9 ltr. Diesel eng.+Frt.-wh.dr.+AGR,ALH,ATD,AXR,AHF,ASV 4 MOTION:AGR 1.9 ltr. AGRALHATDAXRAHF	—
(1)	clutch pressure plate 230 MM ALH,ATD,AXR 230 MM ALHATDAXR	038 141 025 DX
(1)	clutch pressure plate 225 MM LUK AGR,AHF,ASV 225 MM LUK AGRAHFASV	038 141 025 P
(1)	clutch pressure plate 225 MM AGR,AHF,ASV 225 MM AGRAHFASV	038 141 025 PX
(2)	Clutch plate F 1 J-3-525 001>>* 225 MM AHF,ASV 225 MM AHFASV	038 141 031 KX
(2)	Clutch plate F 1 J-3-525 001>>* 225 MM AHF,ASV 225 MM AHFASV	038 141 031 K
(2)	Clutch plate 228 MM ALH,ATD,AXR 228 MM ALHATDAXR	038 141 033 CX
(2)	Clutch plate 228 MM ALH,ATD,AXR 228 MM ALHATDAXR	038 141 032 DX
(2)	Clutch plate F >> 1 J-3-525 000* 225 MM LUK AGRAHF,ASV 225 MM LUK ASV	038 141 032 E
(2)	Clutch plate F >> 1 J-3-525 000* 225 MM AGRAHF,ASV 225 MM ASV	038 141 032 EX
(3)	Socket head bolt with innermultipoint head M 6 X 16 AGR,AHF,ASV M 6 X 16 AGRAHFASV	N 907 255 01
(9)	clutch operating lever	02J 141 719 C
1	clutch pressure plate 230 MM SACHS ALH,ATD,AXR 230 MM SACHS ALHATDAXR	038 141 025 D
10	retaining spring	012 141 741
11	Ball stud	02A 141 777 B
11	Ball stud	02A 141 777
12	Grease for clutchplate splines 80 G 80 G	G 000 100
1A	1 set clutch parts 230 MM SACHS ALH,ATD,AXR 230 MM SACHS ALHATDAXR	038 198 141 PX
2	Clutch plate 228 MM ALH,ATD,AXR 228 MM ALHATDAXR	038 141 033 C
2	Clutch plate 228 MM SACHS ALH,ATD,AXR 228 MM SACHS ALHATDAXR	038 141 032 D
3	12-point head bolt M 7 X 14 ALH,ATD,AXR M 7 X 14 ALHATDAXR	N 903 207 01
4	guide sleeve	02A 141 180 A
5	Shaft oil seal 21,8 X 35 X 7 21,8 X 35 X 7	085 311 113
7	Socket head bolt with innermultipoint head M 7 X 14 M 7 X 14	N 903 554 05
7	Socket head bolt with innermultipoint head M 7 X 14 M 7 X 14	N 903 554 04
8	release bearing	02A 141 165 A
8	release bearing	02A 141 165 M
8	release bearing	02A 141 165 G
9	clutch operating lever	02J 141 719 A
