Gear housing for 5 speed manual transmiss — Mk4 Golf Gearbox (2003 - 2004)
Factory title: Volkswagen Golf/Golf R32 (2003 - 2006) - Gear housing. for 5 speed manual transmiss.

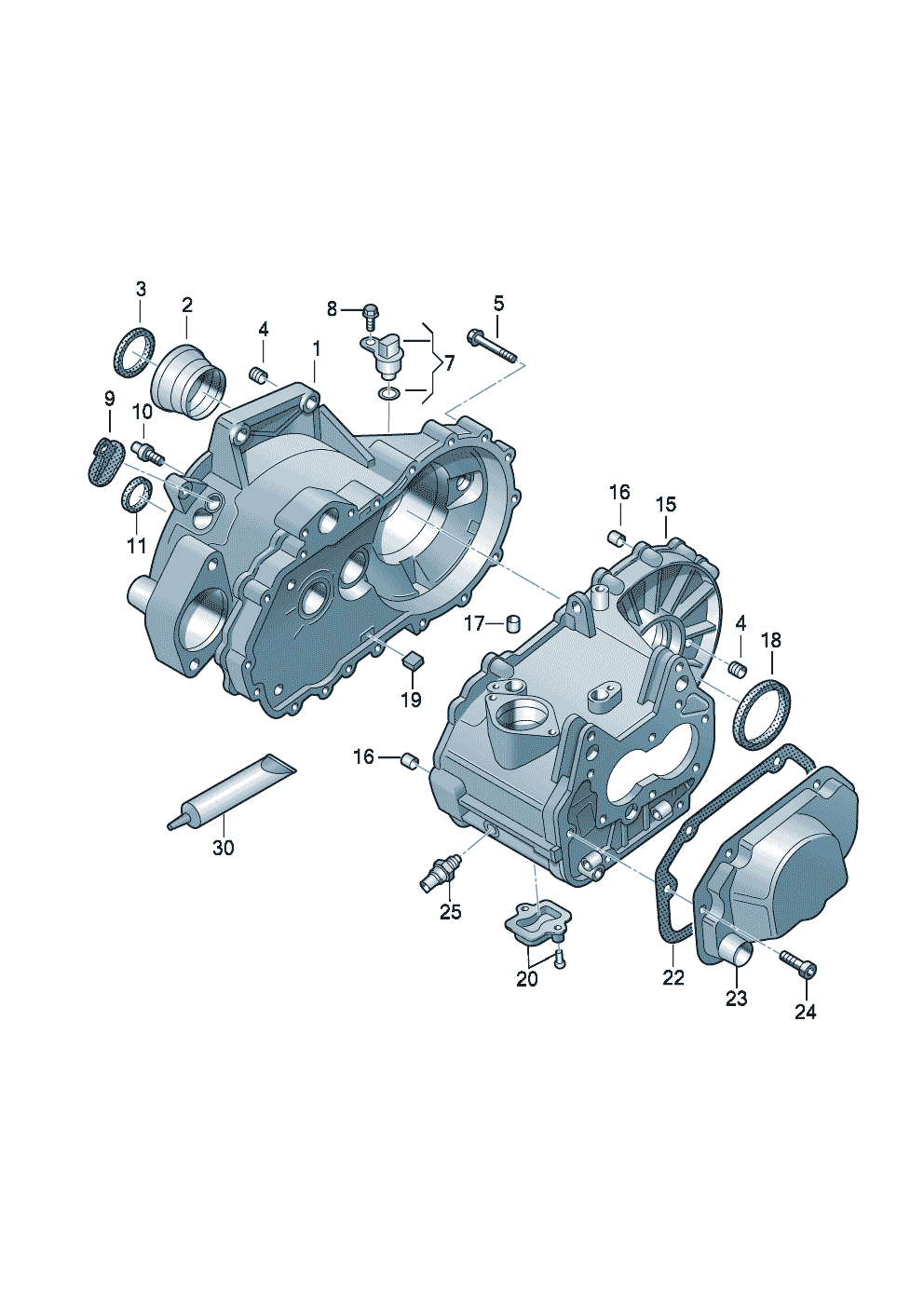

Gear housing for 5 speed manual transmiss for the Volkswagen Golf Mk4 (2003 - 2004): factory exploded diagram 301033 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 21 OEM part numbers across 28 catalogued positions including N 909 290 01, 02T 301 115 B and 02T 301 107 P. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.
Parts on this diagram
This Mk4 Golf plate lists 21 OEM part numbers across 28 numbered positions.
| № | Description | Part number |
|---|---|---|
| Gear housingfor 5 speed manual transmiss. FYK,GSD | — | |
| - | Socket head bolt with innermultipoint head (Kombi) M 6 X 40 X 27 M 6 X 40 X 27 | N 909 290 01 |
| (7) | Bungs G 03 11 2>> also use: N 909 290 01 N 909 290 01 | 02T 301 115 B |
| 1 | clutch housing | 02T 301 107 P |
| 10 | Ball stud see illustration: 141-025 141-025 | — |
| 11 | Shaft oil seal 24 X 38 X 6 24 X 38 X 6 | 02T 311 113 A |
| 15 | Gear housing | 02T 301 103 T |
| 15 | Gear housing | 02T 301 103 AC |
| 15 | Gear housing | 02T 301 103 K |
| 16 | dowel sleeve 12 X 9,5 12 X 9,5 | 02M 301 153 |
| 16 | dowel sleeve 12 X 9,5 12 X 9,5 | 02M 301 153 A |
| 18 | seal ring see illustration: 409-017 409-017 | — |
| 19 | Shaped magnet | 084 301 143 A |
| 2 | Sleeve see illustration: 409-017 409-017 | — |
| 20 | End cap see illustration: 311-084 311-084 | — |
| 22 | Seal | 02T 301 215 A |
| 23 | Gearbox cover | 02T 301 211 B |
| 24 | Socket head bolt with innermultipoint head M 6 X 20,5 M 6 X 20,5 | N 908 973 08 |
| 24 | Socket head bolt with innermultipoint head M 6 X 20,5 M 6 X 20,5 | N 908 973 04 |
| 3 | Shaft oil seal see illustration: 409-017 409-017 | — |
| 30 | Sealing compound paste 100 G 100 G | AMV 188 200 03 |
| 4 | sealing plug M 24 X 1,5 M 24 X 1,5 | 012 301 127 F |
| 4 | sealing plug M 24 X 1,5 M 24 X 1,5 | WHT 001 937 |
| 5 | Socket head collared bolt withinner multipoint head M 6 X 55 M 6 X 55 | N 105 303 03 |
| 5 | Socket head collared bolt withinner multipoint head M 6 X 55 M 6 X 55 | N 105 303 01 |
| 7 | Bungs | 02T 301 115 |
| 7 | distance sensor see illustration: 920-000 920-000 | — |
| 9 | Bungs | 085 301 115 A |
