Output shaft for 5 speed manual transmiss gears and shafts — Mk4 Golf Gearbox (2003 - 2004)

Factory title: Volkswagen Golf/Golf R32 (2003 - 2006) - Output shaft. for 5 speed manual transmiss.. gears and shafts

Generation: Mk4 2003 - 2004 (MEX, RDW) Group: Gearbox Rebuild step 9 Parts: 71 Primary OEM: 02J 311 269 E, 02J 311 205 L, 02J 311 205 T

Output shaft for 5 speed manual transmiss gears and shafts for the Volkswagen Golf Mk4 (2003 - 2004): factory exploded diagram 311038 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 68 OEM part numbers across 71 catalogued positions including 02J 311 269 E, 02J 311 205 L and 02J 311 205 T. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.

Parts on this diagram

This Mk4 Golf plate lists 68 OEM part numbers across 71 numbered positions.

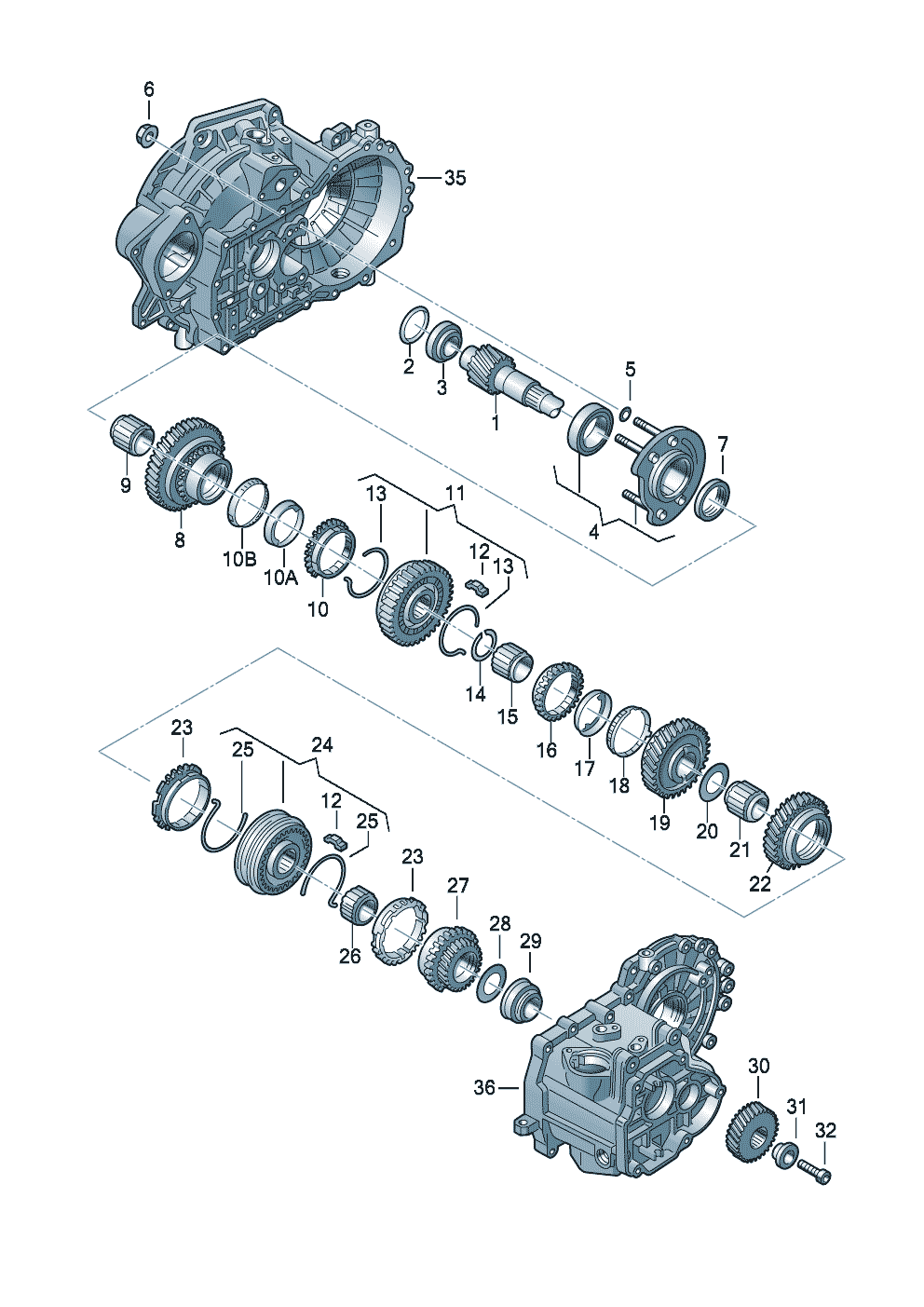

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	gears and shafts Output shaftfor 5 speed manual transmiss. EGS,EUH,EVS,EGY,EGR,EGU,FBK	—
-	synchronizer ring	02J 311 269 E
(1)	Output shaft 63/16 FBK 63/16	02J 311 205 L
(1)	Output shaft 71/18 EGU 71/18	02J 311 205 T
(1)	Output shaft 63/16 FBK 63/16	02A 311 205 AB
(1)	Output shaft 71/18 EGU 71/18	02J 311 205 T
(1)	Output shaft 63/16 FBK 63/16	02J 311 205 L
(1)	Output shaft 70/19 EGY,EVS 70/19	02A 311 205 Q
(1)	Output shaft 71/18 EGU 71/18	02A 311 205 R
(1)	Output shaft 70/19 EGY,EVS 70/19	02J 311 205 S
(1)	Output shaft 70/19 EGY,EVS 70/19	02J 311 205 S
(19)	change gear 33/16 EGS,EUH 33/16	02J 311 261 G
(19)	change gear 36/17 EGR 36/17	02J 311 261 J
(19)	change gear 33/16 EGS,EUH 33/16	02J 311 261 Q
(22)	change gear 31/23 EUH,EGS 31/23	02A 311 129 AH
(22)	change gear 34/26 EVS,EGY,EGU 34/26	02A 311 129 AB
(22)	change gear 34/26 EVS,EGY,EGU 34/26	02A 311 129 AQ
(27)	change gear 30/29 FBK 30/29	02A 311 145 K
(27)	change gear 29/30 EGS,EUH 29/30	02A 311 145 L
(27)	change gear 34/35 EGR 34/35	02A 311 145 M
(29)	roller sleeve only for: 29 X 48 X 18,1502 J 301 103 N 29 X 48 X 18,1502 J 301 103 N	02Z 311 375 A
(30)	gear Z=30/39 EGS Z=30/39	02A 311 361 N
(30)	gear 29/39 EUH 29/39	02A 311 361 AD
(30)	gear Z=31/38 FBK Z=31/38	02A 311 361 AT
(30)	gear 34/45 EGR 34/45	02A 311 361 Q
(8)	change gear 33/10 EGU,EGY,EVS,FBK 33/10	02J 311 251 E
1	Output shaft 61/18 EGR,EGS,EUH 61/18	02J 311 205 N
1	Output shaft EGR,EGS,EUH	0A4 311 205 E
10	synchronizer ring also use: 02 J 311 277 B 02 J 311 277 B	02J 311 247 D
10A	outer ring	02J 311 279
10B	synchronizer ringinner also use: 02 J 311 247 D 02 J 311 247 D	02J 311 277 B
11	synchronizing hub withlocking collar	02J 311 239 K
11	synchronizing hub withlocking collar	02J 311 239 J
12	locking piece	084 311 313
13	Spring	02F 311 336
14	Securing ring	091 311 321 A
15	needle bearing - 35 X 40 X 23,8 35 X 40 X 23,8	02A 311 265 D
16	synchronizer ring	02J 311 247 C
16	synchronizer ring also use: 02 J 311 277 B 02 J 311 277 B	02J 311 247 D
17	outer ring	02J 311 279
18	synchronizer ringinner also use: 02 J 311 247 D 02 J 311 247 D	02J 311 277 B
19	change gear 35/18 EGU,EVS,EGYFBK 35/18	02J 311 261 K
2	1 set shims 0,65-1,40 0,65-1,40	020 398 391
20	thrust washer	02A 311 175 C
21	needle bearing - 30,6 X 40 X 25,8 30,6 X 40 X 25,8	02J 311 325
22	change gear 34/25 EGR,FBK 34/25	02A 311 129 AA
22	change gear 34/25 EGR,FBK 34/25	02A 311 129 AS
23	synchronizer ring EGS,EUH,EVS,EGY,EGR,EGU,FBK	02A 311 269 E
24	synchronizing hub withlocking collar also use: 02 J 311 269 E EGS,EUH,EVS,EGY,EGR,EGU,FBK 02 J 311 269 E	02J 311 301 B
24	synchronizing hub	02A 311 301 D
25	Spring	088 311 311 D
26	needle bearing - 29 X 40 X 24 29 X 40 X 24	02A 311 115 E
27	change gear 35/34 EGU,EGY,EVS 35/34	02A 311 145 N
28	thrust washer 9,2 X 49 X 2,5 9,2 X 49 X 2,5	02A 311 155 A
29	roller sleeve only for: 29 X 46 X 18,102 J 301 103 F 29 X 46 X 18,102 J 301 103 F	02A 311 375 C
3	Taper roller bearing 29 X 50,29 X 14,73 29 X 50,29 X 14,73	311 405 625 N
3	Taper roller bearing 29 X 50,29 X 14,73 29 X 50,29 X 14,73	311 405 625 F
30	gear 36/43 EGU,EVS,EGY 36/43	02A 311 361 L
31	Belleville spring 24 X 52 X 2,65 24 X 52 X 2,65	02A 311 324 C
32	Hex socket head collared bolt M 10 X 1 X 35,5 M 10 X 1 X 35,5	02A 311 335 D
32	Expansion screw M 10 X 1 X 35,5 M 10 X 1 X 35,5	0A4 311 335 A
35	clutch housing see illustration: 301-040 301-040	—
36	Gear housing see illustration: 301-040 301-040	—
4	mounting with taper rollerbearing	02D 311 206 B
5	O-ring 7 X 2 7 X 2	N 903 649 01
6	Hexagon collar nut M 8 M 8	N 015 083 11
6	Hexagon collar nut M 8 M 8	N 015 083 15
7	thrust washer	02A 311 221
8	change gear 34/9 EGR,EGS,EUH 34/9	02J 311 251 F
8	change gear 34/9 EGR,EGS,EUH 34/9	02Z 311 251 A
9	needle bearing - 38 X 43 X 25 38 X 43 X 25	02A 311 213 C

From the Type 19 workshop

Volkswagen Golf Mk4 work in the Type 19 workshop — the same cars these gearbox diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk4
Model years: 2003 - 2004
Generation region: MEX, RDW
Generation code: 405
Factory group: 02 Gearbox
Factory subgroup: 311038
