Output shaft for 5 speed manual transmiss gears and shafts — Mk4 Golf Gearbox (2003 - 2004)
Factory title: Volkswagen Golf/Golf R32 (2003 - 2006) - Output shaft. for 5 speed manual transmiss.. gears and shafts

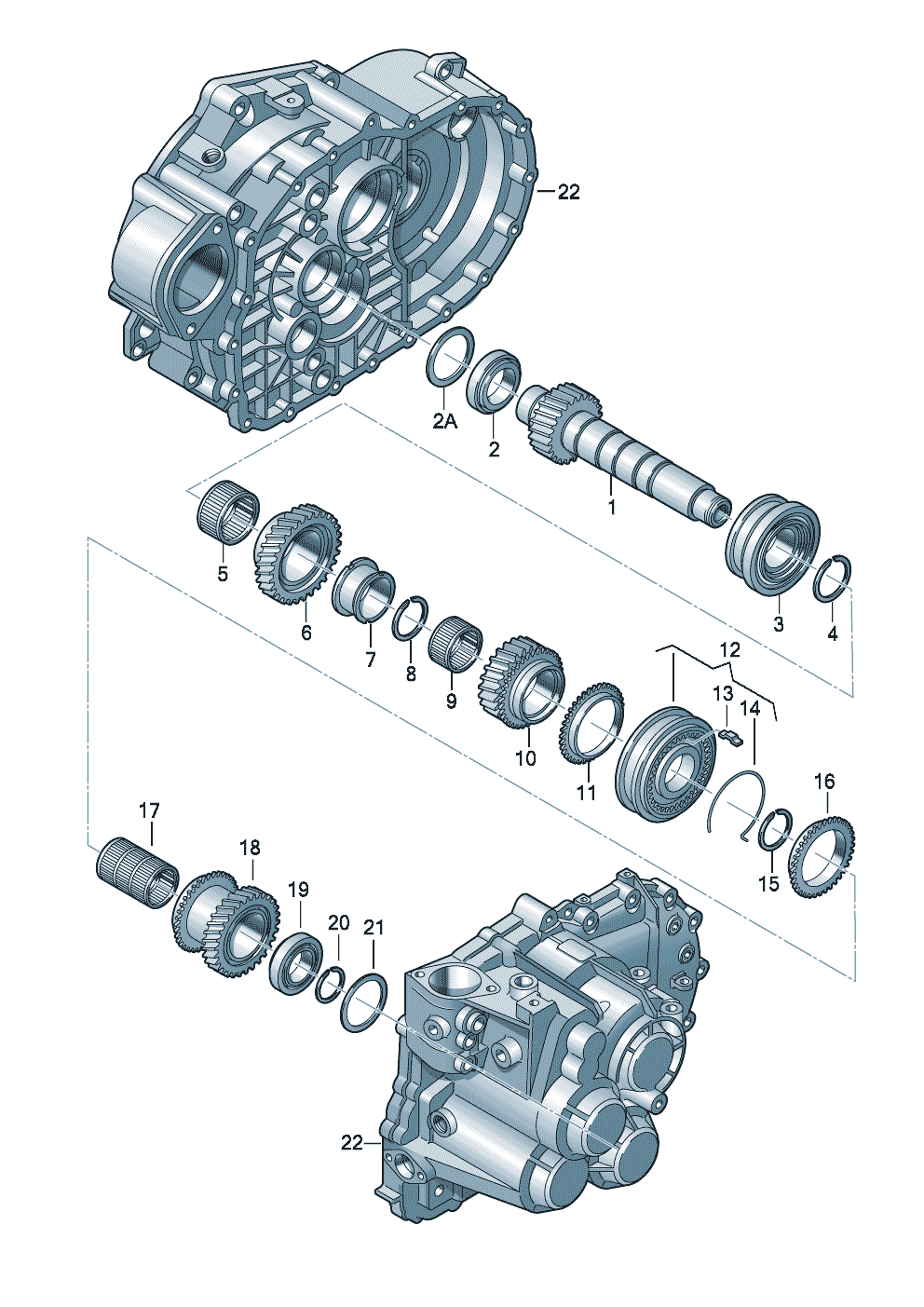

Output shaft for 5 speed manual transmiss gears and shafts for the Volkswagen Golf Mk4 (2003 - 2004): factory exploded diagram 311044 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 34 OEM part numbers across 36 catalogued positions including 02M 311 208 J, 02M 311 349 J and 02M 311 295 C. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.
Parts on this diagram
This Mk4 Golf plate lists 34 OEM part numbers across 36 numbered positions.
| № | Description | Part number |
|---|---|---|
| gears and shafts Output shaft 6-speed manual transmission 5 th/6 th gear ERF,FMH,JNA,FML,FZQ 5 th/6 th gear | — | |
| (1) | Output shaft Z=23 FML,FZQ Z=23 | 02M 311 208 J |
| (10) | change gear 35/43 ERF,FMH,JNA 35/43 | 02M 311 349 J |
| (11) | synchronizer ring | 02M 311 295 C |
| (12) | synchronizing hub withlocking collar FMH,FZQ,JNA | 02M 311 241 C |
| (13) | locking piece FMH,FZQ,JNA | 0A5 311 313 D |
| (13) | locking piece FMH,FZQ,JNA | 0A5 311 313 C |
| (14) | Spring FMH,FZQ,JNA | 02M 311 336 |
| (16) | synchronizer ring | 02M 311 295 C |
| (18) | change gear 39/40 ERF,FMH,JNA 39/40 | 02M 311 159 AA |
| (20) | 1 set circlips 1,79-1,98 1,79-1,98 | 02M 398 008 |
| (21) | 1 set shims 0,7-2,4 0,7-2,4 | 084 498 383 A |
| 1 | Output shaft Z=26 ERF,FMH,JNA Z=26 | 02M 311 208 C |
| 10 | change gear 39/40 FML,FZQ 39/40 | 02M 311 349 H |
| 11 | synchronizer ring | 02M 311 295 A |
| 11 | synchronizer ring | 02M 311 295 E |
| 12 | synchronizing hub withlocking collar ERF,FML | 02M 311 241 B |
| 13 | locking piece FMH,FZQ,JNA | 0A5 311 313 B |
| 13 | locking piece ERF,FML | 084 311 313 |
| 14 | Spring ERF,FML | 02F 311 336 |
| 15 | Securing ring 34,2 X 40,6 X 2,5 34,2 X 40,6 X 2,5 | 02M 311 317 |
| 16 | synchronizer ring | 02M 311 295 A |
| 16 | synchronizer ring | 02M 311 295 E |
| 17 | needle bearing - 37 X 43 X 46,8 37 X 43 X 46,8 | 02M 311 151 |
| 18 | change gear 43/36 FML,FZQ 43/36 | 02M 311 159 T |
| 19 | Taper roller bearing 30 X 62 X 17 30 X 62 X 17 | 02M 311 123 |
| 2 | Taper roller bearing 38 X 65 X 19,8 38 X 65 X 19,8 | 02M 311 214 |
| 22 | Gear housing See illustration from: to: 301-045301-046 301-045301-046 | — |
| 2A | adjusting washer 0,65 0,65 | 02K 409 210 |
| 3 | synchronizing hub withlocking collar | 02M 311 759 B |
| 4 | Securing ring | 008 311 231 |
| 5 | needle bearing - 43 X 51 X 30,8 43 X 51 X 30,8 | 02M 311 432 |
| 6 | change gear 23/14 23/14 | 02M 311 215 A |
| 7 | spacer sleeve | 02M 311 470 A |
| 8 | Securing ring 37,2 X 43,6 X 2,5 37,2 X 43,6 X 2,5 | 02M 311 183 |
| 9 | needle bearing - 40 X 46 X 26,8 40 X 46 X 26,8 | 02M 311 116 |
From the Type 19 workshop
Volkswagen Golf Mk4 work in the Type 19 workshop — the same cars these gearbox diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk4
- Model years
- 2003 - 2004
- Generation region
- MEX, RDW
- Generation code
- 405
- Factory group
- 02 Gearbox
- Factory subgroup
- 311044
