Coolant hoses coolant pipe — MK2 Golf PB 8V GTI (1990 - 1991)

Factory title: Volkswagen Golf (1990 - 1992) - Coolant pump

Generation: MK2 1990 - 1991 (RDW) Group: Drive cooling Rebuild step 8 Parts: 39 Primary OEM: 191 121 051 P, 191 121 101 Q, 027 121 065 D

Coolant hoses coolant pipe for the Volkswagen Golf Mk2 (1990 - 1991): factory exploded diagram 19000 from the Volkswagen ETKA parts catalogue, group 11 Drive cooling, listing 35 OEM part numbers across 39 catalogued positions including 191 121 051 P, 191 121 101 Q and 027 121 065 D. Parts on this plate carry the engine codes 1V, JR, ME, MF, PB, PF and RP. Published by Type 19 Specialists; the complete MK2 Golf catalogue is in print as the Mk2 Golf Master Parts Catalogue.

Parts on this diagram

This MK2 Golf plate lists 35 OEM part numbers across 39 numbered positions.

29 hotspots (partial)

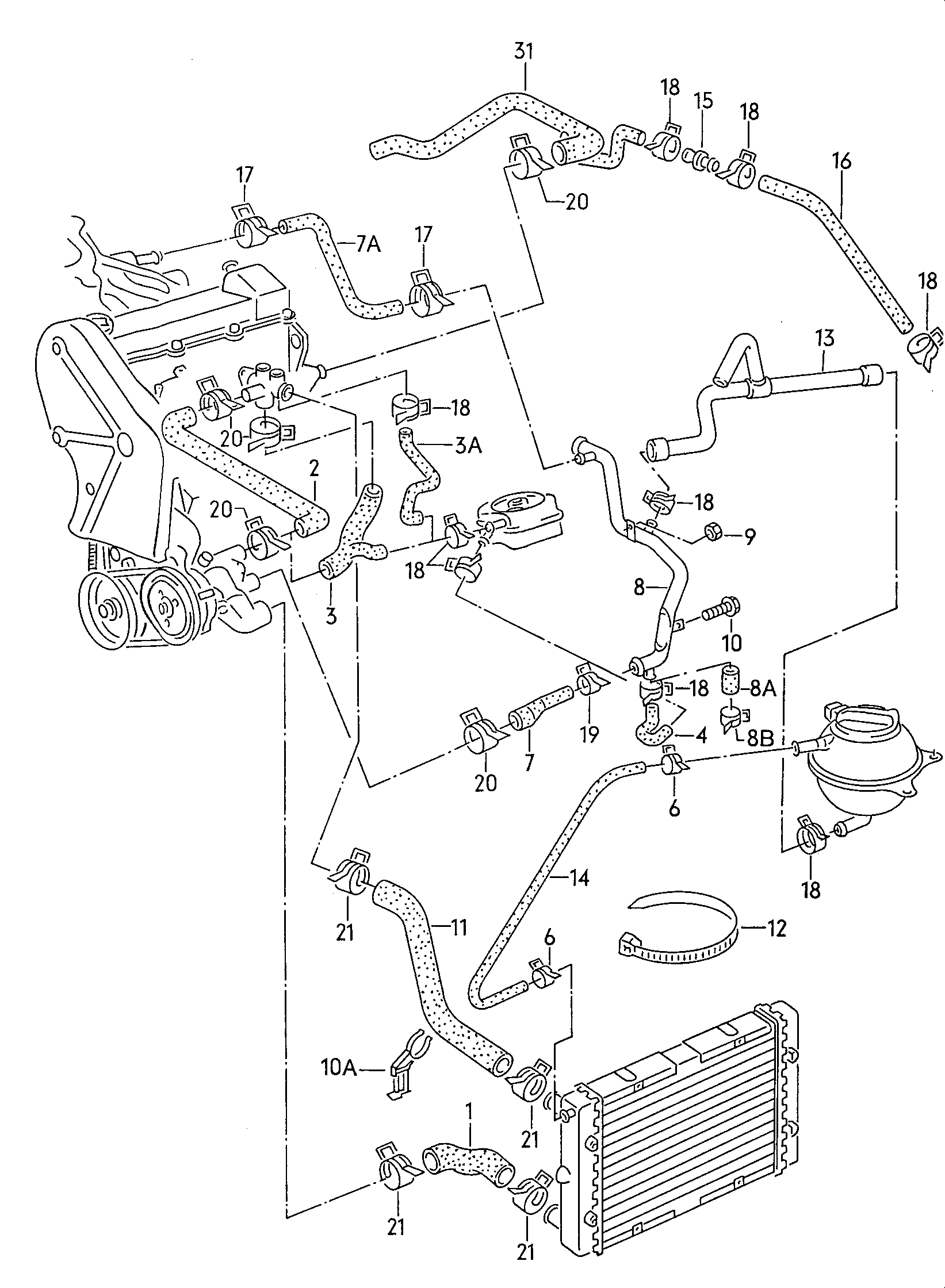

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
Coolant hoses Coolant pipe 1.6/1.8 Ltr. K-JETRONIC/MONO-JETRONICPB,RP,PF,RVDiesel eng.+JP,ME,JR,MF,1 V
1.6/1.8 Ltr.
RPPFMEJRMF1V
—
-
hose in coils of 5 m'order unit 5' 7 X 2,5
7 X 2,5
 443 121 107 A
(1)
Coolant hose JR,MF,1 V
JRMF1V
191 121 051 P
(1)
Coolant hosefor vehicles with air condit.for vehicles prepared forservice installation of airconditioner PF,RV,PB,JP,ME
PFPBME
191 121 051 P
(11)
Coolant hose JR,MF,1 V
JRMF1V
191 121 101 Q
(11)
Coolant hose Air cond.+JP,ME,JR,MF,1 V
MEJRMF1V
191 121 101 AK
(11)
Coolant hosefor vehicles with air condit.for vehicles prepared forservice installation of airconditioner PF,RV,PB
PFPB
191 121 101 Q
(11)
Coolant hosefor vehicles prepared forservice installation of airconditioner JP,ME,JR,MF,1 V
MEJRMF1V
191 121 101 AL
(13)
Coolant hose
 535 121 109
(2)
Coolant hose JP,ME
ME
068 121 053 M
(8)
Coolant pipe also use: 055 121 324 N 016 402 1 PB,PF,RV,JP,ME,JR,MF,1 V
055 121 324 N 016 402 1
PBPFMEJRMF1V
027 121 065 D
1
Coolant hose PB,RP,PF,RV,JP,ME
PBRPPFME
191 121 051 F
10
Hexagon bolt M 6 X 15
M 6 X 15
 N 010 215 27
10A
Hose bracketfor vehicles with air condit.for vehicles prepared forservice installation of airconditioner JP,ME,JR,MF,1 V
MEJRMF1V
191 121 093 A
11
Coolant hose PB,RP,PF,RV,JP,ME
PBRPPFME
191 121 101 S
12
Cable ties 3,6 X 246
3,6 X 246
 N 020 902 2
13
Coolant hose(Expansion tank>transmission oil cooler>coolant pipe) Automatic+1 V,JP"CH.":RP"AUS":RV"J..":RV
1VRP
191 121 109 Q
14
shorten to: 1040 MM
1040 MM
 —
15
Connecting pipe Automatic+1 V,JP"CH.":RP"AUS":RV"J..":RV
1VRP
171 121 140 D
16
Coolant hose(at fluid cooler > intermediate piece) Automatic+1 V,JP"CH.":RP"AUS":RV"J..":RV
1VRP
191 121 611 A
16
No longer available(at fluid cooler > intermediate piece) Automatic+1 V,JP"CH.":RP"AUS":RV"J..":RV
1VRP
—
17
Spring band clamp 17 X 15
17 X 15
 N 100 986 01
18
Spring band clamp 23 X 15
23 X 15
Type 19 makes this → 		N 016 402 1
19
Spring band clamp 27 X 15
27 X 15
Type 19 makes this → 		N 016 403 1
2
Coolant hose PB,RP,PF,RV
PBRPPF
026 121 053 G
20
Spring band clamp 32 X 15
32 X 15
Type 19 makes this → 		N 016 404 1
21
Spring band clamp 40 X 15
40 X 15
Type 19 makes this → 		N 016 410 1
3
Coolant hose JR,MF,1 VAutomatic+JP,ME
JRMFME
068 121 053 P
31
see illustration: 148
148
 —
3A
Coolant hose PF,PB
PFPB
027 121 096 A
4
Coolant hose PF,PB,JR,MF,1 VAutomatic+JP,ME
PFPBJRMFME
037 121 058 A
6
Clamp
Type 19 makes this → 		311 133 343
7
Coolant hose
 068 121 063 M
7A
Coolant hose(Intake conn.>coolant pipe) RP
RP
027 121 056 A
8
Coolant pipe RP
RP
027 121 065 C
8A
Cap closure
 055 121 324
8B
Spring band clamp 23 X 15
23 X 15
Type 19 makes this → 		N 016 402 1
9
Hexagon nut M 6
M 6
 N 011 006 24
9
Hexagon nut M 6
M 6
 N 011 006 36
