MK2 Golf Pedals

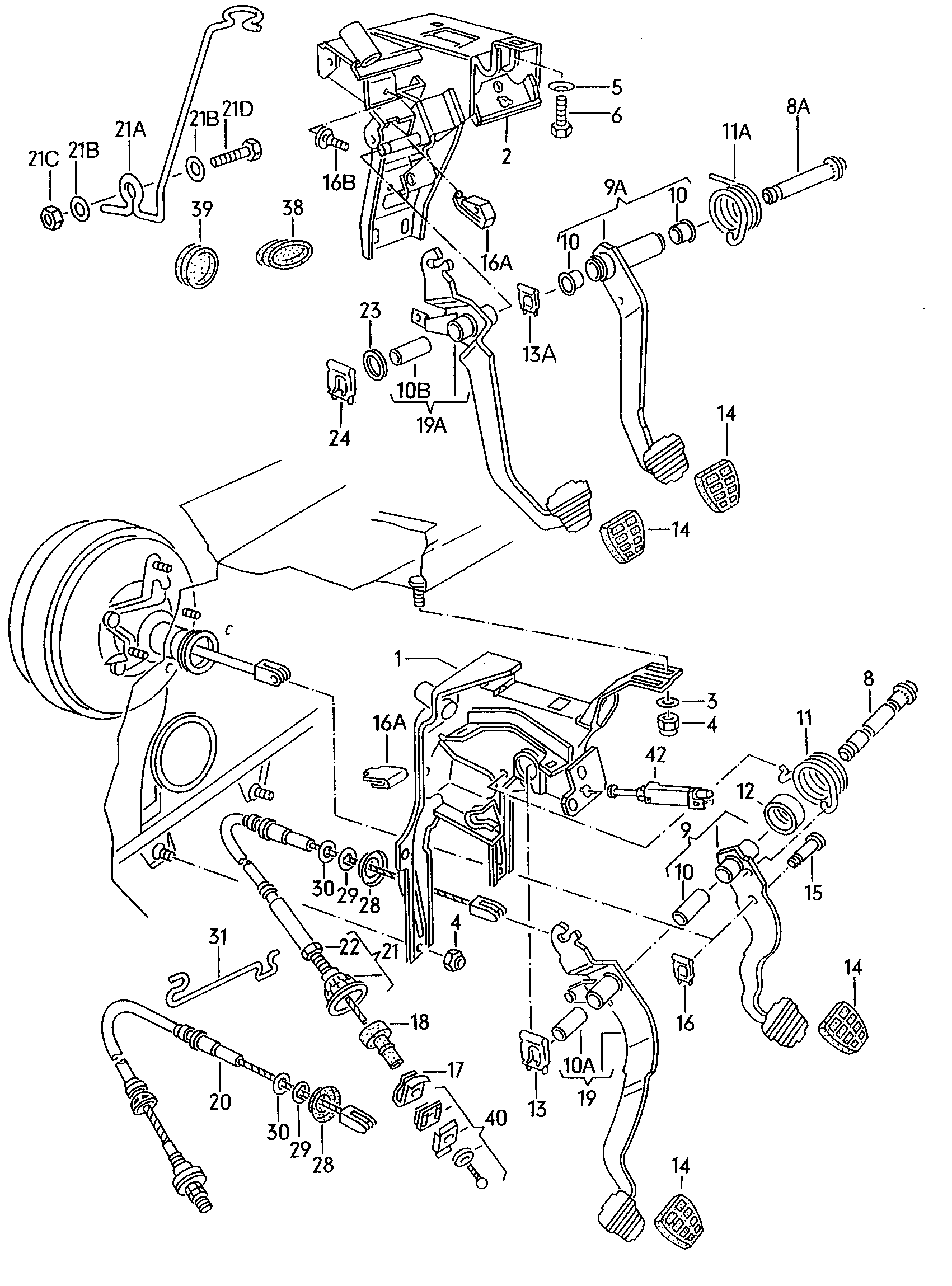

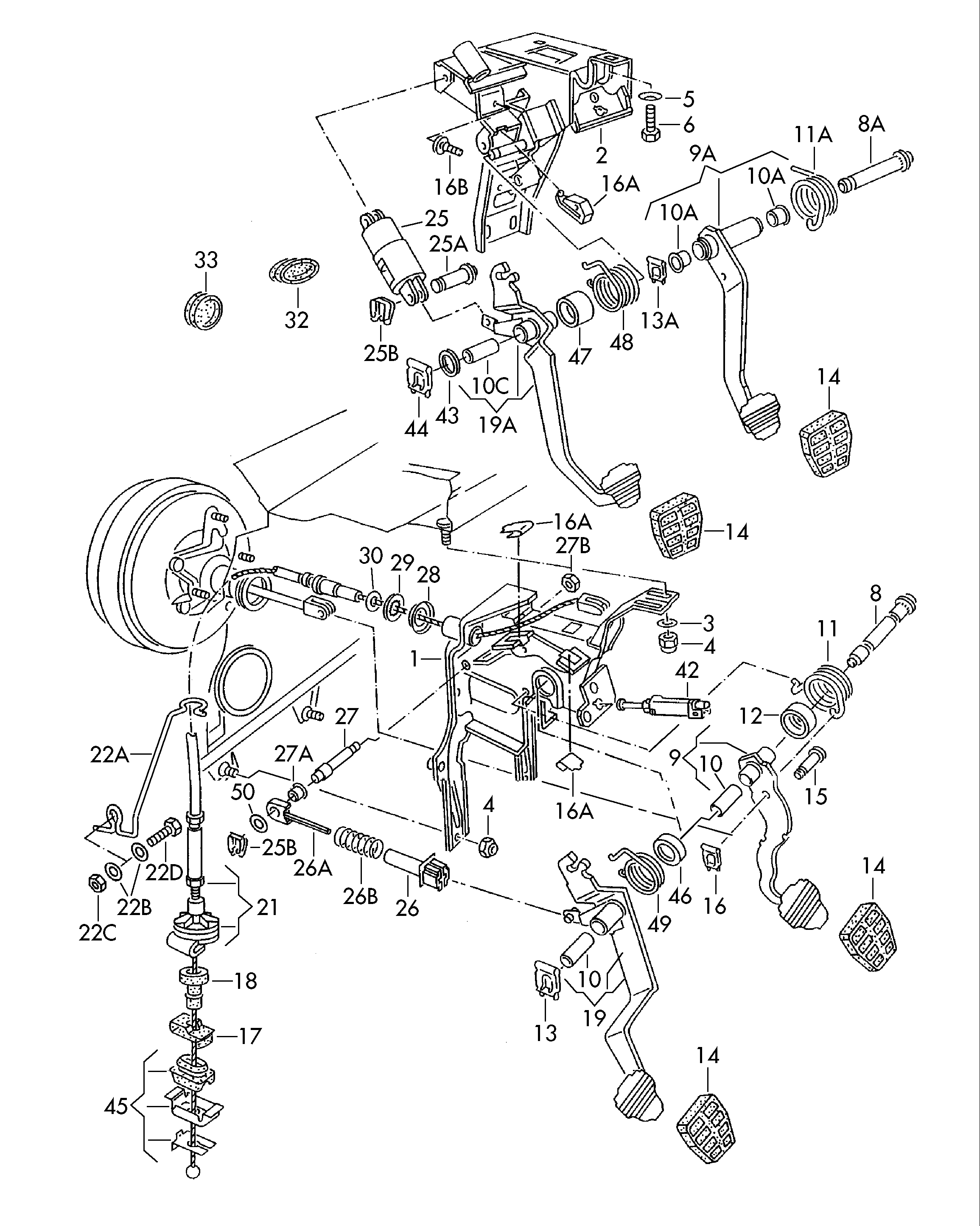

The MK2 Golf pedals system covers 68 factory exploded diagrams from the Volkswagen factory parts catalogue, indexing 479 unique OEM part numbers across 3350 catalogued positions. Pedal box, clutch linkage. Clutch-related queries bleed into here. Coverage spans MK2 Golf model years 1984–1990 and engine codes 1H, 1V, 2G, 9A, EZ, GU (+13 more). Every part is sourced directly from Volkswagen AG factory documentation and cross-referenced against the VW Golf Mk2 factory workshop manual. Click any tile to open the exploded view, then any hotspot to highlight the matching part-number row. Use this layer for fitment confirmation, OEM cross-reference, and rebuild-stage planning — pricing for parts we currently produce or reproduce lives on the dedicated shop pages.

68 of 1579 published Mk2 Golf diagrams shown here. Full catalogue index →
