Which VW part numbers are on the air guide diagram for the Mk1 Golf?

This diagram lists 40 OEM part numbers for the Mk1 Golf. The first three are 171 121 205 K, 531 121 282 D and 531 121 282 K.

Which Mk1 Golf years and engines does this diagram cover?

This plate is from the Mk1 Golf 1979 - 1980 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk1 Golf factory parts catalogue?

The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.

Air guide — Mk1 Golf Cooling (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Coolant pump

Generation: Mk1 1979 - 1980 (RDW) Group: Drive cooling Rebuild step 8 Parts: 40 Primary OEM: 171 121 205 K, 531 121 282 D, 531 121 282 K

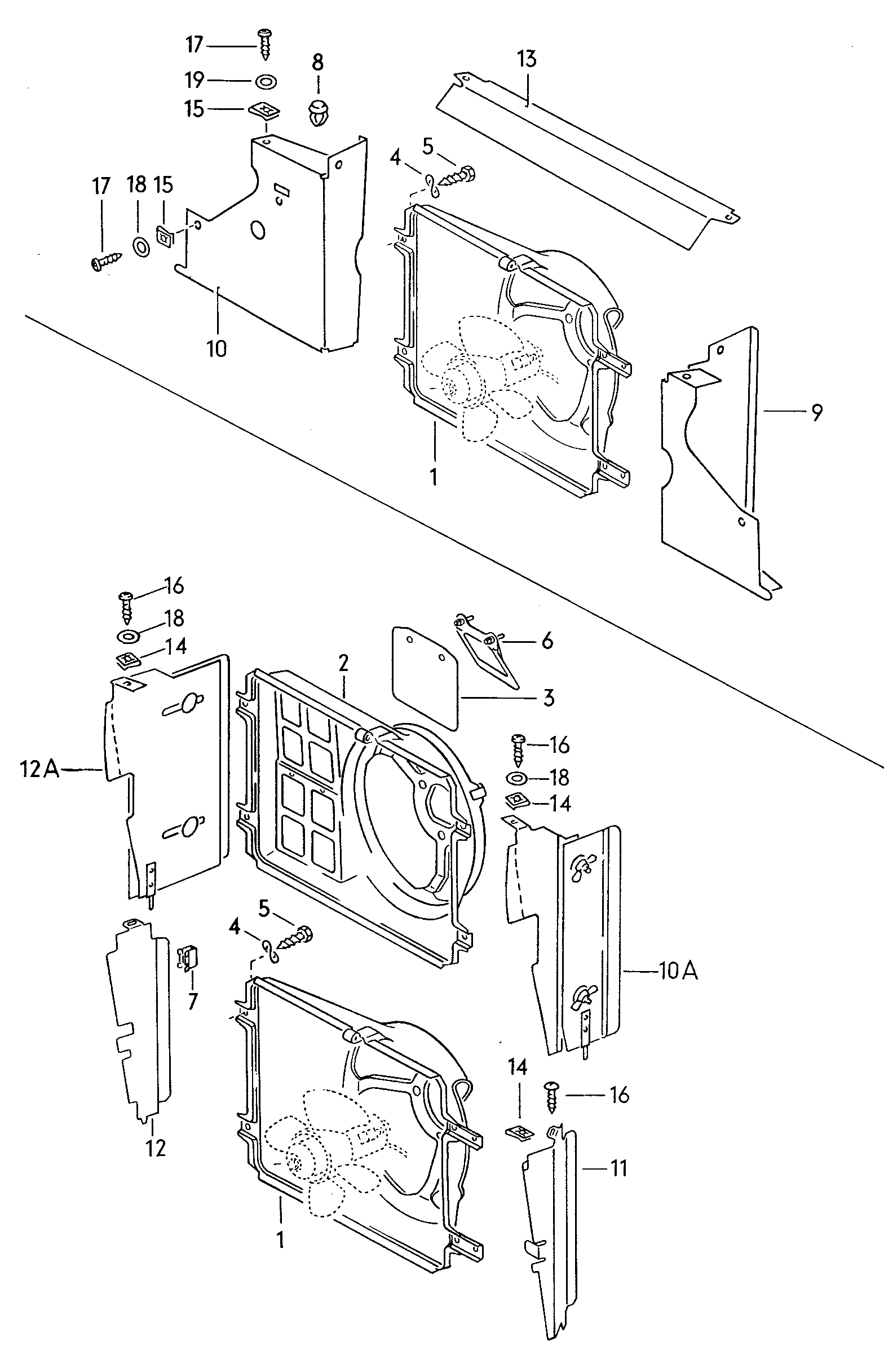

Air guide for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 14000 from the Volkswagen ETKA parts catalogue, group 11 Drive cooling, listing 40 OEM part numbers including 171 121 205 K, 531 121 282 D and 531 121 282 K. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 40 OEM part numbers across 40 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
(1)	Fan ring F >> 159 2810 000 F >> 179 3750 000 F >> 539 2200 000 FA,FJFA,FJFA,FJ	171 121 205 K
(10)	air duct cardboard F >> 539 2200 000 FA,FJ	531 121 282 D
(10)	air duct cardboard carburetorengine SCIR.:FR,GH,JB	531 121 282 K
(10)	air duct cardboard SCIR.:"J.."	531 121 282 L
(10)	air duct cardboard SCIR.:EG	531 121 282 G
(11)	air duct cardboard JETTA:GF,JB,EG,EJGOLF:EH,EJ,EM,FA,FJ,FN,GF,GG,GH,JB,EG,DIESEL:CK	161 121 283 C
(12)	air duct cardboard GOLF:EG	171 121 284 E
(12)	air duct cardboard GOLF:EH,EJGH,JB,EM,FN,FA,FJ,GF,GG,DIESEL:CK,JETTA:EJ,GF,JB	161 121 284 C
(12)	air duct cardboard JETTA:EG	161 121 284 B
(12)	air duct cardboard air condit.	171 121 284 B
(13)	air duct cardboardfor vehicles with air condit. GOLF:EM,FN,FV,GH,JB,DIESEL:CK	171 121 293 D
(2)	Fan ring "J.."	171 121 205 F
(2)	Fan ring Air cond.+DIESEL:CK	171 121 205 F
(4)	Spring washer 7 7	N 012 234 5
(5)	hexagon head panel screw 6,3 X 13 6,3 X 13	N 013 890 5
(7)	Clip GOLF:EG	171 121 279 A
(9)	air duct cardboard SCIR.:FR,GH,JB	531 121 281 L
(9)	air duct cardboard SCIR.:"J.."	531 121 281 J
(9)	air duct cardboard F >> 539 2200 000 FA,FJ	531 121 281 D
(9)	air duct cardboard SCIR.:EG	531 121 281 N
1	Fan ring F >> 159 2810 000 F >> 179 3750 000 F >> 539 2200 000 F 15 A 0800 001>>F 16 A 0000 001>>F 17 A 0000 001>>F 53 A 0000 001>> carburetorengine FV,JBFV,JBFR,FV,JBGG,GH,JBGF,GG,GH,JBGF,GG,GH,JBFR,GF,GH,JB	171 121 205 N
10	air duct cardboard F 53 A 0000 001>> GF	531 121 282 J
13	air duct cardboard SCIR.:FR,GFGH,JB	531 121 293 C
14	Speed nut ST 4,2 X 16,3 X 11 ST 4,2 X 16,3 X 11	N 015 448 1
15	Speed nut 4,8 X 23,7 X 16 4,8 X 23,7 X 16	N 015 455 1
16	oval head panel screw 4,2 X 13 4,2 X 13	N 013 966 12
16	oval head panel screw 4,2 X 13 4,2 X 13	N 013 966 26
17	oval head panel screw 4,8 X 16 4,8 X 16	N 013 969 4
18	Washer 5 5	N 011 523 18
18	Washer A 5,3 X 10 X 1 A 5,3 X 10 X 1	N 011 523 7
19	Washer 5,3 X 15 X 1,6 5,3 X 15 X 1,6	N 011 665 3
2	Fan ring EG,EM,FNDIESEL:CKindustrialengine	171 121 205 H
2	Fan ring Air cond.+carburetorengine	171 121 205 H
3	flap for fan housing 171 121 205 F 171 121 205 H 171 121 205 F 171 121 205 H	171 121 223
4	Spring washer 6 6	N 012 226 5
5	Hexagon bolt M 6 X 8 M 6 X 8	N 010 208 5
6	Bracket	191 121 227
7	Clipair duct cardboard GOLF:EH,EJ,EM,FA,FJ,FN,GF,GG,GH,JBDIESEL:CKJETTA	171 121 279
8	knob for air duct cardbord SCIR.SCIR.:GF	531 121 279
9	air duct cardboard F 53 A 0000 001>> GF	531 121 281 K

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these cooling diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk1
Model years: 1979 - 1980
Generation region: RDW
Generation code: 027
Factory group: 11 Drive cooling
Factory subgroup: 14000
