Which VW part numbers are on the coolant hoses coolant pipe diagram for the Mk1 Golf?

This diagram lists 37 OEM part numbers for the Mk1 Golf. The first three are 443 121 321, N 102 582 01 and 171 121 407 F.

Which Mk1 Golf years and engines does this diagram cover?

This plate is from the Mk1 Golf 1979 - 1980 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk1 Golf factory parts catalogue?

The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.

Coolant hoses coolant pipe — Mk1 Golf Cooling (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Coolant pump

Generation: Mk1 1979 - 1980 (RDW) Group: Drive cooling Rebuild step 8 Parts: 44 Primary OEM: 443 121 321, N 102 582 01, 171 121 407 F

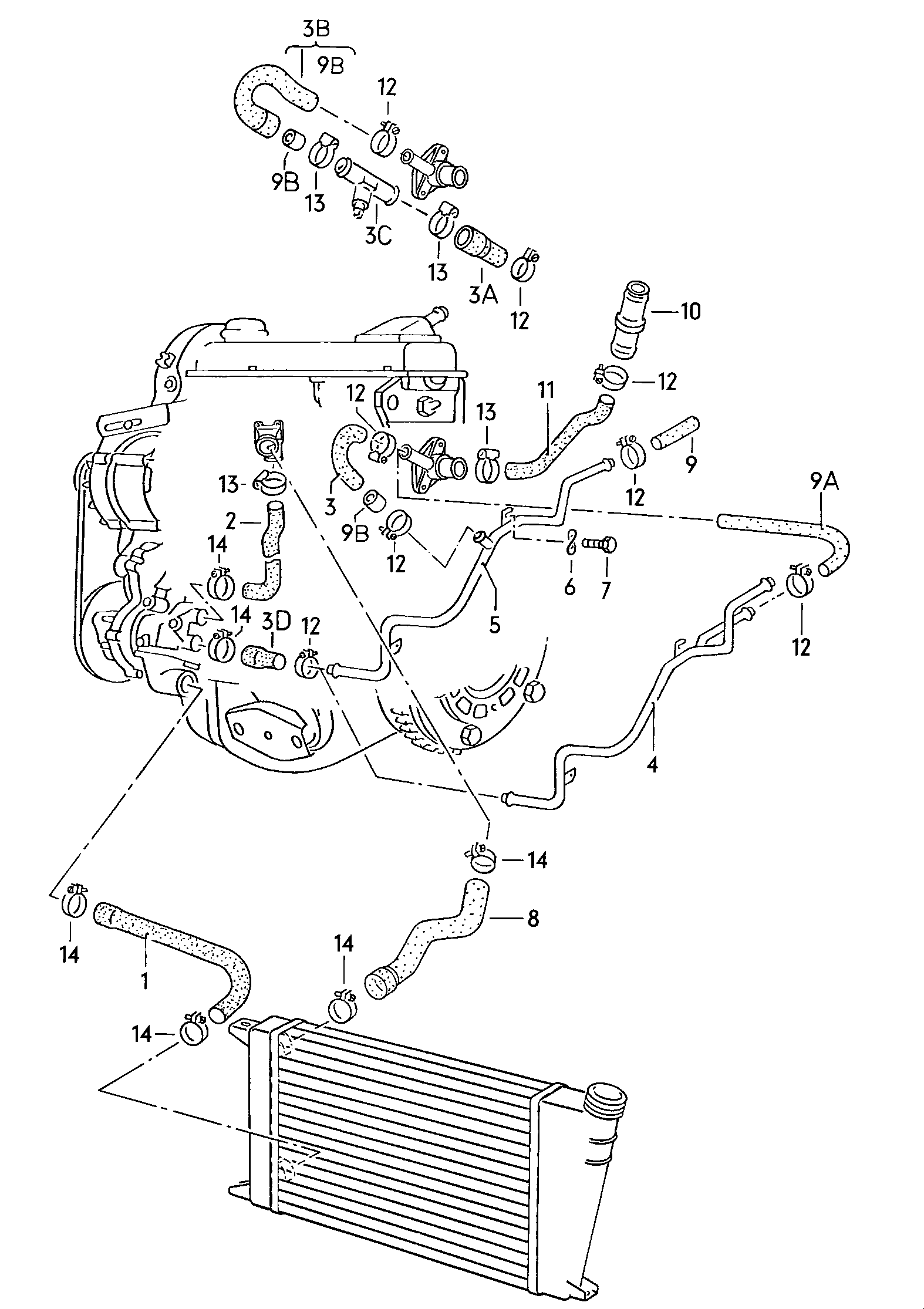

Coolant hoses coolant pipe for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 13040 from the Volkswagen ETKA parts catalogue, group 11 Drive cooling, listing 37 OEM part numbers across 44 catalogued positions including 443 121 321, N 102 582 01 and 171 121 407 F. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 37 OEM part numbers across 44 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Coolant hoses Coolant pipe 1.5/1.6 ltr. K-JETRONIC:EH,EG,EJ 1.5/1.6 ltr.	—
	F 15 A 0819 463>> EG	—
-	End cap F 15 A 0819 463>> EG	443 121 321
-	Clamp F 15 A 0819 462>> 12-22 X 9 X 0,4 EG 12-22 X 9 X 0,4	N 102 582 01
-	Coolant expansion tank F 15 A 0819 463>> also use: 075 121 418 N 902 400 02 EG 075 121 418 N 902 400 02	171 121 407 F
-	Coolant hose F 15 A 0819 463>> EG	171 121 109 F
-	Hose(Bulk stock) 7 X 3 7 X 3	N 020 281 1
-	shorten to: 800 MM 800 MM	—
-	Hose 16 X 3,5 16 X 3,5	N 020 269 1
-	seal ring F 15 A 0819 463>> EG	171 121 327
-	Hose clamp F 15 A 0819 462>> LC 12-22 EG LC 12-22	N 024 509 4
-	hose in coils of 5 m'order unit 5'(Expansion tank > coolant radiator)F 15 A 0819 463>> 7 X 2,5 EG 7 X 2,5	443 121 107 A
-	Cap closure EG,EJ	055 121 324
-	Clamp F 15 A 0819 463>> 16-28 X 9 X 0,5 EG 16-28 X 9 X 0,5	N 905 618 01
-	Coolant hose(Expansion tank > coolant pipe)F 15 A 0819 463>> EG	171 121 109 F
-	Coolant expansion tank F 15 A 0819 463>> EG	171 121 407 E
-	O-ring 24 X 4 24 X 4	N 902 400 02
-	sealing plug	075 121 418
(2)	Coolant hose air condit.	055 121 053
(3)	Coolant hose F >> 159 2810 000 F >> 179 3750 000 F >> 539 2200 000	171 121 058
(4)	No longer available also use: 055 121 324 EG,EJ 055 121 324	—
(4)	Coolant pipe also use: 055 121 324 EG,EJ 055 121 324	055 121 065 J
(8)	Coolant hose F 15 A 0819 463>> air condit.EG	171 121 101 AJ
1	Coolant hose	171 121 051 G
10	Connecting pipe	171 121 140 D
11	Coolant hose	171 121 611 AN
12	Clamp LC 16-25 LC 16-25	N 900 719 01
12	Clamp 16-28 X 9 X 0,5 16-28 X 9 X 0,5	N 905 618 01
13	Hose clamp LC 23-35 LC 23-35	N 024 511 3
13	Clamp 23-35 X 9 X 0,5 23-35 X 9 X 0,5	N 102 581 01
14	Clamp LC 32-50 LC 32-50	N 024 507 4
14	Clamp 32-50 X 9 X 0,5 32-50 X 9 X 0,5 Type 19 makes this →	N 024 507 7
2	Coolant hose	056 121 053 B
3	Coolant hose F 15 A 0800 001>>F 16 A 0000 001>>F 17 A 0000 001>>F 53 A 0000 001>> also use: 049 121 137 049 121 137	026 121 063 A
3D	Coolant hose	055 121 063 A
5	No longer available EH	—
5	Coolant pipe EH	055 121 065 J
6	Spring washer 6 6	N 012 226 5
7	Hexagon bolt M 6 X 20 M 6 X 20	N 010 217 10
7	Hexagon bolt M 6 X 20 M 6 X 20	N 010 217 9
8	Coolant hose	171 121 101 AH
9	shorten to: 65 MM 65 MM	—
9A	shorten to: 350 MM 350 MM	—
9B	reducing piece EG,EJ	049 121 137

Reproduction parts by Type 19 for this diagram

Volkswagen no longer supplies one part on this plate. Type 19 manufactures it to the factory number.

Mk2 Golf Engine Hose Clamps Factory number on this diagram: N 024 507 7

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these cooling diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk1
Model years: 1979 - 1980
Generation region: RDW
Generation code: 027
Variant tags: petrol_8v_base
Factory group: 11 Drive cooling
Factory subgroup: 13040
