Coolant hoses coolant pipe — Mk1 Golf Cooling (1982 - 1983)

Factory title: Volkswagen Golf (1982 - 1984) - Coolant pump

Generation: Mk1 1982 - 1983 (RDW) Group: Drive cooling Rebuild step 8 Parts: 42 Primary OEM: 443 121 107 A, N 902 400 02, 075 121 418

Coolant hoses coolant pipe for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 17000 from the Volkswagen ETKA parts catalogue, group 11 Drive cooling, listing 40 OEM part numbers across 42 catalogued positions including 443 121 107 A, N 902 400 02 and 075 121 418. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 40 OEM part numbers across 42 numbered positions.

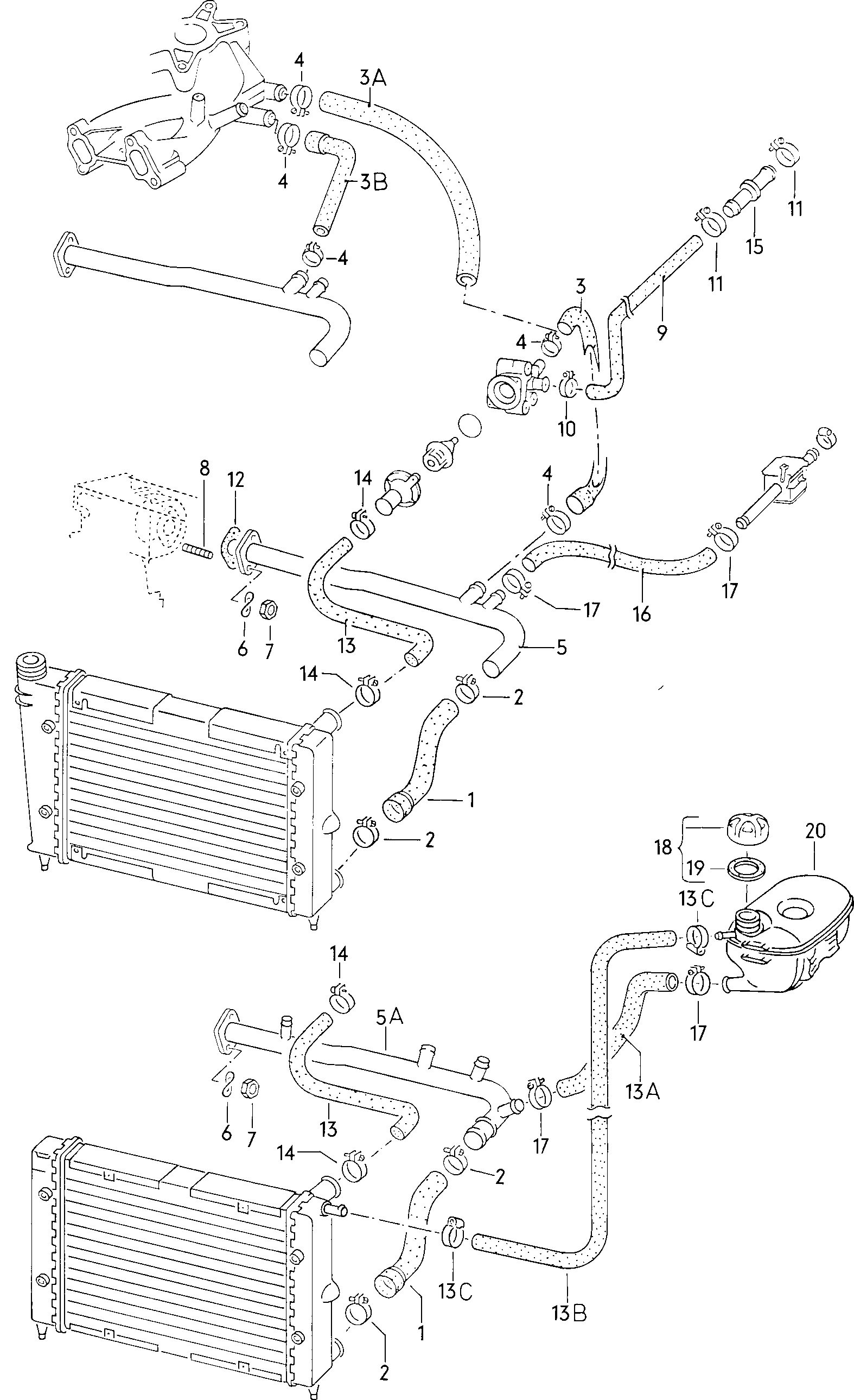

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Coolant hoses Coolant pipe 1.1/1.3 ltr. GF,GG,GS 1.1/1.3 ltr.	—
-	hose in coils of 5 m'order unit 5' 7 X 2,5 7 X 2,5	443 121 107 A
-	O-ring 24 X 4 24 X 4	N 902 400 02
-	sealing plug	075 121 418
(1)	Coolant hose F 15-D-000 001>>F 16-D-000 001>>F 17-D-000 001>>F 53-D-000 001>>	171 121 051 J
(12)	O-ring 36,40 X 3,1 36,40 X 3,1	N 902 600 01
(13)	Coolant hose for models with battery: 54 A/63 A 54 A/63 A	171 121 101 C
(13)	Coolant hosefor vehicles with a battery 54 A/63 A 54 A/63 A	171 121 101 M
(3)	Coolant hose F >> 15-C-050 000 F >> 16-C-999 999 F >> 17-C-999 999 F >> 53-C-100 000 GGGG,GFGG,GFGF	036 121 054 B
(5)	Coolant pipe F 15-D-000 001>> 15-D-007 000F 16-D-000 001>> 16-D-330 000F 17-D-000 001>> 17-D-330 000F 53-D-000 001>> 53-D-015 000	036 121 065 J
1	Coolant hose F >> 15-C-050 000 F >> 16-C-999 999 F >> 17-C-999 999 F >> 53-C-100 000	171 121 051 L
10	Clamp 23-35 X 9 X 0,5 23-35 X 9 X 0,5	N 102 581 01
11	Clamp LC 16-27 LC 16-27	N 900 719 01
11	Clamp 16-28 X 9 X 0,5 16-28 X 9 X 0,5	N 905 618 01
12	Seal	052 121 091 A
13	Coolant hose	171 121 101 N
13A	Coolant hose F 15-D-007 001>>F 16-D-330 001>>F 17-D-330 001>>F 53-D-015 001>>	171 121 109 H
13B	shorten to: 640 MM 640 MM	—
13C	Clamp Type 19 makes this →	311 133 343
14	Clamp 32-50 X 9 X 0,5 32-50 X 9 X 0,5 Type 19 makes this →	N 024 507 7
15	Connecting pipe	171 121 140 D
16	Coolant hose	171 121 623 F
17	Clamp 16-28 X 9 X 0,5 16-28 X 9 X 0,5	N 905 618 01
18	End cap F 15-D-007 001>>F 16-D-330 001>>F 17-D-330 001>>F 53-D-015 001>>	443 121 321
19	seal ring F 15-D-007 001>>F 16-D-330 001>>F 17-D-330 001>>F 53-D-015 001>>	171 121 327
2	Clamp LC 32-50 LC 32-50	N 024 507 4
2	Clamp 32-50 X 9 X 0,5 32-50 X 9 X 0,5 Type 19 makes this →	N 024 507 7
20	Coolant expansion tank F 15-D-007 001>>F 16-D-330 001>>F 17-D-330 001>>F 53-D-015 001>>	171 121 407 E
20	Coolant expansion tank F 15-D-007 001>>F 16-D-330 001>>F 17-D-330 001>>F 53-D-015 001>> also use: 075 121 418 N 902 400 02 075 121 418 N 902 400 02	171 121 407 F
3	Coolant hose F 15-D-000 001>>F 16-D-000 001>>F 17-D-000 001>>F 53-D-000 001>> GGGG,GFGG,GFGF	052 121 054 D
3A	Coolant hose GS	052 121 054 N
3B	Coolant hose GS	052 121 056 B
4	Hose clamp LC 23-35 LC 23-35	N 024 511 3
4	Clamp 23-35 X 9 X 0,5 23-35 X 9 X 0,5	N 102 581 01
5	Coolant pipe F >> 15-C-050 000 F >> 16-C-999 999 F >> 17-C-999 999 F >> 53-C-100 000	036 121 065 F
5A	Coolant pipe also use:F 15-D-007 001>>F 16-D-330 001>>F 17-D-330 001>>F 53-D-015 001>> N 902 600 01 N 902 600 01	036 121 065 P
6	Spring washer 6 6	N 012 226 5
6	Spring washer A 6 A 6	N 012 227 3
7	Hexagon nut M 6 M 6	N 011 006 24
7	Hexagon nut M 6 M 6	N 011 006 8
8	Threaded pin M 6 X 36 M 6 X 36	N 014 545 2
9	Coolant hose	171 121 088 D
