Coolant hoses coolant pipe reservoir carburetor industrial — Mk1 Golf Cooling (1982 - 1983)
Factory title: Volkswagen Golf (1982 - 1984) - Coolant pump

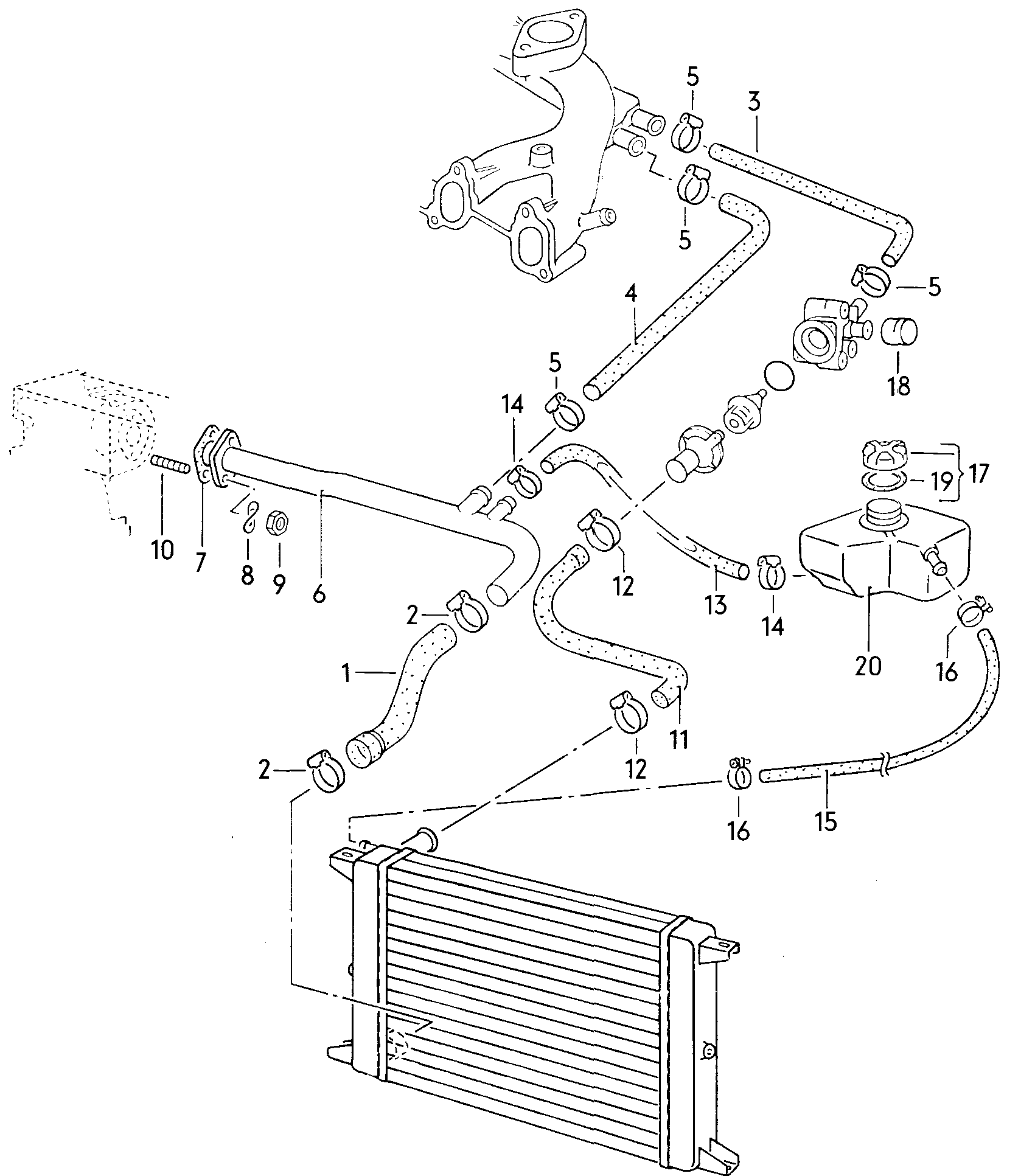

Coolant hoses coolant pipe reservoir carburetor industrial for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 16000 from the Volkswagen ETKA parts catalogue, group 11 Drive cooling, listing 29 OEM part numbers across 31 catalogued positions including 443 121 107 A, N 902 400 02 and 075 121 418. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.
Parts on this diagram
This Mk1 Golf plate lists 29 OEM part numbers across 31 numbered positions.
| № | Description | Part number |
|---|---|---|
| Coolant hoses Coolant pipe Reservoir carburetorindustrialengine | — | |
| - | hose in coils of 5 m'order unit 5' 7 X 2,5 7 X 2,5 | 443 121 107 A |
| - | O-ring 24 X 4 24 X 4 | N 902 400 02 |
| - | sealing plug | 075 121 418 |
| (20) | Coolant expansion tank also use: 075 121 418 N 902 400 02 075 121 418 N 902 400 02 | 171 121 407 F |
| (20) | Coolant expansion tank | 171 121 407 E |
| 1 | Coolant hose | 171 121 051 L |
| 10 | Threaded pin M 6 X 36 M 6 X 36 | N 014 545 2 |
| 11 | Coolant hose | 171 121 101 C |
| 12 | Clamp 32-50 X 9 X 0,5 32-50 X 9 X 0,5 Type 19 makes this → | N 024 507 7 |
| 13 | Coolant hose | 171 121 109 F |
| 14 | Clamp 16-28 X 9 X 0,5 16-28 X 9 X 0,5 | N 905 618 01 |
| 14 | Clamp LC 16-27 LC 16-27 | N 900 719 01 |
| 15 | shorten to: 800 MM 800 MM | — |
| 16 | Clamp 9 X 13 9 X 13 | N 024 122 2 |
| 17 | End cap | 443 121 321 |
| 18 | Cap closure | 036 121 324 A |
| 19 | seal ring | 171 121 327 |
| 2 | Clamp 32-50 X 9 X 0,5 32-50 X 9 X 0,5 Type 19 makes this → | N 024 507 7 |
| 2 | Clamp LC 32-50 LC 32-50 | N 024 507 4 |
| 20 | Reservoirfor industrial enginewithout belt pulley | 861 121 407 |
| 3 | Coolant hose | 052 121 054 G |
| 4 | Coolant hose | 052 121 056 |
| 5 | Hose clamp LC 23-35 LC 23-35 | N 024 511 3 |
| 5 | Clamp 23-35 X 9 X 0,5 23-35 X 9 X 0,5 | N 102 581 01 |
| 6 | Coolant pipe | 036 121 065 F |
| 7 | Seal | 052 121 091 A |
| 8 | Spring washer A 6 A 6 | N 012 227 3 |
| 8 | Spring washer 6 6 | N 012 226 5 |
| 9 | Hexagon nut M 6 M 6 | N 011 006 24 |
| 9 | Hexagon nut M 6 M 6 | N 011 006 8 |
Reproduction parts by Type 19 for this diagram
Volkswagen no longer supplies one part on this plate. Type 19 manufactures it to the factory number.
- Mk2 Golf Engine Hose Clamps Factory number on this diagram: N 024 507 7
From the Type 19 workshop
Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these cooling diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk1
- Model years
- 1982 - 1983
- Generation region
- RDW
- Generation code
- 007
- Factory group
- 11 Drive cooling
- Factory subgroup
- 16000
