Cooler coolant — Mk1 Golf Cooling (1979 - 1980)
Factory title: Volkswagen Golf (1979 - 1980) - Coolant pump

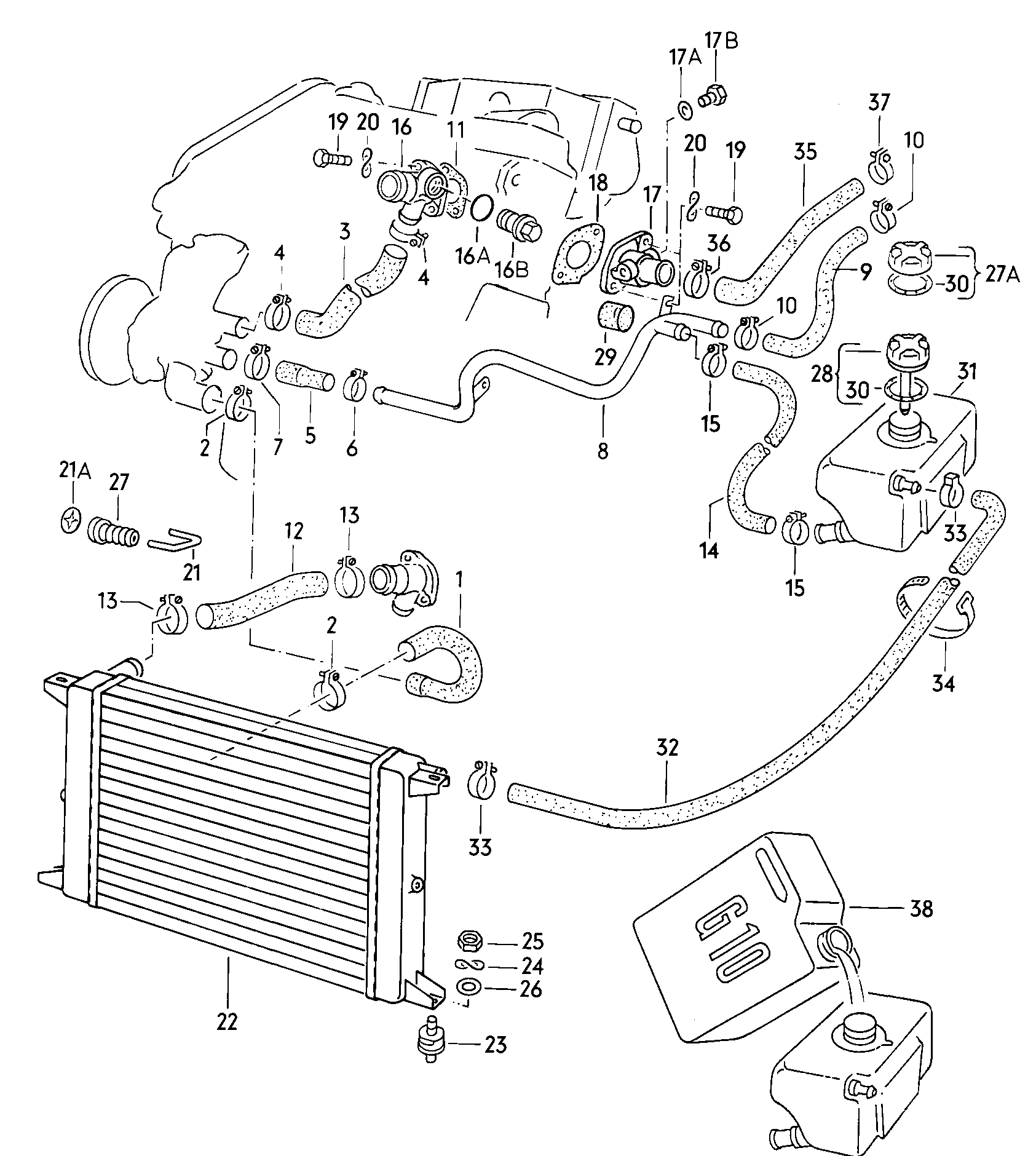

Cooler coolant for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 13000 from the Volkswagen ETKA parts catalogue, group 11 Drive cooling, listing 66 OEM part numbers across 73 catalogued positions including 037 121 687, 443 121 107 A and N 902 400 02. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.
Parts on this diagram
This Mk1 Golf plate lists 66 OEM part numbers across 73 numbered positions.
| № | Description | Part number |
|---|---|---|
| Cooler for coolant 1.5 Ltr. DIESEL:CK 1.5 Ltr. | — | |
| - | seal ring 36 X 3,15 36 X 3,15 | 037 121 687 |
| - | hose in coils of 5 m'order unit 5' 7 X 2,5 7 X 2,5 | 443 121 107 A |
| - | O-ring 24 X 4 24 X 4 | N 902 400 02 |
| - | sealing plug | 075 121 418 |
| - | panel nut M 6 M 6 | N 011 405 2 |
| - | seal ring A 10 X 14 A 10 X 14 | N 013 806 4 |
| - | Hose 16 X 3,5 16 X 3,5 | N 020 269 1 |
| - | seal ring 10 X 13,5 10 X 13,5 | N 013 811 5 |
| (1) | Coolant hosefor vehicles with air condit. | 171 121 051 F |
| (12) | Coolant hosefor vehicles with air condit. | 171 121 101 G |
| (12) | No longer availablefor vehicles with air condit. | — |
| (18) | seal ring 36 X 3,15 36 X 3,15 | 037 121 687 |
| (21) | Connecting piece industrialengine | 861 121 237 |
| (22) | Cooler for coolantfor vehicles with air condit. See parts bulletin: 570 MM 1/50-81 "J.." 570 MM 1/50-81 | 171 121 253 CL |
| (38) | Coolant additive | G 011 A8C A8 |
| (38) | Coolant additive | G 011 V8B A8 |
| (8) | Coolant pipe | 055 121 065 J |
| (8) | No longer available | — |
| 1 | Coolant hose | 171 121 051 G |
| 10 | Clamp 16-28 X 9 X 0,5 16-28 X 9 X 0,5 | N 905 618 01 |
| 11 | Seal | 052 121 091 A |
| 12 | Coolant hose | 068 121 101 B |
| 13 | Clamp 25-40 X 9 X 0,5 25-40 X 9 X 0,5 | N 024 506 5 |
| 14 | Coolant hose | 171 121 109 F |
| 15 | Clamp 16-28 X 9 X 0,5 16-28 X 9 X 0,5 | N 905 618 01 |
| 16 | flange also use: N 013 811 5 N 016 024 1037 121 687 N 013 811 5 N 016 024 1037 121 687 | 068 121 133 R |
| 16A | seal ring C 22 X 27 C 22 X 27 | N 013 838 2 |
| 16A | seal ring 22 X 29 22 X 29 | N 043 808 3 |
| 16B | sealing plug M 22 X 1,5 M 22 X 1,5 | N 016 163 2 |
| 17 | flange with tapped hole use if required: N 013 808 5 N 016 024 1 N 013 808 5 N 016 024 1 | 068 121 145 K |
| 17A | seal ring A 10 X 16 A 10 X 16 | N 013 808 3 |
| 17A | seal ring 10 X 16 10 X 16 | N 013 808 5 |
| 17B | sealing plug M 10 X 1 M 10 X 1 | N 016 024 1 |
| 18 | Seal | 052 121 091 A |
| 19 | Hexagon bolt M 6 X 20 M 6 X 20 | N 010 217 9 |
| 19 | Hexagon bolt M 6 X 20 M 6 X 20 | N 010 217 10 |
| 2 | Clamp 25-40 X 9 X 0,5 25-40 X 9 X 0,5 | N 024 506 5 |
| 20 | Spring washer 6 6 | N 012 226 5 |
| 21 | No longer available | — |
| 21 | Connecting piece | 171 121 237 E |
| 21A | Clamping washer 4 X 12 4 X 12 | N 012 059 1 |
| 22 | Cooler for coolant also use: N 011 405 2 N 011 405 2 | 171 121 253 D |
| 23 | Bonded rubber bush | 171 121 275 E |
| 24 | Spring washer 6 6 | N 012 226 5 |
| 25 | Hexagon nut M 6 M 6 | N 011 006 8 |
| 25 | Hexagon nut M 6 M 6 | N 011 006 24 |
| 26 | Washer 6,5 6,5 | N 011 547 6 |
| 27 | Bearing bush | 171 121 277 A |
| 27A | End cap | 443 121 321 |
| 28 | Discont. / replace: 443 121 321 443 121 321 | — |
| 29 | Cap closure industrialengine | 036 121 324 B |
| 3 | Coolant hose | 068 121 053 M |
| 30 | seal ring | 171 121 327 |
| 31 | Coolant expansion tank | 171 121 407 E |
| 31 | Coolant expansion tank also use: 075 121 418 N 902 400 02 075 121 418 N 902 400 02 | 171 121 407 F |
| 32 | shorten to: 800 MM 800 MM | — |
| 33 | Hose clamp LC 12-22 LC 12-22 | N 024 509 4 |
| 33 | Clamp 12-22 X 9 X 0,4 12-22 X 9 X 0,4 | N 102 582 01 |
| 34 | Cable ties 210 210 | N 020 902 1 |
| 34 | Cable ties 3,6 X 246 3,6 X 246 | N 020 902 2 |
| 35 | Coolant hose | 171 121 611 AN |
| 36 | Clamp 23-35 X 9 X 0,5 23-35 X 9 X 0,5 | N 102 581 01 |
| 37 | Clamp 16-28 X 9 X 0,5 16-28 X 9 X 0,5 | N 905 618 01 |
| 38 | Coolant additive | G 011 A8C A1 |
| 38 | Coolant additive | G 011 V8B A1 |
| 4 | Clamp 23-35 X 9 X 0,5 23-35 X 9 X 0,5 | N 102 581 01 |
| 4 | Hose clamp LC 23-35 LC 23-35 | N 024 511 3 |
| 5 | Coolant hose | 055 121 063 A |
| 6 | Clamp LC 16-25 LC 16-25 | N 900 719 01 |
| 6 | Clamp 16-28 X 9 X 0,5 16-28 X 9 X 0,5 | N 905 618 01 |
| 7 | Clamp 23-35 X 9 X 0,5 23-35 X 9 X 0,5 | N 102 581 01 |
| 9 | shorten to: 65 MM 65 MM | — |
