Which VW part numbers are on the cooler coolantflangethermal switch diagram for the Mk1 Golf?

This diagram lists 70 OEM part numbers for the Mk1 Golf. The first three are N 012 226 5, 055 121 133 A and 035 919 369 C.

Which Mk1 Golf years and engines does this diagram cover?

This plate is from the Mk1 Golf 1982 - 1983 generation (RDW). The parts on it carry the engine code JK.

Where is the complete Mk1 Golf factory parts catalogue?

The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.

Cooler coolantflangethermal switch — Mk1 Golf Cooling (1982 - 1983)

Factory title: Volkswagen Golf (1982 - 1984) - Coolant pump

Generation: Mk1 1982 - 1983 (RDW) Group: Drive cooling Rebuild step 8 Parts: 71 Primary OEM: N 012 226 5, 055 121 133 A, 035 919 369 C

Cooler coolantflangethermal switch for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 22000 from the Volkswagen ETKA parts catalogue, group 11 Drive cooling, listing 70 OEM part numbers across 71 catalogued positions including N 012 226 5, 055 121 133 A and 035 919 369 C. Parts on this plate carry the engine code JK. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 70 OEM part numbers across 71 numbered positions.

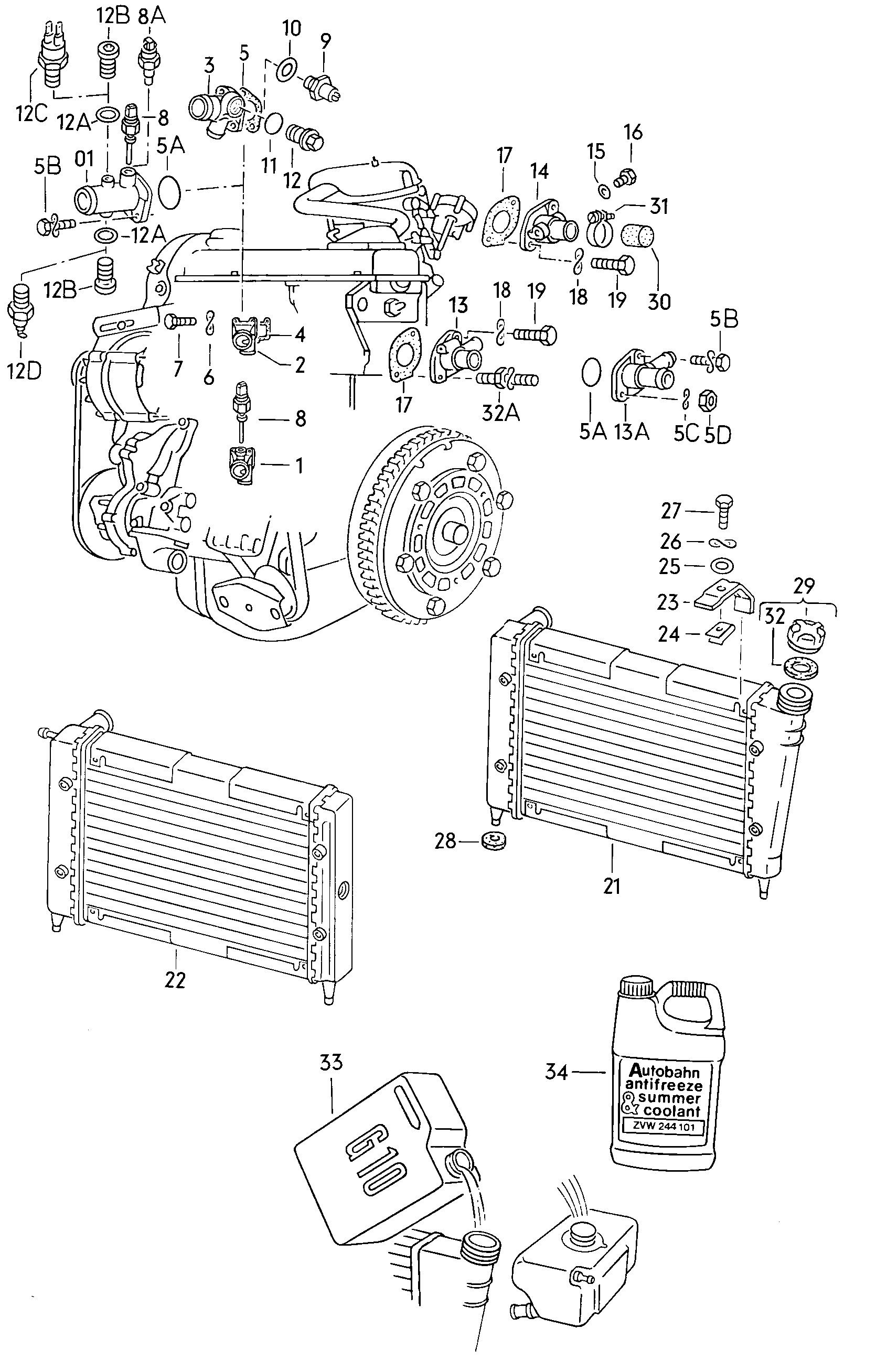

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Cooler for coolantflangethermal switch 1.5-1.8 ltr. EG,EM,EN,DX,JJ,FR,GH,JB,EW,HN,DIESEL:CR,JKT-DIESEL:CY 1.5-1.8 ltr.	—
-	Spring washer 6 DX,JJ,EW,HN 6	N 012 226 5
(1)	flange Air cond.+EN	055 121 133 A
(12C)	thermal switch 55/65 C M 10 X 1 HN 55/65 C M 10 X 1	035 919 369 C
(13A)	flange EW,HN	037 121 145
(13A)	flange with sealing ring EW,HN	026 121 144 E
(17)	seal ring 36 X 3,15 36 X 3,15	037 121 687
(19)	Hexagon bolt M 6 X 28 T-DIESEL:CY M 6 X 28	N 010 219 1
(2)	flange Air cond.+JB,GH	055 121 133 B
(21)	Cooler for coolant F >> 15-D-007 000F >> 16-D-330 000F >> 17-D-330 000F >> 53-D-015 000 525 MM EN;Air cond.+JB,GH,ENEN;Air cond.+JB,GH,FR,ENEN;Air cond.+JB,GH,ENEN;Air cond.+JB,GH,FR,EN 525 MM	171 121 253 AM
(22)	Cooler for coolant 525 MM EG,DX,JJDIESEL:CR,JK 525 MM JK	321 121 253 AL
(22)	Cooler for coolant 570 MM T-DIESEL:CY;air condit./DIESEL:CR,JK 570 MM JK	171 121 253 CL
(22)	Cooler for coolant F 15-D-007 001>>F 16-D-330 001>>F 17-D-330 001>>F 53-D-015 001>> 430 MM JB,EMJB,EM,FR,HNJB,EM,HNJB,EM,FR,EW 430 MM	191 121 253 K
(29)	End cap air condit./T-DIESEL:CY	171 121 321 J
(33)	Coolant additive	G 011 V8B A8
(33)	Coolant additive	G 011 A8C A8
(5B)	Hexagon bolt M 6 X 20 DX,JJ,EW,HN M 6 X 20	N 010 217 10
(5B)	Hexagon bolt M 6 X 20 DX,JJ,EW,HN M 6 X 20	N 010 217 9
01	flange also use: N 016 024 1 N 013 811 5 DX,JJ,EW,HN N 016 024 1 N 013 811 5	026 121 133 C
1	flange EG,EN	049 121 133
10	seal ring 22 X 29 air condit./DIESEL:CR,JKT-DIESEL:CY 22 X 29	N 043 808 3
11	seal ring 22 X 29 DIESEL:CR,JKT-DIESEL:CY 22 X 29	N 043 808 3
11	seal ring C 22 X 27 DIESEL:CR,JKT-DIESEL:CY C 22 X 27	N 013 838 2
12	sealing plug M 22 X 1,5 DIESEL:CR,JKT-DIESEL:CY M 22 X 1,5	N 016 163 2
12A	seal ring 10 X 13,5 EW,HN 10 X 13,5	N 013 811 5
12A	seal ring A 10 X 14 EW,HN A 10 X 14	N 013 806 4
12B	sealing plug M 10 X 1 EW,HN M 10 X 1	N 016 024 1
12D	Temperature sensor 0-125 C M 10 X 1 HN 0-125 C M 10 X 1	049 919 501
13	flange EG,EM,EN,FR,GH,JB,DX,JJ	049 121 145 B
13A	flange with sealing ring DX,JJ	026 121 144 F
13A	flange DX,JJ	026 121 145 A
14	flange with tapped hole use if required: M 10 X 1 N 013 808 5 N 016 024 1 DIESEL:CR,JKT-DIESEL:CY M 10 X 1 N 013 808 5 N 016 024 1	068 121 145 K
15	seal ring 10 X 16 DIESEL:CR,JKT-DIESEL:CY 10 X 16	N 013 808 5
15	seal ring A 10 X 16 DIESEL:CR,JKT-DIESEL:CY A 10 X 16	N 013 808 3
16	sealing plug M 10 X 1 DIESEL:CR,JKT-DIESEL:CY M 10 X 1	N 016 024 1
17	Seal EG,EM,EN,FRGH,JB,DIESEL:CR,JKT-DIESEL:CY	052 121 091 A
18	Spring washer 6 EG,EM,EN,FR,GH,JB,DIESEL:CR,JKT-DIESEL:CY 6	N 012 226 5
19	Hexagon bolt M 6 X 20 T-DIESEL:CY M 6 X 20	N 010 217 10
19	Hexagon bolt M 6 X 20 EG,EM,EN,FR,GH,JB,DIESEL:CR,JK M 6 X 20 JK	N 010 217 10
2	flange EM,FR,GH,JB	055 121 133
21	Cooler for coolant F >> 15-D-007 000F >> 16-D-330 000F >> 17-D-330 000F >> 53-D-015 000 430 MM JB,GH,EM,FRJB,GH,EMJB,GH,EM,FRJB,GH,EMJB,GH,EM,FR 430 MM	171 121 253 BD
22	Cooler for coolant F 15-D-007 001>>F 16-D-330 001>>F 17-D-330 001>>F 53-D-015 001>> 525 MM EN;Air cond.+JB,EM,ENEN;Air cond.+JB,EM,EN,FR,HNEN;Air cond.+JB,GH,EN,HNEN;Air cond.+JB,EM,EN,FR,EW 525 MM	321 121 253 AL
23	Retaining plate	171 121 267
24	Plug-in nut F 15-C-000 001>>F 16-C-000 001>>F 17-C-000 001>>F >> 53-C-004 363	431 399 433
24	Speed nut F 15-C-000 001>>F 16-C-000 001>>F 17-C-000 001>>F >> 53-C-004 363 M 6 X 16 X 24 M 6 X 16 X 24	N 901 686 02
25	Washer 7,4 X 22 X 2 7,4 X 22 X 2	N 011 667 2
26	Spring washer 6 6	N 012 226 5
27	Hexagon bolt M 6 X 18 M 6 X 18	N 010 216 12
28	Rubber washer	171 121 276 D
29	End cap	443 121 321
3	flange also use: 037 121 687 air condit./DIESEL:CR,JKT-DIESEL:CY 037 121 687	068 121 133 R
3	flange DIESEL:CR,JKT-DIESEL:CY	068 121 133 M
30	Cap closure diesel-industrialengine	036 121 324 B
31	Hose clamp LC 23-35 diesel-industrialengine LC 23-35	N 024 511 3
31	Clamp 23-35 X 9 X 0,5 diesel-industrialengine 23-35 X 9 X 0,5	N 102 581 01
32	seal ring	171 121 327
32A	double stud with hexagon drive M 6 X 22/M 6 X 14 EW,HN M 6 X 22/M 6 X 14	027 121 631 A
33	Coolant additive	G 011 V8B A1
33	Coolant additive	G 011 A8C A1
4	Seal EG,EM,EN,FR,	056 121 139 C
5	Seal DIESEL:CR,JKT-DIESEL.CY	052 121 091 A
5A	seal ring 36 X 3,15 DX,JJ,EW,HN 36 X 3,15	037 121 687
5C	Spring washer 6 EW,HN 6	N 012 226 5
5C	Spring washer A 6 EW,HN A 6	N 012 227 3
5D	Hexagon nut M 6 EW,HN M 6	N 011 006 24
5D	Hexagon nut M 6 EW,HN M 6	N 011 006 8
6	Spring washer 6 6	N 012 226 5
7	Hexagon bolt M 6 X 20 M 6 X 20	N 010 217 10
8	Thermal timing switch 35 C M 14 X 1,5 EG,EN,DX,JJ 35 C M 14 X 1,5	043 906 163 A
8A	thermal switch 30/40 C M 10 X 1 EW 30/40 C M 10 X 1	035 919 369 B
9	thermal switch air condit./DIESEL:CR,JKT-DIESEL:CY	171 959 481 A

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these cooling diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk1
Model years: 1982 - 1983
Generation region: RDW
Generation code: 007
Engine codes on this plate: JK
Variant tags: diesel_turbo, petrol_8v_gti_or_gl
Factory group: 11 Drive cooling
Factory subgroup: 22000
