Oil cooler — Mk1 Golf Cooling (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Oil cooler

Generation: Mk1 1979 - 1980 (RDW) Group: Drive cooling Rebuild step 8 Parts: 20 Primary OEM: 113 117 021, 113 117 021 X, N 011 006 8

Oil cooler for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 9000 from the Volkswagen ETKA parts catalogue, group 11 Drive cooling, listing 19 OEM part numbers across 20 catalogued positions including 113 117 021, 113 117 021 X and N 011 006 8. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 19 OEM part numbers across 20 numbered positions.

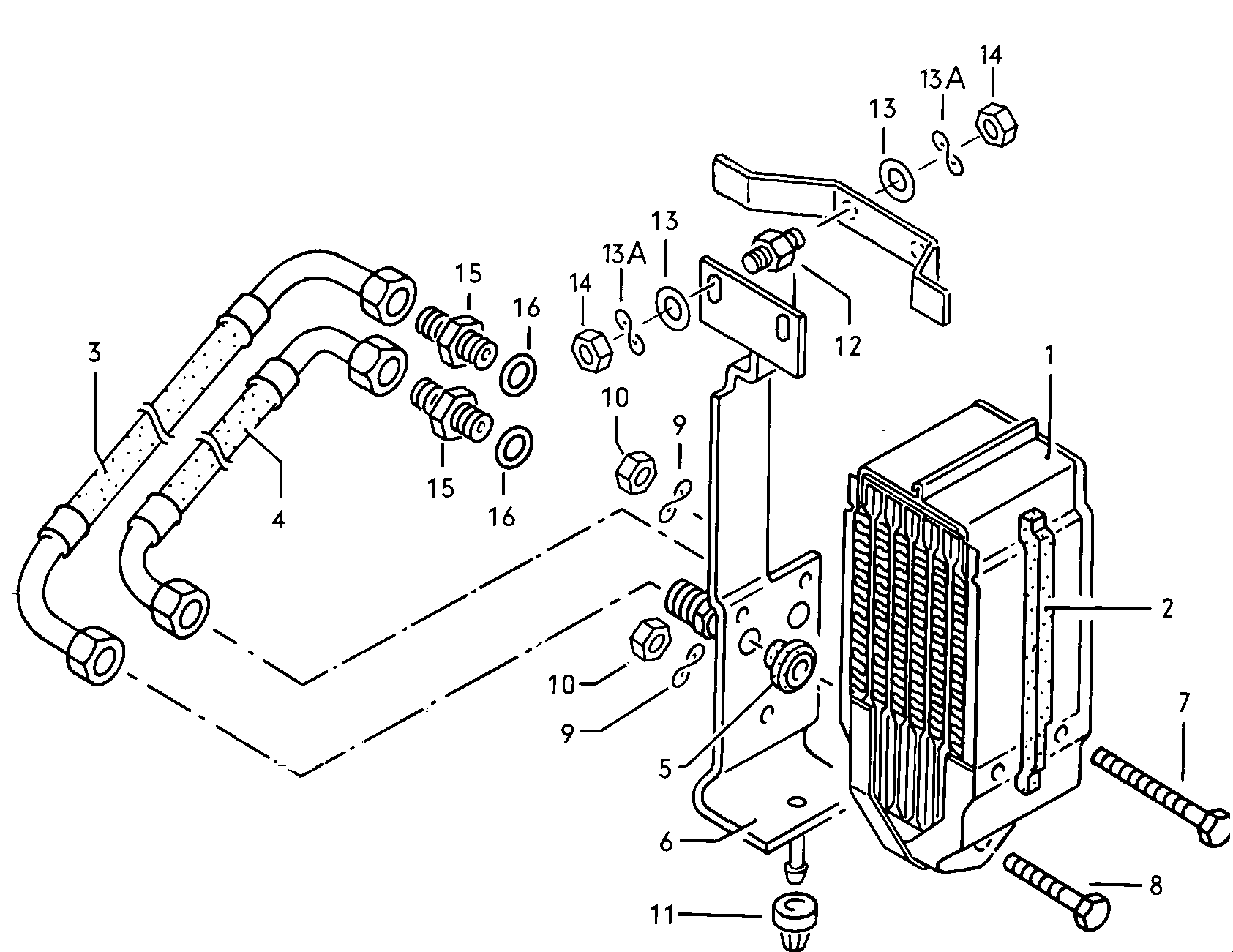

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
Oil cooler 1.6 ltr. EG
1.6 ltr.
 —
1
Oil cooler
 113 117 021
1
Oil cooler
 113 117 021 X
10
Hexagon nut M 6
M 6
 N 011 006 8
10
Hexagon nut M 6
M 6
 N 011 006 24
11
Rubber bush
 067 117 195
12
Bonded rubber bush
 443 133 741 A
13
Washer 6,4 X 12,5 X 1,6
6,4 X 12,5 X 1,6
 N 011 524 23
13
Washer A 6,4 X 12,5 X 1,6
A 6,4 X 12,5 X 1,6
 N 011 524 7
14
Hexagon nut M 6
M 6
 N 011 006 24
15
threaded union
 049 117 233
16
seal ring 16 X 20
16 X 20
 N 013 844 4
2
Seal
 067 117 025 A
3
Oil return line
 067 117 123 A
4
Oil pressure line
 067 117 125 A
5
seal ring 22,7 X 10,8 X 8
22,7 X 10,8 X 8
 021 117 151 A
6
Bracket
 067 117 185 B
7
Hexagon bolt M 6 X 75
M 6 X 75
 N 010 311 4
8
Hexagon bolt M 6 X 43
M 6 X 43
 N 010 348 4
9
Spring washer 6
6
 N 012 226 5

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these cooling diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk1
Model years
1979 - 1980
Generation region
RDW
Generation code
027
Variant tags
petrol_8v_base
Factory group
11 Drive cooling
Factory subgroup
9000

Related factory diagrams

Other published cooling plates for the Mk1 Golf in this catalogue.

The complete Mk1 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the oil cooler diagram for the Mk1 Golf?
This diagram lists 19 OEM part numbers for the Mk1 Golf. The first three are 113 117 021, 113 117 021 X and N 011 006 8.
Which Mk1 Golf years and engines does this diagram cover?
This plate is from the Mk1 Golf 1979 - 1980 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk1 Golf factory parts catalogue?
The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.
