Thermal switchthermo pneumatic valve — Mk1 Golf Cooling (1982 - 1983)

Factory title: Volkswagen Golf (1982 - 1984) - Coolant pump

Generation: Mk1 1982 - 1983 (RDW) Group: Drive cooling Rebuild step 8 Parts: 10 Primary OEM: 055 131 851, 035 919 369, 049 131 851

Thermal switchthermo pneumatic valve for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 20000 from the Volkswagen ETKA parts catalogue, group 11 Drive cooling, listing 9 OEM part numbers across 10 catalogued positions including 055 131 851, 035 919 369 and 049 131 851. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 9 OEM part numbers across 10 numbered positions.

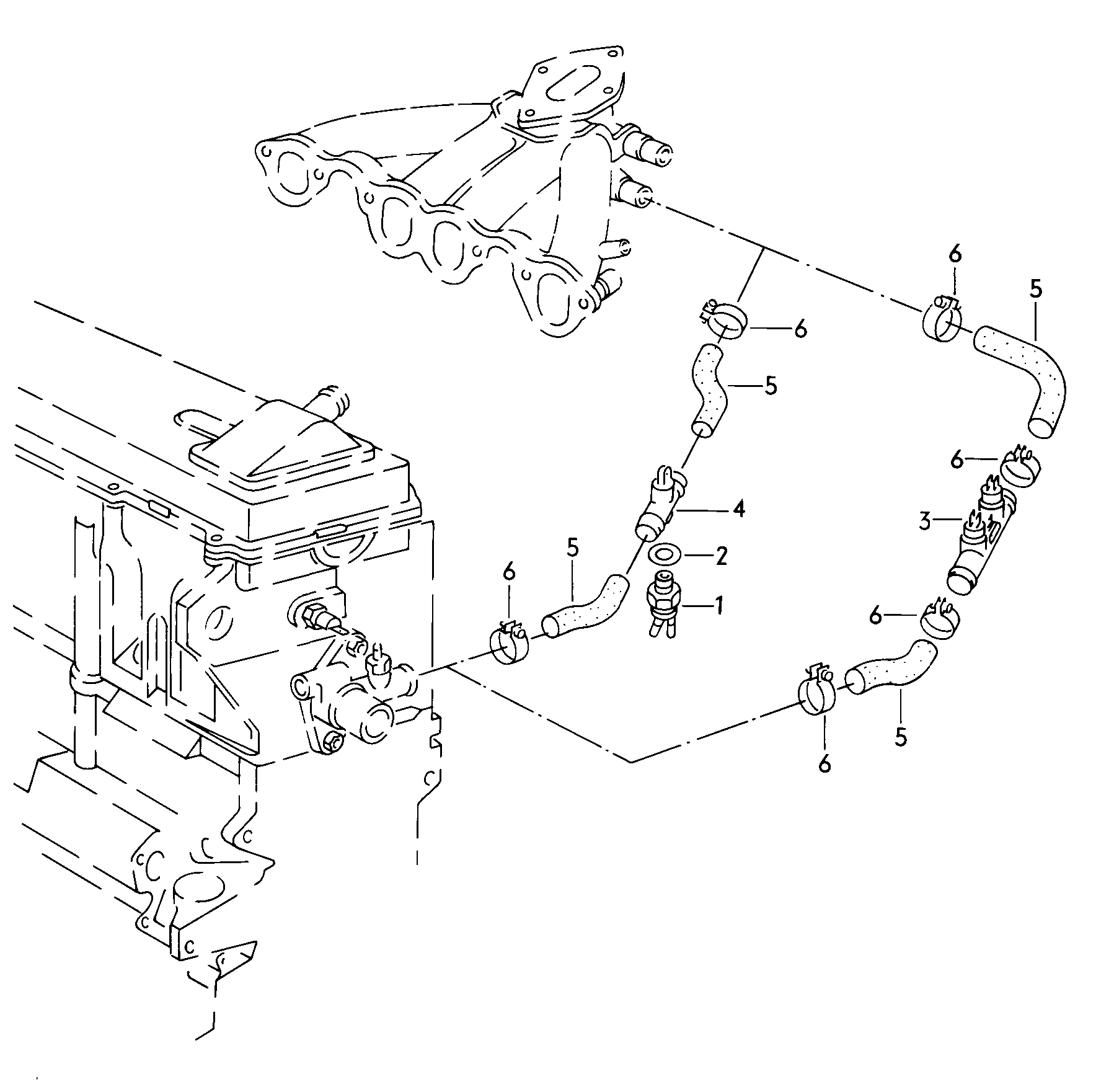

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
thermal switchthermo-pneumatic valve 1.5/1.6 ltr. carburetorengine:EM,FR,GH,JB
1.5/1.6 ltr.
 —
(1)
thermo-pneumatic valve Automatic+JB,GH
 055 131 851
(3)
dual thermo-switch also use: 30/40 C 55/65 CN 016 024 1 N 013 811 5 FR,GH,JB
30/40 C 55/65 CN 016 024 1 N 013 811 5
 035 919 369
1
thermo-pneumatic valve EM
 049 131 851
2
seal ring 10 X 13,5
10 X 13,5
 N 013 811 5
2
seal ring A 10 X 14
A 10 X 14
 N 013 806 4
4
thermal switch 60/70 C EM
60/70 C
 056 919 369 J
5
Coolant hose
 049 121 123 A
6
Hose clamp LC 23-35
LC 23-35
 N 024 511 3
6
Clamp 23-35 X 9 X 0,5
23-35 X 9 X 0,5
 N 102 581 01
