Connecting mounting parts alternator — Mk1 Golf Engine Electrics (1977 - 1978)

Factory title: Volkswagen Golf (1977 - 1978) - Alternator versions

Generation: Mk1 1977 - 1978 (RDW) Group: Engine electrics Rebuild step 4 Parts: 88 Primary OEM: 068 903 137 B S BV, 052 903 137 A S BV, 050 903 137 S BV

Connecting mounting parts alternator for the Volkswagen Golf Mk1 (1977 - 1978): factory exploded diagram 86010 from the Volkswagen ETKA parts catalogue, group 44 Engine electrics, listing 85 OEM part numbers across 88 catalogued positions including 068 903 137 B S BV, 052 903 137 A S BV and 050 903 137 S BV. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 85 OEM part numbers across 88 numbered positions.

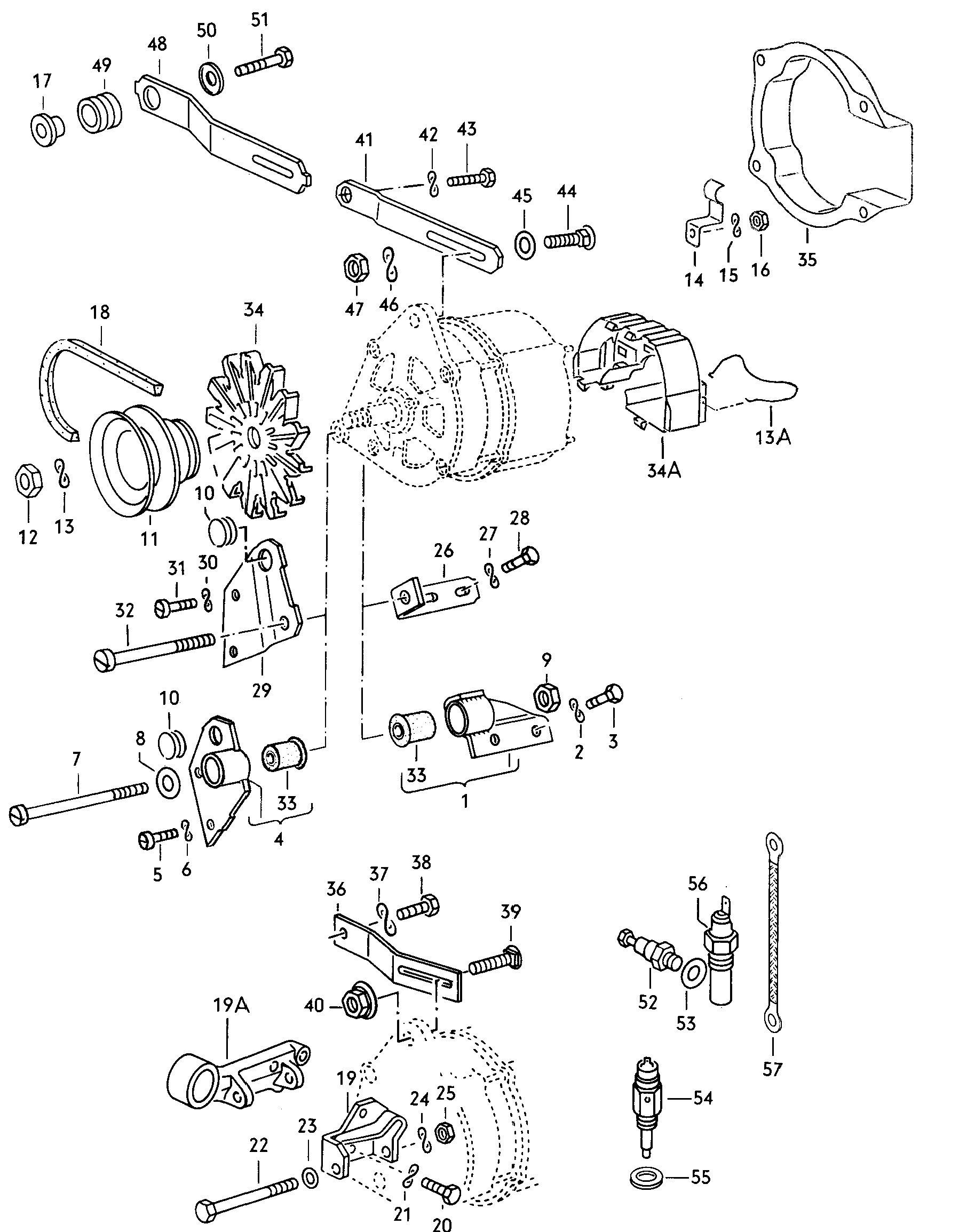

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
Self-service packaging
 068 903 137 B S BV
Self-service packaging
 052 903 137 A S BV
Self-service packaging
 050 903 137 S BV
-
spacer bush F >> 177 3800 000 F >> 537 2500 000 FNFN
 055 903 263
(11)
v-belt pulley BOSCH FA,FJ
BOSCH
 036 903 119 B
(11)
v-belt pulley for alternator: MOTOROLA 17,20
MOTOROLA 17,20
 055 903 119 B
(18)
v-belt 9,5 X 695 MM FA,FJ
9,5 X 695 MM
 068 903 137 AQ
(18)
v-belt F >> 177 3800 000 F 177 3000 001>>F 178 3000 001>> 9,5 X 950 MM EH,EGEE,EFFP,FR,FT,FUJB
9,5 X 950 MM
 050 903 137
(18)
v-belt F >> 177 3800 000 F >> 537 2500 000 9,5 X 880 MM air condit. air condit.
9,5 X 880 MM
 053 121 039 A
(18)
v-belt 9,5 X 1152 MM FN
9,5 X 1152 MM
 074 903 137 AC
(18)
v-belt 9,5 X 695 MM FA,FJ
9,5 X 695 MM
 052 903 137 A
(18)
v-belt F >> 177 3800 000 F >> 537 2500 000 9,5 X 875 MM air condit. air condit.
9,5 X 875 MM
 068 903 137 B
(18)
v-belt 9,5 X 875 MM DIESEL:CK
9,5 X 875 MM
 068 903 137 B
(18)
v-belt 9,9 X 876 MM air condit.
9,9 X 876 MM
 055 903 137 D
(18)
v-belt F 178 3000 001>>F 538 2000 001>> 9,5 X 850 MM air condit. air condit.
9,5 X 850 MM
 055 903 137 G
(18)
v-belt F >> 177 3800 000 F 177 3000 001>>F 178 3000 001>> 9,5 X 950 MM EH,EGEE,EFFP,FR,FT,FUJB
9,5 X 950 MM
 050 903 137
(18)
v-belt 10 X 1152 MM FN
10 X 1152 MM
 074 903 137 AF
(24)
Spring washer 8 X 15 X 0,5 FA,FJ
8 X 15 X 0,5
 N 012 229 3
(34)
fan wheel for alternator: 20
20
 036 903 171 A
(50)
Spring washer 8
8
 N 012 228 3
1
Bracket EE,EF,EG,FN,FP,FR,FT,FV
 049 903 103
11
v-belt pulley BOSCH EE,EF,EG,EHFN,FP,FR,FT,FV,DIESEL:CK
BOSCH
 049 903 119 L
12
Hexagon nut BM 14 X 1,5
BM 14 X 1,5
 N 011 113 5
12
Hexagon nut M 14 X 1,5
M 14 X 1,5
 N 011 163 3
13
Spring washer 14
14
 N 012 233 3
14
Bracket
 056 903 121
15
Spring washer 5
5
 N 012 225 3
16
Hexagon nut M 5
M 5
 N 011 005 17
16
Hexagon nut M 5
M 5
 N 011 005 4
17
Mounting
 441 903 127
17
Mounting
 059 903 127 A
18
v-belt F >> 177 3800 000 F 177 3000 001>>F 178 3000 001>> 9,5 X 950 MM EH,EGEE,EFFP,FR,FT,FVJB
9,5 X 950 MM
 026 903 137 C
18
v-belt F >> 177 3800 000 F 177 3000 001>>F 178 3000 001>> 9,5 X 950 MM EH,EGEE,EFFP,FR,FT,FVJB
9,5 X 950 MM
 050 903 137
19
No longer available FA,FJ
 —
19
Bracket FA,FJ
 036 903 141 A
2
Spring washer B 8 X 15 X 0,8
B 8 X 15 X 0,8
 N 012 241 11
2
Spring washer B 8 X 15
B 8 X 15
 N 012 241 10
20
Hexagon bolt M 10 X 55 FA,FJ
M 10 X 55
 N 010 455 3
21
Washer 10,5 X 21 X 2
10,5 X 21 X 2
 N 011 527 8
22
Hexagon bolt M 8 X 80 FA,FJ
M 8 X 80
 N 010 380 5
23
Washer A 8,4 X 16 X 1,6 FA,FJ
A 8,4 X 16 X 1,6
 N 011 525 20
23
Washer A 8,4 FA,FJ
A 8,4
 N 011 525 13
24
Spring washer 8 FA,FJ
8
 N 012 228 3
25
hexagon nut, self-locking M 8 FA,FJ
M 8
 N 022 146 4
26
No longer available EH,FN,FP,FR,FT,FV,JB
 —
26
bracket for alternator EH,FN,FP,FR,FT,FV,JB
 056 903 141
27
Spring washer B 8 X 15
B 8 X 15
 N 012 241 10
27
Spring washer B 8 X 15 X 0,8
B 8 X 15 X 0,8
 N 012 241 11
28
Hexagon bolt M 8 X 18
M 8 X 18
 N 010 239 11
29
bracket for alternator EH,FN,FP,FR,FT,FV,JB
 049 903 145 B
3
Hexagon bolt M 8 X 18
M 8 X 18
 N 010 239 11
30
Spring washer B 8 X 15
B 8 X 15
 N 012 241 10
30
Spring washer B 8 X 15 X 0,8
B 8 X 15 X 0,8
 N 012 241 11
31
Socket head bolt withhexagon socket head M 8 X 22
M 8 X 22
 N 014 709 1
32
Socket head bolt withhexagon socket head M 8 X 80
M 8 X 80
 N 044 714 2
32
Socket head bolt withinner hex round head M 8 X 80
M 8 X 80
 N 044 714 1
33
Damping sleeve EE,EF,EG,FN,FP,FR,FT,FV
 056 903 147 A
34
fan wheel for alternator: 1-19
1-19
 068 903 171
35
intake cover carburetorindustrialengine
 035 903 193 D
36
angled bracket FA,FJ
 036 903 147 A
36
No longer available FA,FJ
 —
37
Spring washer 8
8
 N 012 228 3
38
Hexagon bolt M 8 X 18
M 8 X 18
 N 010 239 11
39
flat round head bolt M 8 X 27 FA,FJ
M 8 X 27
 052 903 285
40
hexagon nut, self-locking M 8
M 8
 N 902 920 01
40
Hexagon collar nutself-locking M 8
M 8
 N 909 083 01
41
angled bracket EH,JB
 056 903 253
42
Spring washer 8
8
 N 012 228 3
43
Hexagon bolt M 8 X 25
M 8 X 25
 N 010 242 22
44
flat round head bolt M 8 X 25 EE,EF,EG,EH,FN,FP,FR,FT,FV,JBDIESEL:CK
M 8 X 25
 059 903 285
45
Washer B 8,1 X 24 X 1,5
B 8,1 X 24 X 1,5
 N 011 696 1
46
Spring washer B 8 X 15 X 0,8
B 8 X 15 X 0,8
 N 012 241 11
46
Spring washer B 8 X 15
B 8 X 15
 N 012 241 10
47
hexagon nut, self-locking M 8
M 8
 N 022 146 4
48
angled bracket EE,EF,FR
 056 903 253 A
49
Rubber bush
 059 903 263 A
50
Cup washer
 059 903 265 A
51
Hexagon bolt M 8 X 30
M 8 X 30
 N 010 244 21
51
Hexagon bolt M 8 X 30
M 8 X 30
 N 010 244 16
52
Oil pressure switch 0,15-0,45 BAR carburetorindustrialengine
0,15-0,45 BAR
 021 919 081 B
53
seal ring A 10 X 16 carburetorindustrialengine
A 10 X 16
 N 013 808 3
53
seal ring 10 X 16 carburetorindustrialengine
10 X 16
 N 013 808 5
54
temperature switch 110 C M 14 X 1,5 diesel-industrialengine
110 C M 14 X 1,5
 171 919 521 A
55
seal ring 14 X 18 diesel-industrialengine
14 X 18
 N 013 814 2
56
temperature switch 110 C M 10 X 1 carburetorindustrialengine
110 C M 10 X 1
 861 919 521
57
Earth line carburetorindustrialengine
 067 971 233
7
Socket head bolt withhexagon socket head M 8 X 125
M 8 X 125
 N 044 721 1
8
Washer B 8,1 X 24 X 1,5
B 8,1 X 24 X 1,5
 N 011 696 1
