Connecting mounting parts alternator air condit diesel — Mk1 Golf Engine Electrics (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Alternator versions

Generation: Mk1 1979 - 1980 (RDW) Group: Engine electrics Rebuild step 4 Parts: 56 Primary OEM: 068 903 137 B S BV, 036 903 121, 034 903 555 B

Connecting mounting parts alternator air condit diesel for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 130020 from the Volkswagen ETKA parts catalogue, group 44 Engine electrics, listing 54 OEM part numbers across 56 catalogued positions including 068 903 137 B S BV, 036 903 121 and 034 903 555 B. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 54 OEM part numbers across 56 numbered positions.

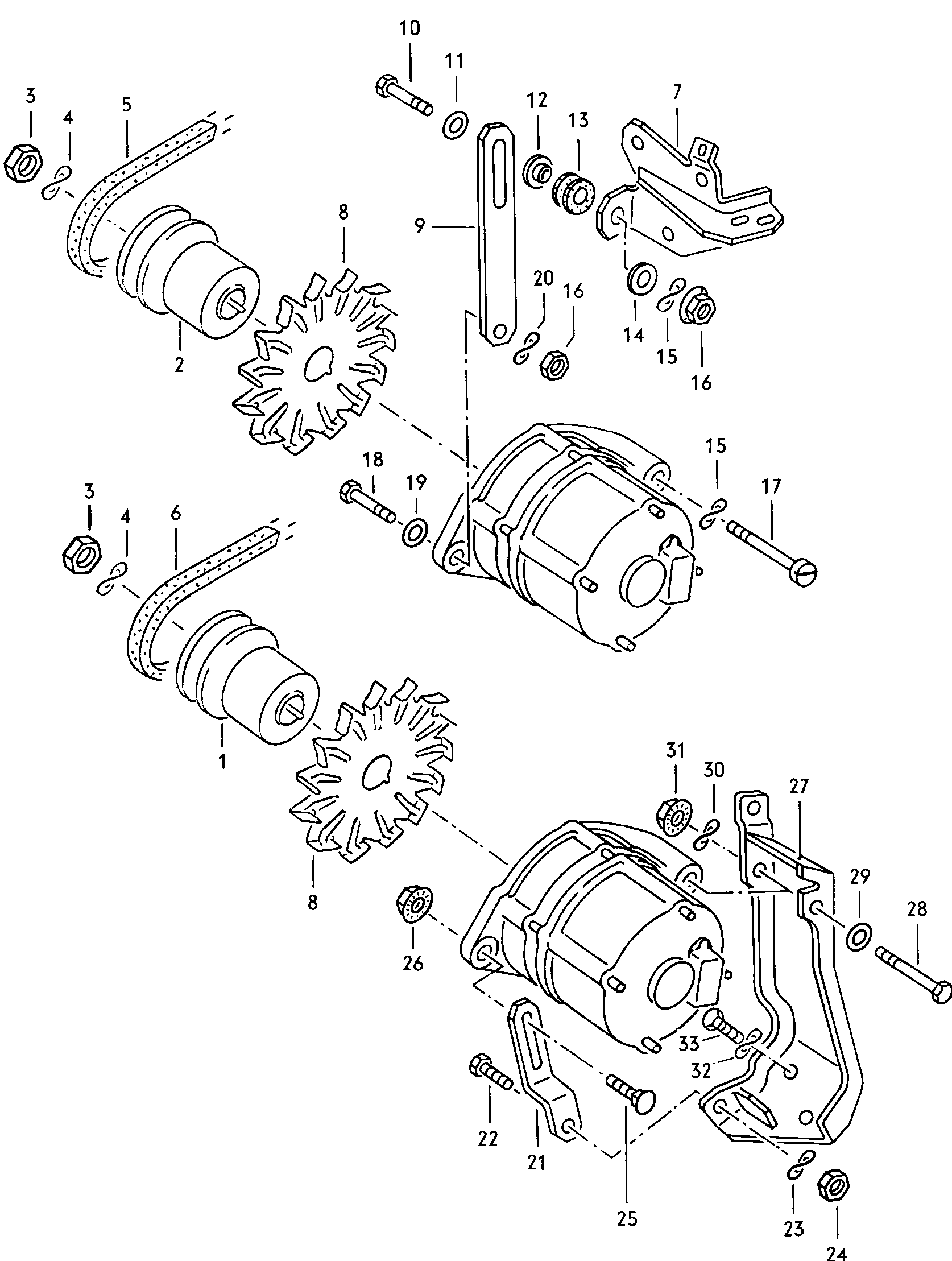

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	connecting and mounting partsfor alternator DIESEL, air condit.	—
	Self-service packaging	068 903 137 B S BV
-	spring shackle for alternator: BOSCH 36-39 BOSCH 36-39	036 903 121
-	bolt	034 903 555 B
-	Bracket for alternator: 8,9,25,26 8,9,25,26	056 903 121
-	Spring washer 5 5	N 012 225 3
-	Hexagon nut M 5 M 5	N 011 005 17
-	Hexagon nut M 5 M 5	N 011 005 4
(2)	v-belt pulley air condit.	028 903 109
(21)	Support air condit.	171 903 131 A
(5)	v-belt 9,5 X 850 MM air condit. 9,5 X 850 MM	055 903 137 G
(5)	v-belt 9,5 X 643 MM air condit. 9,5 X 643 MM	068 121 039 B
(9)	angled bracket F >> 179 3196 000F >> 539 2027 000 air condit.	055 903 133
1	v-belt pulley	049 903 119 L
10	Hexagon bolt M 8 X 38 M 8 X 38	N 010 359 4
11	Washer 8,4 X 21 X 4 8,4 X 21 X 4	N 015 401 4
11	Washer 8,4 X 21 X 4 8,4 X 21 X 4	N 015 401 3
12	Mounting	441 903 127
12	Mounting	059 903 127 A
13	Rubber bush air condit.	059 903 263 A
14	Cup washer air condit.	059 903 265 A
15	Spring washer B 8 X 15 B 8 X 15	N 012 241 10
15	Spring washer B 8 X 15 X 0,8 B 8 X 15 X 0,8	N 012 241 11
16	hexagon nut, self-locking M 8 DIESEL M 8	N 902 920 01
16	Hexagon collar nutself-locking M 8 DIESEL M 8	N 909 083 01
17	Socket head bolt withhexagon socket head M 8 X 95 M 8 X 95	N 044 759 1
18	Hexagon bolt M 8 X 30 M 8 X 30	N 010 244 16
18	Hexagon bolt M 8 X 30 M 8 X 30	N 010 244 21
19	Washer A 8,4 X 16 X 1,6 A 8,4 X 16 X 1,6	N 011 525 20
19	Washer A 8,4 A 8,4	N 011 525 13
2	v-belt pulley M EH 195 001>>M FN 167 501>>M GH 000 001>>M JB 200 001>>M EJ 030 000>> air condit.	055 903 119 A
20	Spring washer B 8 X 15 B 8 X 15	N 012 241 10
20	Spring washer B 8 X 15 X 0,8 B 8 X 15 X 0,8	N 012 241 11
21	angled bracket also use: 034 903 555 B 034 903 555 B	068 903 251 P
22	Hexagon bolt M 8 X 20 M 8 X 20	N 010 240 16
23	Spring washer 8 X 15 X 0,5 8 X 15 X 0,5	N 012 229 3
24	Hexagon nut M 8 M 8	N 011 008 8
25	flat round head bolt M 8 X 27 M 8 X 27	052 903 285
26	Hexagon collar nutself-locking M 8 M 8	N 909 083 01
26	hexagon nut, self-locking M 8 M 8	N 902 920 01
27	Support	068 199 351 A
28	Hexagon bolt M 8 X 85 M 8 X 85	N 010 385 7
29	Washer A 8,4 X 16 X 1,6 A 8,4 X 16 X 1,6	N 011 525 20
29	Washer A 8,4 A 8,4	N 011 525 13
3	Hexagon nut BM 14 X 1,5 BM 14 X 1,5	N 011 113 5
3	Hexagon nut M 14 X 1,5 M 14 X 1,5	N 011 163 3
30	Spring washer 8 8	N 012 228 3
31	hexagon nut, self-locking M 8 M 8	N 022 146 4
32	Spring washer 8 X 15 X 0,5 8 X 15 X 0,5	N 012 229 3
33	Hexagon bolt M 8 X 55 M 8 X 55	N 010 352 10
4	Spring washer 14 14	N 012 233 3
6	v-belt 9,5 X 875 MM 9,5 X 875 MM	068 903 137 B
7	Bracket air condit.	055 903 141
7	No longer available air condit.	—
8	fan wheel	068 903 171
9	Support F 159 2800 001>>F 16 A 0000 001>>F 179 3196 001>>F 539 2027 001>> air condit.	055 903 133 D
