Suspension front — Mk1 Golf Front Axle (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Suspension

Generation: Mk1 1979 - 1980 (RDW) Group: Front axle Rebuild step 2 Parts: 55 Primary OEM: 161 411 105 C 9 52, 161 411 105 D 9 52, 171 411 105 H 9 52

Suspension front for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 65000 from the Volkswagen ETKA parts catalogue, group 40 Front axle, listing 54 OEM part numbers across 55 catalogued positions including 161 411 105 C 9 52, 161 411 105 D 9 52 and 171 411 105 H 9 52. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 54 OEM part numbers across 55 numbered positions.

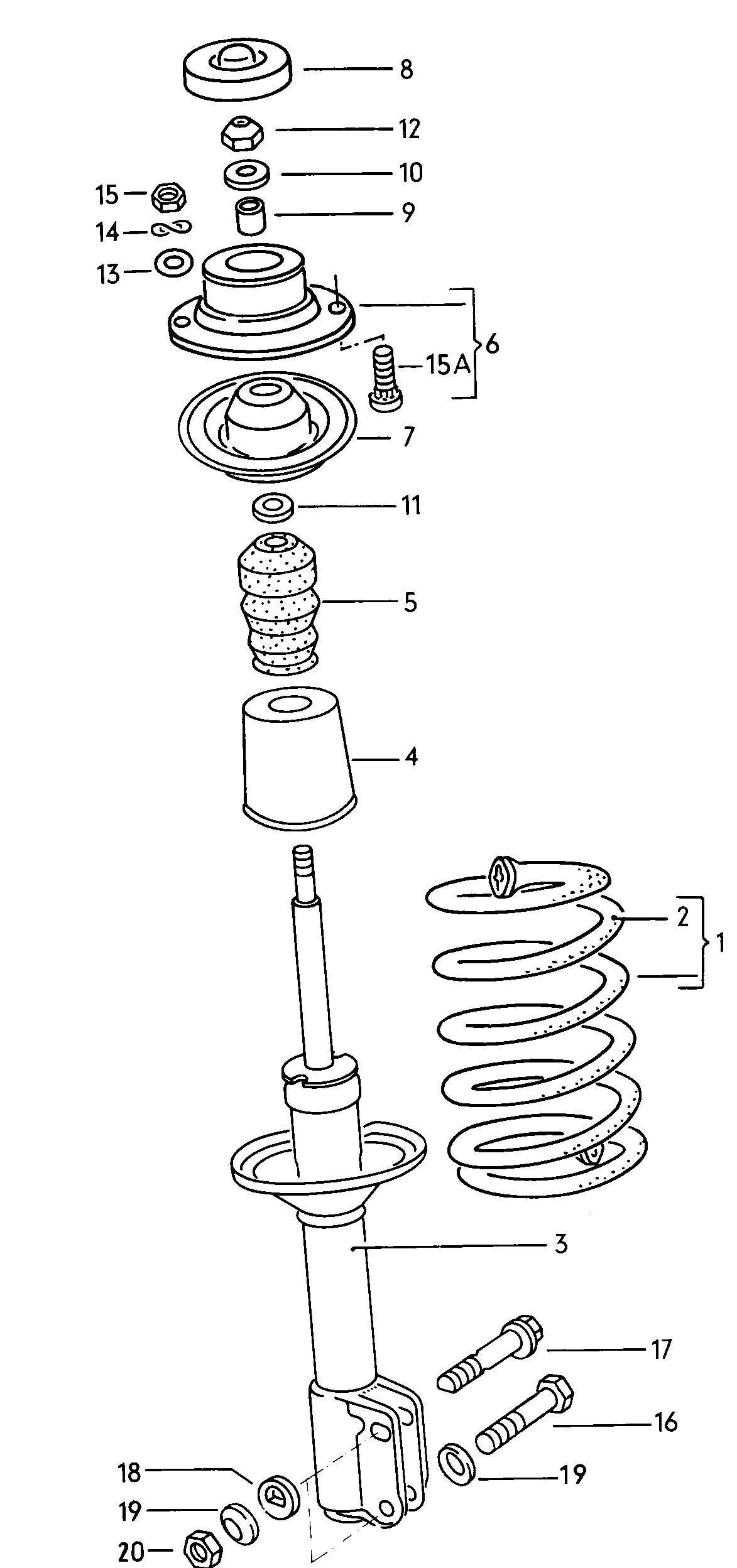

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
2 paint marksto use for:Blue/yellow stripes 1,2,3
1,2,3
 161 411 105 C 9 52
2 paint marksto use for:Green/yellow stripes 1,2,3
1,2,3
 161 411 105 D 9 52
2 paint marks
 171 411 105 H 9 52
1 paint mark
 171 411 105 H 9 51
White/yellow stripes 1 paint markto use for:White/yellow stripes 1,2,3
1,2,3
 161 411 105 E 9 52
Satin black
 171 412 359 0 1C
2 paint marksto use for:blue paint marks F >> 159 2810 000 F >> 179 3669 622 F >> 539 2200 000 1,2,3 GOLF CABRIO.GOLFSCIR.
1,2,3
 171 411 103 9 52
1 paint markto use for:blue paint marks 1,2
1,2
 171 411 105 G 9 51
3 paint marksto use for:blue paint marks F 15 A 0800 001>>F 179 3669 623>>F 53 A 0000 001>> 3 GOLF CABRIO.GOLFSCIR.
3
 171 411 105 G 9 53
2 paint marksto use for:green paint markswhite paint marks F >> 159 2810 000 F >> 179 3669 622 F >> 539 2200 000 1,2,32,3 GOLF CABRIO.GOLFSCIR.
1,2,32,3
 171 411 103 A 9 52
2 paint marksto use for:white paint marks F 15 A 0800 001>>F 179 3669 623>>F 53 A 0000 001>> 2,3 GOLF CABRIO.GOLFSCIR.
2,3
 171 411 105 J 9 52
1 paint markto use for:blue paint marks 1
1
 171 411 103 9 51
1 paint markto use for:blue paint marks 1
1
 171 411 105 G 9 51
-
1 set fixing parts forbumper
 171 498 101 A
(1)
Coil spring
 171 411 105 H
(1)
Coil spring F 17 A 0000 001>> GTI
 171 411 105 G
(1)
Coil spring
 171 411 103
(1)
Coil spring
 171 411 105 J
(1)
Coil spring JETTA
 161 411 105 D
(1)
Coil spring JETTA
 161 411 105 E
(1)
Coil spring F >> 179 3750 000 GTI
 171 411 103
(1)
Coil spring
 171 411 103 A
(1)
Coil spring JETTA
 161 411 105 C
(3)
Shock absorbers F 179 3669 623>>
 171 412 031 J
(3)
Shock absorbers F 179 3669 623>>
 171 412 031 H
(3)
Shock absorbers F >> 159 2810 000 F >> 179 3669 622 F >> 539 2200 000 GOLF CABRIO.GOLF;GTI,GLISCIR;GTI,GLI
 171 412 031 G
(3)
Shock absorbers F 15 A 0800 001>>F 16 A 0000 001>>F 179 3669 623>>F 53 A 0000 001>> GOLF CABRIO.JETTA,LI,GTIGOLF,GLI,GTISCIR;GTI,GLI
 171 412 031 J
(7)
spring disc F >> 159 2810 000 F >> 179 3669 622 F >> 539 2200 000 GOLF CABRIO.GOLFSCIR.
 171 412 341
(7)
No longer available F >> 159 2810 000 F >> 179 3669 622 F >> 539 2200 000 GOLF CABRIO.GOLFSCIR.
 —
1
Coil spring
 171 411 105 G
10
Washer 15 X 28 X 2,5
15 X 28 X 2,5
 N 011 534 3
10
Washer A 15 X 28 X 2,5
A 15 X 28 X 2,5
 N 011 534 1
11
Washer 22 X 14,5 X 2
22 X 14,5 X 2
 171 412 369
12
hexagon nut, self-locking M 14 X 1,5
M 14 X 1,5
 N 022 150 1
13
Washer 8,3
8,3
 311 827 181
14
spring ring 8
8
 N 012 038 7
14
spring ring 8
8
 N 012 038 8
15
Hexagon nut M 8
M 8
 N 011 008 8
15A
press fit bolt
 431 412 419
16
Hexagon bolt
 133 513 471
17
Eccentric bolt
 171 407 265
18
eccentric washer
 171 407 267
19
Spring washer
 171 407 239 A
2
Protective hose F >> 159 2810 000 F >> 179 3669 622 F >> 539 2200 000 GOLF CABRIO.GOLFSCIR.
 171 411 123
2
Coil springto use for:green paint marks F 15 A 0800 001>>F 179 3669 623>>F 53 A 0000 001>> 2,3 GOLF CABRIO.GOLFSCIR.
2,3
 171 411 105 H
20
Hexagon nut M 12 X 1,5
M 12 X 1,5
 N 011 135 1
3
Shock absorbers F >> 159 2810 000 F >> 179 3669 622 F >> 539 2200 000
 171 412 031 G
3
Shock absorbers F >> 159 2810 000 F >> 179 3669 622 F >> 539 2200 000
 171 412 031 F
4
Protective sleeve also use: 357 412 303 E
357 412 303 E
 357 412 135
5
rubber stop forshock absorber also use: 84 X 18,5357 412 135
84 X 18,5357 412 135
 191 412 303
5
rubber stop forshock absorber also use: 84 X 18,5357 412 135
84 X 18,5357 412 135
 357 412 303 E
6
suspension strut storage
 171 412 329 A
7
spring disc F 15 A 0800 001>>F 16 A 0000 001>>F 179 3669 623>>F 53 A 0000 001>> GOLF CABRIO.JETTAGOLFSCIR.
 171 412 341 A
8
Cap
 171 412 359
9
spacer sleeve for suspensionstrut mounting
 133 412 365

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these front axle diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk1
Model years
1979 - 1980
Generation region
RDW
Generation code
027
Factory group
40 Front axle
Factory subgroup
65000

Related factory diagrams

Other published front axle plates for the Mk1 Golf in this catalogue.

The complete Mk1 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the suspension front diagram for the Mk1 Golf?
This diagram lists 54 OEM part numbers for the Mk1 Golf. The first three are 161 411 105 C 9 52, 161 411 105 D 9 52 and 171 411 105 H 9 52.
Which Mk1 Golf years and engines does this diagram cover?
This plate is from the Mk1 Golf 1979 - 1980 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk1 Golf factory parts catalogue?
The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.
