Wishbone drive shaft anti roll bar front — Mk1 Golf Front Axle (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Wishbone. Drive shaft. Anti-roll bar

Generation: Mk1 1979 - 1980 (RDW) Group: Front axle Rebuild step 2 Parts: 100 Primary OEM: 171 407 256 A, N 904 425 01, N 904 706 01

Wishbone drive shaft anti roll bar front for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 60000 from the Volkswagen ETKA parts catalogue, group 40 Front axle, listing 97 OEM part numbers across 100 catalogued positions including 171 407 256 A, N 904 425 01 and N 904 706 01. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 97 OEM part numbers across 100 numbered positions.

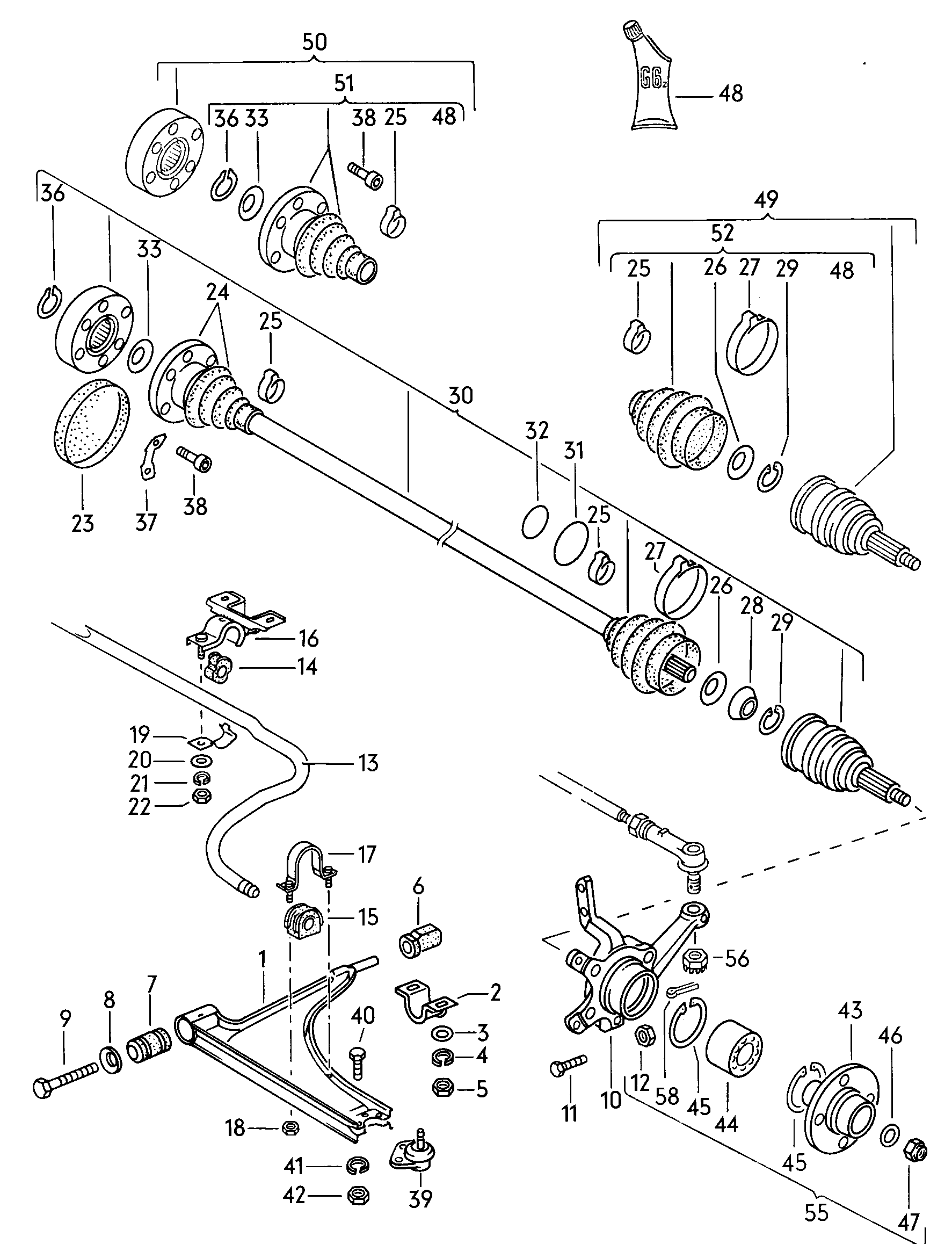

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
(10)
Wheel bearing housing
 171 407 256 A
(25)
clamp 32 X 10 X 0,8
32 X 10 X 0,8
 N 904 425 01
(27)
clamp 83,5 X 10 X 1
83,5 X 10 X 1
 N 904 706 01
(29)
snap ring F 17 A 0116 213>>F 15 A 0807 001>>*F 16 A 0360 001>>*F 17 A 0360 001>>*F 53 A 0051 001>>* diesel eng.,automatic
 171 407 297 C
(30)
drive shaft with constantvelocity joints JETTA LI,GLIGOLF GTI,GLISCIR.GTI,GLIS,LS,GT,GL
 171 407 271 SX
(30)
drive shaft with constantvelocity joints JETTA LI,GLIGOLF GTI,GLISCIR.GTI,GLIS,LS,GT,GL
 171 407 271 S
(30)
drive shaft with constantvelocity joints diesel eng.,automatic
 171 407 272 MX
(30)
drive shaft with constantvelocity joints diesel eng.,automatic
 171 407 272 P
(30)
drive shaft with constantvelocity joints
 171 407 272 N
(30)
drive shaft with constantvelocity joints
 171 407 272 NX
(30)
drive shaft with constantvelocity joints
 171 407 272 E
(30)
drive shaft with constantvelocity joints
 171 407 272 EX
(30)
drive shaft with constantvelocity joints GOLF S,LS,GLS,E,LE,GLEJETTA S,LS,GLS,SCIR.S,LS,GT,GL,GTE"S.."
 171 407 272 MX
(30)
drive shaft with constantvelocity joints GOLF S,LS,GLS,E,LE,GLEJETTA S,LS,GLS,SCIR. S,LS,GT,GL,GTE"S.."
 171 407 272 P
(30)
drive shaft with constantvelocity joints "S..":GOLF CABRIO,"S..","AUS":GOLF;diesel eng.,automatic
 171 407 271 RX
(30)
drive shaft with constantvelocity joints "S..":GOLF CABRIO,"S..","AUS":GOLF;diesel eng.,automatic
 171 407 271 T
(33)
Belleville spring F >> 17 A 0116 212 F >> 15 A 0807 000*F >> 16 A 0360 000*F >> 17 A 0360 000*F >> 53 A 0051 000* diesel eng.,automatic
 113 501 327
(49)
Outer joint withassembly parts F 15 A 0807 001>>*F 16 A 0360 001>>*F 17 A 0360 001>>*F 53 A 0051 001>>* GOLF GLIJETTA LI,GLIGOLF GTISCIR.GTI,GLIS,LS,GT,GL
 171 498 099 CX
(49)
No longer available F >> 15 A 0807 000*F >> 16 A 0360 000*F >> 17 A 0360 000*F >> 53 A 0051 000* GOLF GLIJETTA LI,GLIGOLF GTISCIR.GTI,GLIS,LS,GT,GL
 —
(49)
Outer joint withassembly parts F 17 A 0116 213>>F 15 A 0807 001>>*F 16 A 0360 001>>*F 17 A 0360 001>>*F 53 A 0051 001>>* diesel eng.,automatic
 171 498 099 BX
(49)
Outer joint withassembly parts F 15 A 0807 001>>*F 16 A 0360 001>>*F 17 A 0360 001>>*F 53 A 0051 001>>* GOLF GLIJETTA LI,GLIGOLF GTISCIR.GTI,GLIS,LS,GT,GL
 171 498 099 C
(49)
Outer joint withassembly parts F >> 15 A 0807 000*F >> 16 A 0360 000*F >> 17 A 0360 000*F >> 53 A 0051 000* GOLF GLIJETTA LI,GLIGOLF GTISCIR.GTI,GLIS,LS,GT,GL
 171 498 099 A
(50)
constant velocity joint withboot, attachment parts andgrease
 171 498 103 CX
(50)
Universal joint with jointprotect. sleeve, assmbly partsand lub. grease 'ECO'Economy diesel eng.,automatic
 JZW 498 350 AX
(50)
constant velocity joint withboot, attachment parts andgrease diesel eng.,automatic
 321 498 103 X
(50)
constant velocity joint withboot, attachment parts andgrease diesel eng.,automatic
 321 498 350 X
(50)
constant velocity joint withboot, attachment parts andgrease
 171 498 350 X
(50)
constant velocity joint withboot, attachment parts andgrease
 171 498 103 D
(50)
constant velocity joint withboot, attachment parts andgrease
 171 498 103 C
(50)
constant velocity joint withboot, attachment parts andgrease diesel eng.,automatic
 321 498 103
(50)
constant velocity joint withboot, attachment parts andgrease
 171 498 103 DX
(50)
Universal joint with jointprotect. sleeve, assmbly partsand lub. grease 'ECO'Economy
 JZW 498 350 X
(51)
joint protective boot withassembly items and grease
 191 498 201 D
(52)
joint protective boot withassembly items and grease F 17 A 0116 213>>F 15 A 0807 001>>*F 16 A 0360 001>>*F 17 A 0360 001>>*F 53 A 0051 001>>* diesel eng.,automatic
 191 498 203 C
1
Wishbone
 171 407 153 D
10
Wheel bearing housing
 171 407 255 A
11
Hexagon bolt M 10 X 50 X 24
M 10 X 50 X 24
 N 034 778 4
11
Hexagon bolt M 10 X 50
M 10 X 50
 N 903 289 01
12
hexagon nut, self-locking M 10
M 10
 N 021 195 5
13
Anti-roll bar GOLF GTI,GLISCIR.GTI,GLIJETTA LI,GLI
 175 411 309
14
Rubber bush GOLF GTI,GLISCIR.GTI,GLIJETTA LI,GLI
 171 411 313
15
Rubber bush GOLF GTI,GLISCIR.GTI,GLIJETTA LI,GLI
 171 411 314 A
16
Clamp GOLF GTI,GLISCIR.GTI,GLIJETTA LI,GLI
 171 411 331
17
Clamp GOLF GTI,GLISCIR.GTI,GLIJETTA LI,GLI
 171 411 333 A
18
hexagon nut, self-locking M 8
M 8
 N 022 146 4
19
Clamp GOLF GTI,GLISCIR.GTI,GLIJETTA LI,GLI
 171 411 337
2
Clamp
 171 407 169
20
Washer A 8,4
A 8,4
 N 011 525 13
20
Washer A 8,4 X 16 X 1,6
A 8,4 X 16 X 1,6
 N 011 525 20
21
spring ring 8
8
 N 012 038 8
21
spring ring 8
8
 N 012 038 7
22
Hexagon nut M 8
M 8
 N 011 008 8
23
Assembly protective cap forconstant velocity joint
 321 407 269
24
Discont. / replace: 171 498 201 A
171 498 201 A
 —
25
terminal 35 X 7
35 X 7
 113 501 159 B
26
Belleville spring 34 X 25 X 2,2
34 X 25 X 2,2
 321 407 287
27
clamp 85 X 9
85 X 9
 171 407 291 B
28
thrust ring 25,1 X 6,95
25,1 X 6,95
 321 407 295 A
29
Securing ring F >> 17 A 0116 212 F >> 15 A 0807 000*F >> 16 A 0360 000*F >> 17 A 0360 000*F >> 53 A 0051 000* diesel eng.,automatic
 321 407 297
3
Washer 10
10
 N 011 527 11
30
drive shaft with constantvelocity joints JETTA,L,GL;GOLF,S,L,LS,GL,GLS;SCIR.,L,GT,GL
 171 407 271 EX
30
drive shaft with constantvelocity joints JETTA,L,GL;GOLF,S,L,LS,GL,GLS;SCIR.,L,GT,GL
 171 407 271 E
31
ring 85 GOLF GTI,GLISCIR.GTI,GLIJETTA LI,GLI
85
 321 407 289 B
32
ring 76 GOLF GTI,GLISCIR.GTI,GLIJETTA LI,GLI
76
 321 407 289 C
33
Belleville spring(internal gears)F 17 A 0116 213>>F 15 A 0807 001>>*F 16 A 0360 001>>*F 17 A 0360 001>>*F 53 A 0051 001>>* diesel eng.,automatic
 113 501 327 A
36
snap ring 24,5 X 2
24,5 X 2
 113 517 279
37
Spacer
 1K0 407 357 B
37
Spacer
 1J0 407 357
37
Spacer
 171 407 357 C
38
Socket head bolt BM 8 X 48
BM 8 X 48
 113 501 229 C
38
Socket head bolt with innermultipoint head M 8 X 48
M 8 X 48
 893 407 237
38
Socket head bolt with innermultipoint head M 8 X 48
M 8 X 48
 N 911 082 01
39
Guide joint 17 MM
17 MM
 171 407 365 F
4
spring ring 10
10
 N 012 011 3
40
Hexagon bolt M 7 X 20
M 7 X 20
 N 040 204 3
41
spring ring 7
7
 N 042 001 1
42
Hexagon nut M 7
M 7
 N 011 007 7
43
Wheel hub
 175 407 615
44
Discont. / replace: 171 498 625 D
171 498 625 D
 —
45
Securing ring
 171 407 635 A
46
fitted washer
 171 407 277
47
hexagon nut, self-locking M 20 X 1,5
M 20 X 1,5
 171 407 643 A
48
high temperature grease 90 G
90 G
 G 052 133 A2
48
grease 90 G
90 G
 G 000 602
48
high temperature grease 90 G
90 G
 G 000 603
49
Outer joint withassembly parts F >> 17 A 0116 212 F >> 15 A 0807 000*F >> 16 A 0360 000*F >> 17 A 0360 000*F >> 53 A 0051 000* diesel eng.,automatic
 171 498 099
49
Outer joint withassembly parts F 17 A 0116 213>>F 15 A 0807 001>>*F 16 A 0360 001>>*F 17 A 0360 001>>*F 53 A 0051 001>>* diesel eng.,automatic
 171 498 099 B
5
Hexagon nut M 10
M 10
 N 011 133 1
50
constant velocity joint withboot, attachment parts andgrease
 171 498 103
50
constant velocity joint withboot, attachment parts andgrease
 171 498 103 C
51
joint protective boot withassembly items and grease
 171 498 201 A
52
joint protective boot withassembly items and grease F >> 17 A 0116 212 F >> 15 A 0807 000*F >> 16 A 0360 000*F >> 17 A 0360 000*F >> 53 A 0051 000* diesel eng.,automatic
 321 498 203
55
Wheel bearing with assemblyparts
 171 498 625 D
56
Castle nut M 12 X 1,5
M 12 X 1,5
 N 011 212 2
58
split pin 3,2 X 28
3,2 X 28
 N 012 533 1
58
split pin 3,2 X 25
3,2 X 25
 N 012 532 1
6
Bonded rubber bush
 171 407 181 A
7
Bonded rubber bush
 171 407 182 D
8
Spring washer
 171 407 239 A
9
Hexagon bolt M 12 X 1,50 X 90
M 12 X 1,50 X 90
 N 010 190 4

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these front axle diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk1
Model years
1979 - 1980
Generation region
RDW
Generation code
027
Factory group
40 Front axle
Factory subgroup
60000

Related factory diagrams

Other published front axle plates for the Mk1 Golf in this catalogue.

The complete Mk1 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the wishbone drive shaft anti roll bar front diagram for the Mk1 Golf?
This diagram lists 97 OEM part numbers for the Mk1 Golf. The first three are 171 407 256 A, N 904 425 01 and N 904 706 01.
Which Mk1 Golf years and engines does this diagram cover?
This plate is from the Mk1 Golf 1979 - 1980 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk1 Golf factory parts catalogue?
The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.
