Door lock inner actuator door handle exterior front — Mk1 Golf Front Door (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Door lock. Inner actuator. Door handle, exterior

Generation: Mk1 1979 - 1980 (RDW) Group: Front door Parts: 70 Primary OEM: 311 837 247 6 EB, 171 837 235 9 0V, 171 837 235 6 6W

Door lock inner actuator door handle exterior front for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 109000 from the Volkswagen ETKA parts catalogue, group 37 Front door, listing 68 OEM part numbers across 70 catalogued positions including 311 837 247 6 EB, 171 837 235 9 0V and 171 837 235 6 6W. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 68 OEM part numbers across 70 numbered positions.

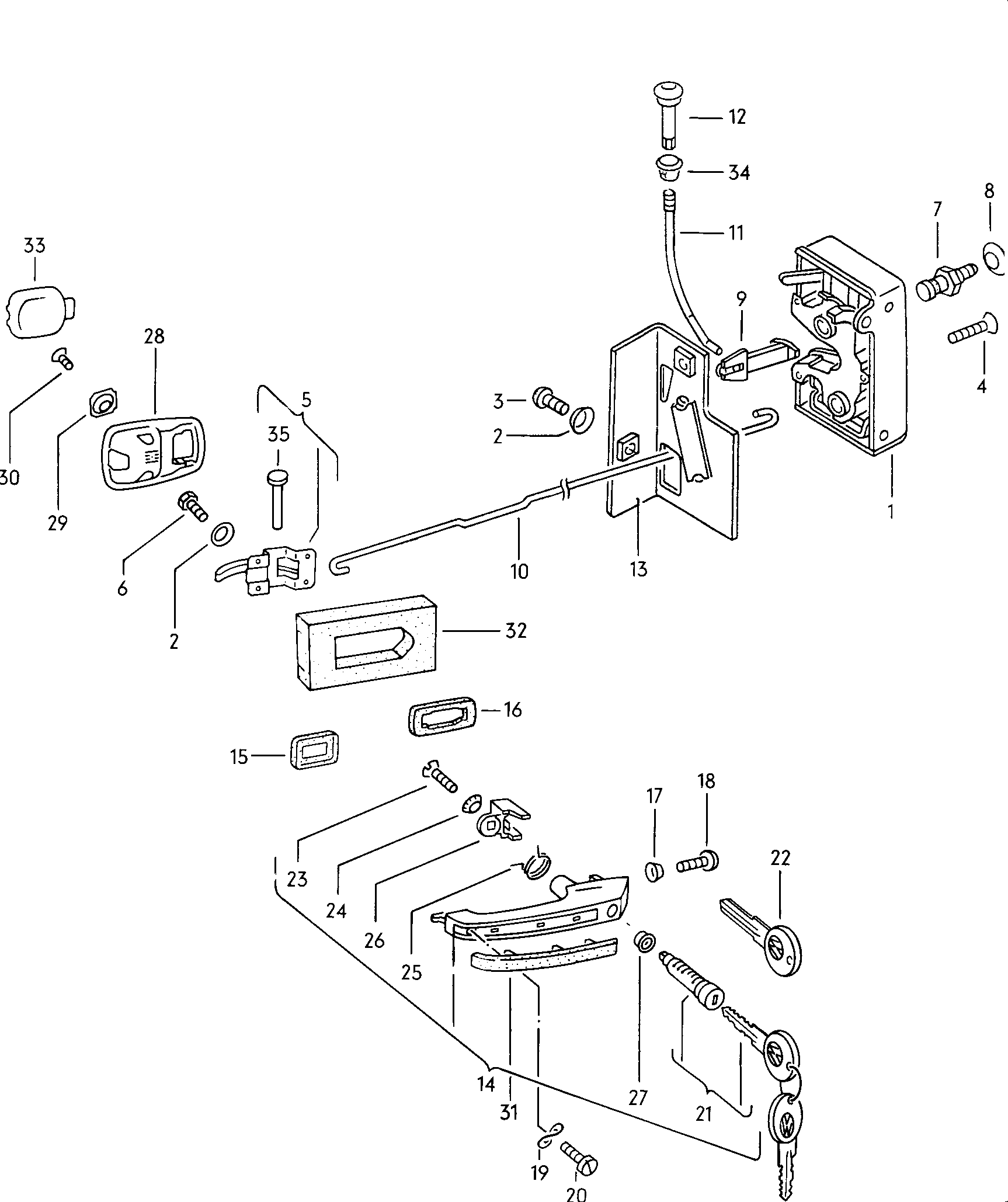

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
saddle brown
 311 837 247 6 EB
saddle brown
 171 837 235 9 0V
ivy (green)
 171 837 235 6 6W
saddle brown
 171 837 020 9 0V
Satin black
 311 837 247 0 1C
VB profilequote key numberfor cut keys NV
NV
 111 837 219 A S 91
Grey black S,L,LS,LI,E,LE
 171 837 355 0 43
Grey black GLI,GLE
 161 837 355 0 43
Grey black
 171 837 187 0 43
ivy (green)
 311 837 247 6 6W
Black
 171 837 019 0 41
ivy (green) Discont. / replace: also use: 171 837 019(041)171 837 020(041)
171 837 019(041)171 837 020(041)
 171 837 019 6 6W
saddle brown
 171 837 019 9 0V
Satin black
 171 837 235 0 1C
Black
 171 837 020 0 41
ivy (green) Discont. / replace: also use: 171 837 020(041)171 837 019(041)
171 837 020(041)171 837 019(041)
 171 837 020 6 6W
-
Lock cylinder for doorhandle without striker plateand keyfor locking numbers:1001-2000,3001-4000,6001-7086,8201-9282
 191 837 061 A
-
Lock cylinder for doorhandle without striker plateand keyfor locking number:1-1000,2001-3000,4001-6000,7101-8154
 191 837 061
(1)
Door lock
 321 837 016
(1)
Door lock
 172 837 016 C
(1)
Door lock
 171 837 016 E
(1)
Door lock
 172 837 015 C
(10)
pull rod
 173 837 081 C
(11)
locking rod fordoor lock
 161 837 183
(13)
Mounting plate for doorlock
 171 831 350
(14)
door handle, outer, black
 155 837 206 A
(22)
key JETTA
 111 837 219 A
(22)
main key HV profilequote key numberfor cut keys JETTA
 161 837 219
(23)
oval head countersunk bolt M 4 X 8
M 4 X 8
 N 030 119 1
(26)
Follower
 171 837 224 B
(34)
guide for knob JETTA GL,GLS
 161 837 355
(5)
Inner actuator
 171 837 020
1
Door lock
 171 837 015 E
1
Door lock
 321 837 015
10
No longer available
 —
10
pull rod
 171 837 081 B
11
locking rod fordoor lock
 161 837 184
12
knob
 171 837 187
13
Mounting plate for doorlock
 171 831 349
13
No longer available
 —
14
door handle, outer, black
 155 837 205 A
15
Underlay
 867 837 209
16
Underlay
 171 837 211 A
17
Belleville spring 6,4 X 12,5
6,4 X 12,5
 111 837 941
18
fillister hd. bolt M 6 X 10
M 6 X 10
 N 014 138 7
19
Spring washer 5
5
 N 012 225 3
2
Belleville spring 6,4 X 12,5
6,4 X 12,5
 111 837 941
20
fillister hd. bolt M 5 X 15
M 5 X 15
 N 014 131 3
22
key Key Blade VBquote key numberfor cut keys GOLF
 171 837 219
23
oval head countersunk bolt M 4 X 8
M 4 X 8
 N 014 257 1
24
Retaining washer 4,3
4,3
 N 012 116 2
25
torsion spring
 311 837 221
26
Follower
 171 837 223 B
27
seal ring
 111 837 227 B
28
trim plate for interior contr.
 171 837 235
29
Conical washer
 111 837 291
3
fillister hd. bolt M 6 X 12
M 6 X 12
 N 014 139 5
30
oval head countersunk bolt M 5 X 10
M 5 X 10
 N 014 264 3
31
trim plate for door handle
 433 837 239
32
interior release lever seal
 171 837 241
33
Handle shell
 311 837 247
34
guide for knob GOLF;JETTA,
 171 837 355
35
Cylinder rivet 4 X 32
4 X 32
 N 013 666 1
4
countersunk bolt M 8 X 35
M 8 X 35
 N 028 344 2
5
Inner actuator
 171 837 019
6
Hexagon bolt M 6 X 10 K
M 6 X 10 K
 N 010 210 7
6
Hexagon bolt M 6 X 10
M 6 X 10
 N 905 293 01
7
Cotter pin
 321 837 034
8
Belleville spring
 823 837 057 A
9
lever
 171 837 080
