Window lifter guide channels window slot seal door front — Mk1 Golf Front Door (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Door lock. Inner actuator. Door handle, exterior

Generation: Mk1 1979 - 1980 (RDW) Group: Front door Parts: 43 Primary OEM: 321 837 581 A 6 6W, 171 837 412 D 0 3C, 825 837 599 6 6W

Window lifter guide channels window slot seal door front for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 110000 from the Volkswagen ETKA parts catalogue, group 37 Front door, listing 43 OEM part numbers including 321 837 581 A 6 6W, 171 837 412 D 0 3C and 825 837 599 6 6W. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 43 OEM part numbers across 43 numbered positions.

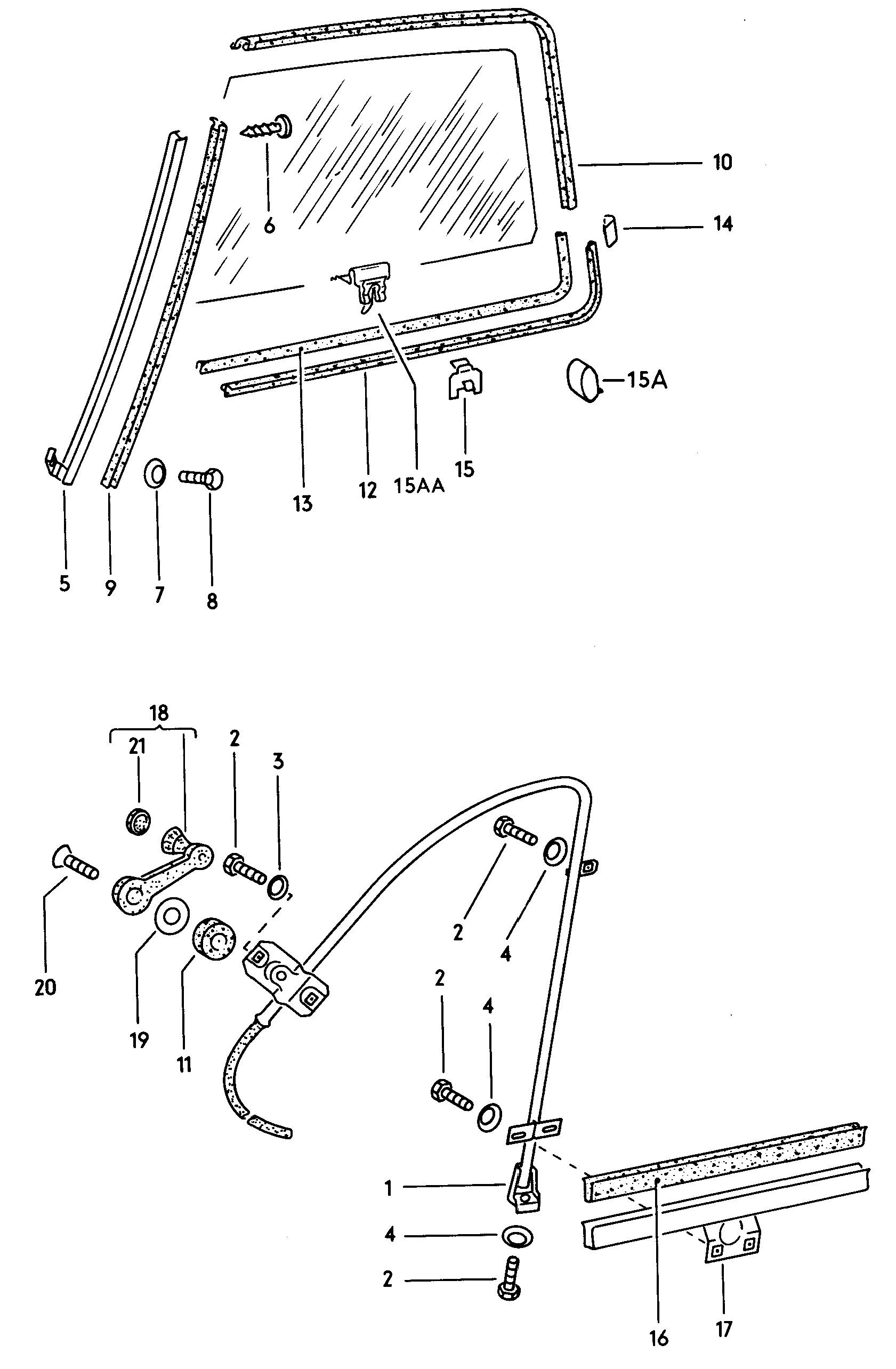

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	ivy (green)	321 837 581 A 6 6W
	rally black	171 837 412 D 0 3C
	ivy (green) JETTA GL,GLS	825 837 599 6 6W
	Satin black D,LD,GTI,E,LE;JETTA,S,L,LS,E,LE	321 837 581 0 1C
	saddle brown	111 837 595 A 9 0V
	Satin black	111 837 595 A 0 1C
	saddle brown	321 837 581 A 9 0V
	rally black	171 837 411 B 0 3C
	Satin black JETTA GL,GLS	321 837 581 A 0 1C
	rally black	171 837 411 D 0 3C
(1)	Window regulator	171 837 402 B
(10)	Window guide GOLF L,LS,GL,GLS,LD,GLD,LE,GLE,MX	171 837 440 G
(10)	Window guide GOLF,S,D,E,GTI;JETTA	171 837 439 D
(12)	Window aperture sealfor models with moldings GOLF L,LS,GL,GLS,LD,GLD,LE,GLE,MX	255 837 704
(13)	Window aperture seal GOLF,S,D,E,GTI; JETTA	251 837 703
(18)	window crank GOLF,S,L,LS,	321 837 581
(21)	cap for window crank GOLF GL,GLS,	825 837 599
(5)	Guide rail GOLF GTI;JETTA LI,GLI	171 837 411 D
(5)	Guide rail GOLF GTI;JETTA LI,GLI	171 837 412 D
1	Window regulator	171 837 401 B
10	Window guide GOLF L,LS,GL,GLS,LD,GLD,LE,GLE,MX	171 837 439 G
11	Seal	411 837 447
12	Window aperture sealfor models with moldings GOLF L,LS,GL,GLS,LD,GLD,LE,GLE,MX	255 837 703
13	Window aperture seal GOLF,S,D,E,GTI; JETTA	251 837 704
14	Sleeve	171 837 483
15	Clip GOLF;JETTA,S,L,LSLI,E,LE	171 837 485
15A	Glide piece	171 837 489 A
15AA	Clip JETTA GL,GLS,GLI,GLE	161 837 485
16	seal for lift channel	831 837 565
17	Lift rail	171 837 571 A
18	Window crank with decorativeinlay GOLF GL,GLS,GLD,GLE;	321 837 581 A
19	Underlay	111 837 595 A
2	Hexagon bolt M 6 X 10 M 6 X 10	N 905 293 01
2	Hexagon bolt M 6 X 10 K M 6 X 10 K	N 010 210 7
20	oval head countersunk bolt M 5 X 10 M 5 X 10	N 014 264 3
3	Belleville spring 6,4 X 12,5 6,4 X 12,5	111 837 941
4	Belleville spring 6,4 X 18 6,4 X 18	311 837 943
5	Guide rail	171 837 411 B
6	oval head panel screw 4,2 X 9,5 4,2 X 9,5	N 013 965 5
7	Belleville spring 6,4 X 18 6,4 X 18	311 837 943
8	Hexagon bolt M 6 X 10 K M 6 X 10 K	N 010 210 7
8	Hexagon bolt M 6 X 10 M 6 X 10	N 905 293 01
9	Window guide 840 MM 840 MM	171 837 433 A
