Door lock inner actuator door handle exterior rear — Mk1 Golf Front Door (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Door lock. Inner actuator. Door handle, exterior

Generation: Mk1 1979 - 1980 (RDW) Group: Front door Parts: 66 Primary OEM: 171 837 187 0 43, 171 837 019 0 41, 171 837 019 9 0V

Door lock inner actuator door handle exterior rear for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 112000 from the Volkswagen ETKA parts catalogue, group 37 Front door, listing 60 OEM part numbers across 66 catalogued positions including 171 837 187 0 43, 171 837 019 0 41 and 171 837 019 9 0V. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 60 OEM part numbers across 66 numbered positions.

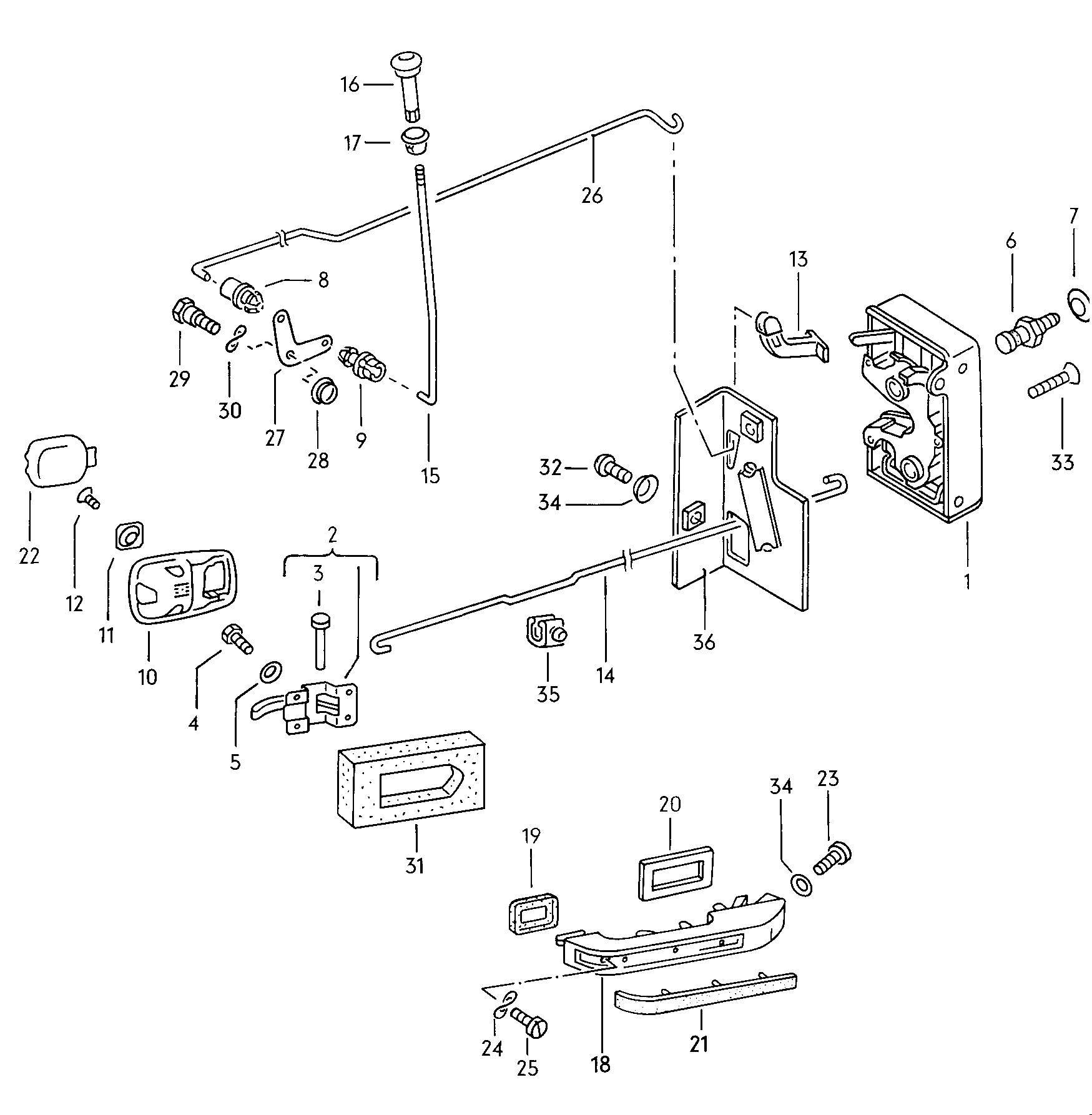

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
Grey black
 171 837 187 0 43
Black
 171 837 019 0 41
saddle brown
 171 837 019 9 0V
ivy (green) Discont. / replace: also use: 171 837 019(041)171 837 020(041)
171 837 019(041)171 837 020(041)
 171 837 019 6 6W
Black
 171 837 020 0 41
saddle brown
 171 837 020 9 0V
ivy (green) Discont. / replace: also use: 171 837 020(041)171 837 019(041)
171 837 020(041)171 837 019(041)
 171 837 020 6 6W
ivy (green)
 311 837 247 6 6W
saddle brown
 311 837 247 6 EB
Satin black
 311 837 247 0 1C
Grey black S,L,LS,LI,E,LE
 171 837 355 0 43
Satin black
 171 837 235 0 1C
dark brown (brown)
 171 837 235 0 1Z
Grey black GLI,GLE
 161 837 355 0 43
-
Cable ties 4,5 X 140
4,5 X 140
 N 902 055 01
-
Cable ties 4,6 X 200
4,6 X 200
 N 906 661 01
(1)
Door lock
 327 839 016 B
(15)
locking rod
 163 839 184
(17)
guide for knob JETTA GL,GLS
 161 837 355
(18)
door handle, outer, black
 193 839 206
(2)
Inner actuator
 171 837 020
(26)
pull rod for interior releasemechanism
 173 839 812 A
(36)
Mounting plate for doorlock
 171 831 350
1
Door lock
 327 839 015 B
10
trim plate for interior contr.
 171 837 235
11
Conical washer
 111 837 291
12
oval head countersunk bolt M 5 X 10
M 5 X 10
 N 014 264 3
13
lever
 173 839 080
14
pull rod
 173 839 081 C
15
locking rod
 163 839 183
15
No longer available
 —
16
knob
 171 837 187
17
guide for knob GOLF,JETTA,
 171 837 355
18
door handle, outer, black
 193 839 205
19
Underlay
 867 837 209
2
Inner actuator
 171 837 019
20
Underlay
 171 837 211 A
21
trim plate for door handle
 433 837 239
22
Handle shell
 311 837 247
23
fillister hd. bolt M 6 X 12
M 6 X 12
 N 014 139 5
24
Spring washer 5
5
 N 012 225 3
25
fillister hd. bolt M 5 X 15
M 5 X 15
 N 014 131 3
26
pull rod for interior releasemechanism
 173 839 811 A
26
No longer available
 —
27
relay lever
 173 839 827
28
Shim
 323 839 831
29
No longer available
 —
29
Hexagon bolt M 6
M 6
 323 839 839
3
Cylinder rivet 4 X 32
4 X 32
 N 013 666 1
30
Spring washer B 8 X 15
B 8 X 15
 N 012 241 10
30
Spring washer B 8 X 15 X 0,8
B 8 X 15 X 0,8
 N 012 241 11
31
interior release lever seal
 171 837 241
32
fillister hd. bolt M 6 X 12
M 6 X 12
 N 014 139 5
33
countersunk bolt M 8 X 35
M 8 X 35
 N 028 344 2
34
Belleville spring 6,4 X 12,5
6,4 X 12,5
 111 837 941
35
Cable ties N 906 661 01
N 906 661 01
 —
35
Discont. / replace: N 902 055 01
N 902 055 01
 —
36
No longer available
 —
36
Mounting plate for doorlock
 171 831 349
4
Hexagon bolt M 6 X 10 K
M 6 X 10 K
 N 010 210 7
4
Hexagon bolt M 6 X 10
M 6 X 10
 N 905 293 01
5
Belleville spring 6,4 X 12,5
6,4 X 12,5
 111 837 941
6
Cotter pin
 321 837 034
7
Belleville spring
 823 837 057 A
8
Clip
 171 837 199
9
Clip
 191 837 199

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these front door diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk1
Model years
1979 - 1980
Generation region
RDW
Generation code
027
Factory group
37 Front door
Factory subgroup
112000

Related factory diagrams

Other published front door plates for the Mk1 Golf in this catalogue.

The complete Mk1 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the door lock inner actuator door handle exterior rear diagram for the Mk1 Golf?
This diagram lists 60 OEM part numbers for the Mk1 Golf. The first three are 171 837 187 0 43, 171 837 019 0 41 and 171 837 019 9 0V.
Which Mk1 Golf years and engines does this diagram cover?
This plate is from the Mk1 Golf 1979 - 1980 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk1 Golf factory parts catalogue?
The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.
