Vent wing parts — Mk1 Golf Front Door (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Door lock. Inner actuator. Door handle, exterior

Generation: Mk1 1979 - 1980 (RDW) Group: Front door Parts: 28 Primary OEM: 171 837 503 P, 171 837 504 R, 171 837 504 P

Vent wing parts for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 111000 from the Volkswagen ETKA parts catalogue, group 37 Front door, listing 27 OEM part numbers across 28 catalogued positions including 171 837 503 P, 171 837 504 R and 171 837 504 P. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 27 OEM part numbers across 28 numbered positions.

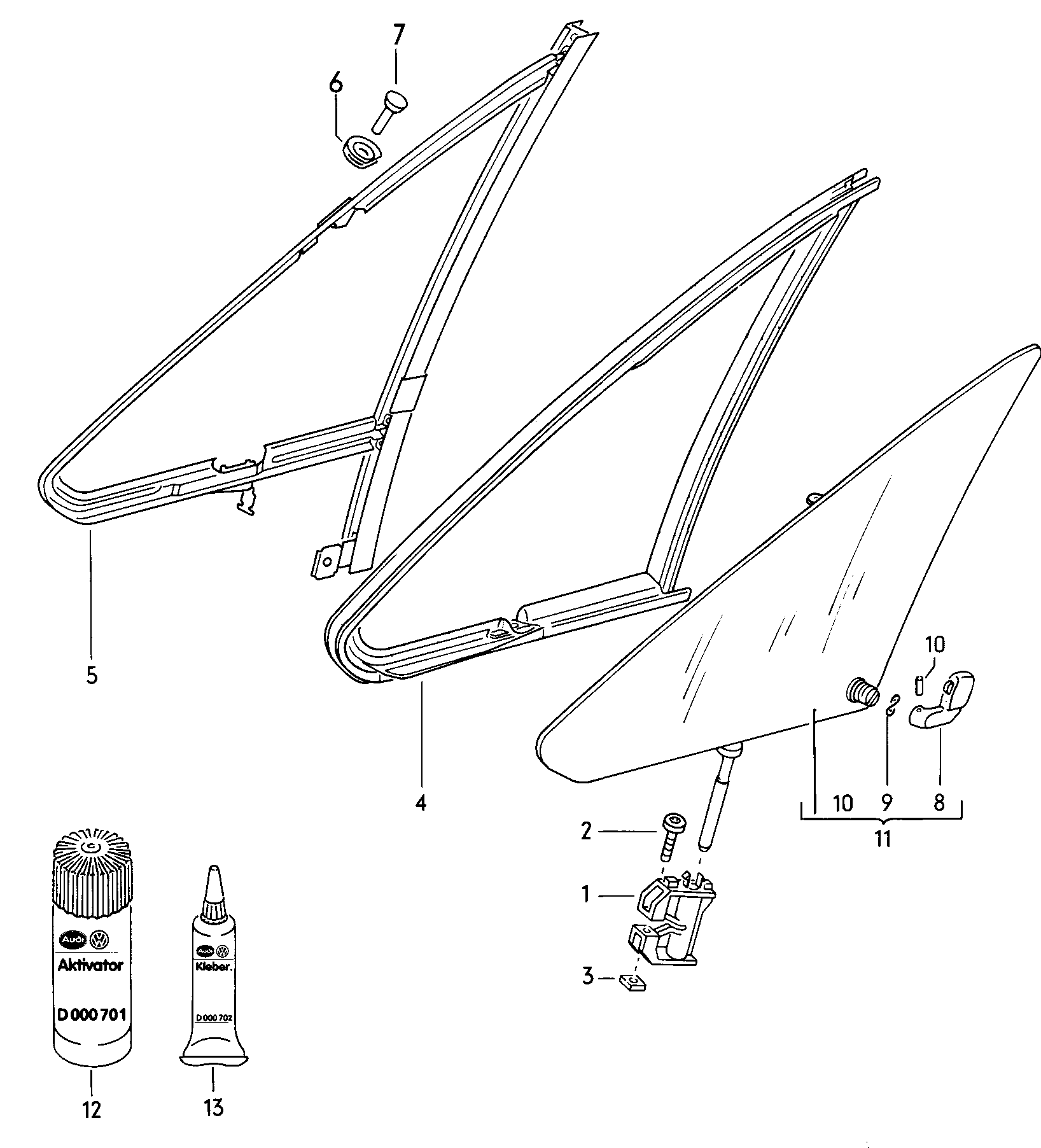

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	vent wing, complete	171 837 503 P
-	vent wing, complete	171 837 504 R
-	vent wing, complete	171 837 504 P
-	vent wing, complete	171 837 503 R
-	1 set glass-metal adhesive 0,3 G 0,3 G	D 000 703 A1
(11)	vent wing glass withfastener	171 845 245 D
(11)	vent wing glass withfastener	171 845 246 E
(11)	vent wing glass withfastener	171 845 246 F
(11)	vent wing glass withfastener	171 845 245 E
(11)	vent wing glass withfastener	171 845 245 F
(4)	Seal	171 837 529 B
(5)	vent wing frame	171 837 605 A
(5)	vent wing frame	171 837 606 A
(6)	Shim F >> 179 3750 000	111 837 637
(7)	Rivet F >> 179 3750 000	171 837 647
(8)	turnbuckle	171 837 657
1	vent wing pivot	171 837 455
10	spring pin 2 X 14 2 X 14	N 022 042 1
11	vent wing glass withfastener	171 845 246 D
12-13	Discont. / replace: D 000 703 A 1 D 000 703 A 1	—
2	Socket head bolt withhexagon socket head M 5 X 20 M 5 X 20	N 044 728 2
2	Socket head bolt withhexagon socket head M 5 X 20 M 5 X 20	N 044 728 1
3	nut, square M 5 M 5	N 011 054 3
4	Seal	171 837 530 B
6	Plastic washer F 17 A 0000 001>>F 16 A 0000 001>>	171 837 637
7	Rivet F 17 A 0000 001>>F 16 A 0000 001>>	171 837 647 B
8	turnbuckle	171 837 658
9	Spring washer	171 837 669
