Boot floor plate rear cross paneltrim licence plate golf — Mk1 Golf Rear Body (1979 - 1980)

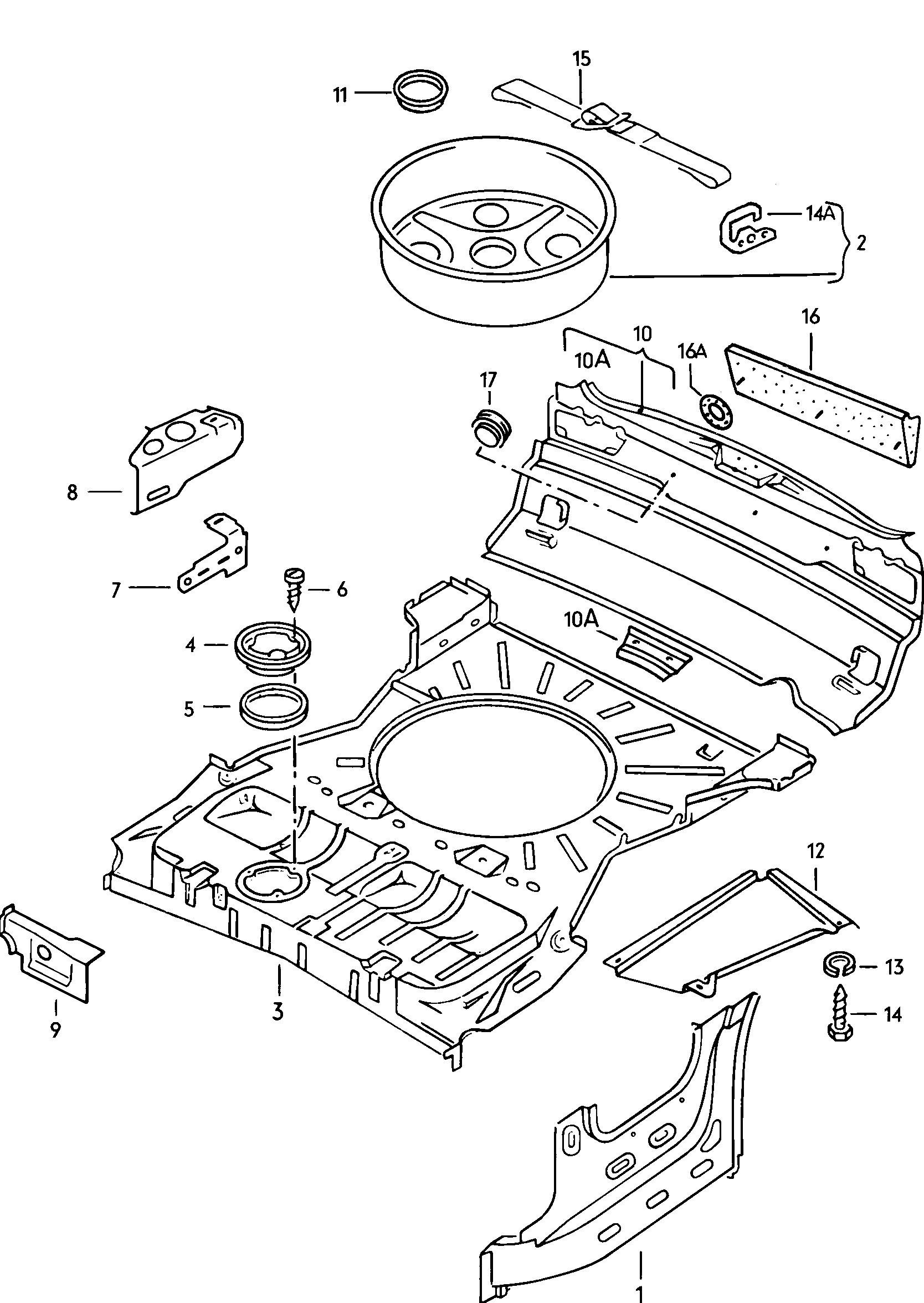

Factory title: Volkswagen Golf (1979 - 1980) - Trim for licence plate. boot floor plate. Rear cross panel
Boot floor plate rear cross paneltrim licence plate golf for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 97000 from the Volkswagen ETKA parts catalogue, group 24 Rear body, listing 24 OEM part numbers across 28 catalogued positions including 171 813 110 E, 171 813 115 C and 161 803 120. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.
Parts on this diagram
This Mk1 Golf plate lists 24 OEM part numbers across 28 numbered positions.
| № | Description | Part number |
|---|---|---|
| boot floor plate Rear cross paneltrim for licence plate GOLF | — | |
| (1) | side panel, inner | 171 813 110 E |
| (3) | boot floor plate F >> 179 3750 000 | 171 813 115 C |
| (7) | Reinforcement for bumperfixing | 161 803 120 |
| (8) | Reinforcement for floor panel | 171 813 130 |
| (8) | Reinforcement for floor panel | 171 813 129 |
| (9) | Seat pad | 171 813 157 |
| (9) | Seat pad | 173 813 157 |
| (9) | Seat pad | 173 813 158 |
| 1 | side panel, inner | 171 813 109 E |
| 10 | No longer available | — |
| 10 | Rear cross panel | 171 813 301 C |
| 10A | Connecting plate | 171 813 309 |
| 11 | Cover 136 MM 136 MM | 411 803 595 |
| 14A | bracket for spare wheel | 321 813 573 A |
| 15 | retain. strap for spare wheel | 321 813 661 A |
| 16 | No longer available GOLF GL,GLS,GLD,GLE | — |
| 16 | trim for licence plate GOLF GL,GLS,GLD,GLE | 171 853 441 |
| 16A | Sealing plate GOLF GL,GLS,GLD,GLE | 171 853 919 |
| 17 | Clamping washer 12 X 4 GOLF GL,GLS,GLD,GLE 12 X 4 | 171 853 939 |
| 2 | No longer available | — |
| 2 | Spare wheel well | 171 813 113 A |
| 3 | boot floor plate F 17 A 0000 001>> | 171 813 115 D |
| 4 | End cap 160 160 | 321 805 412 |
| 5 | seal ring | 411 805 419 A |
| 6 | oval head panel screw 4,2 X 9,5 4,2 X 9,5 | N 013 965 5 |
| 7 | Reinforcement for bumperfixing | 161 803 119 |
| 9 | Seat pad | 171 813 158 |
From the Type 19 workshop
Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these rear body diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk1
- Model years
- 1979 - 1980
- Generation region
- RDW
- Generation code
- 027
- Factory group
- 24 Rear body
- Factory subgroup
- 97000
