Rear lid golf — Mk1 Golf Rear Body (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Rear lid

Generation: Mk1 1979 - 1980 (RDW) Group: Rear body Parts: 51 Primary OEM: 801 867 299 0 1C, 171 867 605 0 1C, D 486 020 A5

Rear lid golf for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 106000 from the Volkswagen ETKA parts catalogue, group 24 Rear body, listing 42 OEM part numbers across 51 catalogued positions including 801 867 299 0 1C, 171 867 605 0 1C and D 486 020 A5. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 42 OEM part numbers across 51 numbered positions.

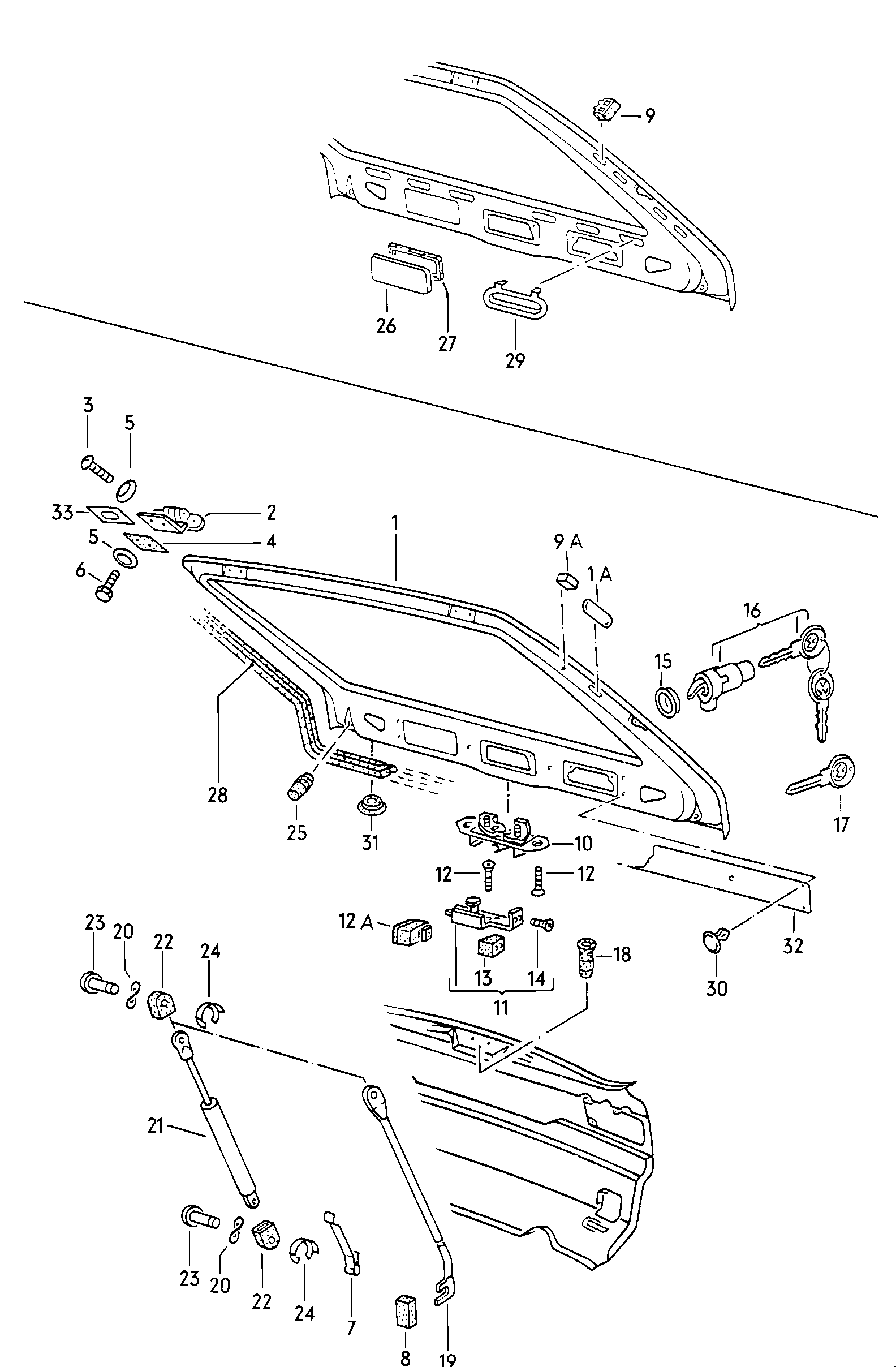

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Satin black	801 867 299 0 1C
	Rear lid GOLF	—
	Satin black	171 867 605 0 1C
-	plastic sealing strip 20 X 2 X 5000 MM 20 X 2 X 5000 MM	D 486 020 A5
-	Seal'bestelleinheit 20'	AKL 450 S45 20
1	Rear lid also use: 171 827 200801 867 299(01 C) 171 827 200801 867 299(01 C)	171 827 025 K
10	Lid lock	331 827 505 D
11	Striker plate	331 827 511 A
12	oval head countersunk bolt M 6 X 14 M 6 X 14	N 033 040 1
12A	rubber stop (pressed in)for striker plate	171 827 525
13	rubber stop (bolted on)for striker plate	331 827 525 A
14	oval head countersunk bolt M 4 X 8 M 4 X 8	N 014 257 1
15	seal for press botton	361 827 527
16	Lid lock	171 827 539
17	key Key Blade VBquote key numberfor cut keys	171 837 219
17	main key Key Blade VBquote key numberfor cut keys	161 837 219
18	drain tube	171 827 547
18	No longer available	—
19	Flap support	171 827 363 A
19	No longer available	—
1A	Bungs 65 X 16 MM 65 X 16 MM	171 827 200
2	Lid hinge	171 827 301 A
20	Spring washer 8 8	N 900 020 01
21	Gas filled strut	171 827 550 A
22	Compensating piece	171 827 625
23	Pin	171 827 627
24	Retaining washer 5 5	N 012 326 2
25	Puffer	171 823 499
25	Stop buffer 30 X 22/12 30 X 22/12	867 827 500 A
25	Stop buffer 30 X 22/12 30 X 22/12	867 827 500
26	trim for cap	171 827 645
27	Dichtring fuer Blende	171 827 647
27	No longer available	—
28	Seal shorten to: 3520 MM 3520 MM	321 827 705 A
29	Trim for air outlet	171 819 465
3	fillister hd. bolt M 6 X 15 M 6 X 15	N 014 140 5
30	Clip	801 867 299
31	Cover cap	411 837 111
31	No longer available	—
32	No longer available	—
32	Trim	171 867 605
33	intermediate (zinc)(bag contains 50 pieces)	AKL 381 035 50
4	Seal make up from: D 486 020 A 5 D 486 020 A 5	—
5	Belleville spring 6,4 X 18 6,4 X 18	311 837 943
6	Hexagon bolt M 6 X 10 M 6 X 10	N 905 293 01
6	Hexagon bolt M 6 X 10 K M 6 X 10 K	N 010 210 7
7	leaf spring	171 827 375
7	No longer available	—
8	sound absorber (self-adhesive)	171 827 379
9	No longer available	—
9A	Puffer	171 827 500 A
