Aluminium rim — Mk1 Golf Wheels Tyres (1982 - 1983)
Factory title: Volkswagen Golf (1982 - 1984) - Steel rim

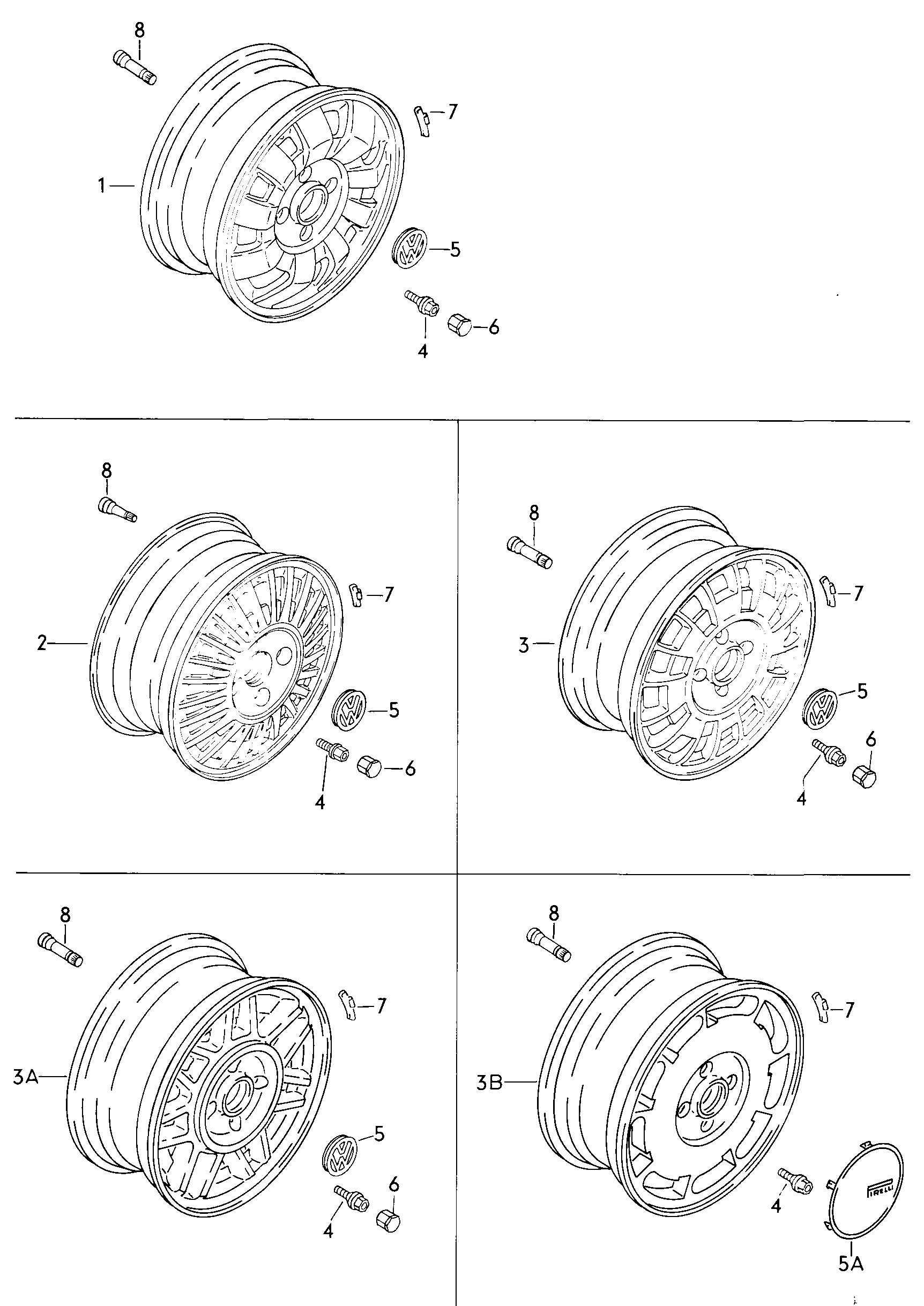

Aluminium rim for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 107010 from the Volkswagen ETKA parts catalogue, group 31 Wheels / tyres, listing 22 OEM part numbers across 23 catalogued positions including 321 601 171 A 0 1C, 171 601 025 H V 7U and 321 601 173 A 0 1C. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.
Parts on this diagram
This Mk1 Golf plate lists 22 OEM part numbers across 23 numbered positions.
| № | Description | Part number |
|---|---|---|
| Satin black | 321 601 171 A 0 1C | |
| Dolomite grey metallicfor winter tires 4/100321 601 025 H(091) S 752,S 707 S 712,SCIR.:GTX 4/100321 601 025 H(091) | 171 601 025 H V 7U | |
| Satin black | 321 601 173 A 0 1C | |
| - | retaining spring for wheel cap: | 191 601 176 |
| - | Spring | 255 601 180 |
| (5) | Hub cap 80 MM 80 MM | 321 601 171 A |
| (7) | Balancer weight 30 G 30 G | 255 601 182 |
| (7) | Balancer weight 20 G 20 G | 255 601 181 |
| (7) | Balancer weight 40 G 40 G | 255 601 183 |
| 1 | Aluminium rimfor winter tires 5,5 JX 13 H 2 ET 38321 601 025 J GOLF,SCIR.,JETTA:S 734 5,5 JX 13 H 2 ET 38321 601 025 J | 171 601 025 J |
| 2 | Aluminium rimfor winter tires 5,5 JX 13 H 2 ET 38321 601 025 J JETTA,GOLF GTI:S 751/S 707,S 712 5,5 JX 13 H 2 ET 38321 601 025 J | 321 601 025 G |
| 3 | Aluminium rimfor winter tires 5 JX 13 H 2 ET 45321 601 025 K 5 JX 13 H 2 ET 45321 601 025 K | 531 601 025 A |
| 3A | Aluminium rim= AVUS = 6 JX 14 H 2 ET 384/100 GOLF GTI: 6 JX 14 H 2 ET 384/100 | 171 601 025 H |
| 3B | Aluminium rimchrome coloredfor winter tires 6 JX 14 H 2 ET 384/100 PIRELLI 321 601 025 H GOLF GTI:S 750,S 707,S 712 6 JX 14 H 2 ET 384/100 PIRELLI 321 601 025 H | 171 601 025 A |
| 4 | Wheel bolt M 12 X 1,5 X 23,5 M 12 X 1,5 X 23,5 | 321 601 139 C |
| 4 | Wheel bolt M 12 X 1,5 X 23,5 M 12 X 1,5 X 23,5 | 3A0 601 139 |
| 5 | Hub cap Black 58 MM 58 MM | 321 601 171 C |
| 5A | Hub cap 165 MM PIRELLI GOLF GTI:S 750,S 707,S 712 165 MM PIRELLI | 171 601 171 A |
| 5A | No longer available 165 MM PIRELLI GOLF GTI:S 750,S 707,S 712 165 MM PIRELLI | — |
| 6 | cap - wheel bolt 16,7 X 18 MB 16,7 X 18 MB | 321 601 173 A |
| 7 | Balancer weight 10 G 10 G | 255 601 179 |
| 8 | Rubber valve 43 GS/11,5 43 GS/11,5 | 281 601 361 |
| 8 | Rubber valve | 839 601 361 |
