Steel rim aluminium rim — Mk1 Golf Wheels Tyres (1981)

Factory title: Volkswagen Golf (1981) - Steel rim. Aluminium rim

Generation: Mk1 1981 (RDW) Group: Wheels / tyres Parts: 50 Primary OEM: 321 601 171 A 0 1C, 321 601 173 A 0 1C, 321 601 025 A

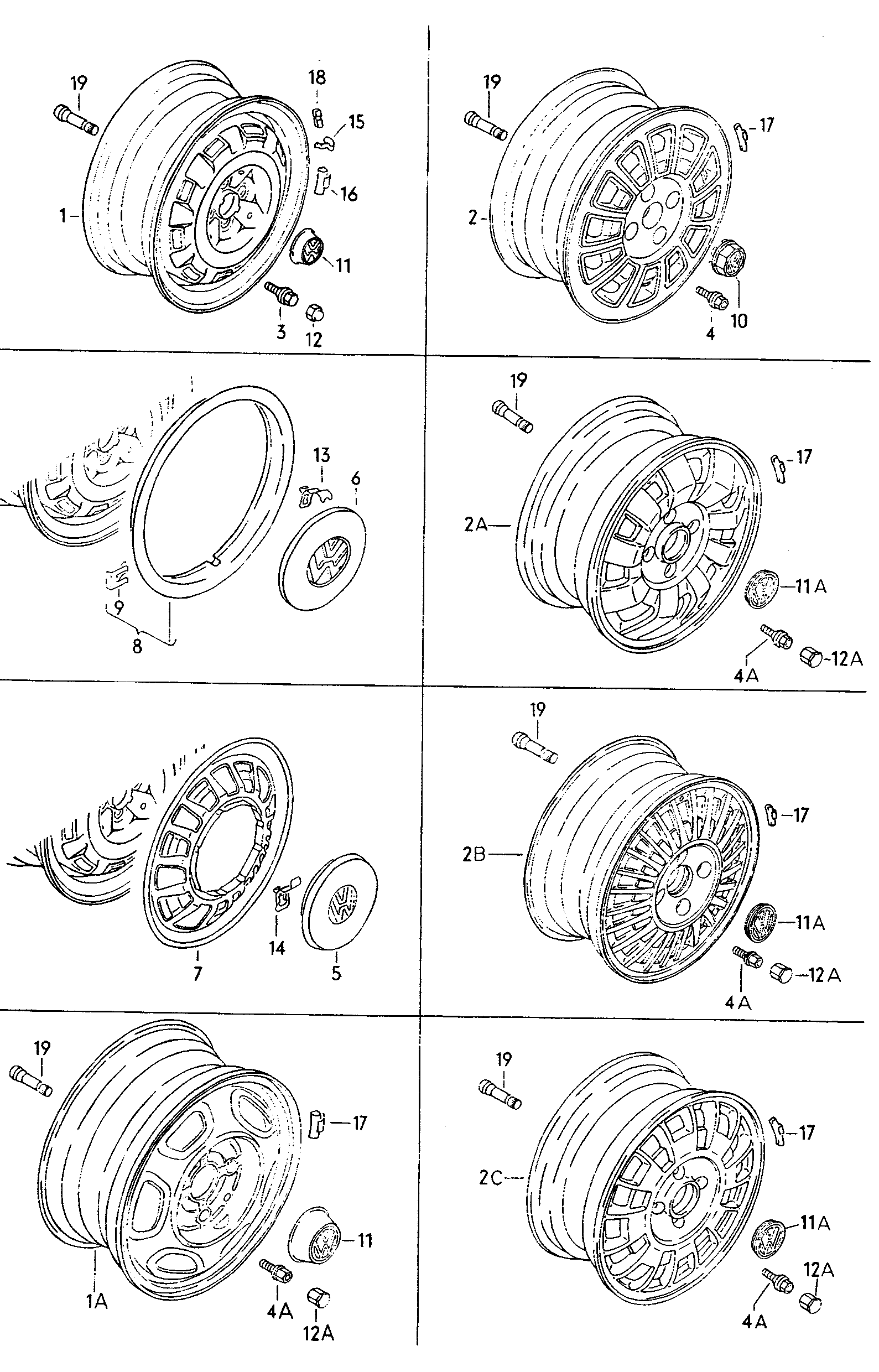

Steel rim aluminium rim for the Volkswagen Golf Mk1 (1981): factory exploded diagram 107000 from the Volkswagen ETKA parts catalogue, group 31 Wheels / tyres, listing 50 OEM part numbers including 321 601 171 A 0 1C, 321 601 173 A 0 1C and 321 601 025 A. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 50 OEM part numbers across 50 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
Satin black For steel rim
 321 601 171 A 0 1C
Satin black
 321 601 173 A 0 1C
(1)
Steel rimchrome colored F ..-B-000 001>>F 53-B-000 001>> 53-B-050 000 5 JX 13 H 2 ET 454/100 GOLF,JETTA,GOLF CABRIO;SCIR.
5 JX 13 H 2 ET 454/100
 321 601 025 A
(1)
Steel rimchrome colored F ..-B-000 001>>F 53-B-000 001>> 53-B-050 000 5,5 JX 13 H 2 ET 384/100 GOLF GTI,JETTA S,LS,LI,LE,GLS,GLE,GLI,GOLF CABRIOGLI;SCIR.GTI,GLI
5,5 JX 13 H 2 ET 384/100
 171 601 025 B
(16)
Balancer weight with retainingspring 20 G
20 G
 111 601 181
(16)
Balancer weight with retainingspring 90 G
90 G
 111 601 188
(16)
Balancer weight with retainingspring 80 G
80 G
 111 601 187
(16)
Balancer weight with retainingspring 60 G
60 G
 111 601 185
(16)
Balancer weight with retainingspring 50 G
50 G
 111 601 184
(16)
Balancer weight with retainingspring 40 G
40 G
 111 601 183
(16)
Balancer weight with retainingspring 30 G
30 G
 111 601 182
(16)
Balancer weight with retainingspring 15 G
15 G
 111 601 179
(18)
Balancer weight 60 G
60 G
 255 601 185
(18)
Balancer weight 10 G
10 G
 255 601 179
(18)
Balancer weight 50 G
50 G
 255 601 184
(18)
Balancer weight 70 G
70 G
 255 601 186
(18)
Balancer weight 20 G
20 G
 255 601 181
(18)
Balancer weight 30 G
30 G
 255 601 182
(18)
Balancer weight 40 G
40 G
 255 601 183
(1A)
Steel rimchrome coloredpaint if required F 53-B-200 001>> 5,5 JX 13 H 2 ET 384/100 SCIR:GTI,GLI
5,5 JX 13 H 2 ET 384/100
 321 601 025 J
(2)
Aluminium rimchrome coloredfor winter tires F >> 15-B-014 000*F >> 16-B-395 000*F >> 17-B-395 687*F 53-B-000 001>> 53-B-050 000 5,5 JX 13 H 2 ET 384/100 GOLF CABRIO,JETTAGOLFSCIR.
5,5 JX 13 H 2 ET 384/100
 171 601 025 C
(4)
Wheel bolt Aluminium rim F >> 15-B-014 000*F >> 16-B-395 000*F >> 17-B-397 687*F >> 53-B-050 000 M 12 X 1,5 X 28 GOLF CABRIO,JETTA,GOLF,SCIR.
M 12 X 1,5 X 28
 321 601 139 A
(7)
wheel trim ringchromed For rim: 5,5 JX 13 H 2 JETTA GLE,GLI,GLS
5,5 JX 13 H 2
 161 601 155
1
Steel rimchrome colored F 17-B-000 001>> 4,5 JX 13 H 2 ET 454/100 GOLF
4,5 JX 13 H 2 ET 454/100
 321 601 025
10
Hub cap Black F >> 15-B-014 000*F >> 16-B-395 000*F >> 17-B-395 000*F 53-B-000 001>> 53-B-050 000 51 MM GOLF CABRIO,JETTA,GOLF,SCIR.
51 MM
 111 601 171
11
Hub cap 80 MM
80 MM
 321 601 171 A
11A
Hub cap Black F 15-B-014 001>>*F 16-B-395 001>>*F 17-B-395 001>>*F 53 200 001>>* 58 MM GOLF CABRIO,JETTA,GOLF,SCIR.
58 MM
 321 601 171 C
12
cap - wheel bolt Black F >> 15-B-014 000*F >> 16-B-395 000*F >> 17-B-397 687*F >> 53-B-050 000* GOLF CABRIO,JETTA,GOLF,SCIR.
 321 601 173
12A
cap - wheel bolt F 15-B-014 001>>*F 16-B-395 001>>*F 17-B-395 001>>*F 53-B-200 001>> 16,7 X 18 MB GOLF CABRIO,JETTA,GOLF,SCIR.
16,7 X 18 MB
 321 601 173 A
13
retaining spring forhub cap chrome 321 601 151 B
321 601 151 B
 321 601 175 B
14
retaining spring forhub cap chrome JETTA GL,GLS,GLI,GLE
 161 601 175
15
Spring Balancer weight
 255 601 180
16
Balancer weight with retainingspring 70 G
70 G
 111 601 186
16
Balancer weight with retainingspring 10 G
10 G
 111 601 178
18
Balancer weight 5 G
5 G
 443 601 190
19
Rubber valve
 839 601 361
19
Rubber valve 43 GS/11,5
43 GS/11,5
 281 601 361
1A
Steel rimchrome colored F 53-B-200 001>> 5 JX 13 H 2 ET 454/100 SCIR.
5 JX 13 H 2 ET 454/100
 321 601 025 K
2
Aluminium rimchrome coloredfor winter tires F >> 15-B-014 000*F >> 16-B-395 000*F >> 17-B-397 687*F 53-B-000 001>> 53-B-050 000 5 JX 13 H 2 ET 454/100171 601 025 E GOLF CABRIOJETTAGOLFSCIR.
5 JX 13 H 2 ET 454/100171 601 025 E
 321 601 025 C
2A
Aluminium rimchrome coloredfor winter tires F 15-B-014 001>>*F 16-B-395 001>>*F 17-B-397 687>>F 53-B-200 001>> 5,5 JX 13 H 2 ET 384/100321 601 025 J GOLF CABRIO,JETTA,GOLF,SCIR.
5,5 JX 13 H 2 ET 384/100321 601 025 J
 171 601 025 J
2B
Aluminium rimchrome coloredfor winter tires F 16-B-395 001>>* 5,5 JX 13 H 2 ET 384/100321 601 025 J JETTA
5,5 JX 13 H 2 ET 384/100321 601 025 J
 321 601 025 G
2C
Aluminium rimchrome coloredfor winter tires F 15-B-014 001>>*F 16-B-395 001>>*F 17-B-397 687>>F 53-B-200 001>> 5 JX 13 H 2 ET 454/100321 601 025 K GOLF CABRIO,JETTA,GOLF,SCIR.
5 JX 13 H 2 ET 454/100321 601 025 K
 531 601 025 A
3
Wheel bolt Steel rim F ..-B-000 001>>F 53-B-000 001>> 53-B-050 000 M 12 X 1,5 X 20 GOLF,JETTA,GOLF CABRIO,SCIR.
M 12 X 1,5 X 20
 321 601 139
4A
Wheel bolt F 15-B-014 001>>*F 16-B-395 001>>*F 17-B-397 687>>F 53-B-200 001>> M 12 X 1,5 X 23,5 GOLF CABRIO,JETTA,GOLF,SCIR.
M 12 X 1,5 X 23,5
 3A0 601 139
4A
Wheel bolt F 15-B-014 001>>*F 16-B-395 001>>*F 17-B-397 687>>F 53-B-200 001>> M 12 X 1,5 X 23,5 GOLF CABRIO,JETTA,GOLF,SCIR.
M 12 X 1,5 X 23,5
 321 601 139 C
5
Hub cap For rim: 5,5 JX 13 H 25 JX 13 H 2 JETTA GL,GLS,GLI,GLE
5,5 JX 13 H 25 JX 13 H 2
 321 601 149
6
Hub cap For rim:F 15-B-000 001>>F 17-B-000 001>>F 53-B-000 001>> 53-B-050 000 5 JX 13 H 2 GOLF CABRIO,GOLF GL,GLS,GLD,GLE,SCIR. CL.
5 JX 13 H 2
 321 601 151 B
7
wheel trim ringchromed For rim: 5 JX 13 H 2 JETTA GL
5 JX 13 H 2
 321 601 155 B
8
wheel trim ringchromed 13" SCIR. CL
13"
 823 601 155 A
9
retaining spring SCIR. CL
 823 601 165 A

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these wheels tyres diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk1
Model years
1981
Generation region
RDW
Generation code
026
Factory group
31 Wheels / tyres
Factory subgroup
107000

Related factory diagrams

Other published wheels tyres plates for the Mk1 Golf in this catalogue.

The complete Mk1 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the steel rim aluminium rim diagram for the Mk1 Golf?
This diagram lists 50 OEM part numbers for the Mk1 Golf. The first three are 321 601 171 A 0 1C, 321 601 173 A 0 1C and 321 601 025 A.
Which Mk1 Golf years and engines does this diagram cover?
This plate is from the Mk1 Golf 1981 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk1 Golf factory parts catalogue?
The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.
