Rear wiring set — Mk1 Golf Wiring Looms (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Wiring looms

Generation: Mk1 1979 - 1980 (RDW) Group: Wiring looms Parts: 28 Primary OEM: 161 945 247, 531 971 489 A, 161 971 898

Rear wiring set for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 159010 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 27 OEM part numbers across 28 catalogued positions including 161 945 247, 531 971 489 A and 161 971 898. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 27 OEM part numbers across 28 numbered positions.

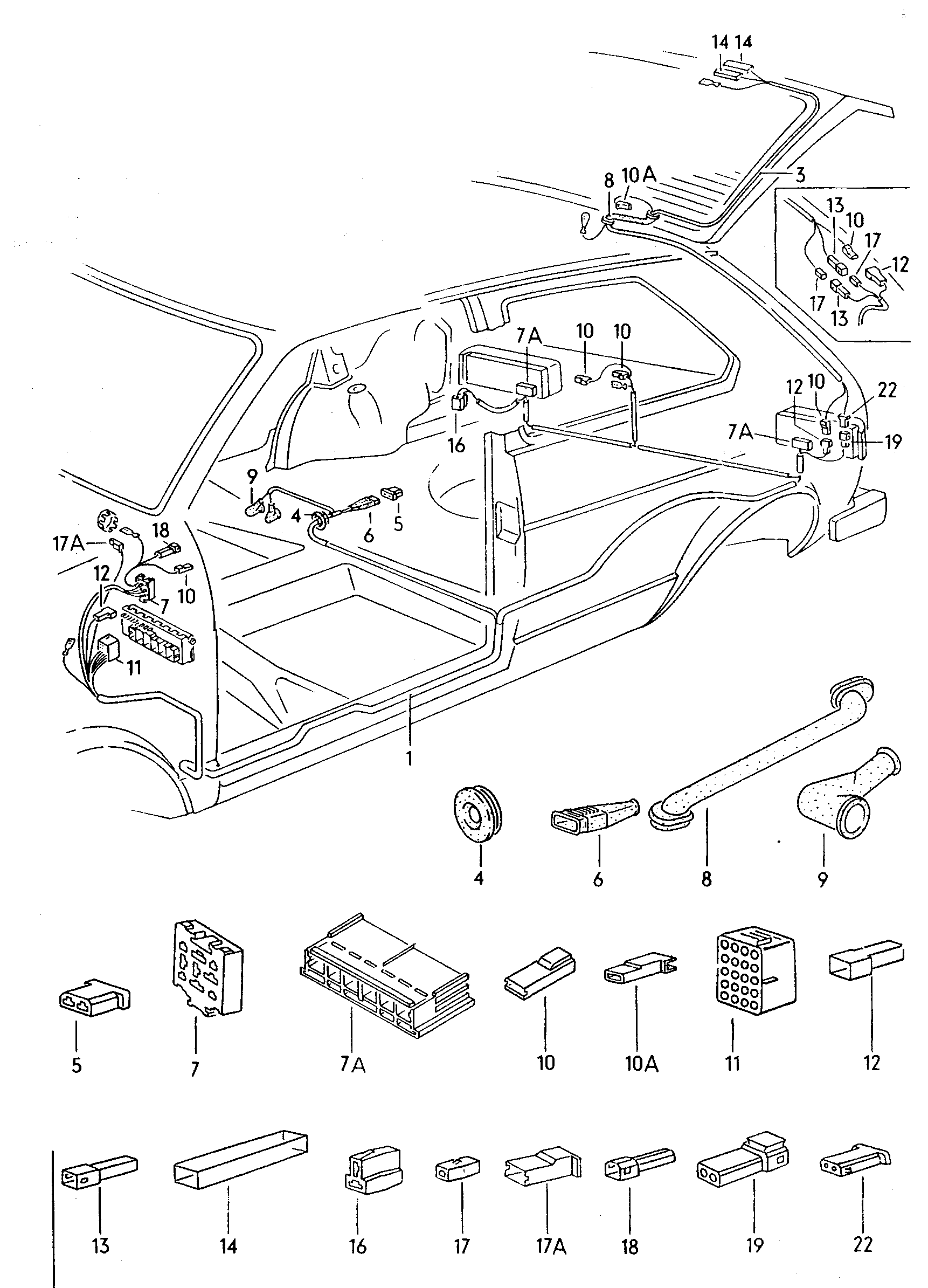

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	Flat contact housing JETTA	161 945 247
-	wiring harness forheated rear window SCIR.	531 971 489 A
-	Clip 7 X 35 MM JETTA 7 X 35 MM	161 971 898
-	flat connector housing also use: 161 971 989 C 161 971 989 C	161 971 988 C
-	Flat contact housing also use: 161 971 988 C 1 161 971 988 C 1	161 971 989 C
(1)	Rear wiring set GOLF CABRIO.GOLF GLI	155 971 011 C
(1)	Rear wiring set SCIR.	531 971 011 AH
(1)	Rear wiring set JETTA	161 971 011 J
(10A)	Flat contact housing also use: 000 979 222 000 979 222	1H0 971 921 A
(12)	flat connector housing also use: 161 971 990 A 161 971 990 A	161 971 976 A
(13)	flat connector housing also use: 161 971 990 A 161 971 990 A	161 971 976 A
(17)	Flat contact housing also use: 161 971 976 A 161 971 976 A	161 971 990 A
(18)	flat connector housing also use: 161 971 990 A 161 971 990 A	161 971 976 A
(6)	Protective cap	447 919 141
(8)	Grommet F 53 A 0021 489>> 12,5/9/12,8 12,5/9/12,8	531 971 840
(8)	Grommet 22 X 15/10/22 X 15 22 X 15/10/22 X 15	171 971 840 A
(9)	Bracket protective cover 12 X 6 12 X 6	113 971 901 A
1	Rear wiring set GOLF	171 971 011 AS
10	Flat contact housing	111 971 921 B
10A	Flat contact housing	171 971 921
11	rd. connector sleeve housing	171 971 971
14	flat connector housing 6,3 6,3	111 971 977
3	No longer available	—
3	wiring harness for heatedrear windoow and rear wipermotor	171 971 211 L
4	Rubber grommet	211 711 535
5	Flat contact housing	443 906 231
7	relay plate	135 937 501 A
8	Grommet 22 X 15/10/22 X 15 22 X 15/10/22 X 15	171 971 840
