Wiring harness front right — Mk1 Golf Wiring Looms (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Wiring looms

Generation: Mk1 1979 - 1980 (RDW) Group: Wiring looms Parts: 20 Primary OEM: 172 971 072 BE, 531 971 072 BM, 531 971 072 CA

Wiring harness front right for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 159050 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 14 OEM part numbers across 20 catalogued positions including 172 971 072 BE, 531 971 072 BM and 531 971 072 CA. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 14 OEM part numbers across 20 numbered positions.

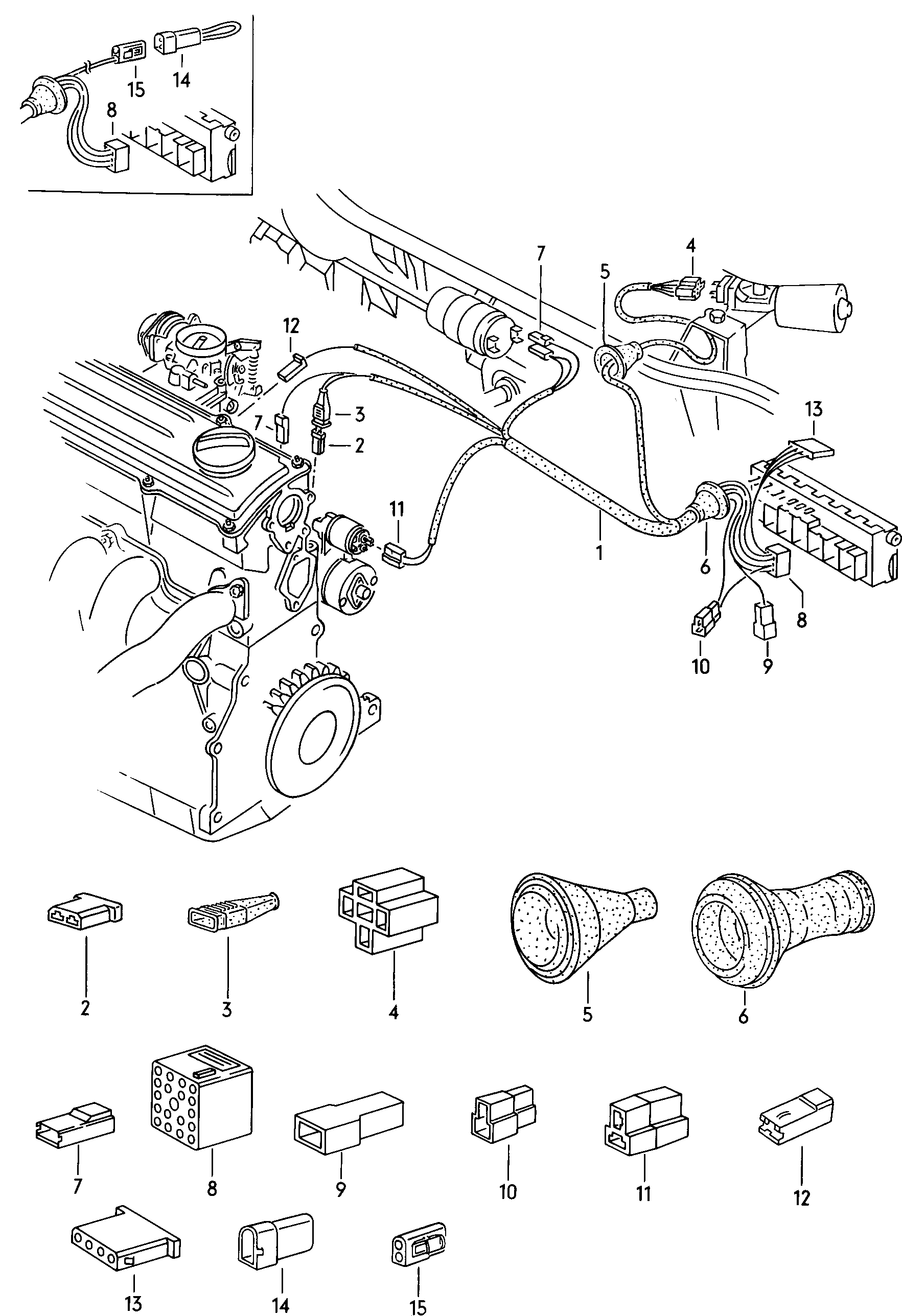

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
wiring harness: front right 1.1/1.3 ltr. carburetorengine
1.1/1.3 ltr.
 —
(1)
wiring harness: front right F >> 159 2810 000 F >> 179 3750 000 GOLF CABRIOGOLF
 172 971 072 BE
(1)
wiring harness: front right F >> 539 2200 000 SCIR.
 531 971 072 BM
(1)
wiring harness: front right F 53 A 0000 001>> SCIR.
 531 971 072 CA
(2)
Flat contact housing
 443 906 231
(3)
Protective cap
 447 919 141
(5)
Grommet 33,5/6
33,5/6
 171 971 905 B
1
No longer available F 15 A 0800 001>>F 16 A 0000 001>>F 17 A 0000 001>> GOLF CABRIOJETTAGOLF
 —
1
wiring harness: front right F 15 A 0800 001>>F 16 A 0000 001>>F 17 A 0000 001>> GOLF CABRIOJETTAGOLF
 172 971 072 CF
10
Discont. / replace: 161 971 988 C 161 971 989 C
161 971 988 C 161 971 989 C
 —
11
Discont. / replace: 161 971 988 C 161 971 989 C
161 971 988 C 161 971 989 C
 —
12
Discont. / replace: 161 971 976 A 161 971 990 A
161 971 976 A 161 971 990 A
 —
13
rd. connector sleeve housing
 171 971 999 C
14
round connector housing
 811 972 575
15
rd. connector sleeve housing
 811 972 577
4
Flat contact housing
 803 971 835 A
6
Grommet 33,5/11
33,5/11
 171 971 905 C
7
Flat contact housing
 111 971 921 B
8
rd. connector sleeve housing
 171 971 971 C
9
Discont. / replace: 161 971 976 A 161 971 990 A
161 971 976 A 161 971 990 A
 —

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these wiring looms diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.
